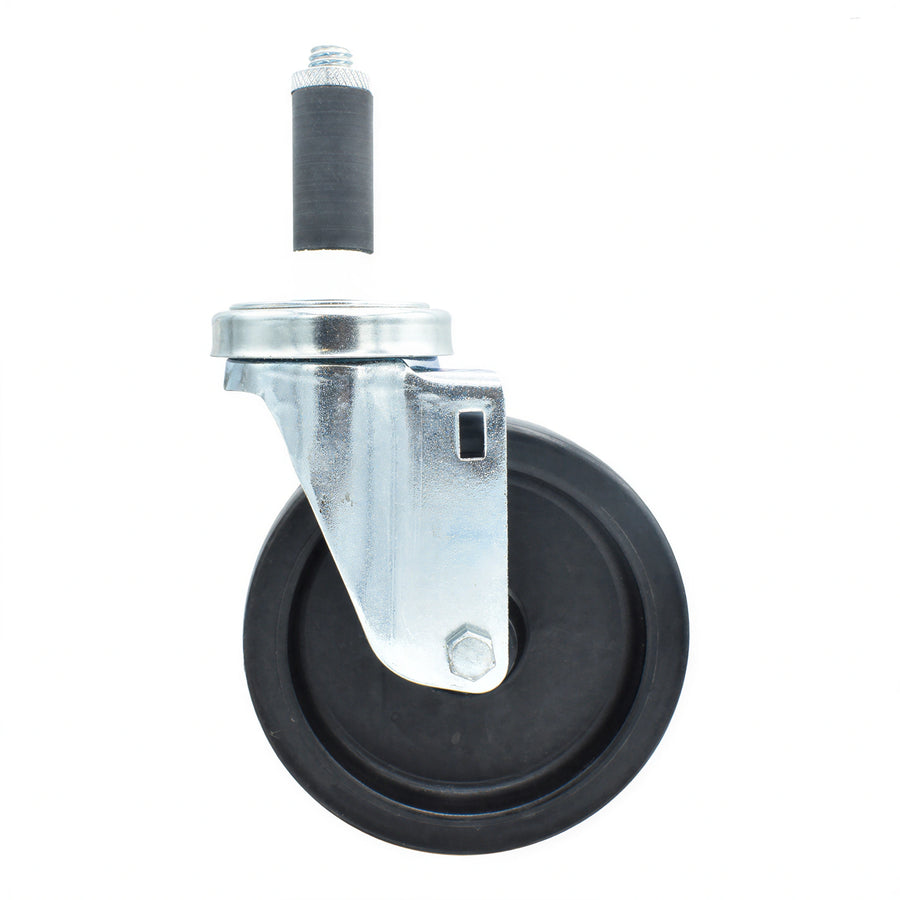

BK Resources 5SBR-1RA-LDP Swivel Stem Caster, 1" Expanding Stem, 5" Polyolefin Wheel, Top-Lock Brake, 300 lb Capacity
SKU: 5SBR-1RA-LDP
$15.92
The BK Resources 5SBR-1RA-LDP is a swivel stem caster with a 1-inch expanding stem and a 5-inch polyolefin wheel.
- Fits standard 1-inch outside-diameter tubing.
- Supports a 300 lb capacity.
- Features a double ball bearing raceway.
- The polyolefin wheel is non-marking and resistant to chemicals and solvents.
- Operates from -45°F to 180°F.
- Includes zinc-plated steel construction.
Overall Dimensions:
6.38"HProduct Weight:
2.0 lbExpanding stem
The 1-inch expanding stem fits standard 1-inch outside-diameter tubing.
Polyolefin wheel
The 5-inch wheel uses polyolefin material and non-marking tread.
Load capacity
Rated for a 300 lb capacity.
Double ball bearing raceway
Provides wear resistance and added strength.
Chemical and solvent resistance
The polyolefin wheel is resistant to chemicals and solvents.
Operating temperature
Rated for an operating temperature range of -45°F to 180°F.
Zinc-plated steel
The caster uses zinc-plated steel.
Caster type
Swivel caster
Stem type
1 in expanding stem
Tubing compatibility
Fits 1 in outside-diameter tubing
Wheel diameter
5 in
Wheel material
Polyolefin
Wheel tread
Polyolefin, non-marking
Load capacity
300 lb
Bearing
Double ball bearing
Operating temperature
-45°F to 180°F
Chemical resistance
Resistant to chemicals and solvents
Construction
Zinc-plated steel
Exposed height
6 in
Documents
Frequently Asked Questions
The 1-inch expanding stem fits standard 1-inch outside-diameter tubing.
It has a 5-inch polyolefin wheel with non-marking tread.
The caster has a 300 lb capacity.
The specified operating temperature range is -45°F to 180°F.
