Key specifications
- Type
- Plate Caster
- Material
- Polyolefin
- Diameter
- 5 inches
- Capacity
- 300 lb
- Brake
- Top Lock Brake
- Top Plate Size
- 2-3/8 x 3-5/8 inches
Spec sheet
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Type
Plate Caster
Material
Polyolefin
Diameter
5 inches
Capacity
300 lb
Brake
Top Lock Brake
Top Plate Size
2-3/8 x 3-5/8 inches
King Pin Diameter
1/2 inch
Bearing Type
Double Ball Bearing
Bearing Sleeve Material
Nylon
Finish
Zinc Plated
Temperature Range
-45°F to 180°F
Description

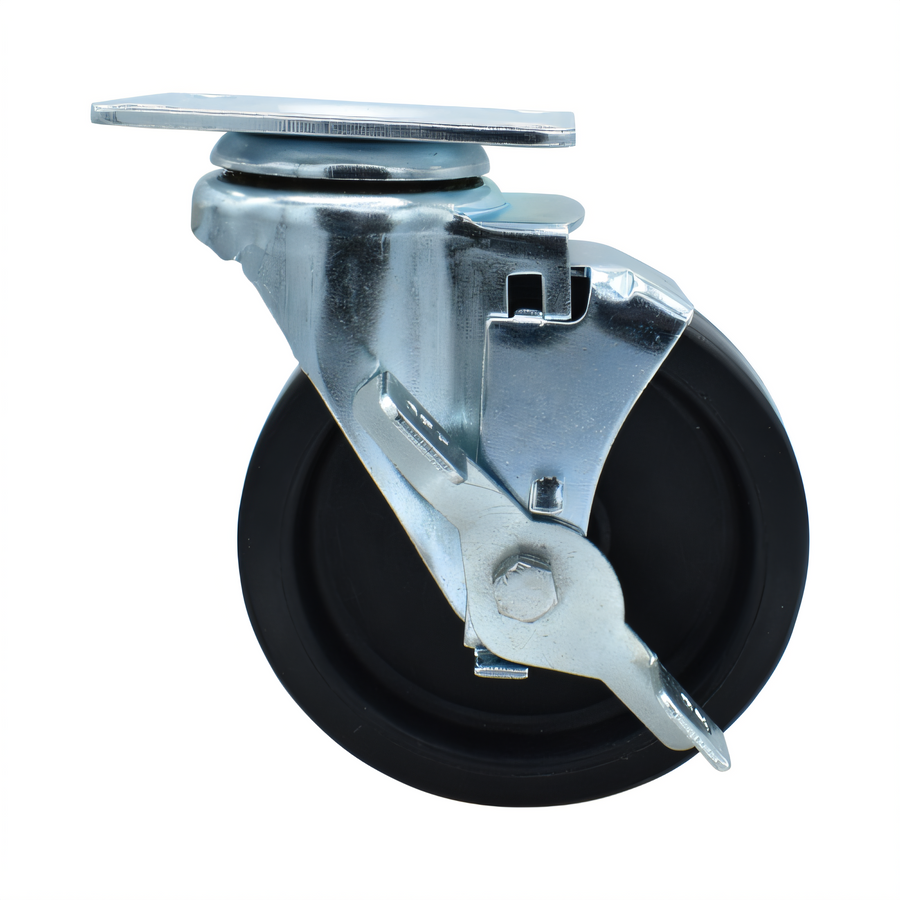

The BK Resources 5SBR-1PT-LDP-TLB is a plate caster with a 5-inch polyolefin wheel, top lock brake, and 300 lb capacity.
- Includes a 2-3/8 x 3-5/8 inch top plate and 1/2 inch king pin.
- Features a double ball bearing raceway and nylon bearing sleeve.
- The zinc-plated caster is resistant to chemicals and solvents and operates from -45°F to 180°F.
Product Weight:
2.0 lbTop Lock Brake
The TLB version includes a top lock brake.
Polyolefin Wheel
The caster uses a 5-inch polyolefin wheel.
Double Ball Bearing Raceway
The double ball bearing raceway supports wear resistance and added strength.
Nylon Bearing Sleeve
Includes a nylon bearing sleeve.
Chemical and Solvent Resistance
The product data sheet states resistance to chemicals and solvents.
Zinc Plated
The caster is zinc plated.
Documentation
Certifications & Compliance
Frequently Asked Questions
Yes. This exact model has a top lock brake.
The caster has a 300 lb capacity.
The wheel is made of polyolefin.
The operating temperature range is -45°F to 180°F.
Yes. NSF is listed for this product.
