Key specifications
- Type
- Plate Caster
- Style
- Top Lock Brake
- Material
- Rubber
- Color
- Gray
- Finish
- Zinc Plated
- Diameter
- 5 Inches
Spec sheet
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Type
Plate Caster
Style
Top Lock Brake
Material
Rubber
Color
Gray
Finish
Zinc Plated
Diameter
5 Inches
Capacity
250 lb
Brake
Top Lock Brake
Top Plate Size
2-3/8 x 3-5/8 Inches
Overall Height
6 Inches
King Pin
1/2 Inch
Bearing Type
Double Ball Bearing
Wheel Surface
Non-Marking
Temperature Range
-45°F to 180°F
Selling Unit
1 Each
Description

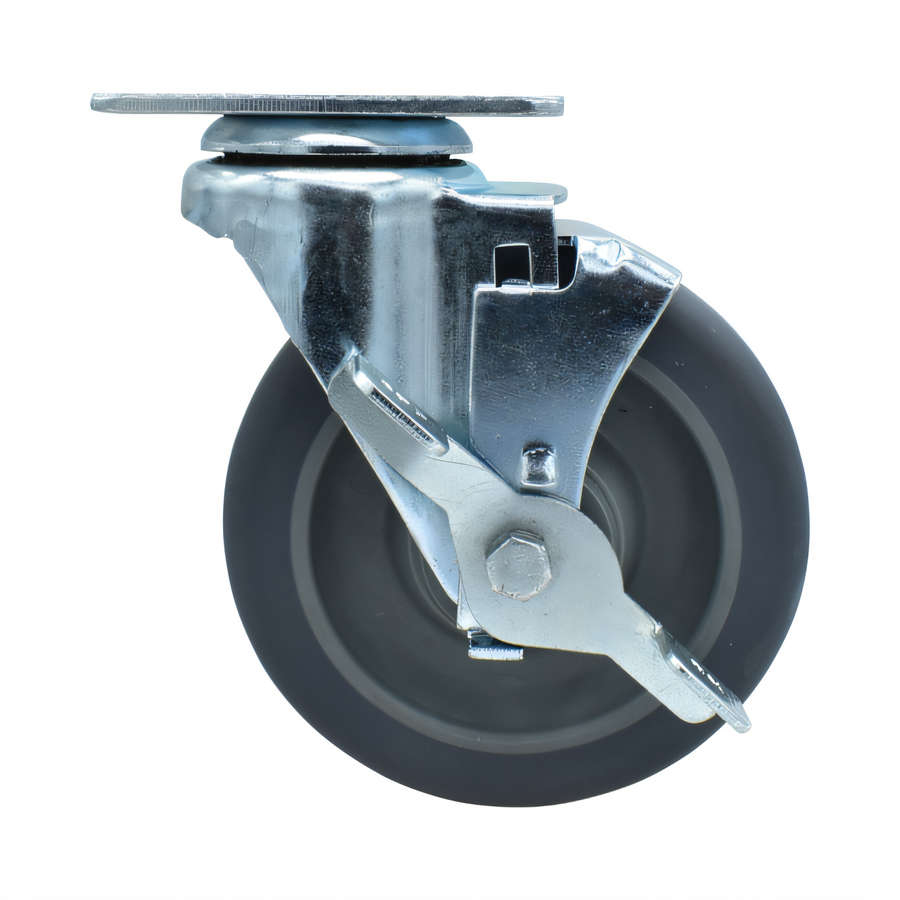

The BK Resources 5SBR-1PT-GR-TLB is a plate caster with a gray, non-marking rubber wheel and top-lock brake.
- 5-inch wheel with 250 lb capacity.
- Double ball-bearing raceway and 1/2-inch king pin.
- Zinc-plated finish.
- Resistant to oil, grease, water, and most solvents.
- Operating temperature range of -45°F to 180°F.
Product Weight:
2.0 lbTop Lock Brake
The TLB version provides a top-lock brake.
Rubber Wheel
Gray, non-marking 5-inch rubber wheel.
Double Ball Bearing Raceway
Double ball-bearing raceway for long wear and added strength.
Resistance
Resistant to oil, grease, water, and most solvents.
Temperature Range
Operating temperature range of -45°F to 180°F.
King Pin
Includes a 1/2-inch king pin.
Quiet Operation
The caster is described as smooth and quiet.
Documentation
Certifications & Compliance
Frequently Asked Questions
Yes. It has a top-lock brake.
The rubber wheel is 5 inches in diameter.
The capacity is 250 lb.
Yes. The wheel is non-marking.
The operating temperature range is -45°F to 180°F.
The top plate measures 2-3/8 x 3-5/8 inches.
