Key specifications
- Type
- Stem Caster
- Style
- Swivel
- Material
- Polyurethane
- Finish
- Zinc Plated
- Diameter
- 3 Inches
- Exposed Height
- 4.125 Inches
Spec sheet
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Type
Stem Caster
Style
Swivel
Material
Polyurethane
Finish
Zinc Plated
Diameter
3 Inches
Exposed Height
4.125 Inches
Stem Size
1-5/8 Inches
Tubing Compatibility
1-5/8 Inches OD Tubing
Brake
Without Brakes
Capacity
300 lb
Bearing Type
Double Ball Bearing
Tread Type
Non-Marking
Chemical Resistance
Acids and Caustics
Temperature Range
-45° to 180°F
Quantity
1
Description

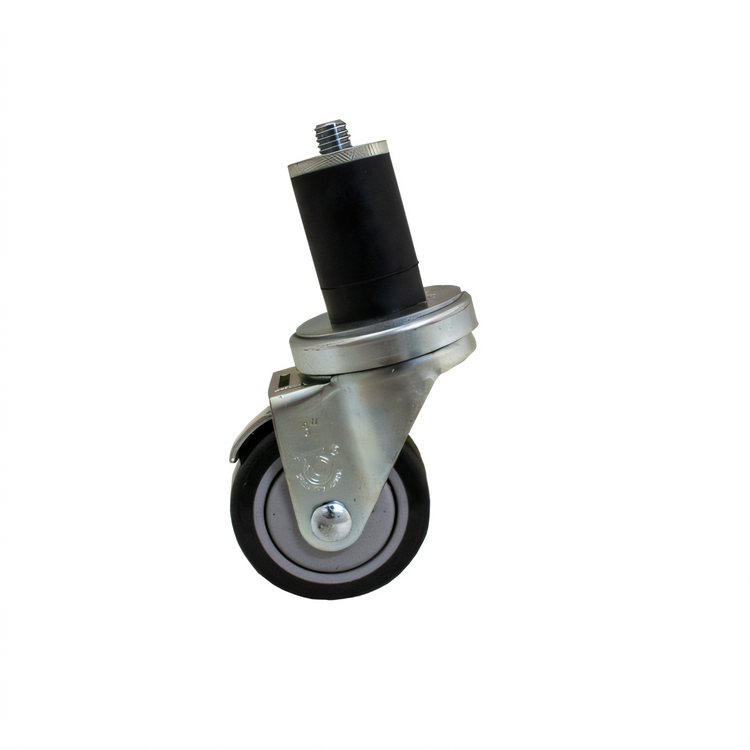

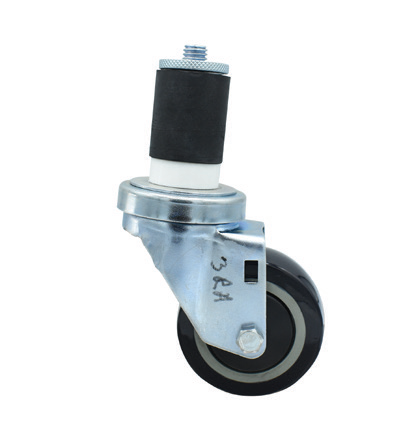

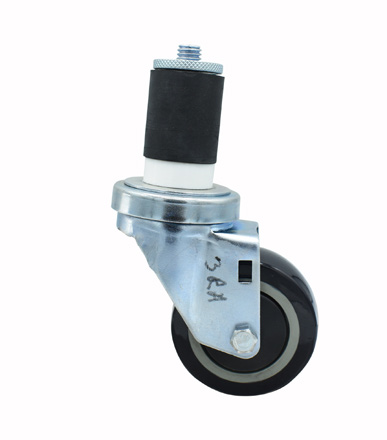

The BK Resources 3SBR-RA-PLY is a 3-inch swivel stem caster with a 300 lb capacity and a polyurethane tread.
- Expanding stem fits standard 1-5/8-inch OD tubing.
- Non-marking polyurethane tread is resistant to acids and caustics.
- Double ball bearing raceway supports long wear and added strength.
- Operating temperature range: -45° to 180°F.
- Zinc-plated finish and no brake.
Product Weight:
1.5 lbExpanding Stem
Expands to fit standard 1-5/8-inch OD tubing.
Swivel Design
Provides swivel caster movement.
No Brake
This exact model is supplied without a brake.
Polyurethane Tread
The non-marking polyurethane tread is resistant to acids and caustics.
Double Ball Bearing Raceway
Designed for long wear and added strength.
Operating Temperature Range
Operates from -45° to 180°F.
Zinc-Plated Finish
The caster has a zinc-plated finish.
Documentation
Certifications & Compliance
Frequently Asked Questions
No. The 3SBR-RA-PLY is supplied without a brake.
Its expanding stem fits standard 1-5/8-inch OD tubing.
The capacity is 300 lb.
The operating temperature range is -45° to 180°F.
Yes. It has a non-marking polyurethane tread.
