Key specifications
- Type
- Stem Caster
- Material
- Polyolefin
- Diameter
- 3 Inches
- Capacity
- 300 lb
- Brake Type
- Top Lock Brake
- Bearing Type
- Double Ball Bearing
Spec sheet
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Type
Stem Caster
Material
Polyolefin
Diameter
3 Inches
Capacity
300 lb
Brake Type
Top Lock Brake
Bearing Type
Double Ball Bearing
Temperature Range
-45°F to 180°F
Stem Thread
5/8-13 x 1 Inch
Finish
Zinc Plated
Description

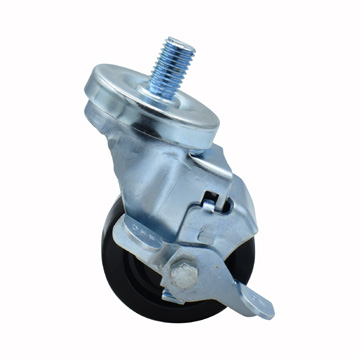

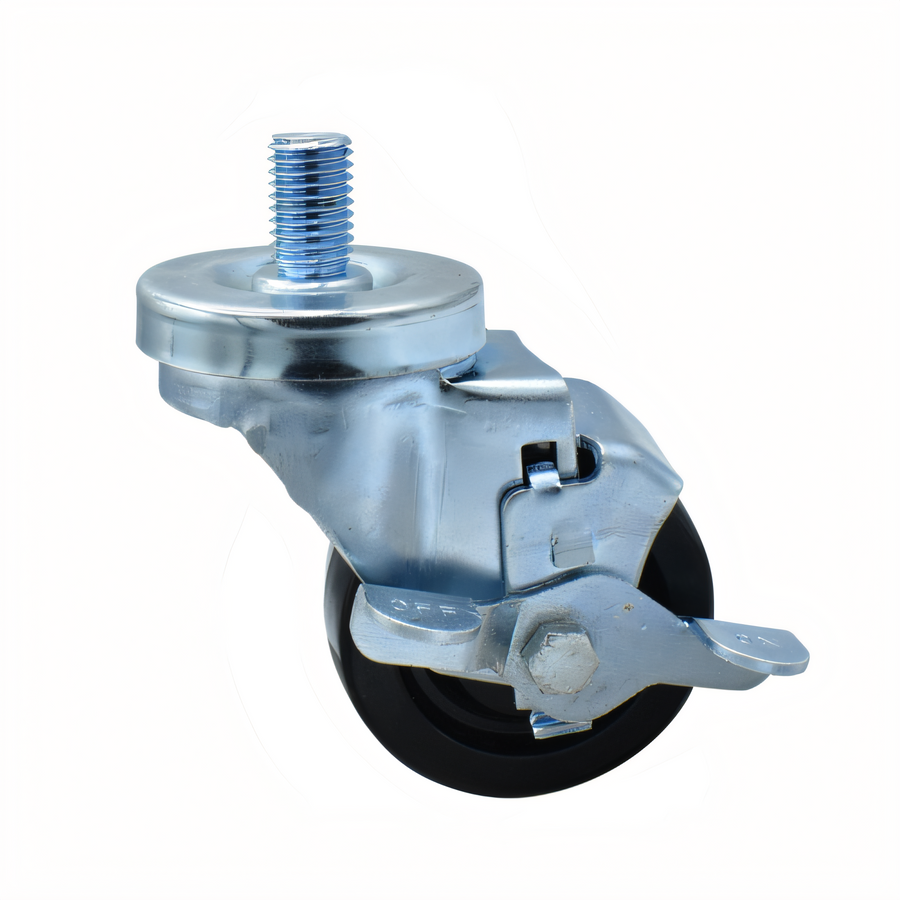

The BK Resources 3SBR-5ST-LDP-TLB is a stem caster with a 3-inch polyolefin wheel and top-lock brake.
- Capacity: 300 lb.
- Wheel: Non-marking polyolefin.
- Raceway: Double ball bearing with dust cover.
- Operating range: -45°F to 180°F.
- Stem: 5/8-13 x 1 inch threaded stem.
- Finish: Zinc plated.
- Material properties: Highly resistant to chemicals and solvents.
Product Weight:
1.25 lbTop-Lock Brake
Includes a top-lock brake.
Polyolefin Wheel
Features a 3-inch, non-marking polyolefin wheel.
300 lb Capacity
Rated for a 300 lb capacity.
Double Ball Bearing Raceway
Provides long wear and added strength.
Chemical and Solvent Resistance
The material is highly resistant to chemicals and solvents.
Raceway Dust Cover
Includes a dust cover for the raceway.
Documentation
Certifications & Compliance
Frequently Asked Questions
Yes. The exact model includes a top-lock brake.
The capacity is 300 lb.
The wheel is made of polyolefin and is non-marking.
The operating temperature range is -45°F to 180°F.
It uses a double ball bearing raceway.
