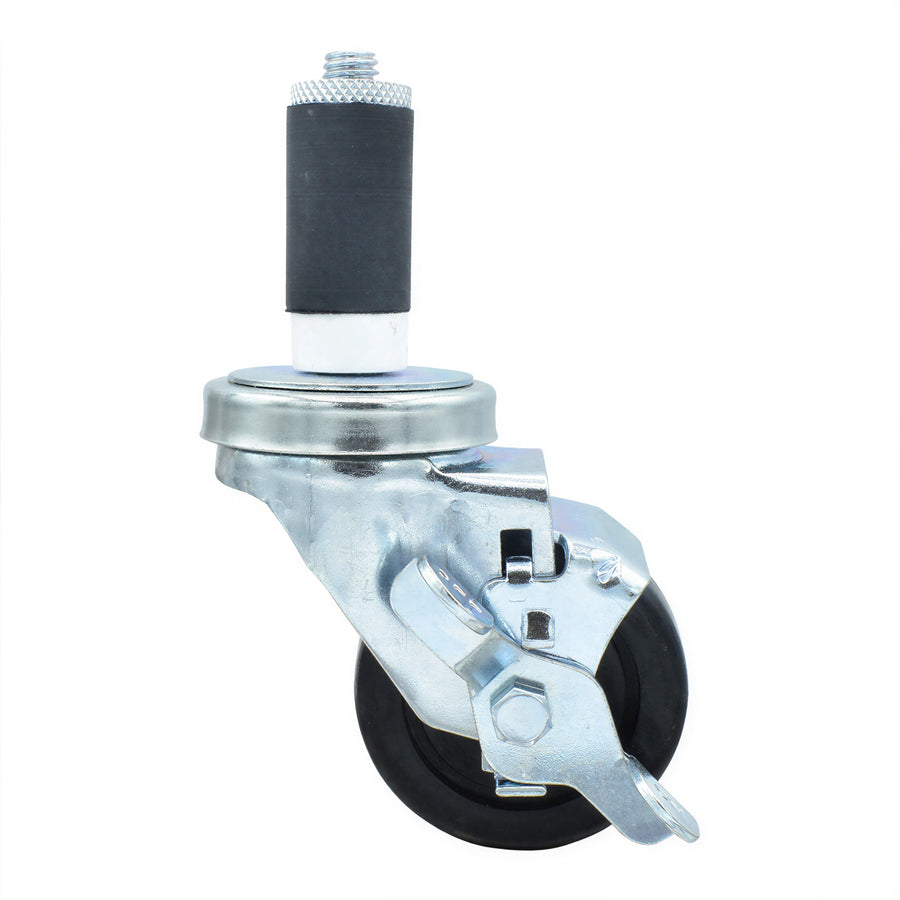

BK Resources 3SBR-2RA-LDP-TLB 3-Inch Polyolefin Swivel Stem Caster with Top-Lock Brake, 300 lb Capacity, 1-1/4-Inch Expanding Stem
SKU: 3SBR-2RA-LDP-TLB
$13.93
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
The BK Resources 3SBR-2RA-LDP-TLB is a swivel stem caster with a 3-inch polyolefin wheel, top-lock brake, and 1-1/4-inch expanding stem.
- Supports up to 300 lb.
- Fits standard 1-1/4-inch tubing with an expanding stem.
- Features a double ball bearing raceway and raceway dust cover.
- Polyolefin wheel is non-marking and resistant to chemicals and solvents.
- Operates from -45°F to 180°F.
Overall Dimensions:
4.25"HProduct Weight:
1.75 lbTop-lock brake
The TLB configuration provides a top-lock brake.
Expanding stem
The 1-1/4-inch stem expands to fit standard 1-1/4-inch tubing.
Polyolefin wheel
The 3-inch wheel is injection-molded polyolefin, non-marking, and resistant to chemicals and solvents.
Double ball bearing raceway
The double ball bearing raceway is specified for added strength and long wear.
Raceway dust cover
Includes a raceway dust cover.
Caster type
Swivel stem caster
Wheel diameter
3 in
Wheel material
Polyolefin
Brake
Top-lock brake
Stem size
1-1/4 in expanding stem
Tubing compatibility
Standard 1-1/4 in W OD tubing
Capacity
300 lb
Bearing
Double ball bearing
Wheel surface
Non-marking
Chemical resistance
Resistant to chemicals and solvents
Operating temperature range
-45°F to 180°F
Construction
Zinc plated steel
Exposed height
4.125 in
Quantity
1
Documents
Frequently Asked Questions
The caster has a 300 lb capacity.
Yes. The 3SBR-2RA-LDP-TLB has a top-lock brake.
It has a 3-inch polyolefin wheel.
The 1-1/4-inch expanding stem fits standard 1-1/4-inch tubing.
