Description

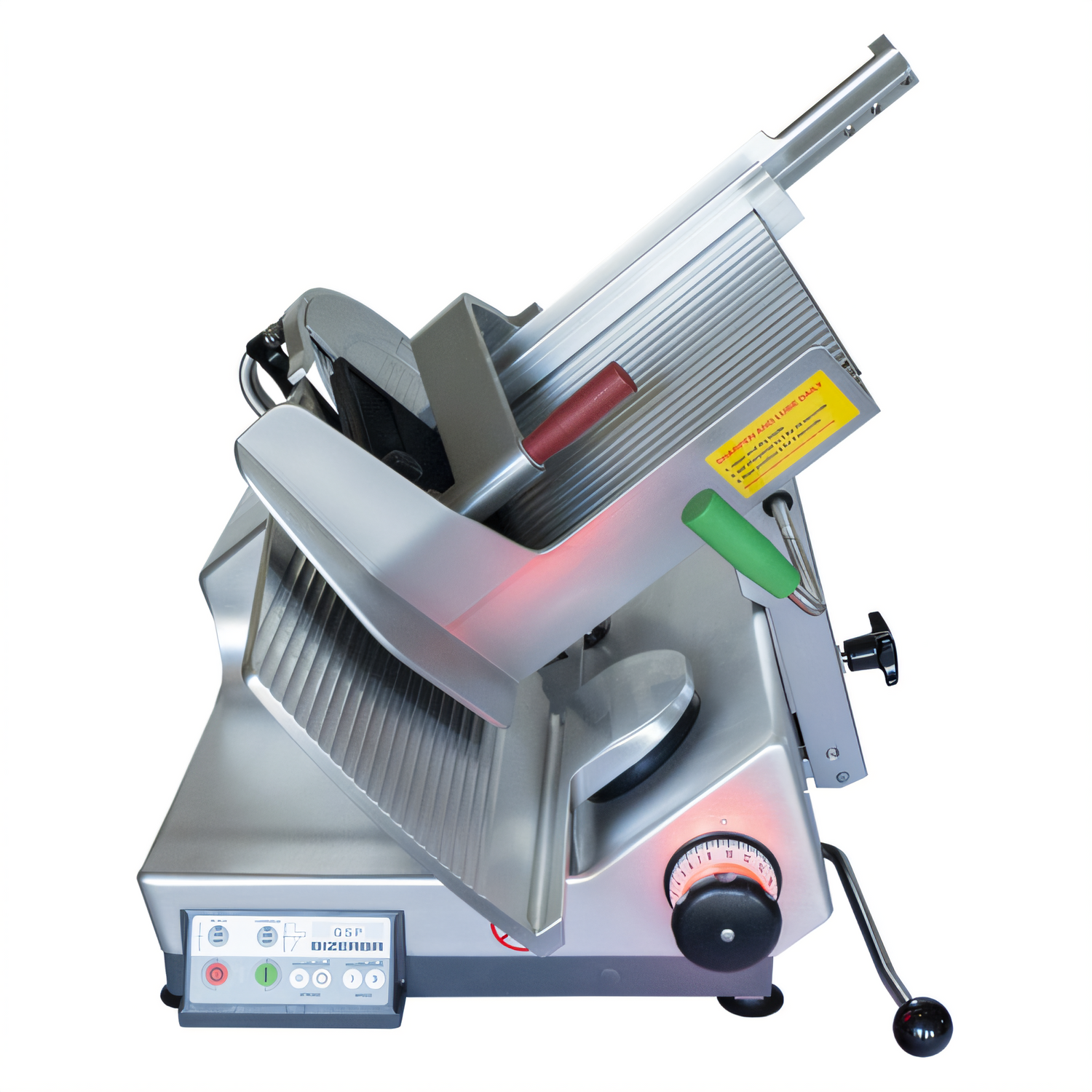

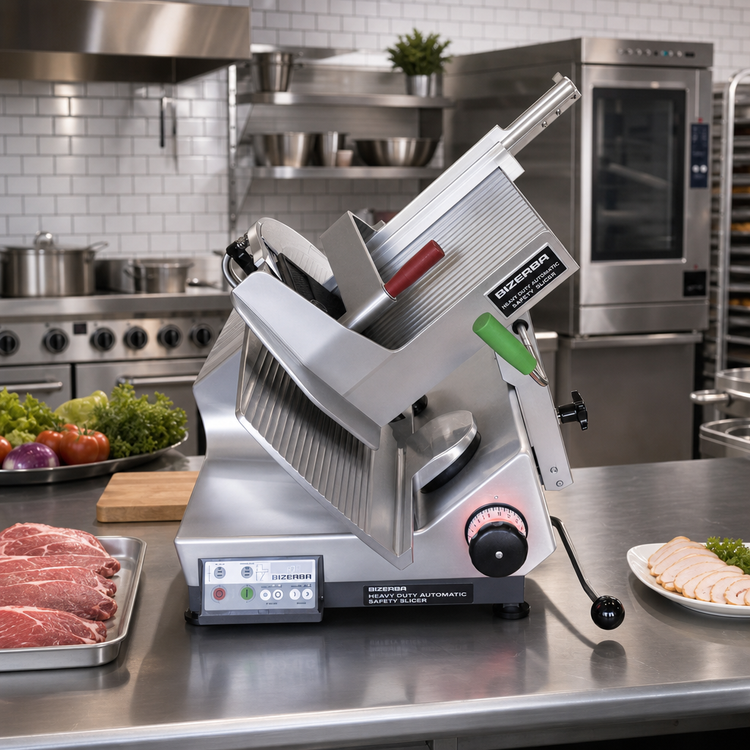

Bizerba Automatic Heavy-Duty Marine Safety Slicer – 13 in Blade
Model GSP HD USPH-VSP-220V | Patented Illuminated Safety DialEngineered for cruise ships, offshore kitchens, and high-volume delis, this fully automatic slicer combines Bizerba’s Emotion VFD drive with a hardened 13 inch blade. Eight independent safety interlocks, servo-assisted carriage, and a color-coded illuminated dial keep operators protected while producing precise, consistent slices up to 0.94 in thick.
Key advantages
- Seamless anodized aluminum housing with low-profile, non-slotted marine-grade fasteners.
- Patented illuminated dial shows machine status at a glance: green (safe to clean), flashing red (blade exposed), solid red (ready to slice).

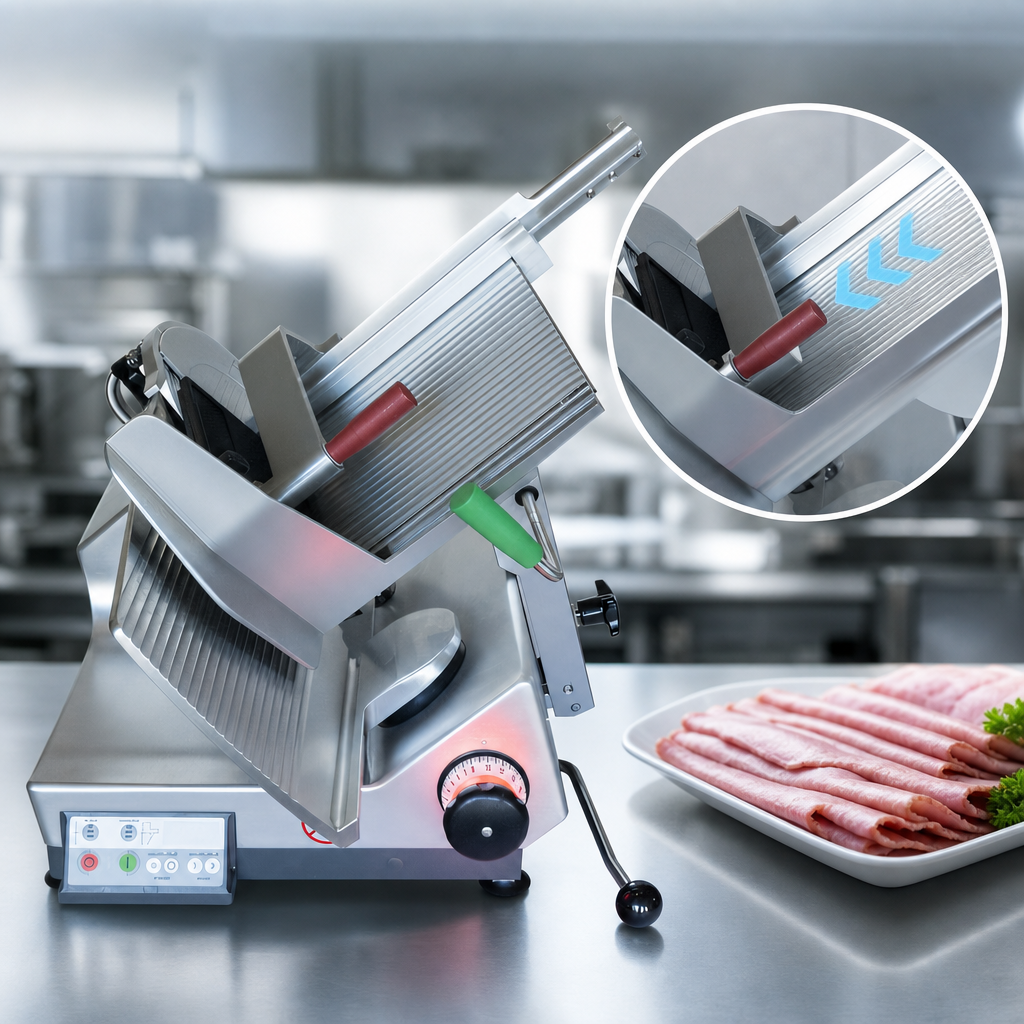

- Variable 3-speed / 3-stroke automatic drive instantly adapts to product size and texture.
- Servo assist reduces push force and operator fatigue during manual or automatic slicing.
- High-yield carriage: 25° incline toward operator plus 40° gravity feed minimizes end waste.
- 3.5 in-wide integrated thumb guard and zero blade exposure during cleaning for maximum protection.
- Remote, dishwasher-safe blade sharpener with spring-loaded dial—never collects food debris.
- Energy-saving Emotion motor logic cuts running power up to 45 % and standby usage 60 %.
- Durable 60–62 Rc chromium-coated blade powered by a 0.24 kW VFD motor.
Food & operator safety
- Eight safety interlocks: no-rest release, forced zero-start, auto blade shut-off (15 / 30 / 45 s), slice-thickness knob lock, carriage & gauge-plate lockout for cleaning, and more.
- Enclosed ring-guard eliminates top gaps; zero blade exposure when gauge plate is closed.
- Safety-green push handle and safety-red rear lift arm offer clear visual cues.
- Dairy-grade UL-157 gaskets and seals resist water and food soils—no silicone used.
- Certified ETL-Sanitation, cETLus, and DGUV for global compliance.
Technical specifications

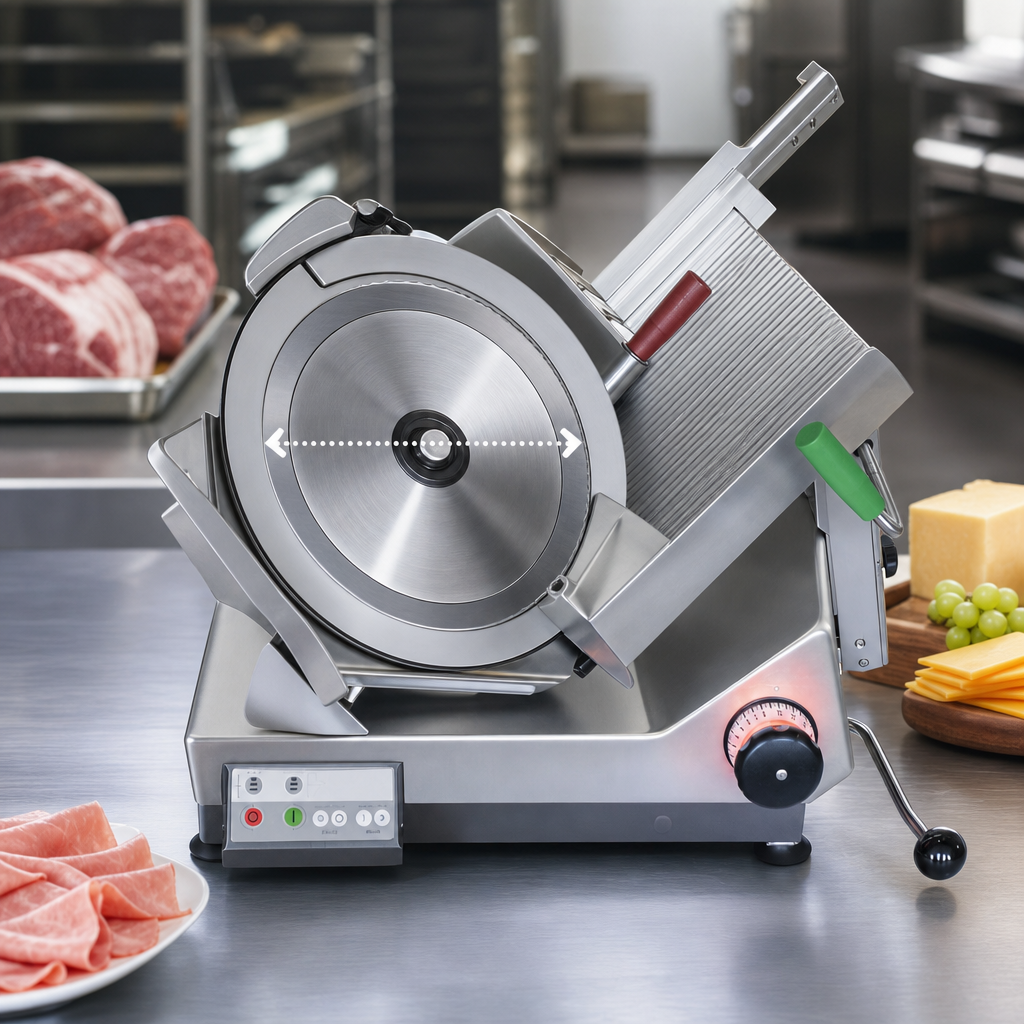

Blade diameter | 13 in / 330 mm, chromium-coated (60–62 Rc) |
---|---|
Slice thickness | 0 – 0.94 in (0 – 24 mm), infinitely variable |
Automatic speeds | 3 carriage speeds & 3 stroke lengths |
Carriage incline | 25° toward operator | 40° gravity feed |
Motor | Emotion VFD, 0.24 kW (≈ 1/3 HP) |
Electrical | 220 V / 60 Hz / 1-phase, 1.4 A, 6 ft cord, EURO plug |
Noise level | < 68.5 dB – 20 % reduction vs. conventional slicers |
External dimensions (L × W × H) | 28.25 × 22.48 × 24.67 in (724 × 571 × 627 mm) |
Weight | 122 lb / 55 kg |
Ingress protection | IP x3 (solids 3 / liquids 3) |
Certifications | ETL-Sanitation, cETLus, UL-157 seals, DGUV safety tested |
Included with purchase
- Product fence & removable pusher plate
- Remote two-stone blade sharpener
- Operator installation & start-up training
- One-year parts & labor warranty (excludes normal wear items)
