Bizerba GSP H I 90 Meat Slicers
Bizerba GSP H I 90 Meat Slicers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

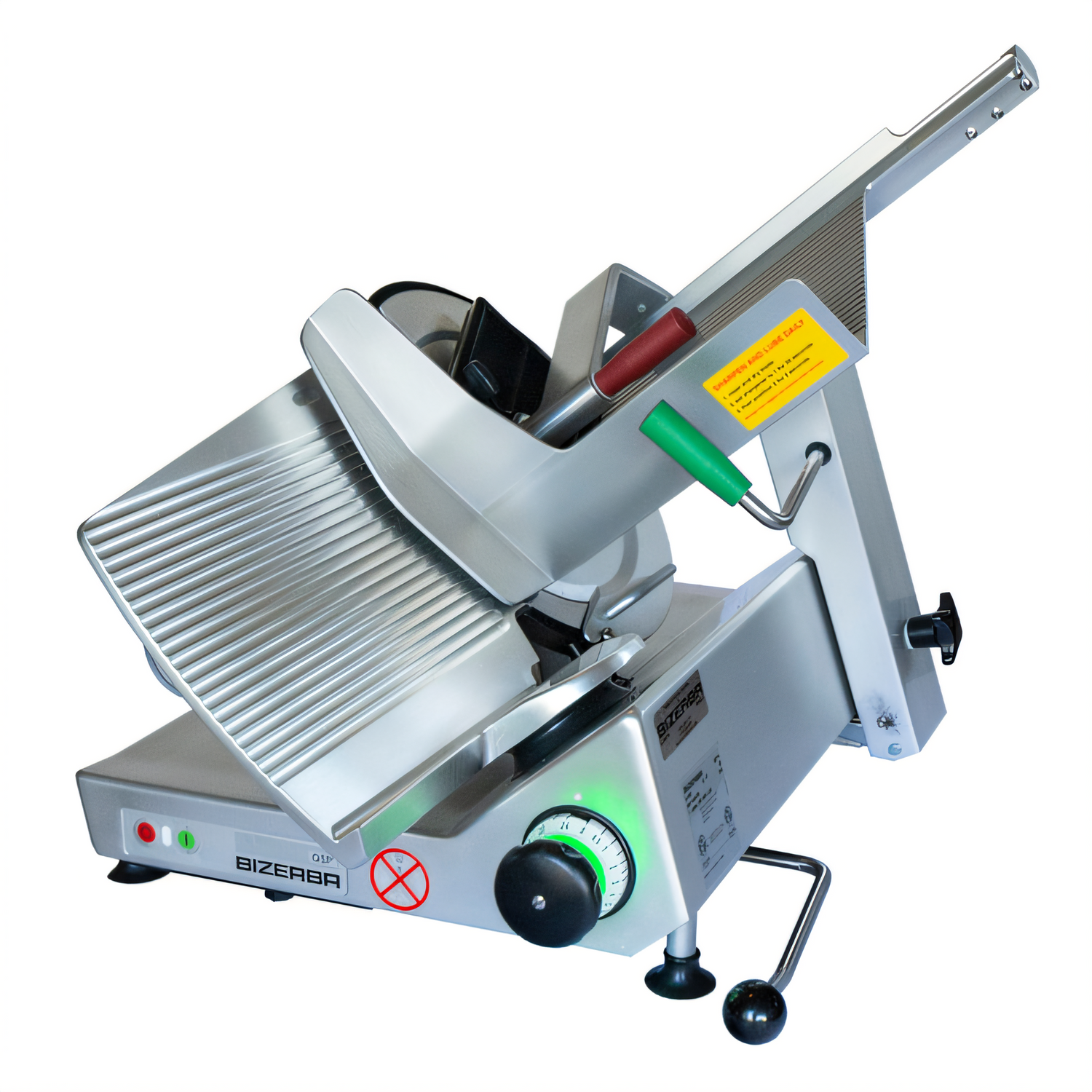

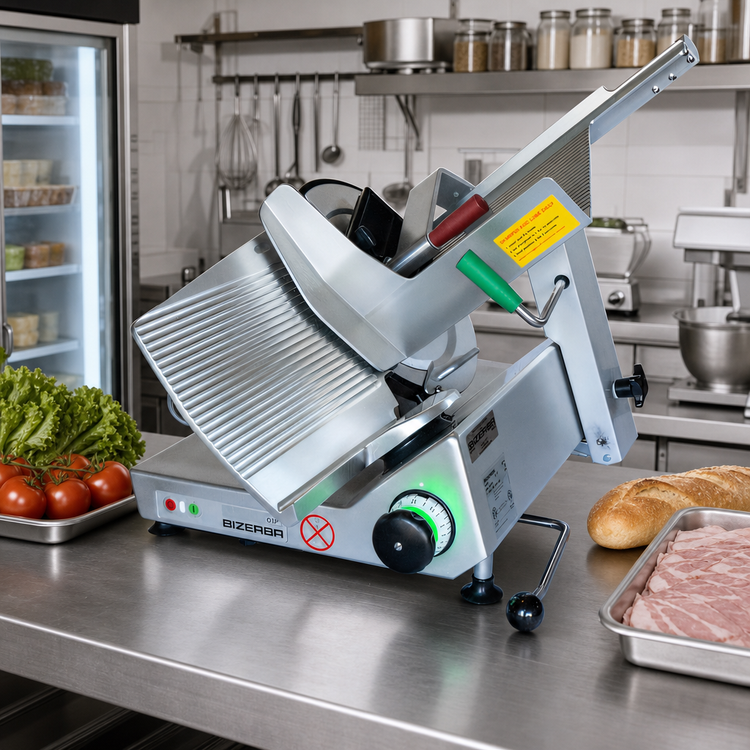

Bizerba GSP H i90 Manual Heavy-Duty Illuminated Safety Slicer – 13 inch Blade
Patented lighted dial • 8 safety interlocks • ½ HP • NSF/ANSI 8-2017 compliantEngineered for operators who demand top-tier slice quality and uncompromising safety, the GSP H i90 pairs Bizerba’s award-winning illuminated index dial with rugged German construction. From paper-thin prosciutto to thick sandwich loaves, this slicer delivers crystal-clear cuts, faster sanitation, and peace-of-mind on every shift.
Key advantages

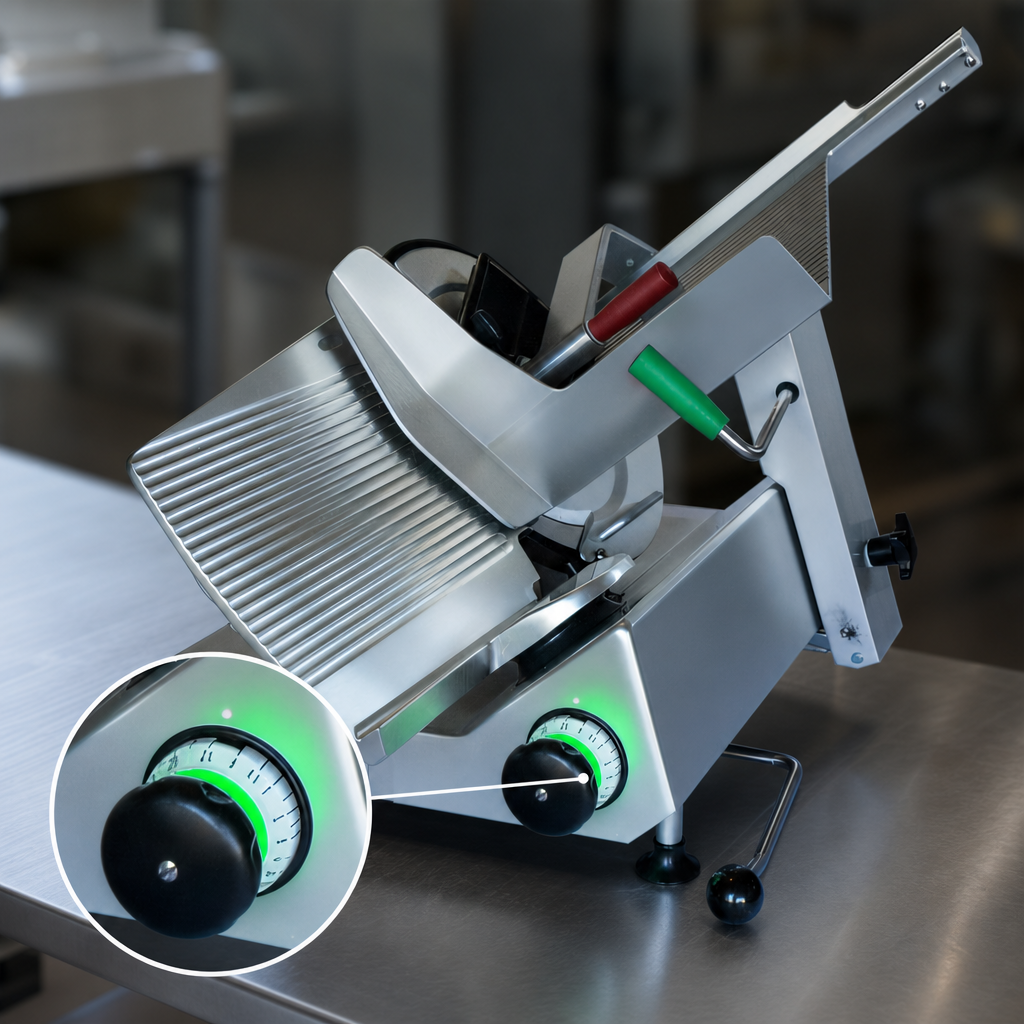

- Patented illuminated dial (US 9,827,689 B2) signals status at a glance: green = safe to clean, flashing red = blade exposed, solid red = ready to slice.

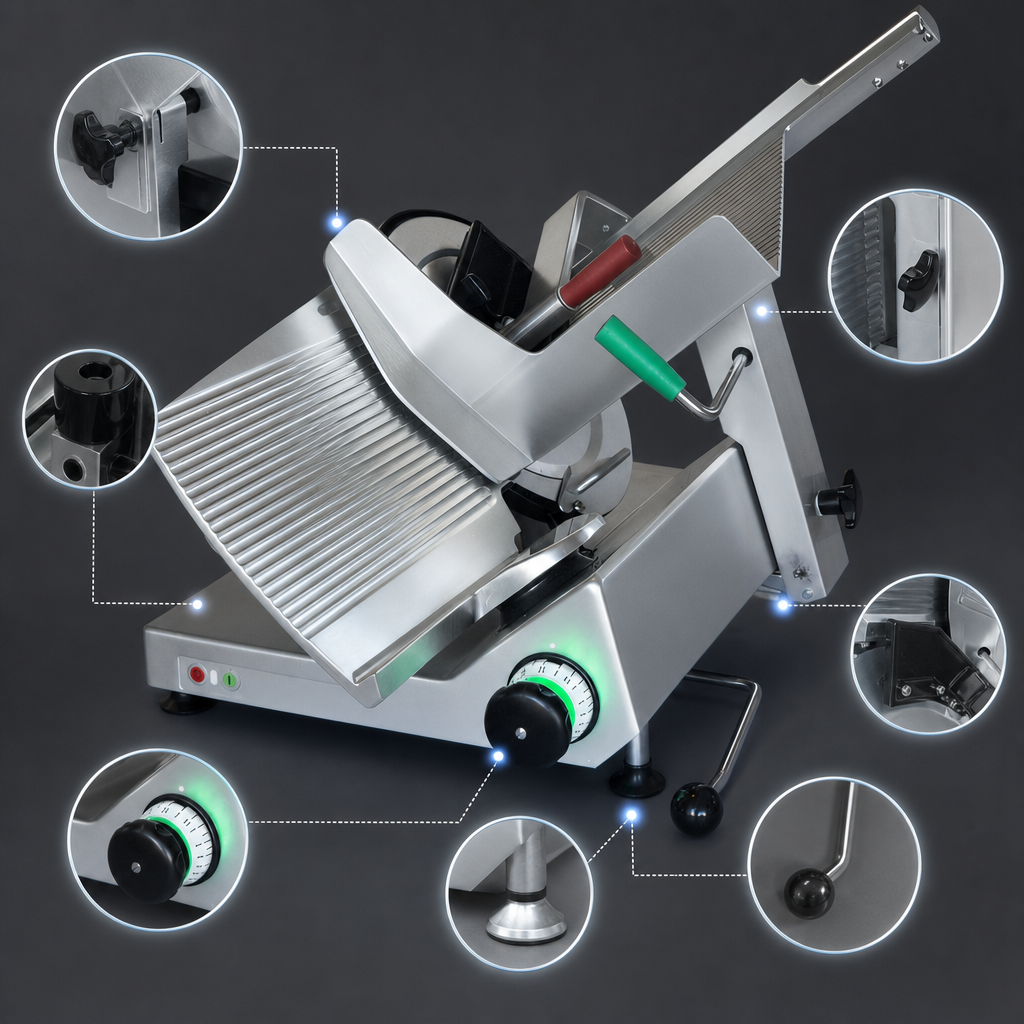

- Eight built-in safety interlocks including no-volt release, automatic blade shut-off timer (15 / 30 / 45 s or continuous), gauge-plate & carriage lock during cleaning and more.
- 13 in (330 mm) hard-chromed blade, 60-62 Rc edge hardness for the industry’s longest-lasting straight cut.
- True ½ HP motor drives the blade at 319 RPM for effortless meat, cheese and produce slicing.
- Ergonomic 25° carriage incline plus 40° gravity-feed channel product toward the blade and away from hands.
- Massive 3.5 in (90 mm) thumb-guard wall and zero blade exposure during cleanup.
- Seamless anodized-aluminum base, double-sealed bearings and UL-157 gaskets eliminate bacteria-harboring gaps.
- Remote, rear-mounted dual-stone sharpener with spring-loaded dial keeps stones out of the food zone and is dishwasher-safe.
- Infinitely variable slice thickness — 0 to 0.94 in (0 – 24 mm) — from tissue-thin to hearty cuts.
- Plug-and-play 120 V / 3.5 A with 6 ft cord & NEMA 5-15P; draws just 0.4 kW.
Specifications
Blade diameter | 13 in / 330 mm |
---|---|
Slice thickness range | 0 – 0.94 in (0 – 24 mm), infinite |
Motor output | ½ HP (0.4 kW) belt-drive • 319 RPM blade speed |
Electrical | 120 V / 60 Hz / 1-ph • 3.5 A • NEMA 5-15P |
Carriage incline | 25° toward operator |
Gravity-feed angle | 40° |
Thumb-guard wall | 3.5 in / 90 mm width |
Max product capacity | Round 8 in Ø; Rectangular 11.6 × 6.4 in; Height 4.92 in |
Footprint (installation area) | 20.94 L × 18.82 W in (530 × 480 mm) |
Overall dimensions | 28.54 L × 23.07 W × 23.46 H in (725 × 586 × 596 mm) |
Operating clearance | 31.73 L × 35.4 W in (806 × 899 mm) |
Noise level | ≤ 58 dB |
Net weight | 95 lb / 43 kg |
Certifications | ETL-Sanitation (NSF/ANSI 8-2017), cETLus, DGUV, UL-157 seals & gaskets |
Warranty | 1-year parts & labor (wear items excluded) |
What’s included
- Remote dual-stone sharpener (removable, dishwasher-safe)
- Tool-less removable product pusher plate
- Color-coded carriage & remnant handles (green / red) for safe operation
- Start-up & cleaning guide
- Optional accessories: 13 in grooved vegetable blade, easy-glide produce chute
Bizerba stock # 913003019 • Model GSP H i90
