Description

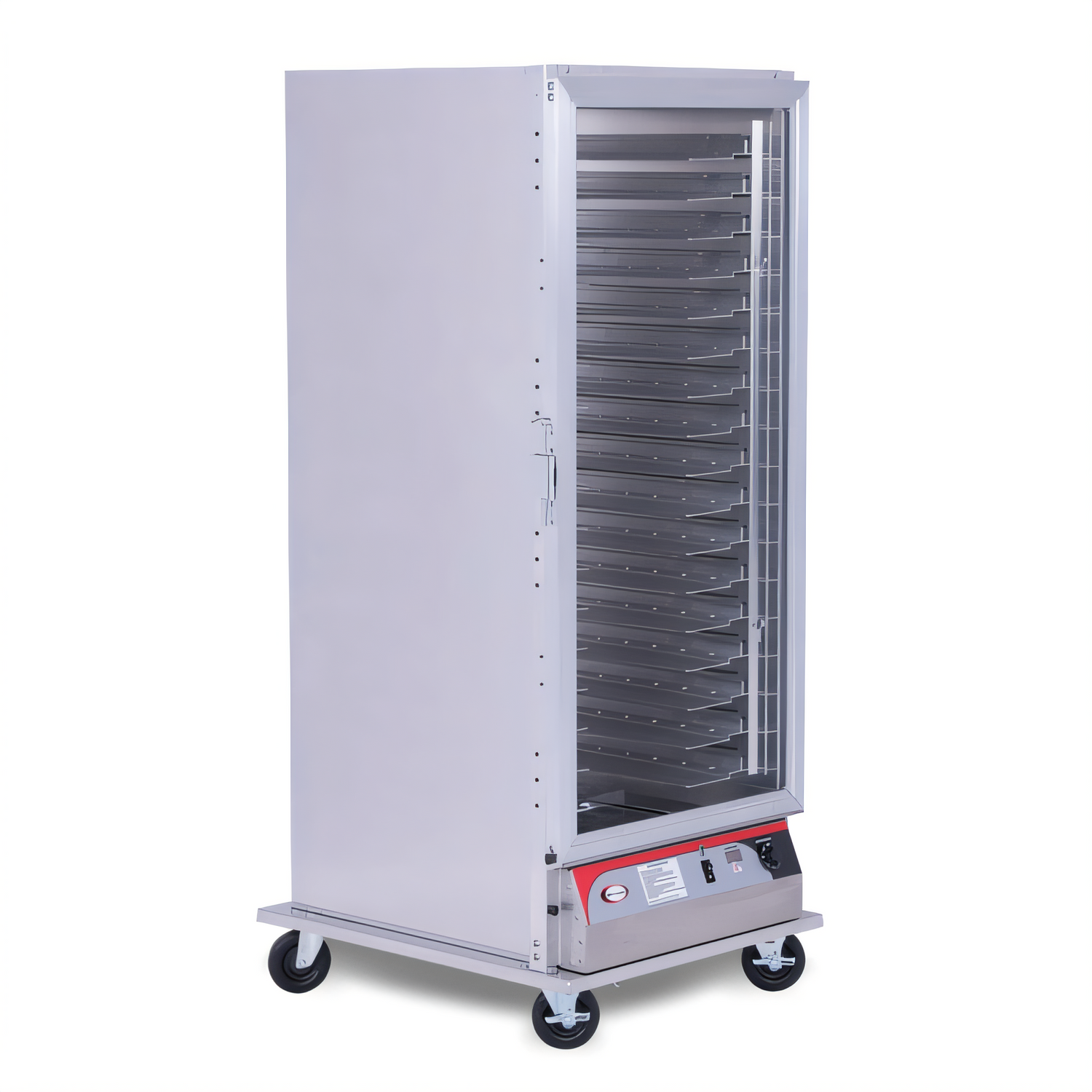

BevLes Extra-Deep Insulated Proofing Cabinet

Model PICA70-32INS-AED | 208-230 V / 1-Ph

Built for high-volume bakeries, donut shops and commissaries, the BevLes PICA70-32INS-AED delivers gentle, even heat and precision-controlled humidity in a rugged, fully-insulated mobile cabinet that is deep enough for today’s oversized 23 ″ × 32 ″ donut screens.

Why you’ll love it
  • Extra-deep interior fits 23 ″ × 32 ″ screens without turning or tilting.
  • Full-height capacity holds 16 screens, trays or pans — or up to 32 × 12 ″ × 20 ″ steam table pans.
  • Precise proofing control – digital thermostat (60 – 120 °F) with variable humidity knob and large LED read-out.
  • “Cast-in” humidity system protects the element from spills and prevents burn-out.
  • 5 qt cast-aluminum reservoir with cover supplies hours of steady moisture.
  • Fully insulated top, back and sides cut energy use and maintain uniform heat.
  • (2) clear Lexan® doors (right-hand hinged) let you monitor product without losing heat.
  • Tool-free removable heating module and slide-out interior parts speed up cleaning.
  • Heavy-duty 5 ″ swivel plate casters (front two with brakes) for effortless mobility.
  • Aluminum construction with urethane door gaskets for years of commercial abuse.
  • cULus & NSF listed for electrical and sanitation compliance.
Specifications
Exterior dimensions (W × D × H) 29 ″ × 39 ″ × 71.5 ″ (740 × 991 × 1820 mm)
Interior pan spacing Adjustable on 1.5 ″ centers
Pan / screen capacity • 16 × 23 ″ × 32 ″ donut screens
• 16 × 23 ″ × 23 ″ donut screens
• 16 × 18 ″ × 26 ″ full-size trays
• 32 × 12 ″ × 20 ″ steam table pans
Temperature range 60 °F – 120 °F (15.6 °C – 48.9 °C)
Humidity control Variable (0 – 100 %) with 5 qt reservoir
Construction .063 ″ formed aluminum body, .125 ″ base; insulated top/back/sides
Doors (2) clear Lexan®, right-hand hinged, full perimeter gaskets
Mobility (4) 5 ″ neoprene swivel plate casters – front two locking
Electrical 208-230 V / 50-60 Hz / 1-Ph, 1400 W, 7.5 / 6.8 A, cord only
Certifications cULus, NSF
Approx. weight 270 lb (123 kg) net  •  330 lb (150 kg) ship
Electrical connection required: unit ships with cord only and must be wired to a 208-230 V, single-phase supply by a qualified technician.

Need accessories? Ask about alternate door hinging, perimeter bumpers, stationary legs and extra pan supports.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

71.5in

Width

29.0in

Depth

39.0in

Shipping Weight

335.0lbs

Slide Centers

adjustable centers on 1-1/2"

Insulation

insulated

Full Size Hotel Pan Capacity

(32) 12" x 20" pans

Doors

full height doors, plastic

Interior Finish

aluminum interior

Exterior Finish

all aluminum exterior

Heater

bottom mounted heater

Full Size Sheet Pan Capacity

(16) 18" x 26" pans

Sections

1 section w/1 compartment

Specifications

Extra Deep Proofing Cabinet donut proofer, mobile, full height, insulated top, back & sides, (2) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 60° to 120°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 23" x 32" donut screens, or (16) 23" x 23" donut screens, or (16) 18" x 26" trays, or (32) 12" x 20" pans, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 1400 watts, 7.5/6.8 amps, cord only, cULus, NSF
