BevLes Company PICA70-32INS-AED-4L2 Dough Proofers & Retarders

SKU: PICA70-32INS-AED-4L2
$4,299.99
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

BevLes Company New Arrivals

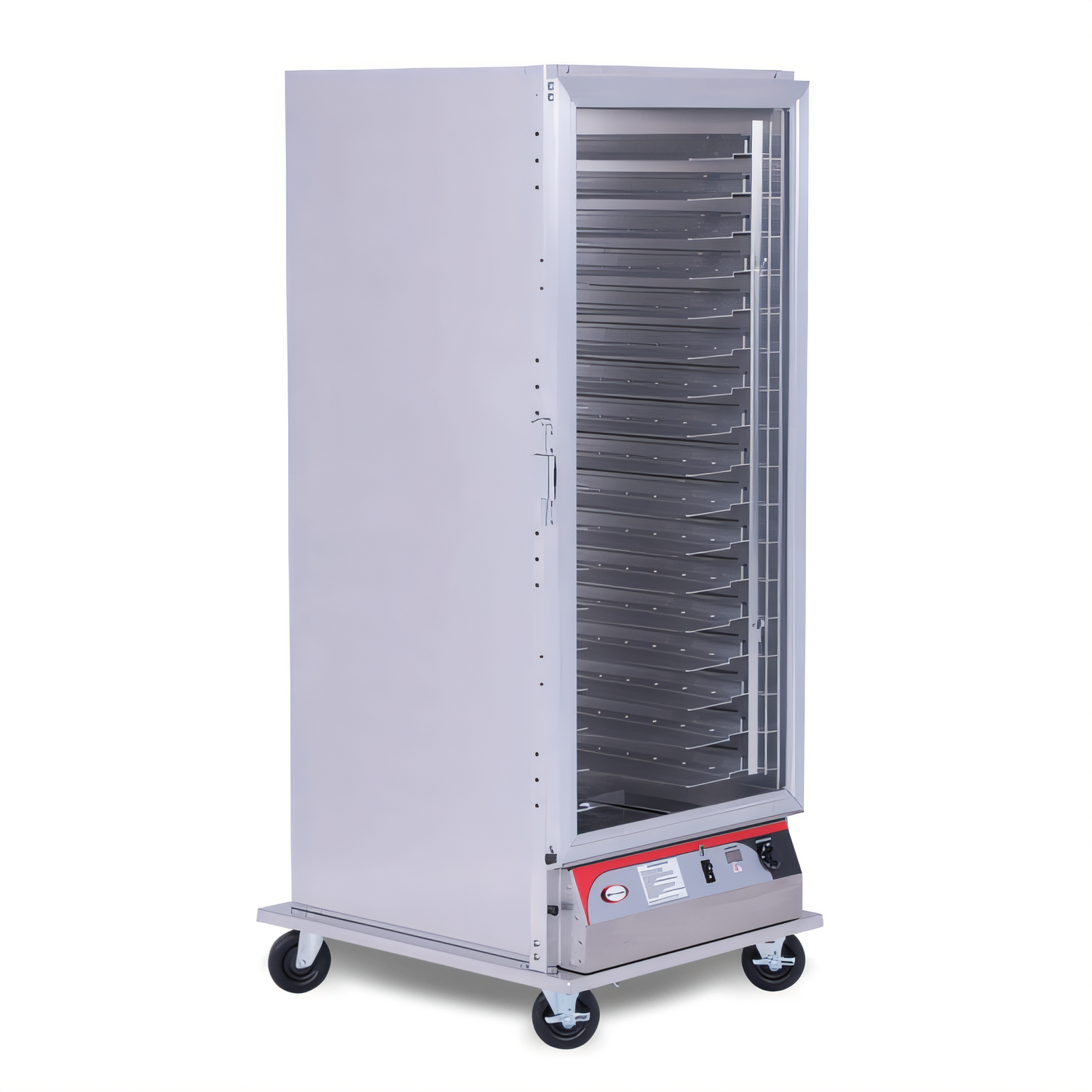

BevLes PICA Extra-Deep Proofing Cabinet – Insulated, Full-Height

Model: PICA70-32INS-AED | 208-230 V, 1-Phase

Engineered for high-volume donut shops, bakeries and commissaries, this mobile, extra-deep BevLes proofer handles the industry’s largest screens while delivering precise, even heat and humidity from floor to ceiling. Its fully insulated top, sides and rear lock in heat, cut energy costs and guarantee consistent results with every batch.

Why You’ll Love It

  • Holds up to 16 full 23" × 32" donut screens—no adapters required.
  • Digital thermostat (60-120 °F) with variable humidity and bright LED read-out for at-a-glance monitoring.
  • Fully insulated top, back and sides for faster recovery and lower utility costs.
  • Two clear Lexan® doors offer full-height product visibility while maintaining the chamber climate.
  • Universal extruded pan supports adjust on 1 ½" centers to fit screens, bun pans, sheet trays or hotel pans.
  • 5 qt. cast-aluminum water reservoir with cover and “cast-in” heater eliminates element burnout from dry-fire.
  • Removable bottom-mounted heating module speeds up cleaning and service.
  • 5" swivel plate casters (front two with brakes) deliver rock-solid stability and effortless mobility.
  • All-aluminum construction resists corrosion and keeps overall weight low for everyday bakery duty.
  • Certified cULus & NSF for electrical safety and sanitation.

Flexible Pan & Screen Capacity

  • (16) 23" × 32" donut screens
  • (16) 23" × 23" donut screens
  • (16) 18" × 26" full-size sheet trays
  • (32) 12" × 20" steam-table pans

Technical Specifications

Exterior dimensions (W × D × H) 29" × 39" × 71.5" (740 × 991 × 1820 mm)
Interior height 55" (1400 mm)
Pan spacing Adjustable on 1.5" centers
Temperature range 60 °F – 120 °F (15.6 °C – 48.9 °C)
Humidity control Variable, digital
Water reservoir 5 qt. (4.7 L) cast aluminum, self-draining
Doors (2) left-hand hinged clear Lexan® with perimeter gasket
Insulation Top, back & sides fully insulated
Electrical 208-230 V / 50-60 Hz / 1-Ph, 1400 W, 7.5/6.8 A
Supplied with cord only (plug by others)
Construction .063 in. formed aluminum body & air-duct panel
.125 in. formed aluminum base
Mobility 5" swivel plate casters, front locking
Certifications cULus, NSF

Screens, trays and bun pans shown are sold separately. Reverse door hinging, bumpers and additional pan supports are available—contact us for details.

Electrical notice: This unit ships with a cord only and must be hard-wired or fitted with a proper plug by a qualified electrician to match your 208-230 V, single-phase supply.

Overall Dimensions:

29.0"W x 39.0"D x 71.5"H

Product Weight:

335.0 lb
Manufacturer BevLes Company
Certifications ["NSF", "cULus"]
Height 71.5in
Width 29.0in
Depth 39.0in
Shipping Weight 335.0lbs
Interior Finish aluminum interior
Exterior Finish all aluminum exterior
Heater bottom mounted heater
Insulation insulated
Slide Centers adjustable centers on 1-1/2"
Doors full height doors, plastic
Full Size Hotel Pan Capacity (32) 12" x 20" pans
Full Size Sheet Pan Capacity (16) 18" x 26" pans
Sections 1 section w/1 compartment
Specifications Extra Deep Proofing Cabinet (donut proofer), mobile, full height, insulated top, back & sides, (2) clear Lexan® left-hand hinged door, digital thermostat, variable humidity control & LED display, 60° to 120°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 23" x 32" donut screens, (16) 23" x 23" donut screens, or (16) 18" x 26" trays, or (32) 12" x 20" pans, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 1400 watts, 7.5/6.8 amps, cord only, cULus, NSF
