Description

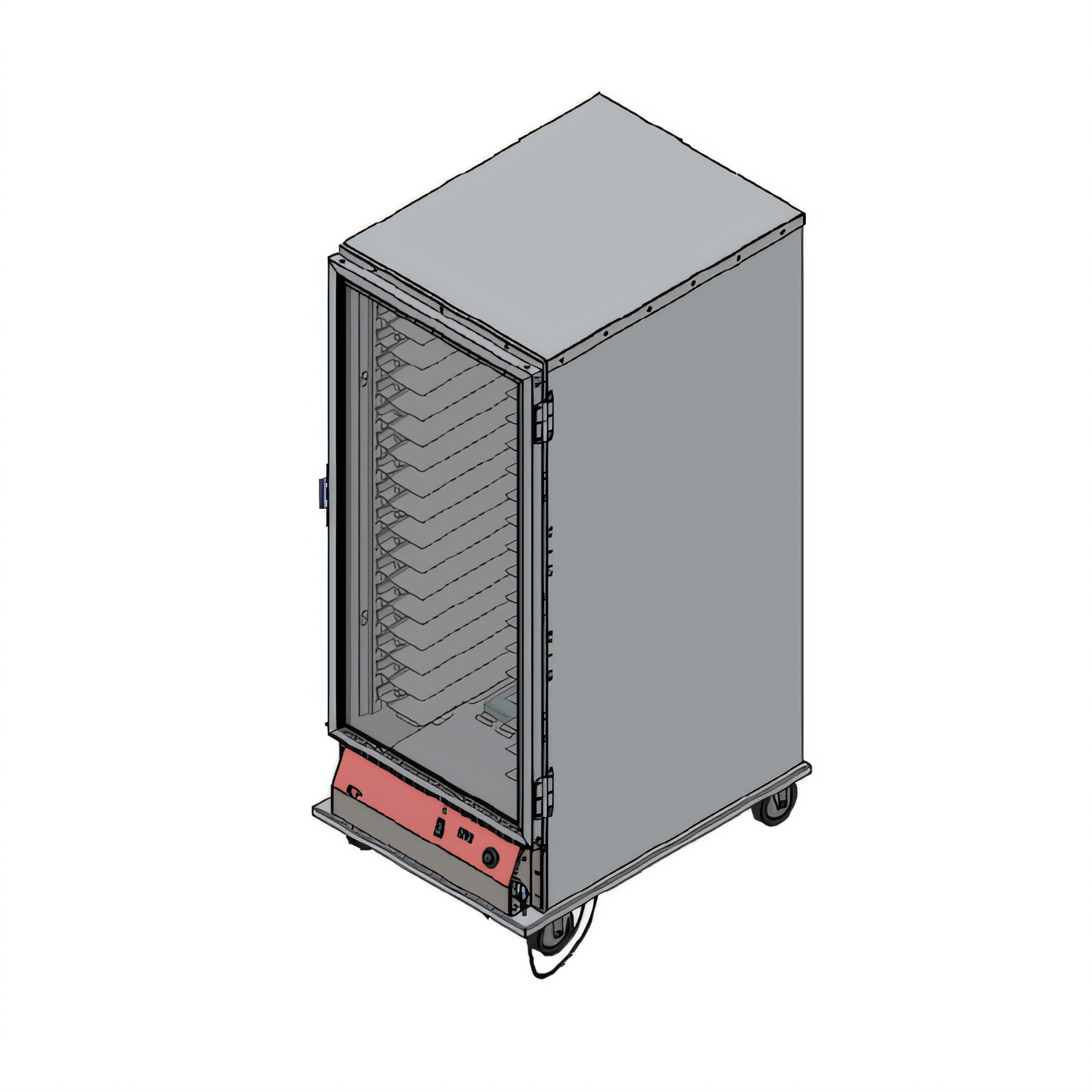

BevLes PICA70-32INS-AED Extra-Deep Proofing Cabinet

Full-height, insulated mobile donut proofer – 120 V

Give every batch the perfect rise with BevLes’ flagship extra-deep proofer. Fully insulated and engineered for 23 × 32 in. donut screens, the PICA70-32INS-AED delivers precise heat and humidity, rock-solid construction and the mobility busy bakeries demand.

Why You’ll Love It

  • Extra-deep interior fits oversize 23 × 32 in. screens and a wide variety of trays and pans.
  • Fully insulated top, back & sides dramatically reduce heat loss and energy use.
  • Right-hand hinged clear Lexan® door with full-perimeter gasket lets you monitor proofing without opening.
  • Digital thermostat, variable humidity dial & easy-read LED display (60 – 120 °F).
  • “Cast-in” 5 qt (4.7 L) water reservoir prevents element burnout and is removable for fast cleaning.
  • Universal extruded aluminum pan supports adjust on 1 ½ in. centers.
  • Removable bottom-mounted heating/humidity module for quick service access.
  • Self-draining base channels excess condensate into a standard bun pan (not included).
  • Heavy-duty 5 in. plate casters—full swivel, front two with brakes—roll easily under load.
  • Rugged .063 in. formed aluminum body & .125 in. base built for years of commercial service.
  • Zero-clearance installation for tight prep areas.

One Cabinet. Four Ways to Load.

  • 16 × 23 × 32 in. donut screens
  • 16 × 23 × 23 in. donut screens
  • 16 × 18 × 26 in. sheet pans
  • 32 × 12 × 20 in. steam-table pans

All capacities based on 1 ½ in. adjustable pan spacing.

Technical Specifications

Model PICA70-32INS-AED
Exterior dimensions (W × D × H) 29 × 39 × 71.5 in. (740 × 991 × 1820 mm)
Interior height 55 in. (1400 mm)
Temperature range 60 – 120 °F (15.6 – 48.9 °C)
Humidity system Variable control, 5 qt cast reservoir with cover
Construction .063 in. aluminum body, .125 in. base, fully insulated top/back/sides
Door Right-hand hinged clear Lexan®, positive-latch, full gasket
Electrical 120 V / 60 Hz / 1 Ph, 1400 W, 13 A
Cord & Plug 8 ft cord, NEMA 5-15P
Casters Four 5 in. swivel plate (front two locking)
Unit / Shipping weight 270 lb / 330 lb (123 / 150 kg)
Certifications cULus, NSF
Note: Donut screens, trays and bun pans are shown for illustration only and are not included.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

71.5in

Width

29.0in

Depth

39.0in

Shipping Weight

335.0lbs

Slide Centers

adjustable centers on 1-1/2"

Exterior Finish

all aluminum exterior

Heater

bottom mounted heater

Insulation

insulated

Interior Finish

aluminum interior

Doors

full height doors, plastic

Full Size Hotel Pan Capacity

(32) 12" x 20" pans

Full Size Sheet Pan Capacity

(16) 18" x 26" pans

Sections

1 section w/1 compartment

Specifications

Extra Deep Proofing Cabinet (donut proofer), mobile, full height, insulated top, back & sides, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 60° to 120°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 23" x 32" donut screens, or (16) 23" x 23" donut screens, or (16) 18" x 26" trays, or (32) 12" x 20" pans, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 120v/60/1-ph, 1400 watts, 13 amps, 8' cord & NEMA 5-15P, cULus, NSF
