BevLes Company  |  SKU: PICA70-32INS-A-4R1

BevLes Company PICA70-32INS-A-4R1 Dough Proofers & Retarders

$4,793.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Freight guidelines Freight guidelines Warranty sheet
Related Searches
Food Holding & Warming Equipment Food Warmers & Holding Equipment Holding Cabinets Holding Cabinets Proofing Cabinets Proofing Cabinets Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

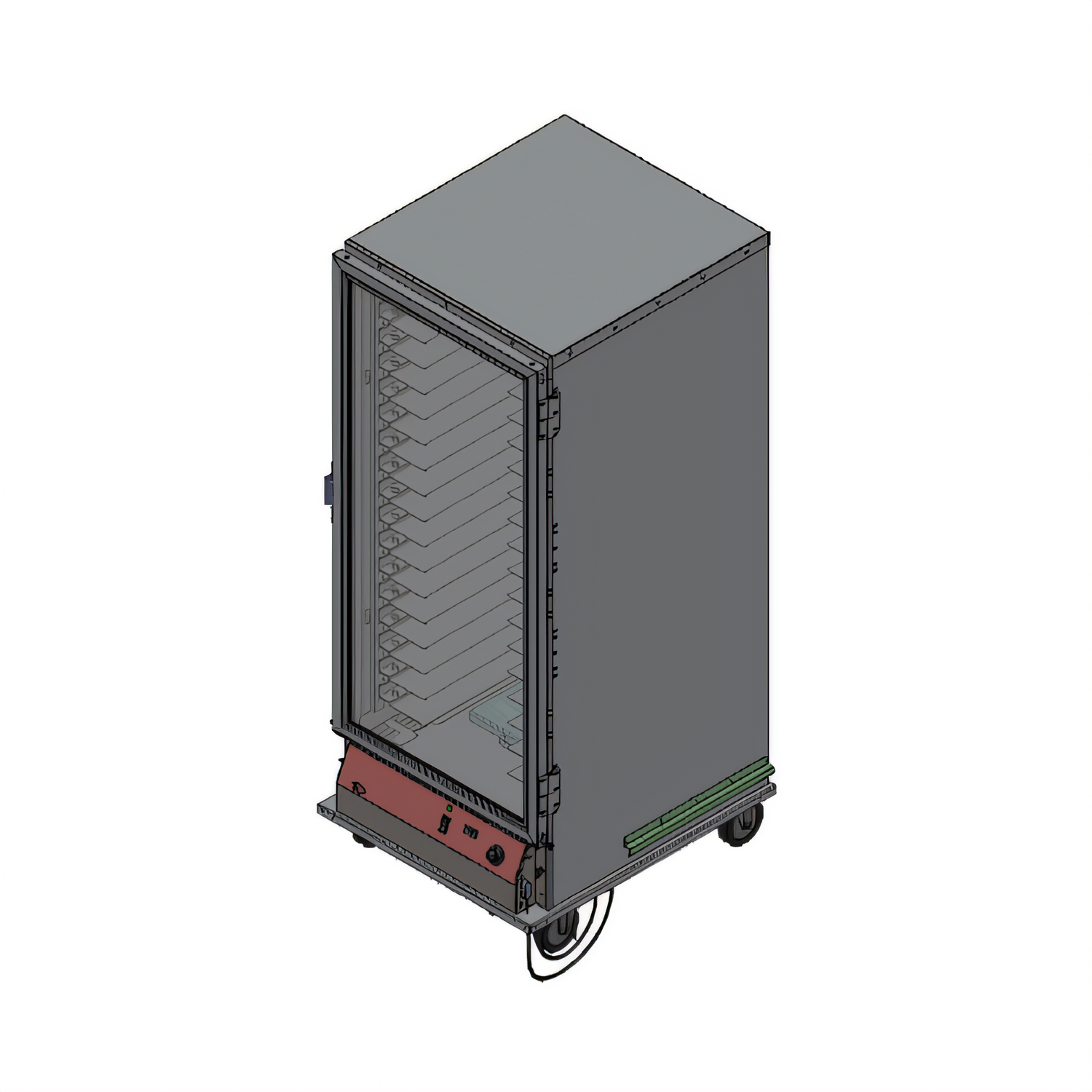

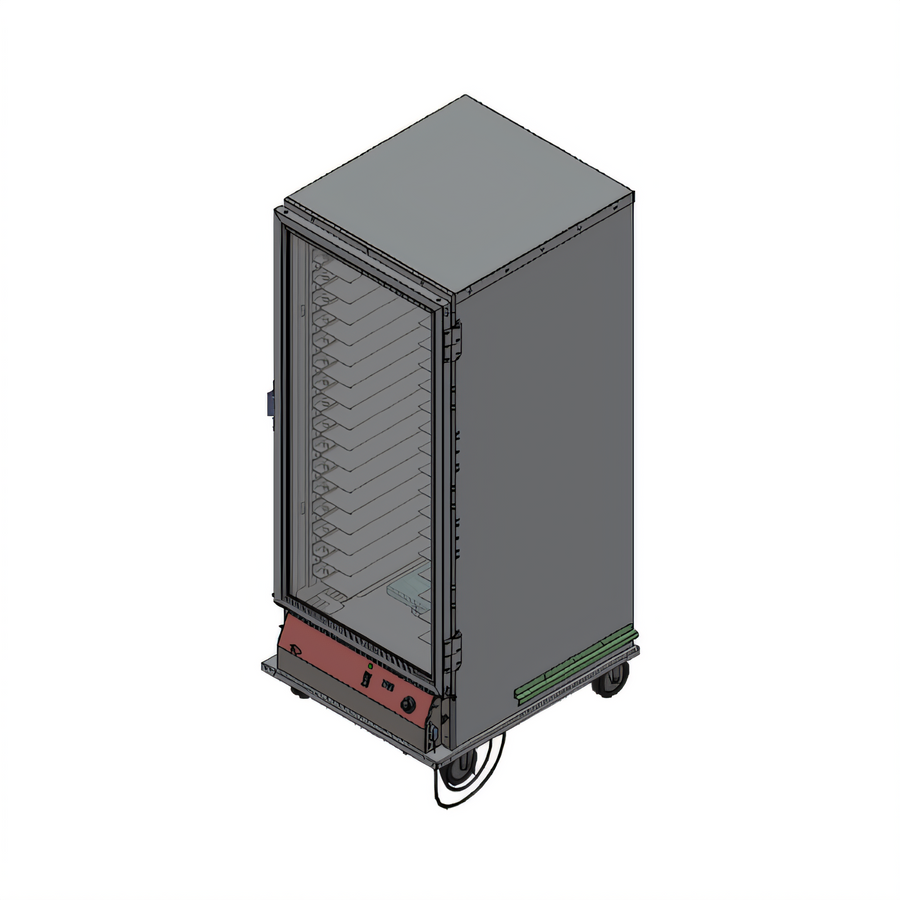

BevLes PICA70-32INS-A Full-Height Insulated Donut Proofer — 208-230 V

Holds up to 32 screens / pans • Digital heat & humidity control

Engineered for busy bakeries and donut shops, the BevLes PICA70-32INS-A mobile proofing cabinet delivers uniform warmth and moisture from top to bottom. Its rugged aluminum construction, intuitive digital controls and high-capacity interior help you move more dough with less downtime.

Key performance features
  • Full-height capacity: up to (16) 18" × 26" or 23" × 23" donut screens, or (32) 12" × 20" pans.
  • Clear Lexan® right-hand hinged door offers product visibility while keeping heat inside.
  • Digital thermostat with LED readout: set temperatures from 60 °F to 120 °F (15.6 °C – 48.9 °C).
  • Independent humidity dial feeds a 5 qt. cast water reservoir; “cast-in” heater design prevents element burnout.
  • Extruded aluminum pan supports adjust on 1.5" centers to handle multiple tray sizes.
  • Fully insulated top, back and sides maintain consistent proofing conditions and save energy.
  • Removable heating module and tool-less interior components speed up cleaning.
  • Four 5" swivel plate casters (front two locking) for smooth, stable mobility.
  • cULus and NSF listed for electrical and sanitation safety.
Specifications
Model PICA70-32INS-A (208-230 V)
Capacity (16) 18" × 26" or 23" × 23" screens  |  (32) 12" × 20" pans
Temperature Range 60 °F – 120 °F (15.6 °C – 48.9 °C)
Humidity System Variable control • 5 qt. cast reservoir with cover • Self-draining
Construction .063" formed aluminum body & duct • .125" aluminum base • Closed-cell gasket
Door Clear Lexan®, right-hand hinged, positive-action latch
Pan Support Spacing Adjustable on 1.5" centers
Electrical 208-230 V / 50-60 Hz / 1 Ph • 1,400 W • 7.5/6.8 A • Cord only
Overall Dimensions 29" W × 33.5" D × 71.5" H (740 × 850 × 1,820 mm)
Mobility (4) 5" neoprene swivel casters (2 with brakes)
Listings cULus, NSF
Popular options & accessories
  • Reverse door hinging
  • Solid door panel
  • Corner or perimeter non-marking bumpers
  • Additional pan supports
  • 6" stainless legs or 6" heavy-duty casters
  • 18" × 26" chrome electroplated wire racks

Bun pan for self-draining feature sold separately.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

71.5in

Width

29.0in

Depth

33.5in

Shipping Weight

295.0lbs

Exterior Finish

all aluminum exterior

Slide Centers

adjustable centers on 1-1/2"

Insulation

insulated

Heater

bottom mounted heater

Doors

full height doors, plastic

Interior Finish

aluminum interior

Full Size Sheet Pan Capacity

(16) 18" x 26" pans

Sections

1 section w/1 compartment

Full Size Hotel Pan Capacity

(32) 12" x 20" pans

Specifications

Proofing Cabinet (donut proofer), mobile, full height, insulated top, back & sides, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 60° to 120°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 18" x 26", or (16) 23" x 23" donut screens, or (32) 12" x 20" pans, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 1400 watts, 7.5/6.8 amps, cord only, cULus, NSF
