BevLes Company PICA70-32INS-A-4L1 Dough Proofers & Retarders

SKU: PICA70-32INS-A-4L1
$3,899.99
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

BevLes Company New Arrivals

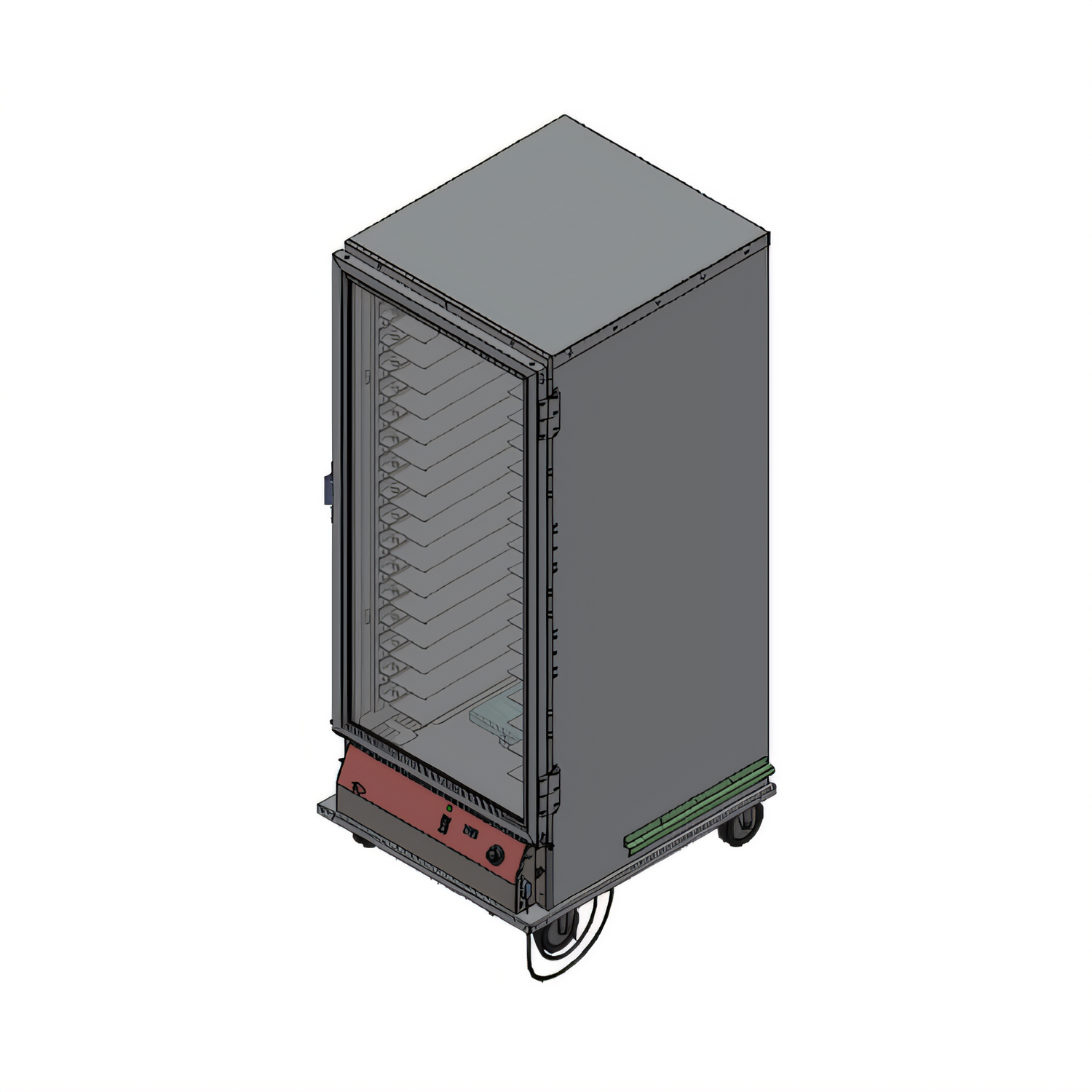

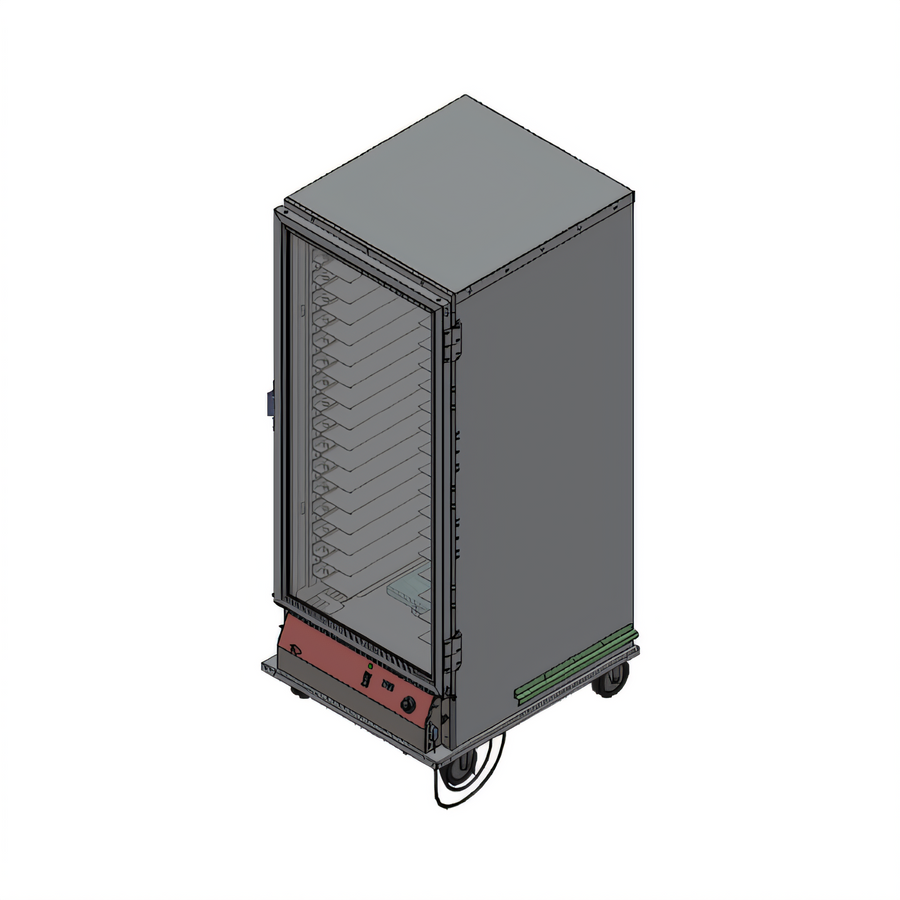

Full-Height Insulated Donut Proofing Cabinet

BevLes • 16 Screen / 32 Pan Capacity • 208-230 V, 1-Ph

Give every batch the perfect rise. BevLes’ mobile proofing cabinet creates a precisely-controlled, moisture-rich environment that lets yeast-raised doughnuts, breads and pastries develop uniform texture, color and flavor—right up to oven-ready perfection.

Why You’ll Love It

  • 60 °F – 120 °F (15.6 °C – 48.9 °C) temperature range with independent humidity control.
  • Digital thermostat and bright LED display for at-a-glance monitoring.
  • Fully insulated top, back and sides maintain steady heat and humidity.
  • Crystal-clear Lexan® door (left-hand hinge) with perimeter gasket and positive-latch keep heat in and staff workflow visible.
  • Universal extruded aluminum supports—adjustable on 1.5" (38 mm) centers—fit:
    • (16) 18" × 26" full-size sheet pans, or
    • (16) 23" × 23" donut screens, or
    • (32) 12" × 20" steam-table pans.
  • 5 qt (4.7 L) cast water reservoir with cover feeds a cast-in humidity system that prevents element burn-out.
  • Completely removable heating module for fast, tool-free cleaning or service.
  • Rugged 5" (127 mm) swivel plate casters—front two with brakes—for smooth, stable mobility.
  • Lightweight, corrosion-resistant .063" formed aluminum cabinet and .125" formed base.
  • Safety & sanitation assured: cULus and NSF listed.

Technical Specifications

Capacity (16) 18" × 26" pans, (16) 23" × 23" screens or (32) 12" × 20" pans
Pan Support Spacing Adjustable on 1.5" centers
Temperature Range 60 °F to 120 °F (15.6 °C to 48.9 °C)
Humidity Control Variable; digital set-point with LED display
Construction .063" aluminum body, .125" aluminum base, clear Lexan® door
Water Reservoir 5 qt (4.7 L) cast reservoir, removable, with cover
Electrical 208-230 V / 50-60 Hz / 1-ph, 1.4 kW, 7.5/6.8 A, cord only (no plug)
Mobility (4) 5" swivel plate casters, front two locking
Listings cULus, NSF

Designed for Donut Shops & Artisan Bakeries

  • Uniform airflow delivers consistent proofing top-to-bottom—no pan rotation required.
  • Left-hand hinged door streamlines loading in production lines that feed left-to-right.
  • Zero-clearance sides allow the cabinet to tuck flush against walls or other equipment.
Electrical Note: Unit ships with cord only. Installer must supply and attach the correct plug or hard-wire according to local codes.

Need extra pan supports, bumpers or a solid door? Contact us for available factory options and accessories.

Overall Dimensions:

29.0"W x 33.5"D x 71.5"H

Product Weight:

295.0 lb
Manufacturer BevLes Company
Certifications ["NSF", "cULus"]
Height 71.5in
Width 29.0in
Depth 33.5in
Shipping Weight 295.0lbs
Slide Centers adjustable centers on 1-1/2"
Doors full height doors, plastic
Heater bottom mounted heater
Insulation insulated
Interior Finish aluminum interior
Exterior Finish all aluminum exterior
Sections 1 section w/1 compartment
Full Size Sheet Pan Capacity (16) 18" x 26" pans
Full Size Hotel Pan Capacity (32) 12" x 20" pans
Specifications Proofing Cabinet (donut proofer), mobile, full height, insulated top, back & sides, (1) clear Lexan® left-hand hinged door, digital thermostat, variable humidity control & LED display, 60° to 120°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 18" x 26", or (16) 23" x 23" donut screens, or (32) 12" x 20" pans, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 1400 watts, 7.5/6.8 amps, cord only, cULus, NSF
