BevLes Company  |  SKU: PICA70-32INS-A-1R1

BevLes Company PICA70-32INS-A-1R1 Dough Proofers & Retarders

$4,793.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Freight guidelines Freight guidelines Warranty sheet
Related Searches
Food Holding & Warming Equipment Food Warmers & Holding Equipment Holding Cabinets Holding Cabinets Proofing Cabinets Proofing Cabinets Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

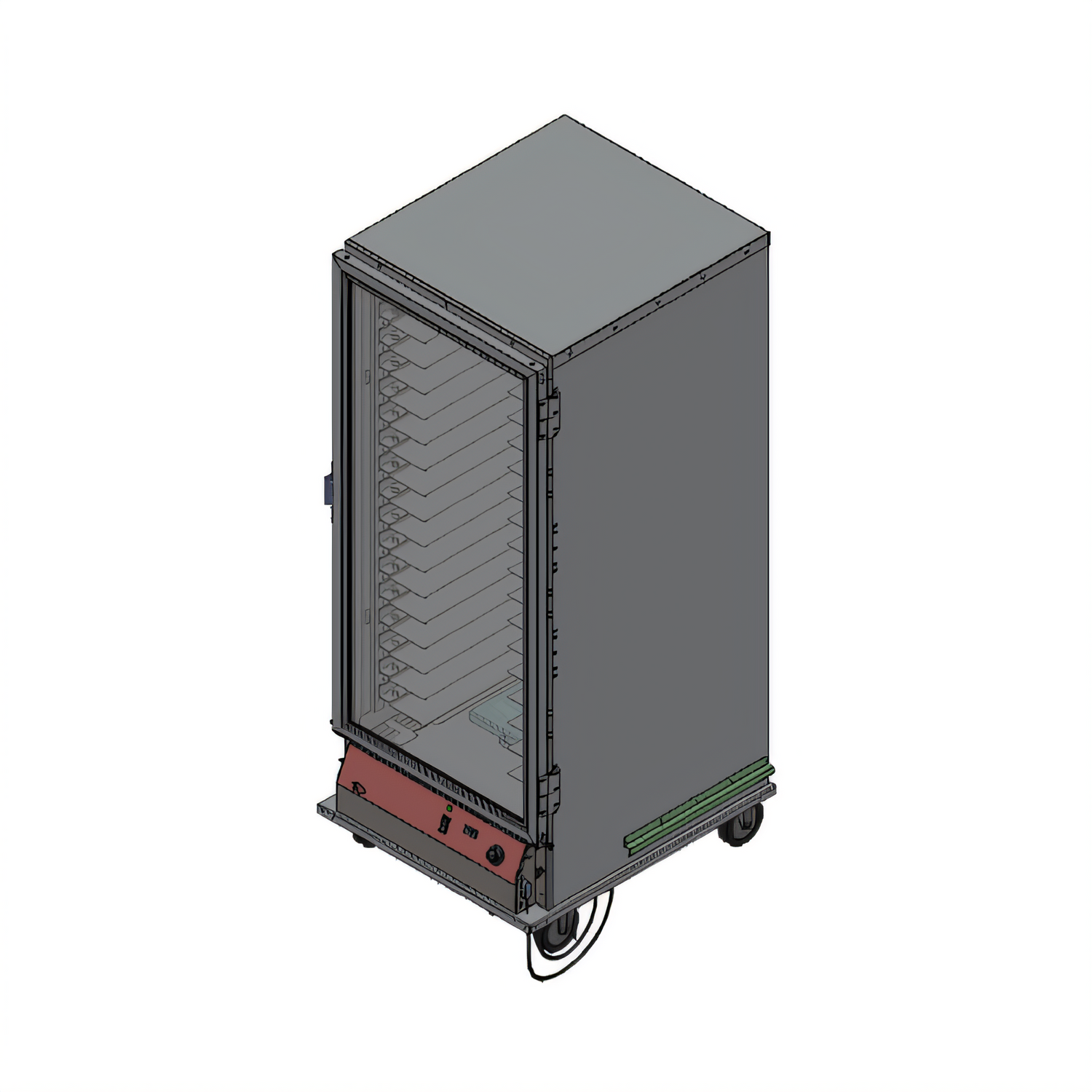

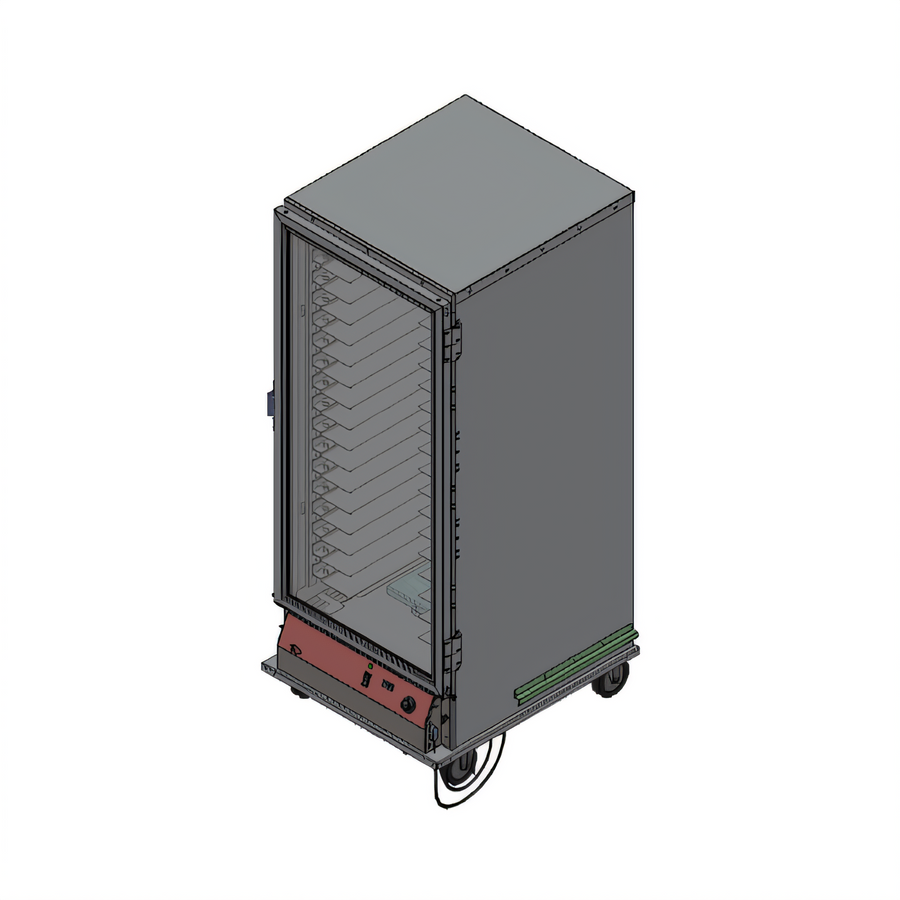

BevLes PICA70-32INS-A Insulated Mobile Proofing Cabinet

Full-height donut proofer • 32-pan / 16-screen capacity • 120 V

Engineered for high-volume bakeries, donut shops and commissaries, the BevLes PICA70-32INS-A delivers uniform heat and humidity from floor to ceiling. Its rugged all-aluminum body, intuitive digital controls and removable heating module make proofing dependable, precise and easy to maintain.

Key Benefits
  • Wide capacity fits (16) 18 × 26 in or 23 × 23 in donut screens, or (32) 12 × 20 in pans.
  • Adjustable extruded pan supports on 1.5 in centers accept multiple pan/screen sizes.
  • Digital thermostat with bright LED read-out and separate humidity dial for pinpoint control from 60 °F – 120 °F (15.6 °C – 48.9 °C).
  • 5 qt. cast water reservoir & “cast-in” humidity system prevent element burn-out and maintain perfect moisture.
  • Fully insulated top, back and sides for stable temperatures and energy efficiency.
  • Removable bottom-mounted heating module and interior components speed up cleaning.
  • Clear right-hand-hinged Lexan® door with full-perimeter gasket offers at-a-glance monitoring.
  • 5 in swivel plate casters (front two braking) roll smoothly across the kitchen.
  • Zero-clearance design lets you park the cabinet flush against walls or equipment.
  • cULus & NSF listed for use in commercial food-service environments.
Built to Last
  • .063 in formed aluminum body & rear air-duct panel
  • .125 in formed aluminum base
  • Heavy-duty stainless-steel door hinges & positive-closing latch
  • Closed-cell foam door gasket for a tight, energy-saving seal
Specifications
Model PICA70-32INS-A
Capacity (16) 18 × 26 in or 23 × 23 in screens  |  (32) 12 × 20 in pans
Temperature Range 60 °F – 120 °F (15.6 °C – 48.9 °C)
Humidity Control Variable, manual dial
Exterior Dimensions (W × D × H) 29 in × 33.5 in × 71.5 in (740 mm × 850 mm × 1 820 mm)
Interior Height 55 in (1 400 mm)
Door Clearance (open) 57.5 in (1 460 mm) width required
Construction All-aluminum cabinet, insulated top/sides/back
Electrical 120 V / 60 Hz / 1-ph, 1 400 W, 13 A, 8 ft cord, NEMA 5-15P
Caster Size 5 in swivel plate (front two with brakes)
Unit Weight / Shipping Weight 245 lb / 295 lb (111 kg / 133 kg)
Certifications cULus, NSF
Optional Accessories
  • Reverse (left-hand) door hinging
  • Solid (non-view) door
  • Gray non-marking corner or full-perimeter bumpers
  • 6 in stainless-steel legs or 6 in casters
  • Extra universal pan supports & 18 × 26 in wire racks
Electrical: Requires a dedicated 15-amp, 120-volt circuit and standard NEMA 5-15R receptacle.

Need help deciding? Click the “Chat” icon or call us and a bakery equipment specialist will be happy to answer any questions.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

71.5in

Width

29.0in

Depth

33.5in

Shipping Weight

295.0lbs

Sections

1 section w/1 compartment

Exterior Finish

all aluminum exterior

Interior Finish

aluminum interior

Insulation

insulated

Heater

bottom mounted heater

Doors

full height doors, plastic

Slide Centers

adjustable centers on 1-1/2"

Full Size Sheet Pan Capacity

(16) 18" x 26" pans

Full Size Hotel Pan Capacity

(32) 12" x 20" pans

Specifications

Proofing Cabinet, mobile (donut proofer), full height, insulated top, back & sides, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 60° to 120°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 18" x 26", or (16) 23" x 23" donut screens, or (32) 12" x 20" pans, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 120v/60/1-ph, 1400 watts, 13 amps, 8' cord & NEMA 5-15P, cULus, NSF
