Description

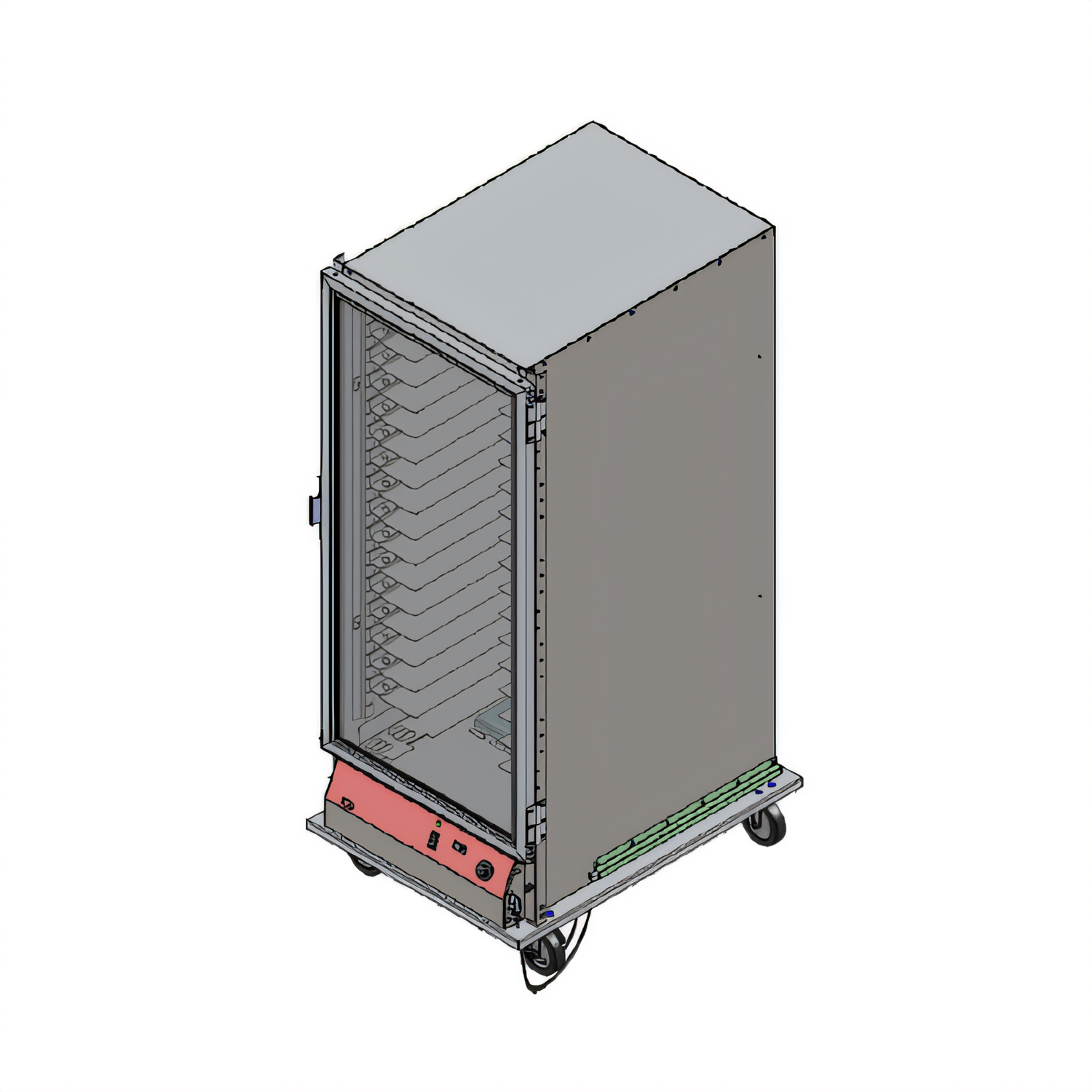

BevLes PICA70-32-AED Extra-Deep Donut Proofing Cabinet

Full-height • Mobile • Non-insulated • 208-230 V

Perfect, airy yeast-raised donuts start with a consistent proof. The BevLes PICA70-32-AED delivers the extended pan capacity, precise heat, and adjustable humidity your bakery demands—all in a lightweight, easy-to-move aluminum cabinet built for daily commercial use.

Key Features
  • Extra-deep interior accommodates 23" × 32" donut screens plus common bakery pans.
  • Digital thermostat with bright LED read-out; 60 °F – 120 °F (15.6 °C – 48.9 °C).
  • Independent variable humidity control for ideal dough development.
  • Adjustable extruded aluminum pan supports on 1.5" centers hold:
    • (16) 23" × 32" donut screens
    • (16) 23" × 23" donut screens
    • (16) 18" × 26" sheet pans
    • (32) 12" × 20" steam-table pans
  • 5 qt (4.7 L) cast-aluminum water reservoir with cover; “cast-in” heater prevents element burnout.
  • Slide-out heating/humidity module for fast cleaning and service.
  • Full-height clear Lexan® door, right-hand hinged, with positive-latch & full-perimeter gasket.
  • Four 5" swivel plate casters—front two lock—for effortless mobility.
  • Rugged .063" aluminum body & .125" base resists corrosion while keeping weight low.
  • cULus & NSF listed for electrical safety and sanitation.
Consistent Results, Every Tray

A bottom-mounted forced-air system gently circulates warm, moist air from floor to ceiling, eliminating hot spots so every screen proofs evenly. The self-draining base channels excess condensation into a standard bun pan (not included), keeping your floor dry and safe.

Specifications
Model PICA70-32-AED (208-230 V)
Construction .063" formed aluminum body, .125" base; removable heat/humidity module
Door Clear Lexan® with extruded aluminum frame, right-hand hinge
Pan Capacity (16) 23" × 32", 23" × 23" or 18" × 26" -or- (32) 12" × 20"
Pan Spacing Adjustable on 1.5" centers
Temp. Range 60 °F – 120 °F (15.6 °C – 48.9 °C)
Humidity Variable, via 5 qt cast reservoir
Exterior (W × D × H) 29" × 39" × 71.5" (740 × 991 × 1820 mm)
Electrical 208-230 V / 50-60 Hz / 1-Ph, 1,400 W, 7.5/6.8 A, cord only (no plug)
Casters (4) 5" swivel plate (2 locking)
Approvals cULus, NSF
Shipping Weight ≈ 290 lb / 132 kg
Ideal For
  • Donut shops & commissaries
  • Retail & wholesale bakeries
  • Supermarket in-store bakeries
  • Hotel, resort & casino pastry kitchens
Options & Accessories (sold separately)
  • Left-hand or reversible door hinging
  • Solid door panel
  • Corner or perimeter bumpers (gray non-marking vinyl)
  • Additional universal pan supports
  • 6" stainless legs with adjustable feet, or 6" casters (soft rubber)
  • 18" × 26" chrome electroplated wire racks
Electrical Note: This cabinet ships with a cord only. Installer must supply a compliant 208-230 V, single-phase connection and plug as required by local code.

Questions about configuration, lead times or bulk pricing? Reach our bakery equipment specialists via chat or phone for same-day assistance.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

71.5in

Width

29.0in

Depth

39.0in

Shipping Weight

290.0lbs

Exterior Finish

all aluminum exterior

Interior Finish

aluminum interior

Doors

full height doors, plastic

Insulation

non-insulated

Full Size Sheet Pan Capacity

(16) 18" x 26" pans

Slide Centers

adjustable centers on 1-1/2"

Full Size Hotel Pan Capacity

(32) 12" x 20" pans

Heater

bottom mounted heater

Sections

1 section w/1 compartment

Specifications

Extra Deep Proofing Cabinet (donut proofer), mobile, full height, non-insulated, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 60° to 120°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 23" x 32" donut screens, or (16) 23" x 23" donut screens, or (16) 18" x 26" trays, or (32) 12" x 20" pans, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 1400 watts, 7.5/6.8 amps, cord only, cULus, NSF
