BevLes Company PICA60-24INS-A-4L1 Dough Proofers & Retarders
$4,567.00
Unit price
/
Unavailable
Description

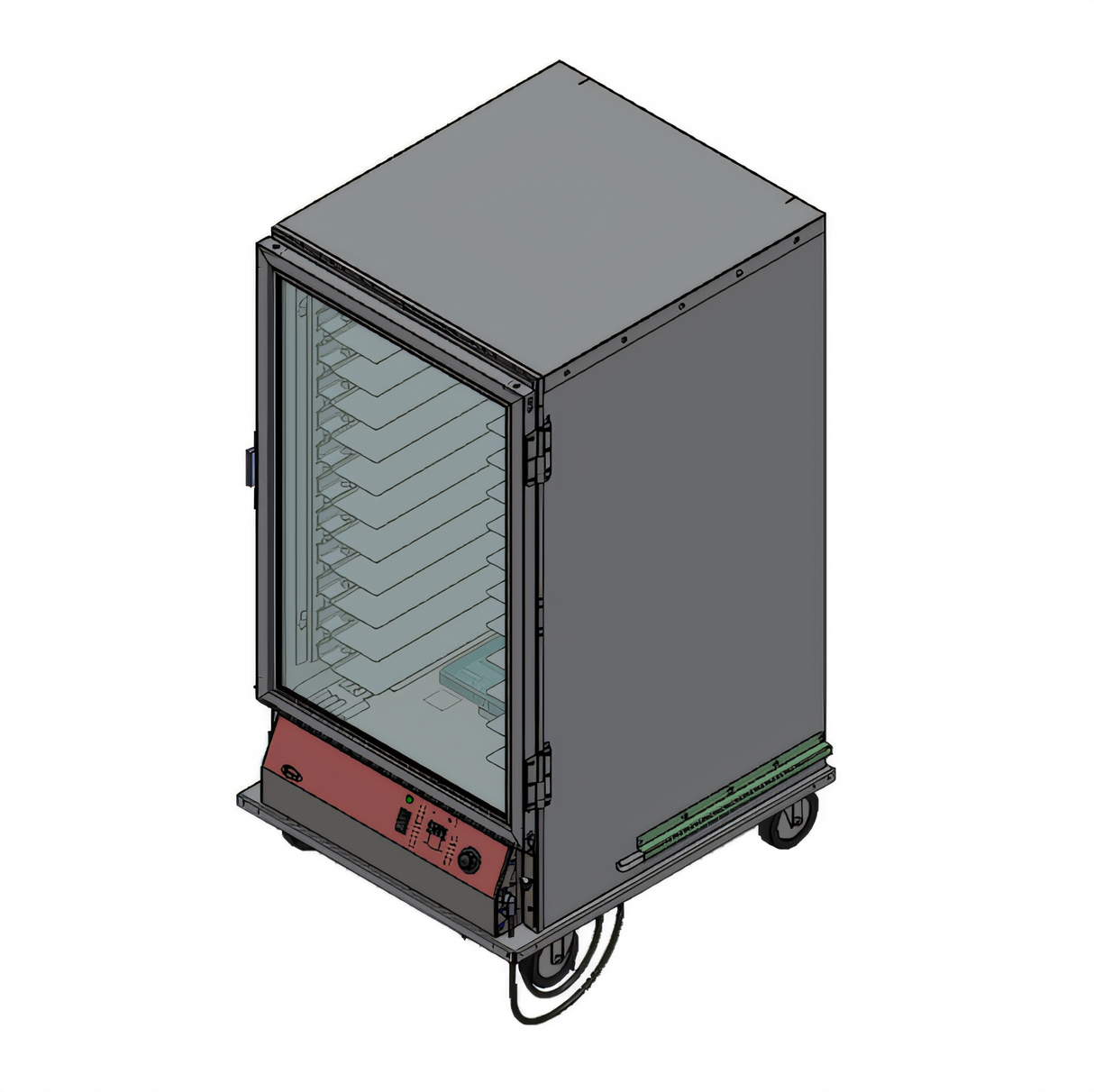

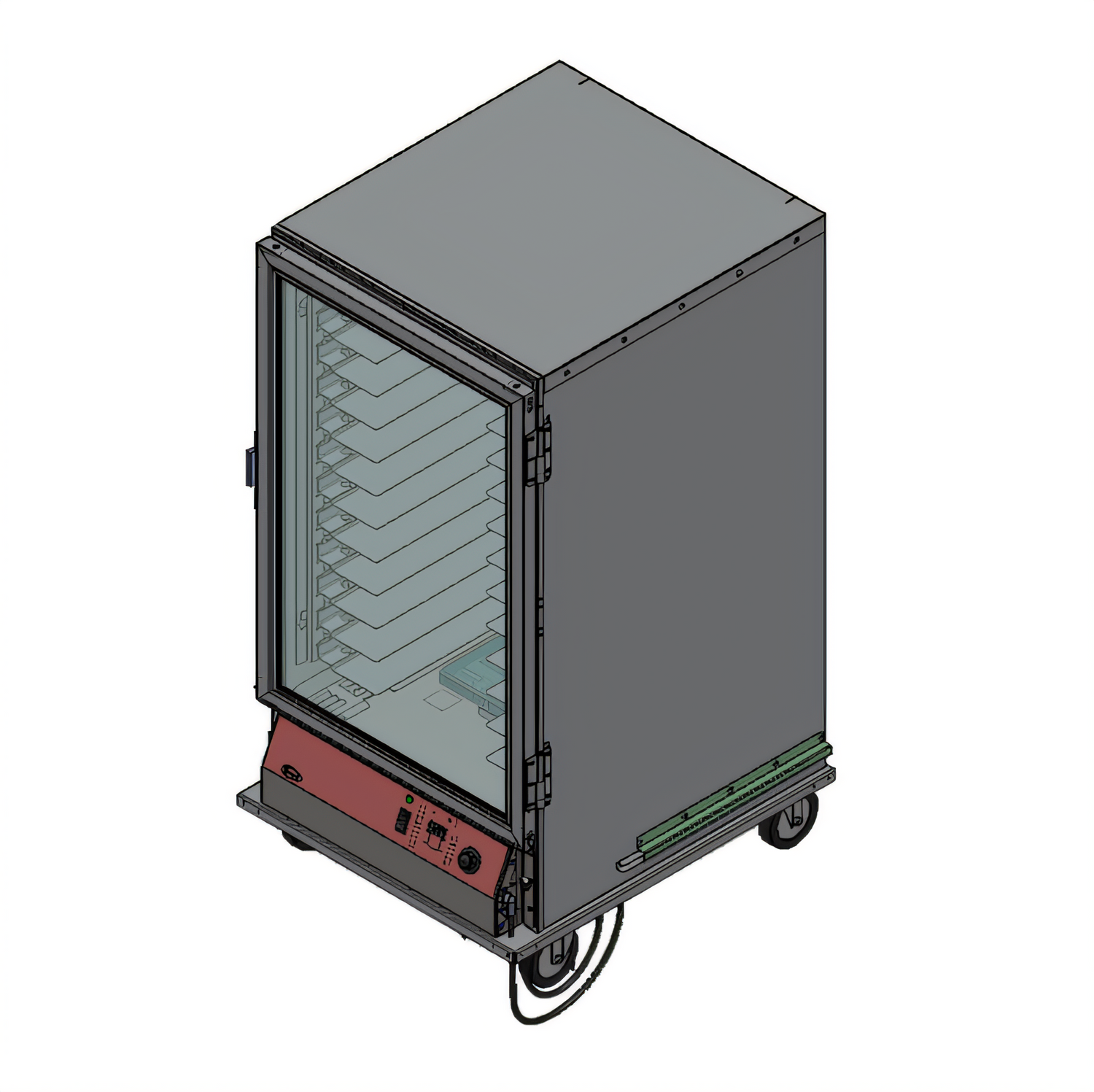

BevLes Insulated 3/4-Height Donut Proofer
Model PICA60-24INS-A | 208–230 V / 1-PhAchieve perfectly risen dough every batch with BevLes’ legendary proofing technology. This mobile, 3/4-height cabinet delivers precise heat and humidity control in a compact footprint that fits busy bakeries, cafés, and donut shops.
Key Performance Features
- 60 °F – 120 °F (15.6 °C – 48.9 °C) digital thermostat with bright LED read-out.
- Independent humidity dial activates a 5 qt (4.7 L) cast water reservoir for soft, supple dough.
- “Cast-in” humidity element prevents dry-firing damage and removes easily for cleaning.
- Fully insulated top, back & sides maintain stable temperature while saving energy.
- Clear Lexan® door (left-hand hinge) provides a full view of product without releasing heat.
- Positive-close latch, stainless-steel hinges & full-perimeter gasket seal in heat and moisture.
Capacity & Flexibility
- Universal aluminum pan supports adjustable on 1.5" (38 mm) centers.
- Holds up to:
- (12) full-size sheet pans 18" × 26"
- (24) 12" × 20" steam table pans
- (12) 23" × 23" donut screens
- Self-draining base channels excess condensation into a standard bun pan (not included).
Built for the Real World
- .063" formed aluminum body—lightweight yet exceptionally durable.
- Tool-free removable interior components speed daily clean-up.
- (4) 5" swivel plate casters with neoprene wheels; front two lock for stability.
- Removable bottom-mounted heating module simplifies maintenance.
Specifications
| Temperature Range | 60 °F – 120 °F (15.6 °C – 48.9 °C) |
|---|---|
| Humidity Control | Variable, 5 qt (4.7 L) reservoir |
| Pan Capacity | (12) 18 × 26, (24) 12 × 20, or (12) 23 × 23 |
| Pan Spacing | Adjustable on 1.5" centers |
| Exterior Dimensions | 29" W × 33.5" D × 56.5" H (740 × 850 × 1440 mm) |
| Construction | Insulated aluminum; clear Lexan® door |
| Electrical | 208–230 V / 50–60 Hz / 1-Ph, 1400 W, 7.5/6.8 A, cord only |
| Casters | (4) 5" swivel plate, 2 with brakes |
| Certifications | cULus, NSF |
| Net / Ship Weight | 210 lb / 260 lb (95 kg / 118 kg) |
Important: Unit ships with cord only; installer must supply and attach the correct plug for local code compliance.
From proof to fry, keep your donut production running smoothly with the dependable performance of BevLes—trusted in bakeries since 1946.
Features & Specs
Features & Specs
Manufacturer
BevLes Company
Certifications
NSF, cULus
Height
56.5in
Width
29.0in
Depth
33.5in
Shipping Weight
260.0lbs
Slide Centers
adjustable centers on 1-1/2"
Full Size Sheet Pan Capacity
(12) 18" x 26" pans
Full Size Hotel Pan Capacity
(24) 12" x 20" pans
Exterior Finish
all aluminum exterior
Interior Finish
aluminum interior
Insulation
insulated
Sections
1 section w/1 compartment
Doors
full height doors, plastic
Heater
bottom mounted heater
Specifications
Proofing Cabinet (donut proofer), mobile, 3/4 height, insulated top, back & sides, (1) clear Lexan® left-hand hinged door, digital thermostat, variable humidity control & LED display, 60° to 120°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (12) 18" x 26" or (24) 12" x 20" pans, or (12) 23" x 23" donut screens, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 1400 watts, 7.5/6.8 amps, cord only, cULus, NSF
