BevLes Company PICA44-16INS-A-1R1 Dough Proofers & Retarders
Description

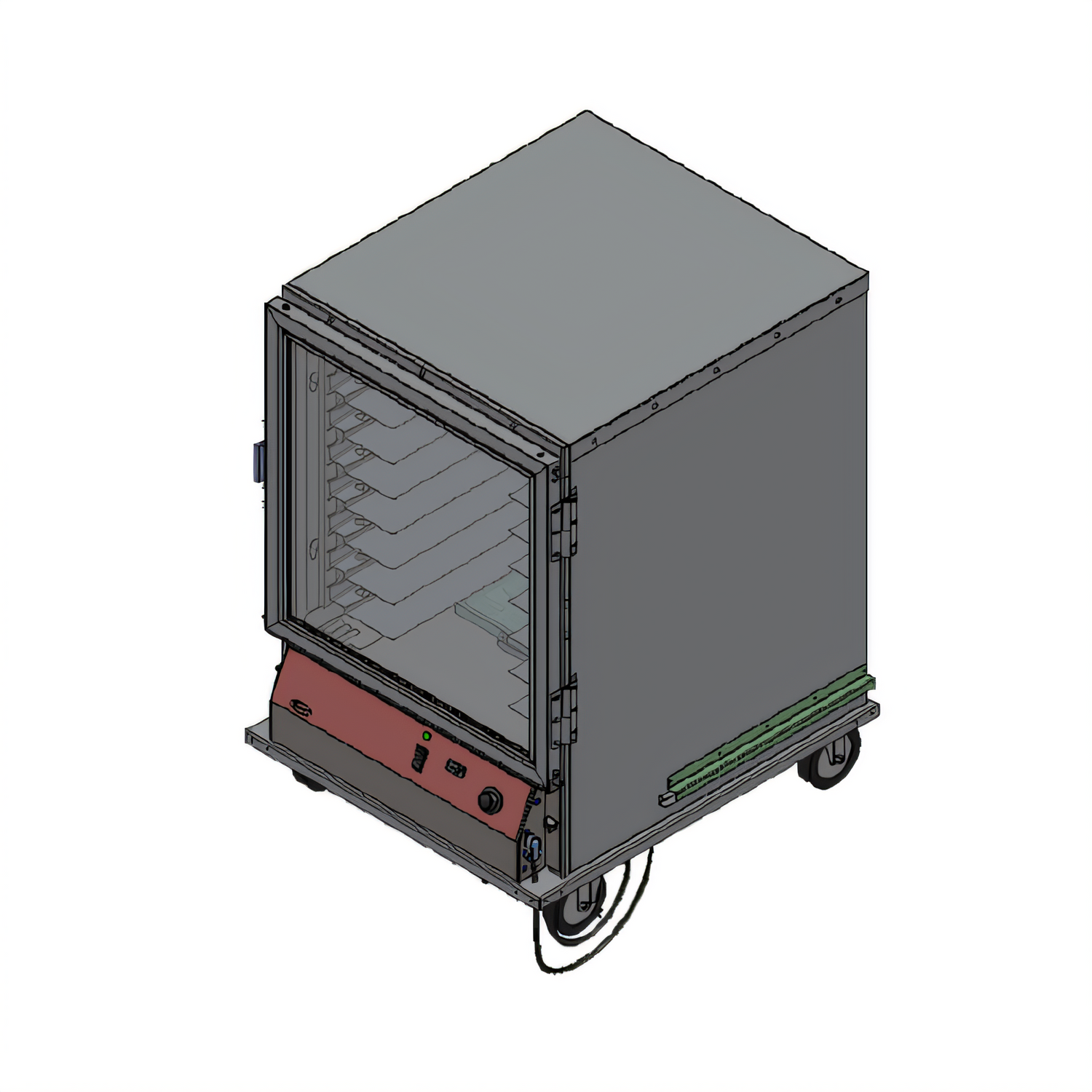

BevLes Half-Height Insulated Donut Proofer
Model PICA44-16INS-A • right-hinged clear door • 120 VGive your yeast-raised doughs the perfectly controlled environment they need to rise every single time. The BevLes PICA44-16INS-A combines precise digital temperature, adjustable humidity and rugged, mobile construction—ideal for bakeries, donut shops and commissary kitchens that demand consistent results in a compact footprint.
Key Features & Benefits
- Fully insulated top, back and sides for superior heat retention and energy efficiency.
- Digital thermostat (60-120 °F) with variable humidity dial and easy-read LED display.
- Universal extruded aluminum pan supports on 1½ in centers hold:
• (8) full-size 18 × 26 in sheet pans or
• (16) 12 × 20 in steam table pans or
• (8) 23 × 23 in donut screens - Right-hand hinged clear Lexan® door lets staff check proof without disturbing the cabinet.
- 5 qt cast-aluminum water reservoir with cover and “cast-in” humidity system—no exposed elements to burn out.
- Removable plug-in heat / humidity module and lift-out interior components for fast, tool-free cleaning.
- 5 in swivel plate casters (front two with brakes) provide smooth mobility around the kitchen.
- Rugged .063 in aluminum body and .125 in base built to withstand daily commercial use.
- Zero-clearance design—set the cabinet flush against walls or equipment to save floor space.
- cULus & NSF listed for safety and sanitation.
Specifications
| Model | PICA44-16INS-A-1R1 |
|---|---|
| Capacity | (8) 18 × 26 in pans, (16) 12 × 20 in pans, or (8) 23 × 23 in screens |
| Temperature Range | 60 °F – 120 °F (15.6 °C – 48.9 °C) |
| Exterior Dimensions | 29 w × 33.5 d × 43.06 h in (740 × 850 × 1094 mm) |
| Internal Height | 27 in (690 mm) |
| Pan Spacing | Adjustable on 1.5 in centers |
| Construction | .063 in aluminum body, closed-cell foam insulation |
| Electrical | 120 V / 60 Hz / 1 Ph • 1,400 W • 13 A • 8 ft cord with NEMA 5-15P plug |
| Casters | 5 in swivel plate (2 with brakes) |
| Unit / Shipping Weight | 175 lb / 225 lb (80 kg / 102 kg) |
| Certifications | cULus, NSF |
Why BevLes?
- Built in the USA since 1946—over 20,000 BevLes proofers in operation worldwide.
- Exclusive “cast-in” humidity system prevents accidental element contact and extends component life.
- Completely removable interior makes end-of-day sanitation quick and hassle-free.
Screens, pans and bun pan for self-draining feature are sold separately. Need opposite door swing, bumpers or legs? Factory options are available—contact us for details.
