Description

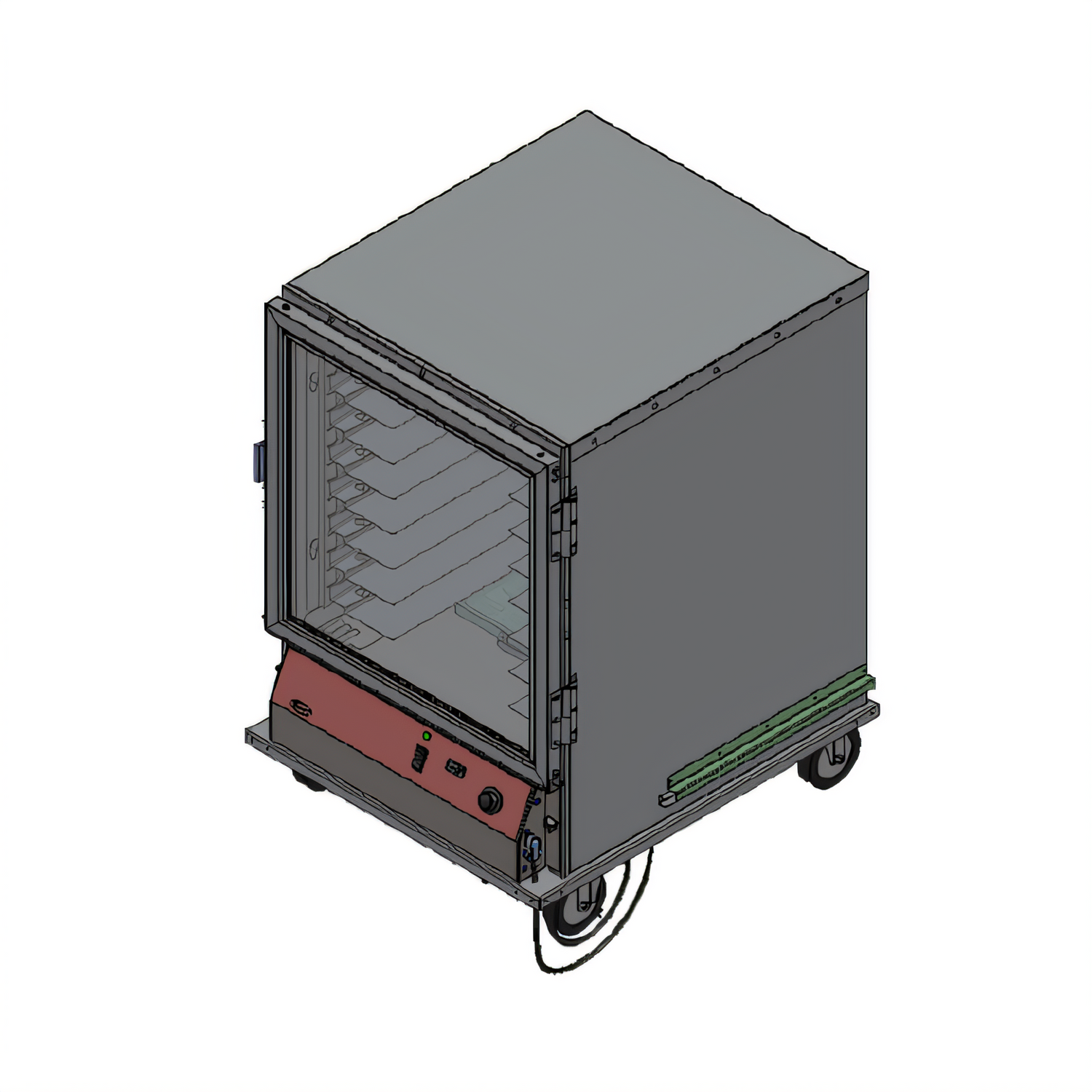

BevLes PICA44-16INS-A Insulated Proofing Cabinet

Half-Height Mobile Donut Proofer  |  8 Full Sheet / 16 Half Sheet Capacity

Give your bakery, doughnut shop or commissary the consistent rise it deserves with the BevLes PICA44-16INS-A. This half-height, fully-insulated proofer delivers even heat and humidity—from the first tray to the last—while its mobile, space-saving footprint keeps your kitchen running smoothly.

Key Features

  • Digital thermostat with LED read-out for precise 60 – 120 °F temperature control
  • Independent variable humidity dial prevents skinning and ensures uniform proofing
  • Extruded aluminum pan supports on 1½ in. centers hold:
    • (8) 18 × 26 in. sheet pans
    • (16) 12 × 20 in. steam table pans
    • (8) 23 × 23 in. donut screens
  • 5 qt cast-aluminum water reservoir with cover—“cast-in” heater guards against element burnout
  • Completely removable heating module and interior components for fast, tool-free cleaning
  • Clear Lexan® door (left-hand hinge) with full-perimeter gasket and positive-action latch
  • Rugged .063 in. aluminum body; top, back & sides are fully insulated
  • 5 in. plate casters (2 locking) for effortless mobility through tight prep areas
  • cULus & NSF listed; built in Erie, Pennsylvania, USA

Applications

  • Proofing yeast-raised donuts, breads, rolls & croissants
  • Maintaining product quality during short-term holding
  • Ideal for cafés, commissaries, convenience stores and food trucks that need full-size capacity without the height of a full cabinet

Specifications

Model PICA44-16INS-A (Left-Hand Door)
Capacity (8) 18 × 26 in. pans  |  (16) 12 × 20 in. pans  |  (8) 23 × 23 in. screens
Temperature Range 60 °F – 120 °F (15.6 °C – 48.9 °C)
Humidity Control Variable, cast-in system with 5 qt (4.7 L) reservoir
Construction .063 in. aluminum body & rear duct, .125 in. aluminum base; insulated top/sides/back
Door 1 clear Lexan® door, left-hand hinge, positive-closure latch
Pan Support Spacing Adjustable on 1½ in. (38 mm) centers
Dimensions (W × D × H) 29 in. × 33.5 in. × 43.06 in. (740 × 850 × 1094 mm)
Electrical 120 V / 60 Hz / 1-Ph, 1,400 W, 13 A, 8 ft cord, NEMA 5-15P
Casters (4) 5 in. swivel plate casters, front two with brakes
Weight 175 lb (80 kg) net  |  225 lb (102 kg) shipping
Certifications cULus, NSF

Included & Optional Accessories

  • Standard: removable heating module, water reservoir cover, pan supports, 5 in. casters
  • Optional: reverse door hinging, solid door, corner or perimeter bumpers, additional pan supports, 6 in. legs or larger casters, 18 × 26 in. wire racks

Need a quote or have spec questions? Contact our food-service team and discover why BevLes has been the industry’s proofing authority since 1946.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

46.06in

Width

29.0in

Depth

33.5in

Shipping Weight

225.0lbs

Height

46"H

Interior Finish

aluminum interior

Door

polycarbonate door

Slide Centers

adjustable on 1-1/2"

Full Size Sheet Pan Capacity

(8) 18" x 26" pans

Full Size Hotel Pan Capacity

(16) 12" x 20" pans

Insulation

insulated

Heater

bottom mounted heater

Exterior Finish

aluminum exterior

Specifications

Proofing Cabinet (donut proofer), mobile, half height, insulated top, back & sides, (1) clear Lexan® left-hand hinged door, digital thermostat, variable humidity control & LED display, 60° to 120°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (8) 18" x 26" or (16) 12" x 20" pans, or (8) 23" x 23" donut screen, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 120v/60/1-ph, 1400 watts, 13 amps, 8' cord & NEMA 5-15P, cULus, NSF
