Description

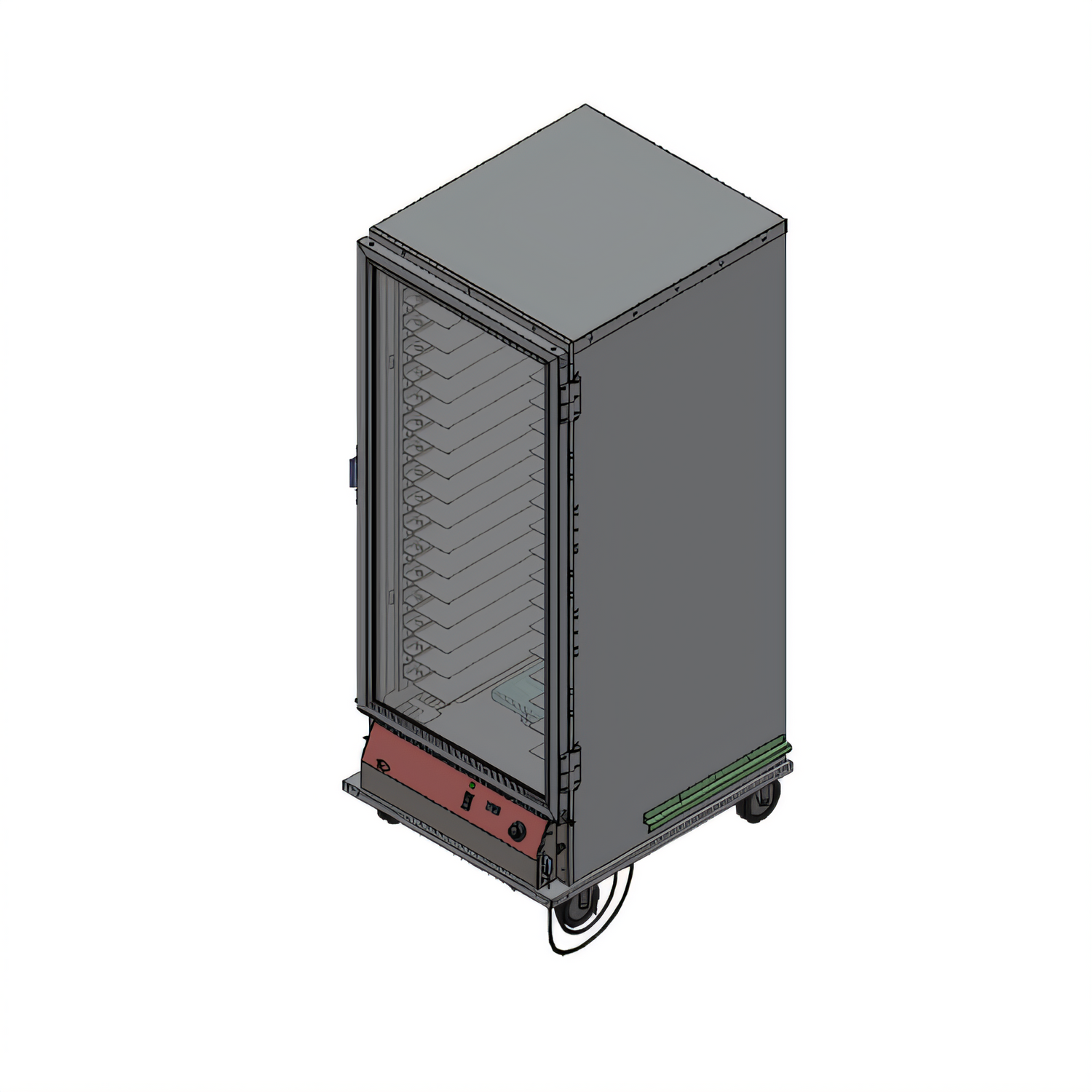

BevLes PHC70-32INS-A Full-Height Insulated Proofing & Holding Cabinet — 208-230 V

16 sheet-pan / 32 steam-table-pan capacity • Mobile with digital heat & humidity control

Designed for the busiest bakeries, donut shops and banquet kitchens, the PHC70-32INS-A delivers consistent temperature and moisture to keep dough proofing perfectly or finished food hot and fresh. Its rugged all-aluminum construction, removable heating module and easy-read LED panel make daily use and cleaning a breeze.

Key benefits
  • Fully insulated top, back and sides for energy-efficient performance.
  • Bottom-mounted digital thermostat with separate humidity dial and bright LED display.
  • Wide 80 °F – 180 °F (27 °C – 82 °C) range for both proofing and safe hot holding.
  • 5 qt. cast-aluminum water reservoir with cover—no exposed elements to burn out.
  • Universal pan supports on 1.5" centers accept:
    • (16) 18" × 26" full-size sheet pans
    • (32) 12" × 20" steam-table pans
    • (16) 23" × 23" donut screens
  • Clear Lexan® right-hand hinged door with positive-latch and full-perimeter gasket.
  • Four 5" swivel plate casters—front two lock for stability.
  • Removable heating/humidity module and slide racks for fast, thorough wash-down.
  • cULus listed & NSF certified for sanitation and safety.
Specifications
Model PHC70-32INS-A
Capacity 16 full-size (18" × 26") pans • 32 half-size (12" × 20") pans • 16 donut screens (23" × 23")
Pan Spacing Adjustable on 1.5" centers (standard 3" spacing)
Temperature Range 80 °F – 180 °F (27 °C – 82 °C)
Humidity System Variable control • 5 qt. cast reservoir
Exterior Dimensions 29" W × 33.5" D × 71.5" H (737 × 850 × 1816 mm)
Construction .063" formed aluminum body • Clear Lexan® door
Mobility 4 × 5" swivel casters (2 braking)
Electrical 208–230 V / 50–60 Hz / 1-ph • 2000 W • 9.7 A @ 208 V / 8.7 A @ 230 V • Cord only
Net / Ship Weight 245 lb / 295 lb (111 kg / 133 kg)
Listings cULus • NSF
Ideal applications
  • Artisan & commercial bakeries
  • Donut and bagel shops
  • Hotel, resort & banquet kitchens
  • Catering commissaries and mobile operations
Electrical notice: Unit ships with cord only (no plug) and must be connected to a 208–230 V, single-phase circuit by a qualified electrician.

Looking for solid doors, extra pan supports or bumpers? Factory-installed options are available—contact us for details.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

71.5in

Width

29.0in

Depth

33.5in

Shipping Weight

295.0lbs

Full Size Hotel Pan Capacity

(32) 12" x 20" pans

Sections

1 section w/1 compartment

Heater

bottom mounted heater

Doors

full height doors, plastic

Exterior Finish

all aluminum exterior

Interior Finish

aluminum interior

Full Size Sheet Pan Capacity

(16) 18" x 26" pans

Insulation

insulated

Slide Centers

adjustable centers on 1-1/2"

Specifications

Proofing & Holding Cabinet, mobile, full height, insulated top, back & sides, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 80° to 180°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 18" x 26" or (32) 12" x 20" pans, or (16) 23" x 23" donut screens, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 2000 watts, 9.7/8.7 amps, cord only, cULus, NSF
