BevLes Company  |  SKU: PHC70-32INS-A-1R2

BevLes Company PHC70-32INS-A-1R2 Proofing Cabinets

$4,910.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

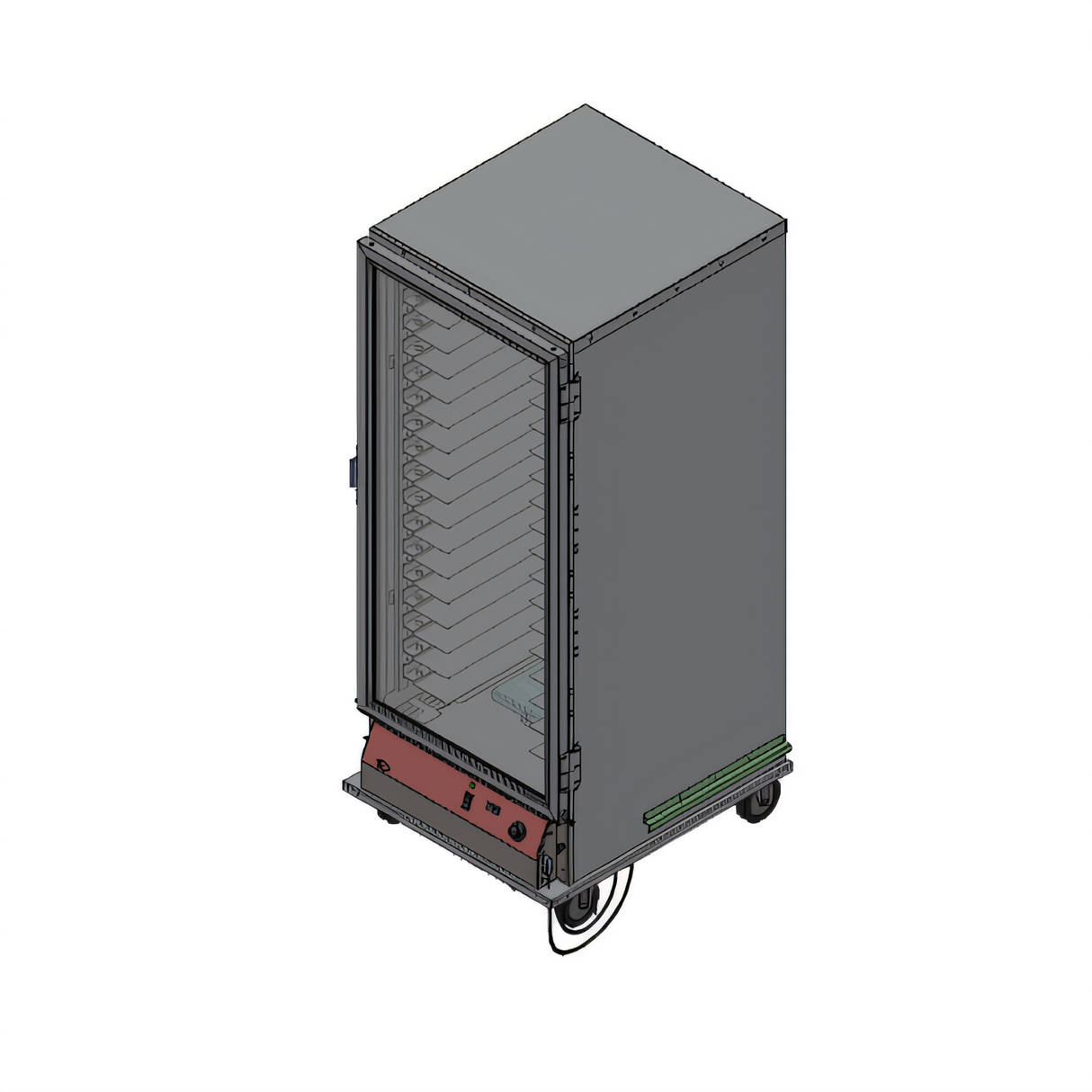

BevLes PHC70-32INS-A Insulated Proofing & Holding Cabinet

Full-height • 32-Pan Capacity • 120 V Plug-and-Play

Achieve perfect proofing and extended holding in one rugged, mobile cabinet. The PHC70-32INS-A surrounds every tray with gentle, even heat and operator-controlled humidity—so breads rise higher, fried foods stay crisp, and entrées stay fresh until service.

Key advantages

  • Fully insulated top, sides & back for superior heat retention and energy savings.
  • Digital thermostat with bright LED display lets you set 80 – 180 °F (27 – 82 °C) in 1-degree increments.
  • Independent humidity control feeds a 5 qt cast-aluminum reservoir—no exposed elements to burn out.
  • Universal pan supports on 1.5" centers hold (16) 18" × 26" sheet pans, (32) 12" × 20" hotel pans or (16) 23" × 23" donut screens.
  • (2) Clear Lexan® right-hand hinged Dutch doors give a full-view of product and reduce heat loss during loading.
  • Quick-lift, removable heating module & slide-out water pan make daily cleaning a breeze.
  • Heavy-duty 5" swivel plate casters—front two lock—move effortlessly from prep area to service line.
  • Rugged .063" formed-aluminum construction stands up to busy commercial kitchens.
  • Ships ready to use with 8' cord & NEMA 5-20P plug; cULus & NSF listed.

Perfect for

  • Bakeries & donut shops proofing dough overnight or during peak production.
  • Catering, banquet & QSR operations keeping menu items hot and appetizing.
  • School, hospital & institutional kitchens requiring high capacity in a small footprint.

Technical specifications

Model PHC70-32INS-A
Pan / screen capacity (16) 18" × 26" sheet pans
(32) 12" × 20" steam-table pans
(16) 23" × 23" donut screens
Pan spacing Adjustable on 1.5" centers
Temperature range 80 – 180 °F (27 – 82 °C)
Humidity system 5 qt cast reservoir, self-draining design
Controls Digital thermostat & independent humidity dial with LED read-out
Doors (2) Clear Lexan® Dutch, right-hand hinged, positive-latch
Exterior dimensions 29" W × 33.5" D × 71.5" H  (740 × 850 × 1820 mm)
Electrical 120 V / 60 Hz / 1 Ph, 2000 W, 16.7 A, NEMA 5-20P
Casters (4) 5" neoprene swivel plate, (2) with brakes
Construction .063" formed aluminum body; removable heating module
Certifications cULus, NSF
Shipping weight 295 lb / 133 kg

Optional accessories include reverse door hinging, gray vinyl bumpers, stationary legs, extra pan supports & more—contact us for details.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

71.5in

Width

29.0in

Depth

33.5in

Shipping Weight

295.0lbs

Exterior Finish

all aluminum exterior

Insulation

insulated

Heater

bottom mounted heater

Sections

1 section w/1 compartment

Full Size Hotel Pan Capacity

(32) 12" x 20" pans

Interior Finish

aluminum interior

Full Size Sheet Pan Capacity

(16) 18" x 26" pans

Slide Centers

adjustable centers on 1-1/2"

Doors

dutch doors, plastic

Specifications

Proofing & Holding Cabinet, mobile, full height, insulated top, back & sides, (2) clear Lexan® right-hand hinged dutch doors, digital thermostat, variable humidity control & LED display, 80° to 180°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 18" x 26" or (32) 12" x 20" pans, (16) 23" x 23" donut screens, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 120v/60/1-ph, 2000 watts, 16.7 amps, 8' cord & NEMA 5-20P, cULus, NSF
