BevLes Company PHC70-32INS-A-1R1 Proofing Cabinets
Description

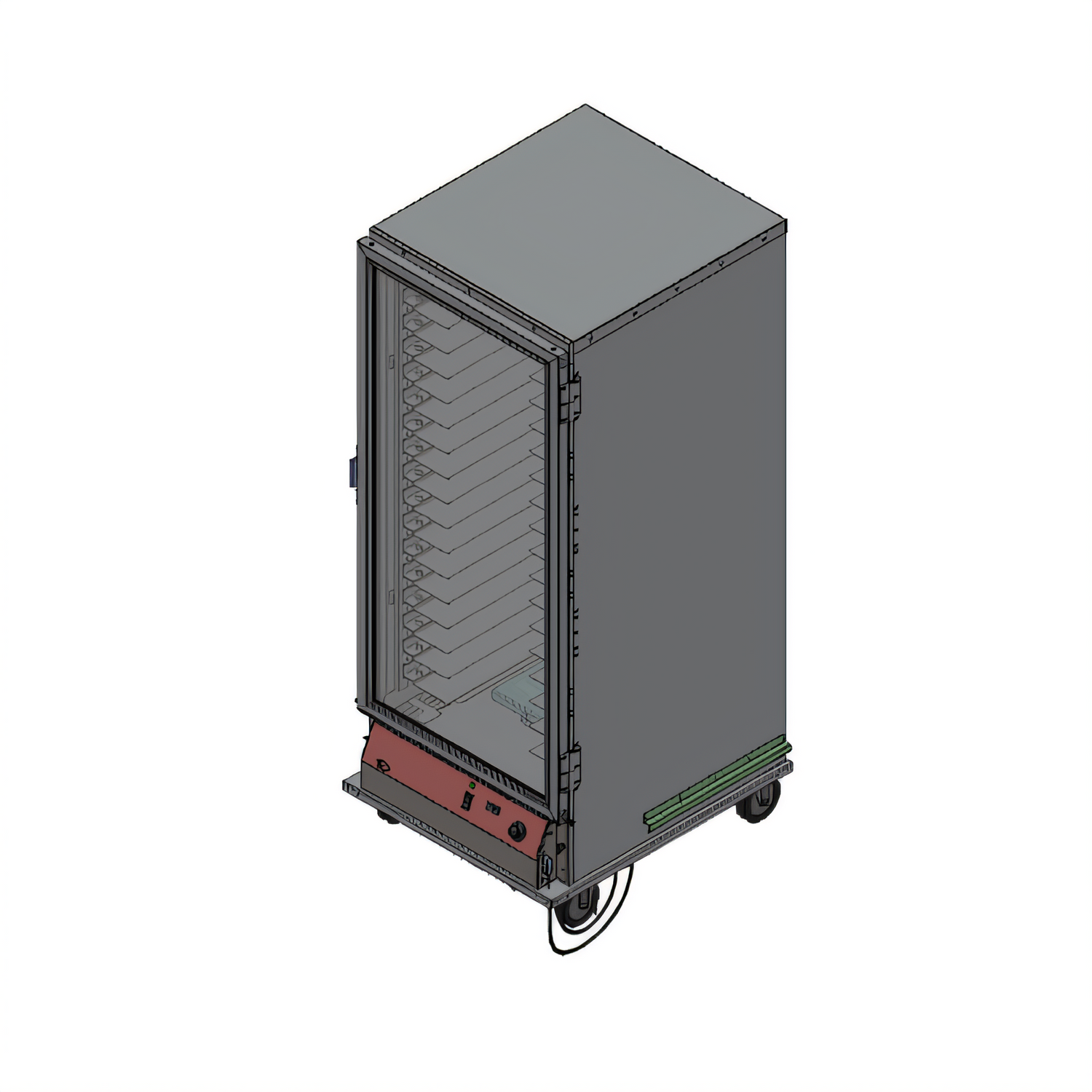

BevLes PHC70-32INS-A Insulated Proofing & Holding Cabinet
Full-height • Mobile • 120 VGive your baked goods the perfect rise—or keep finished foods hot, moist and ready to serve— with the BevLes PHC70-32INS-A. Built for busy commissaries, donut shops and high-volume kitchens, this full-height cabinet delivers consistent temperature and humidity control in a tough, easy-to-clean aluminum package that rolls anywhere you need it.
Key advantages
- Wide capacity: holds 16 full-size sheet pans (18 × 26"), 32 steam-table pans (12 × 20") or 16 donut screens (23 × 23")
- Digital thermostat with LED display—set temps from 80–180 °F (27–82 °C) with ±2 °F accuracy
- Independent, variable humidity control fed by a 5 qt. cast-aluminum reservoir; “cast-in” element prevents burnout from spills
- Fully insulated top, sides and back for faster recovery and lower energy costs
- Clear Lexan® door (right-hand hinge) and bright interior for quick product checks
- Extruded aluminum pan supports on 1.5" centers—tool-less adjustment or removal for cleaning
- Quick-release, removable heating module streamlines sanitation and service
- Self-draining floor channels excess condensate into a standard bun pan (not included)
- Four 5" swivel plate casters (front two locking) glide over thresholds and into proof boxes
- cULus & NSF listed for electrical and sanitation compliance
Specifications
| Model | PHC70-32INS-A |
|---|---|
| Capacity | 16 × 18 × 26" pans 32 × 12 × 20" pans 16 × 23 × 23" screens |
| Temperature range | 80 °F – 180 °F (27 °C – 82 °C) |
| Humidity system | Variable; 5 qt. cast reservoir with cover |
| Exterior dimensions | 29" W × 33.5" D × 71.5" H (740 × 850 × 1820 mm) |
| Interior height | 55" (1400 mm) |
| Construction | .063" formed aluminum cabinet & air duct; .125" formed aluminum base |
| Door | Clear Lexan®, right-hand hinged, full-perimeter gasket |
| Electrical | 120 V / 60 Hz / 1 ph, 2000 W, 16.7 A, 8' cord with NEMA 5-20P plug |
| Casters | 4 × 5" neoprene swivel (2 locking) |
| Unit weight / ship weight | 245 lb / 295 lb (111 kg / 133 kg) |
| Certifications | cULus, NSF |
Popular options & accessories
- Left-hand or double-door hinging
- Solid aluminum door
- Corner or full-perimeter non-marking bumpers
- Extra universal pan supports
- 6" casters or 6" stationary legs with adjustable feet
- 18" × 26" chrome wire racks
Sheet pans, steam-table pans and bun pans shown in photos are sold separately. Always allow cabinet to cool before removing the heating module for cleaning. Specifications subject to change without notice.
