BevLes Company  |  SKU: PHC70-32INS-A-1L1

BevLes Company PHC70-32INS-A-1L1 Proofing Cabinets

$4,910.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Freight guidelines Warranty sheet
Related Searches
Holding Cabinets Proofing Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

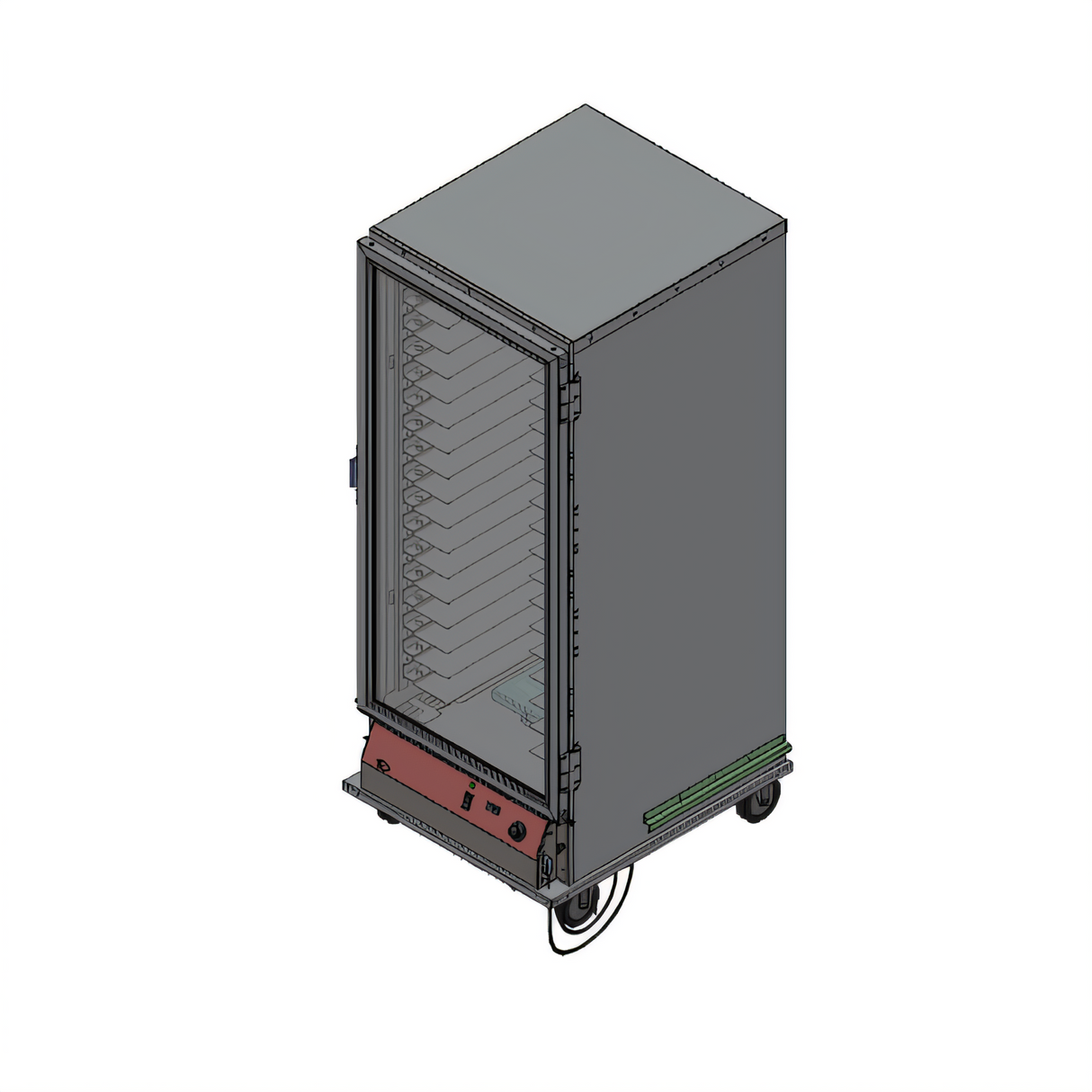

BevLes PHC70-32INS-A Full-Height Insulated Proofing & Holding Cabinet

32-pan capacity • Digital heat & humidity controls • 120 V plug-in

Keep every batch at its best from first rise to last service. The BevLes PHC70-32INS-A delivers precise temperature and moisture management in a rugged, mobile cabinet that stands up to daily commercial use—and fits through a standard doorway.

Key advantages

  • Versatile capacity — holds (16) full-size sheet pans, (32) 12 × 20 steam-table pans or (16) 23 × 23 donut screens on adjustable 1.5" centers.
  • 80 °F–180 °F working range for delicate dough proofing or hot food holding.
  • Digital thermostat with independent variable humidity and bright LED display.
  • 5 qt (4.7 L) cast-aluminum water reservoir and cast-in humidity system protect the heating element from spills.
  • Fully insulated top, sides and back improve efficiency and keep exterior surfaces cool.
  • Clear Lexan® left-hand hinged door provides a quick product check without heat loss.
  • Removable heating module and tool-free interior parts make end-of-day cleanup fast.
  • Heavy-duty 5" swivel plate casters (front two locking) for effortless mobility.
  • .063" formed-aluminum cabinet with positive-latch door and perimeter gasket built for the long haul.
  • Ships ready to use—8' cord with NEMA 5-20P fits any 120 V/20 A outlet.

Specification snapshot

Model PHC70-32INS-A
Pan capacity (16) 18" × 26"  |  (32) 12" × 20"  |  (16) 23" × 23"
Pan spacing Adjustable on 1.5" (38 mm) centers
Temperature range 80 °F – 180 °F  (27 °C – 82 °C)
Exterior dimensions (W × D × H) 29" × 33.5" × 71.5" (740 × 850 × 1820 mm)
Interior height 55" (1400 mm)
Electrical 120 V / 60 Hz / 1 Ph, 2000 W, 16.7 A, NEMA 5-20P plug
Water reservoir 5 qt cast aluminum (self-draining, cover included)
Mobility (4) 5" neoprene swivel plate casters, 2 with brakes
Construction .063" aluminum body & rear panel, .125" base, clear Lexan® door, stainless hinges
Unit weight / Shipping weight 245 lb / 295 lb (111 kg / 133 kg)
Certifications cULus, NSF

Popular options & accessories

  • Reverse (right-hand) door hinging
  • Solid door in lieu of clear Lexan
  • Corner or full-perimeter vinyl bumpers
  • Additional universal pan supports
  • 6" stainless legs for stationary installations
  • 6" casters with soft rubber wheels
  • 18" × 26" chrome-plated wire racks

Looking for a custom configuration or volume pricing? Our team is ready to help—just reach out!

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

71.5in

Width

29.0in

Depth

33.5in

Shipping Weight

295.0lbs

Sections

1 section w/1 compartment

Exterior Finish

all aluminum exterior

Doors

full height doors, plastic

Heater

bottom mounted heater

Interior Finish

aluminum interior

Full Size Hotel Pan Capacity

(32) 12" x 20" pans

Insulation

insulated

Full Size Sheet Pan Capacity

(16) 18" x 26" pans

Slide Centers

adjustable centers on 1-1/2"

Specifications

Proofing & Holding Cabinet, mobile, full height, insulated top, back & sides, (1) clear Lexan® left-hand hinged door, digital thermostat, variable humidity control & LED display, 80° to 180°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 18" x 26" or (32) 12" x 20" pans, or (16) 23" x 23" donut screens, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 120v/60/1-ph, 2000 watts, 16.7 amps, 8' cord & NEMA 5-20P, cULus, NSF
