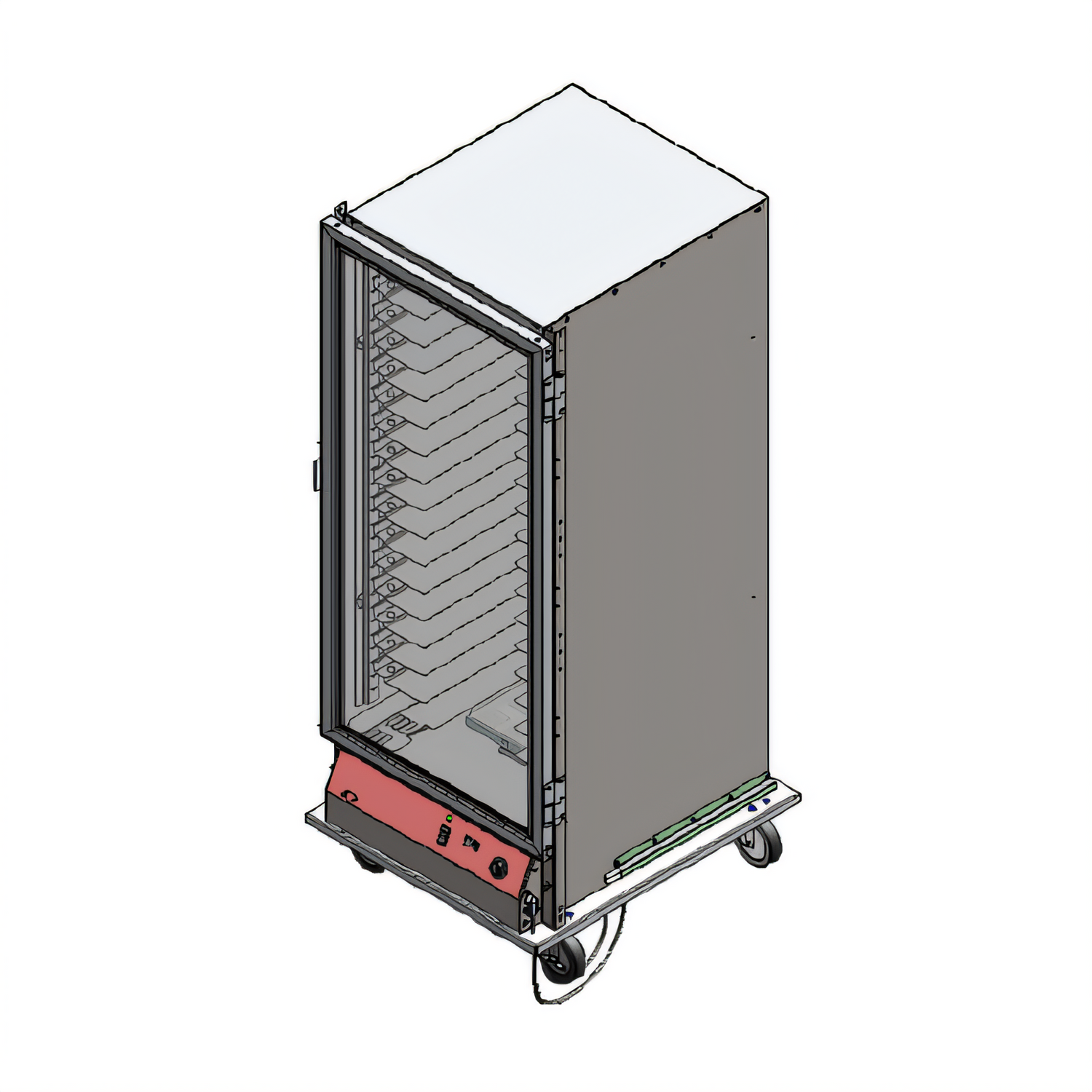

BevLes PHC70-32-A Full-Height Proofing & Holding Cabinet

208-230 V | 16 full-size pans | Mobile non-insulated design

Give your dough products the perfect rise and keep finished foods hot, fresh, and service-ready in one heavy-duty, mobile cabinet. The BevLes PHC70-32-A combines precise heat with operator-controlled humidity, all wrapped in a rugged aluminum frame that’s built for the daily grind of commercial kitchens, bakeries, and donut shops.

Why you’ll love it

  • Digital thermostat with LED read-out adjusts from 80 °F – 180 °F (27 °C – 82 °C)
  • Variable humidity control & 5 qt. cast water reservoir keep products moist without sogginess
  • Universal, aluminum pan supports on 1 ½" centers hold:
    • (16) 18 × 26" full sheet pans
    • (32) 12 × 20" steam table pans
    • (16) 23 × 23" donut screens
  • Clear Lexan® door (left-hand hinged) provides instant product visibility
  • Removable heating & humidity module for fast cleaning and easy service
  • “Cast-in” humidity system prevents element burnout from accidental water spills
  • Self-draining base channels excess moisture into a standard bun pan (pan not included)
  • 5" swivel plate casters—front two with brakes—for effortless maneuverability
  • cULus & NSF listed for electrical and sanitation peace of mind

Technical specifications

Model PHC70-32-A (208-230 V)
Capacity (16) 18 × 26" pans | (32) 12 × 20" pans | (16) 23 × 23" screens
Temperature range 80 °F – 180 °F  (27 °C – 82 °C)
Humidity control Variable; 5 qt. (4.7 L) cast water reservoir with cover
Door 1 × clear Lexan®, left-hand hinged, positive-latch, full perimeter gasket
Construction .063" formed aluminum body & rear duct, .125" aluminum base
Controls Bottom-mounted, digital thermostat, LED display, independent heat & humidity knobs
Heating module 2000 W removable cassette
Electrical rating 208-230 V / 50-60 Hz / 1-ph  |  9.7 A @ 208 V  /  8.7 A @ 230 V  |  cord only
Exterior dimensions 29" W × 33.5" D × 71.5" H (740 × 850 × 1820 mm)
Unit weight / shipping weight 215 lb (98 kg) / 265 lb (120 kg)
Mobility (4) 5" plate casters, 2 locking
Certifications cULus, NSF

Popular options & accessories

  • Right-hand door swing
  • Solid door in place of clear Lexan
  • Non-marking corner or full perimeter bumpers
  • Additional universal pan supports
  • 6" stainless steel legs for stationary installation
  • 6" casters with soft rubber wheels
  • 18 × 26" chrome electro-plated wire racks
Heads up: This 208-230 V model is supplied with a cord only. Always have a qualified electrician hard-wire or field-attach the correct plug to meet local code.

BevLes is a brand of The Legacy Companies. Specifications are subject to change without notice.

Overall Dimensions:

29.0"W x 33.5"D x 71.5"H

Product Weight:

265.0 lb
Manufacturer BevLes Company
Certifications ["NSF", "cULus"]
Height 71.5in
Width 29.0in
Depth 33.5in
Shipping Weight 265.0lbs
Full Size Hotel Pan Capacity (32) 12" x 20" pans
Insulation non-insulated
Full Size Sheet Pan Capacity (16) 18" x 26" pans
Doors full height doors, plastic
Exterior Finish all aluminum exterior
Interior Finish aluminum interior
Heater bottom mounted heater
Sections 1 section w/1 compartment
Slide Centers adjustable centers on 1-1/2"
Specifications Proofing & Holding Cabinet, mobile, full height, non-insulated, (1) clear Lexan® left-hand hinged door, digital thermostat, variable humidity control & LED display, 80° to 180°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 18" x 26" or (32) 12" x 20" pans, or (16) 23" x 23" donut screens, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 2000 watts, 9.7/8.7 amps, cord only, cULus, NSF
