BevLes Company PHC60-24INS-A-4L1 Proofing Cabinets
Description

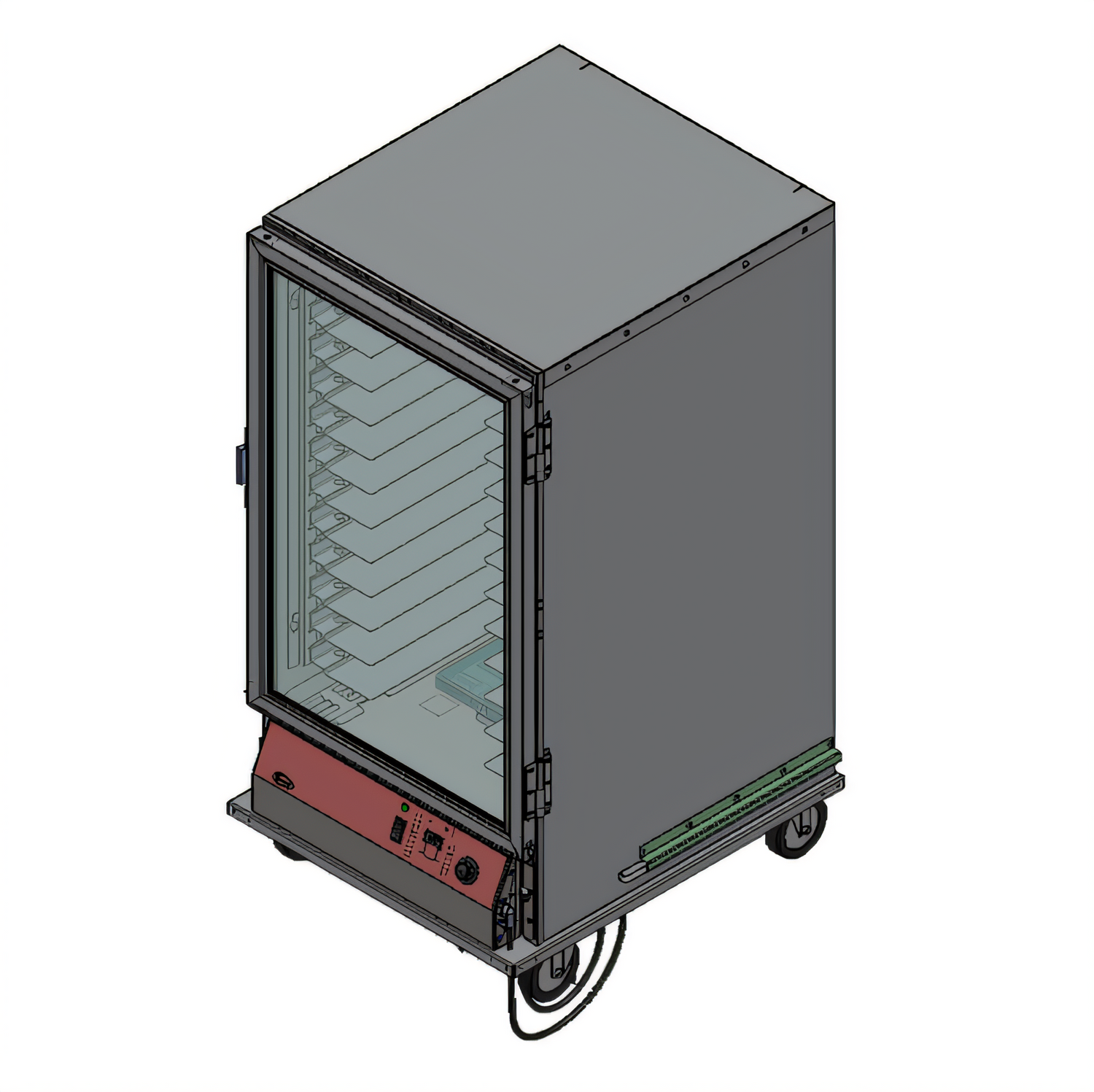

BevLes 3/4-Height Insulated Proofing & Holding Cabinet
Model: PHC Series – Left-Hand Hinge | 208-230 VOne cabinet, two critical tasks. This mobile, 3/4-height BevLes unit gently proofs artisan dough at a bakery-perfect 80 °F, then switches gears to keep cooked product hot and fresh up to 180 °F for service. A crystal-clear Lexan® door, independent heat/humidity controls and rugged aluminum construction make it the go-to choice for busy bakeries, cafés, hotels and caterers.
Key Features
- Fully insulated top, back & sides for maximum temperature stability and energy savings.
- Clear single-pane Lexan door (left-hand hinge) with heavy-duty stainless hinges, full-perimeter gasket and positive-latch handle—see product status at a glance without opening the door.
- Digital thermostat with bright LED read-out and separate humidity dial for precise, independent adjustment.
- Wide 80 – 180 °F (27 – 82 °C) temperature range covers proofing, low-temp holding and everything in between.
- Extruded universal pan supports on 1 ½" centers hold:
- (12) 18 × 26 in full-size sheet pans or
- (24) 12 × 20 in steam-table pans or
- (12) 23 × 23 in donut screens
- 5 qt. cast aluminum water reservoir with cover and “cast-in” element—prevents burn-out and improves safety.
- Completely removable bottom-mounted heating module speeds cleaning and service.
- 5 in swivel plate casters (front two with brakes) for smooth, quiet mobility.
- Lightweight, corrosion-resistant aluminum body (.063 in) with heavy .125 in base for long life.
- cULus & NSF listed for electrical and sanitation compliance.
Specifications
| Exterior dimensions (W × D × H) | 29" × 33.5" × 56.5" (740 × 850 × 1440 mm) |
|---|---|
| Pan capacity | (12) 18 × 26 sheets | (24) 12 × 20 GN 2/1 pans | (12) 23 × 23 donut screens |
| Pan spacing | Adjustable on 1 ½" (38 mm) centers |
| Temperature range | 80 – 180 °F (27 – 82 °C) |
| Control type | Digital thermostat with LED display & variable humidity dial |
| Humidity system | 5 qt. cast reservoir, self-draining, “cast-in” element |
| Door | 1 clear Lexan®, left-hand hinged, positive-latch, full gasket |
| Construction | Formed aluminum body (.063") & base (.125"); fully insulated |
| Mobility | 4 × 5" swivel casters (2 locking) |
| Electrical | 208-230 V / 50-60 Hz / 1-ph, 2000 W, 9.7 A @ 208 V / 8.7 A @ 230 V, cord only (no plug) |
| Listings | cULus, NSF |
| Approx. weight | 210 lb (95 kg) net |
Why Choose BevLes?
- Over 75 years of U.S. manufacturing experience in proofing & holding technology.
- Field-tested convection airflow and humidity systems trusted by leading chains worldwide.
- Designed for quick sanitation—no tools required to remove interior components.
Dimensions and specifications are nominal and subject to change without notice. Plug or permanent connection must be supplied by installer in accordance with local codes.
