BevLes Company  |  SKU: PHC60-24INS-A-1R1

BevLes Company PHC60-24INS-A-1R1 Proofing Cabinets

$4,719.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Freight guidelines Brochure Warranty sheet
Related Searches
Holding Cabinets Proofing Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

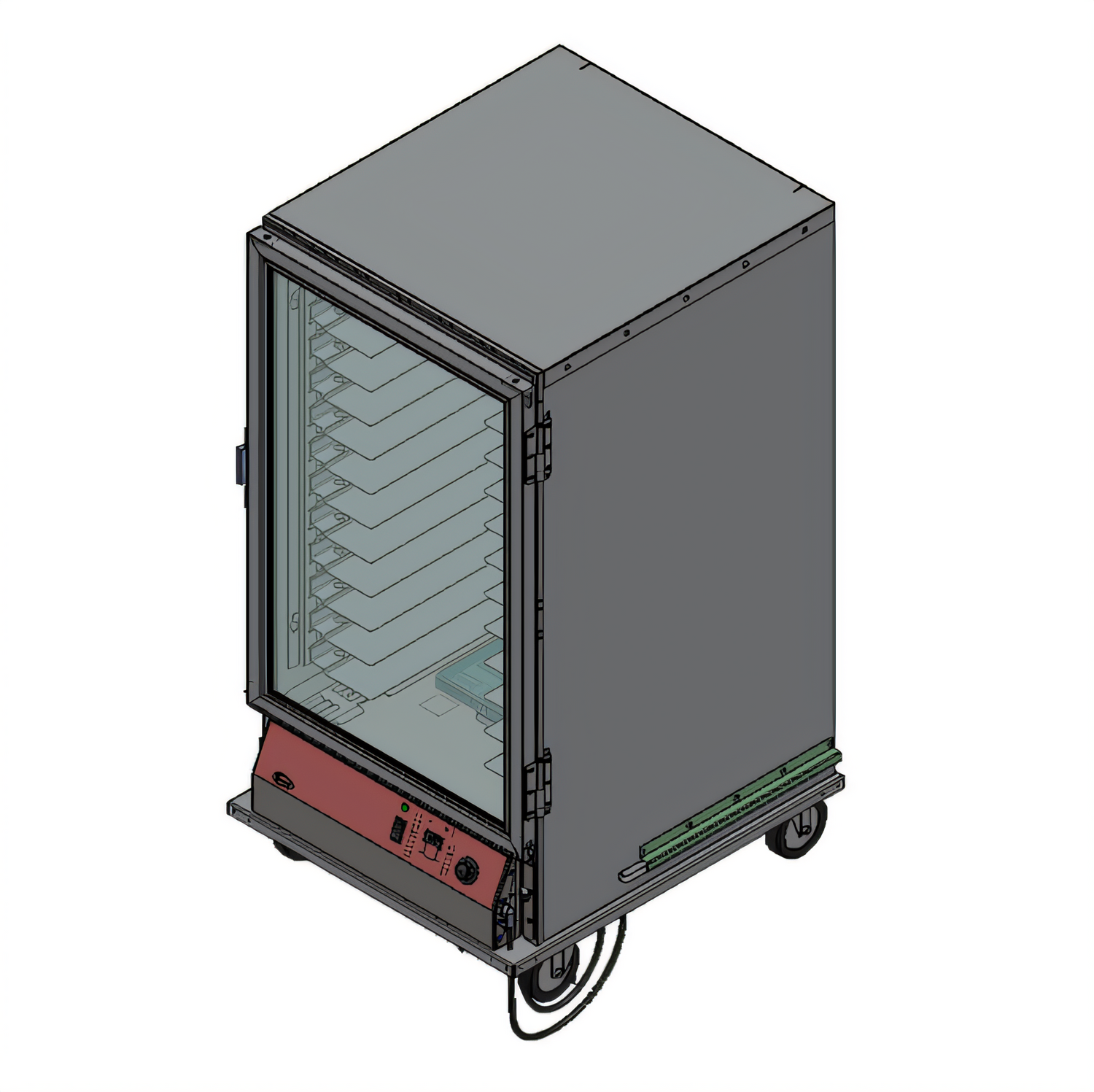

BevLes PHC60-24INS-A Insulated Proofing & Holding Cabinet – 3/4 Height

Mobile, 24-pan capacity with independent heat & humidity controls

Built for busy bakeries, cafés and commissaries, the PHC60-24INS-A combines rock-solid BevLes construction with intuitive, bottom-mounted controls that let you dial-in perfect temperature and humidity every time. From fluffy dough to crispy fried chicken, keep product at its absolute best—no matter what the rush looks like.

Why you’ll love it
  • Holds 12 full-size (18" × 26") or 24 half-size (12" × 20") pans—or 12 donut screens up to 23" × 23".
  • Fully insulated top, back & sides for exceptional temperature stability and energy savings.
  • Digital thermostat with bright LED read-out plus variable humidity control for pinpoint accuracy from 80 °F to 180 °F (27 °C – 82 °C).
  • Right-hand hinged clear Lexan® door offers a full-view of contents without opening, reducing heat loss.
  • Extruded aluminum pan supports on 1½" centers adjust or remove in seconds for fast clean-up.
  • “Cast-in” humidity system & 5 qt. cast water reservoir prevent element burn-out and eliminate exposed heaters.
  • Removable heating module and completely detachable interior components for tool-free cleaning.
  • 5" swivel plate casters (front two with brakes) glide smoothly over thresholds and into prep lines.
  • Zero-clearance design—set it flush against walls or equipment to make the most of every square foot.
  • Certified cULus & NSF for electrical safety and sanitation compliance nationwide.
Specifications
Model PHC60-24INS-A
Cabinet type Mobile, 3/4 height insulated proofing & holding
Capacity 12 × 18" × 26" pans
24 × 12" × 20" pans
12 × 23" × 23" screens
Pan spacing Adjustable on 1.5" (38 mm) centers
Temperature range 80 °F – 180 °F (27 °C – 82 °C)
Humidity range 0 % – 95 % RH via variable control
Controls Digital thermostat, LED display, independent heat & humidity knobs
Door Clear Lexan®, right-hand hinged, positive-action latch, full-perimeter gasket
Construction .063" formed aluminum body, .125" base, insulated top/sides/back
Water reservoir 5 qt. (4.7 L) cast aluminum with cover & self-drain to bun pan (pan not included)
Electrical 120 V / 60 Hz / 1-Ph, 2000 W, 16.7 A, 8' cord, NEMA 5-20P plug
Exterior dimensions 29"W × 33.5"D × 56.5"H (740 × 850 × 1440 mm)
Interior height 40" (1020 mm)
Unit weight / ship weight 210 lb / 260 lb (95 kg / 118 kg)
Casters (4) 5" neoprene swivel plate, front (2) w/ brakes
Certifications cULus, NSF
Included & ready to work
  • Removable heating & humidity module
  • Adjustable extruded pan supports (pre-installed)
  • 5" casters mounted
  • Factory-installed 8' power cord with NEMA 5-20P plug
  • User & care manual
Popular add-ons (sold separately)
  • Corner or perimeter bumpers for high-traffic kitchens
  • Additional pan supports for specialty trays
  • 6" stainless legs for stationary installation
  • 18" × 26" chrome wire racks
Freight note: This cabinet ships on a pallet via common carrier. Lift-gate, appointment or residential delivery services must be requested at checkout and may incur additional charges.

Need a left-hand door or full-height version? Contact our team—BevLes builds to fit your workflow.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

56.5in

Width

29.0in

Depth

33.5in

Shipping Weight

260.0lbs

Full Size Hotel Pan Capacity

(24) 12" x 20" pans

Sections

1 section w/1 compartment

Full Size Sheet Pan Capacity

(12) 18" x 26" pans

Insulation

insulated

Exterior Finish

all aluminum exterior

Interior Finish

aluminum interior

Heater

bottom mounted heater

Doors

full height doors, plastic

Slide Centers

adjustable centers on 1-1/2"

Specifications

Proofing & Holding Cabinet, mobile, 3/4 height, insulated top, back & sides, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 80° to 180°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (12) 18" x 26" or (24) 12" x 20" pans, or (12) 23" x 23" donut screens, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 120v/60/1-ph, 2000 watts, 16.7 amps, 8' cord & NEMA 5-20P, cULus, NSF
