BevLes Company  |  SKU: PHC60-24-A-4R1

BevLes Company PHC60-24-A-4R1 Proofing Cabinets

$3,969.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Freight guidelines Warranty sheet
Related Searches
Holding Cabinets Proofing Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

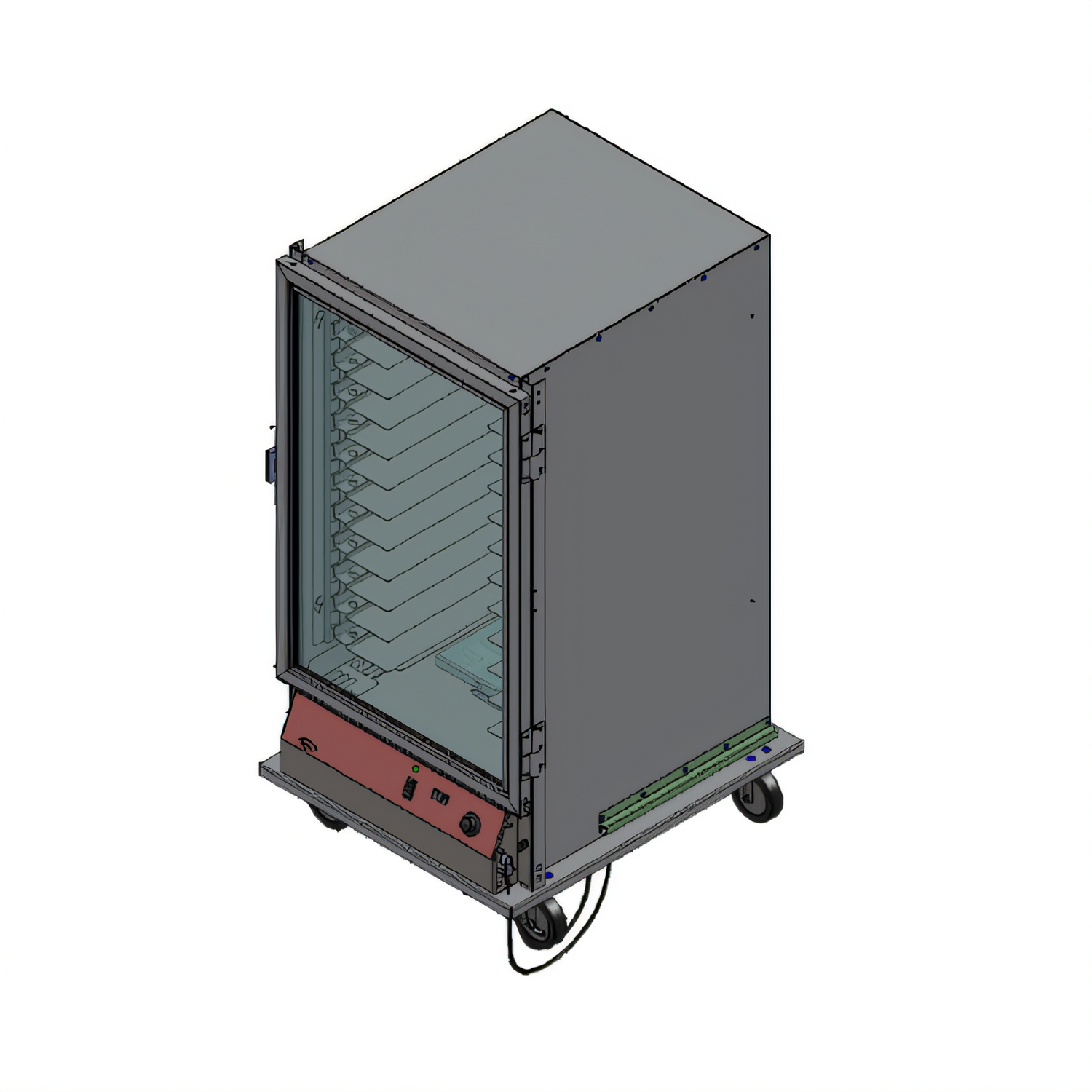

BevLes PHC60-24-A 3/4-Height Proofing & Holding Cabinet — 208-230 V

Mobile • Non-Insulated • Clear Right-Hinged Door

Produce perfectly-risen dough and keep cooked dishes hot, fresh and ready for service with the BevLes PHC60-24-A. This versatile 3/4-height cabinet combines gentle convection heat with operator-controlled humidity, all in a lightweight aluminum body that rolls wherever your kitchen needs it.

Key Features
  • Digital thermostat & LED display deliver precise 80 – 180 °F (27 – 82 °C) control.
  • Variable humidity knob fights dryness and prevents sogginess.
  • Clear Lexan® door (right-hand hinge) with full-perimeter gasket—check product without opening.
  • Universal extruded pan supports on 1 ½ " centers hold:
    • (12) 18" × 26" full-size sheet pans
    • (24) 12" × 20" steam table pans
    • (12) 23" × 23" donut screens
  • 5 qt (4.7 L) cast-aluminum water reservoir with cover—“cast-in” element prevents burn-out.
  • Removable bottom-mounted heating module for easy, tool-free cleaning.
  • Lightweight, corrosion-resistant aluminum construction.
  • (4) 5" swivel plate casters—front two locking for safe loading and transport.
  • Zero-clearance sides let you place the cabinet flush against walls or equipment.
  • cULus & NSF listed for safety and sanitation.
Specifications
Model PHC60-24-A (208-230 V)
Cabinet type Mobile, non-insulated proof/hold
Capacity (12) 18" × 26" pans | (24) 12" × 20" pans | (12) 23" × 23" screens
Pan spacing Adjustable on 1.5" centers
Temperature range 80 – 180 °F (27 – 82 °C)
Humidity control Manual variable
Exterior dimensions 29" W × 33.5" D × 56.5" H (740 × 850 × 1440 mm)
Door clearance (open) 57.5" W
Electrical 208-230 V / 50-60 Hz / 1-Ph, 2000 W, 9.7/8.7 A, cord only (no plug)
Water reservoir 5 qt (4.7 L) cast aluminum, removable
Casters (4) 5" swivel plate, 2 locking
Net / Ship weight 185 lb / 235 lb (84 kg / 107 kg)
Certifications cULus, NSF
Ideal Applications
  • Artisan & wholesale bakeries
  • Donut shops & cafés
  • Catering & banquet kitchens
  • Supermarket in-store bakeries & hot food bars
Electrical Note: Ships with cord only. Unit must be field-wired to a dedicated 208-230 V single-phase circuit by a qualified electrician.

Looking for a solid door, reversed hinging, bumpers or stationary legs? Ask about factory-installed options and accessories.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

56.5in

Width

29.0in

Depth

33.5in

Shipping Weight

235.0lbs

Doors

full height doors, plastic

Full Size Sheet Pan Capacity

(12) 18" x 26" pans

Sections

1 section w/1 compartment

Full Size Hotel Pan Capacity

(24) 12" x 20" pans

Insulation

non-insulated

Heater

bottom mounted heater

Interior Finish

aluminum interior

Exterior Finish

all aluminum exterior

Slide Centers

adjustable centers on 1-1/2"

Specifications

Proofing & Holding Cabinet, mobile, 3/4 height, non-insulated, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 80° to 180°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (12) 18" x 26" or (24) 12" x 20" pans, or (12) 23" x 23" donut screens, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 2000 watts, 9.7/8.7 amps, cord only, cULus, NSF
