BevLes Company  |  SKU: PHC44-16INS-A-4R1

BevLes Company PHC44-16INS-A-4R1 Proofing Cabinets

$4,503.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Freight guidelines Warranty sheet
Related Searches
Holding Cabinets Proofing Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

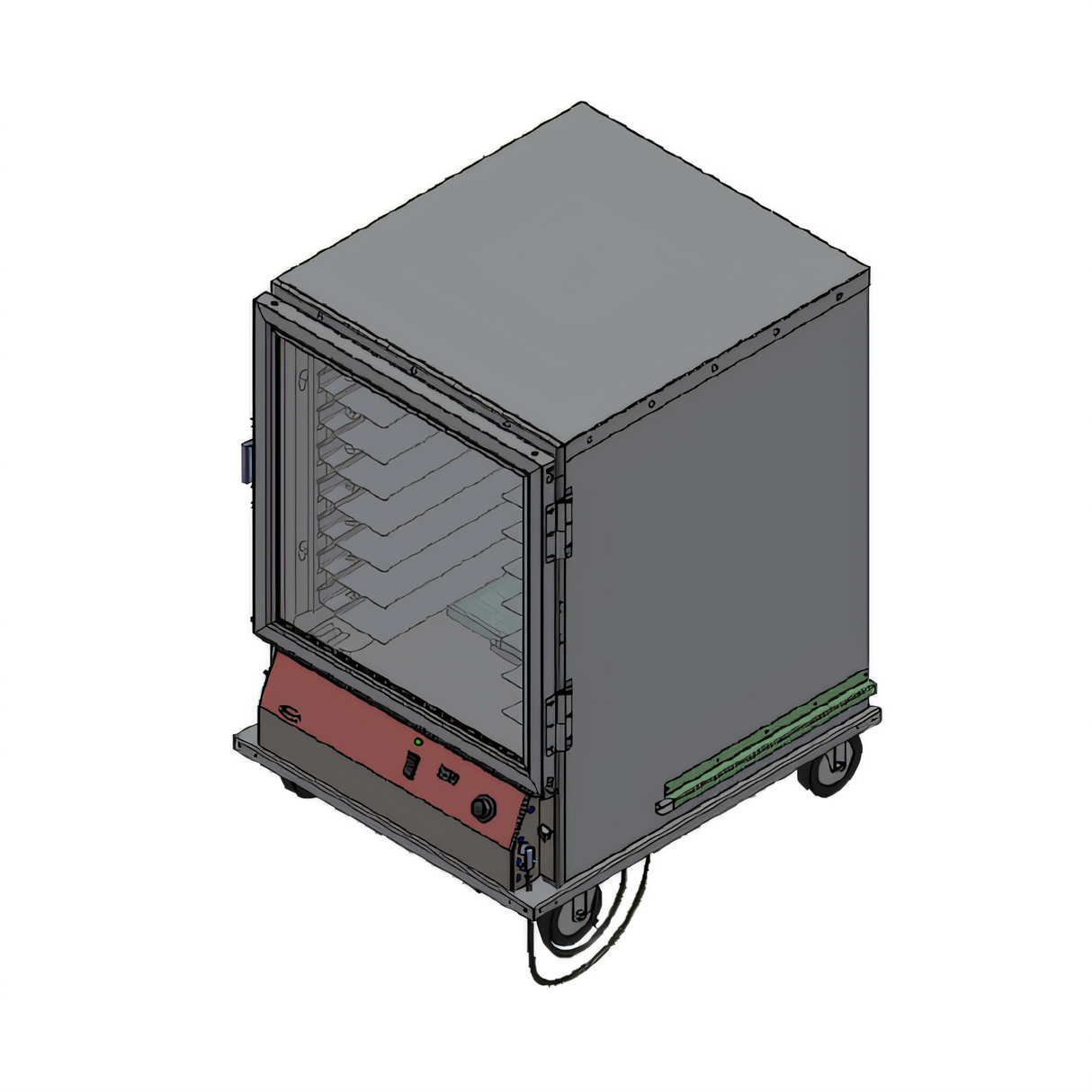

BevLes PHC44-16INS Half-Height Insulated Proofing & Holding Cabinet — 208-230 V

8 Full-Size Sheet Pan / 16 Steam Pan Capacity | Mobile | Digital Heat + Humidity Control

Engineered for bakeries, cafés and commissary kitchens that demand accuracy and durability, the BevLes PHC44-16INS gives you precise proofing and hot holding in one space-saving, half-height cabinet. Independent temperature and humidity controls wrap product in gentle convection heat and moisture—keeping doughs light, breads moist and cooked foods service-ready for hours.

Key Features

  • Fully insulated top, sides & back for consistent internal climate and reduced energy use.
  • Clear Lexan® right-hand hinged door with full-perimeter gasket and positive-action latch—monitor product without opening the door.
  • Easy-read digital thermostat (80 – 180 °F) with variable humidity dial and bright LED display.
  • Universal extruded aluminum pan supports on 1 ½" centers hold:
    • (8) 18" × 26" full-size sheet pans
    • (16) 12" × 20" steam table pans
    • (8) 23" × 23" donut screens
  • 5 qt (4.7 L) cast water reservoir with cover and “cast-in” humidity element that prevents burnout from spills.
  • Bottom-mounted, removable heating module and slide-out interior components for fast, thorough cleaning.
  • Heavy-duty 5" swivel plate casters with quiet neoprene wheels—front two lock for safe loading.
  • Lightweight, corrosion-resistant aluminum construction (.063" body / .125" base).
  • cULus & NSF listed for electrical safety and sanitation.

Ideal For

  • Proofing yeast-raised doughs—breads, rolls, pizza & donuts
  • Holding baked goods at fresh-from-the-oven quality
  • Keeping fried or cooked entrées hot and moist on the service line
  • Transporting pans between prep, bake and service areas

Specifications

Model PHC44-16INS-A (208-230 V)
Capacity (8) 18" × 26" pans • (16) 12" × 20" pans • (8) 23" × 23" screens
Pan Spacing Adjustable on 1.5" centers
Temperature Range 80 °F – 180 °F (27 °C – 82 °C)
Humidity System Variable control • 5 qt cast reservoir • Self-draining
Exterior Dimensions 29" W × 33.5" D × 43.06" H (740 × 850 × 1 094 mm)
Usable Interior Height 27" (690 mm)
Construction .063" formed aluminum body & rear panel • .125" aluminum base • Clear Lexan® door
Mobility (4) 5" swivel neoprene casters (2 locking)
Electrical 208-230 V • 50/60 Hz • 1-Ph • 2 000 W • 9.7/8.7 A • Cord only (no plug)
Certifications cULus • NSF
Shipping Weight 175 lb (80 kg)

What’s Included

  • (16) universal pan supports (installed)
  • 5 qt water reservoir with cover
  • Factory-mounted casters
  • Operator’s manual

Popular Accessories (sold separately)

  • Left-hand door hinging or solid door
  • Corner or full-perimeter vinyl bumpers
  • Additional pan supports or 18" × 26" chrome wire racks
  • 6" adjustable legs or 6" casters with soft rubber wheels
Electrical Note: This voltage option ships with a cord only. Installer must field-wire or attach an appropriate plug in accordance with local codes and regulations.

Looking for a different size or voltage? Explore the full BevLes PHC cabinet line or chat with our team for expert guidance.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

43.06in

Width

29.0in

Depth

33.5in

Shipping Weight

225.0lbs

Height

43"H

Exterior Finish

aluminum exterior

Full Size Sheet Pan Capacity

(8) 18" x 26" pans

Heater

bottom mounted heater

Door

polycarbonate door

Full Size Hotel Pan Capacity

(16) 12" x 20" pans

Insulation

insulated

Interior Finish

aluminum interior

Slide Centers

adjustable on 1-1/2"

Specifications

Proofing & Holding Cabinet, mobile, half height, insulated top, back & sides, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 80° to 180°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (8) 18" x 26" or (16) 12" x 20" pans, or (8) 23" x 23" donut screens, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 2000 watts, 9.7/8.7 amps, cord only, cULus, NSF
