Description

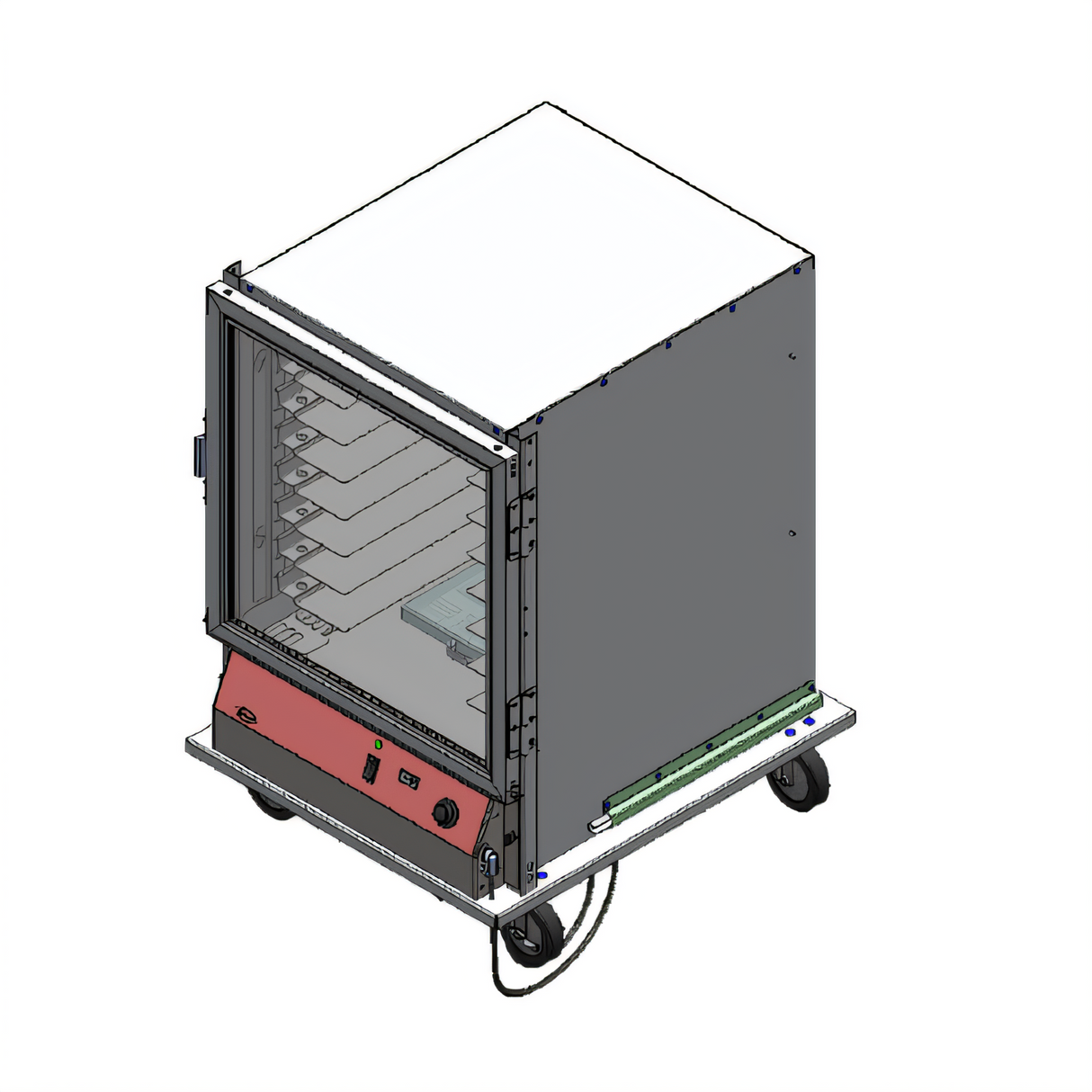

BevLes PHC44-16-A Proofing & Holding Cabinet

Half-Height • Non-Insulated • Mobile

Built for bakeries, cafés and commissaries that demand day-long freshness, the PHC44-16-A delivers precise heat and humidity in a compact, easy-to-maneuver footprint. The clear Lexan® door and bright LED control panel put product visibility and accurate settings right where you need them—on the shop floor.

Key Features

  • Digital thermostat with LED display; 80 °F – 180 °F (27 °C – 82 °C)
  • Independent variable humidity control using a 5 qt. cast water reservoir
  • Extruded aluminum pan supports adjustable on 1½" centers
  • Capacity:
    • (8) 18" × 26" full-size sheet pans
    • (16) 12" × 20" steam-table pans
    • (8) 23" × 23" donut screens
  • Removable 2 000 W bottom-mounted heating module for fast cleaning & service
  • Clear right-hand hinged Lexan® door with full-perimeter gasket and positive-action latch
  • 5" swivel plate casters; front two lock for secure loading
  • .063" formed aluminum body and .125" aluminum base—lightweight yet durable
  • Zero-clearance design—place flush against walls or equipment
  • cULus & NSF listed

Specifications

Model PHC44-16-A
Construction All-aluminum cabinet, clear Lexan® door, stainless hinges
Temperature Range 80 °F – 180 °F (27 °C – 82 °C)
Humidity System 5 qt. cast reservoir, “cast-in” element to prevent burnout, self-draining
Pan Capacity* (8) 18"×26" OR (16) 12"×20" OR (8) 23"×23"
Overall Dimensions (W×D×H) 29" × 33.5" × 43.06" (740 × 850 × 1 094 mm)
Electrical 120 V / 60 Hz / 1-Ph, 2 000 W, 16.7 A, 8' cord, NEMA 5-20P
Casters (4) 5" swivel neoprene wheels, 2 with brakes
Unit Weight / Shipping Weight 155 lb / 205 lb (70 kg / 93 kg)

*Pan supports are adjustable on 1.5" centers and also accept 19" × 19" screens.

Popular Options & Accessories

  • Left-hand door swing
  • Solid door in lieu of Lexan®
  • Corner or full-perimeter bumpers (non-marking gray vinyl)
  • Additional universal pan supports
  • 6" stainless legs or 6" soft-rubber casters
  • 18" × 26" chrome electro-plated wire racks
Note: Always keep the water reservoir filled during operation to maintain humidity and prevent element damage.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

43.06in

Width

29.0in

Depth

33.5in

Shipping Weight

205.0lbs

Height

43"H

Heater

bottom mounted heater

Full Size Sheet Pan Capacity

(8) 18" x 26" pans

Exterior Finish

aluminum exterior

Door

polycarbonate door

Full Size Hotel Pan Capacity

(16) 12" x 20" pans

Insulation

non-insulated

Interior Finish

aluminum interior

Slide Centers

adjustable on 1-1/2"

Specifications

Proofing & Holding Cabinet, mobile, half height, non-insulated, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 80° to 180°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (8) 18" x 26" or (16) 12" x 20" pans, or (8) 23" x 23" donut screens, or removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 120v/60/1-ph, 2000 watts, 16.7 amps, 8' cord & NEMA 5-20P, cULus, NSF
