BevLes Company  |  SKU: PHC32-10INS-A-4R1

BevLes Company PHC32-10INS-A-4R1 Proofing Cabinets

$4,134.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Freight guidelines Warranty sheet
Related Searches
Holding Cabinets Proofing Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

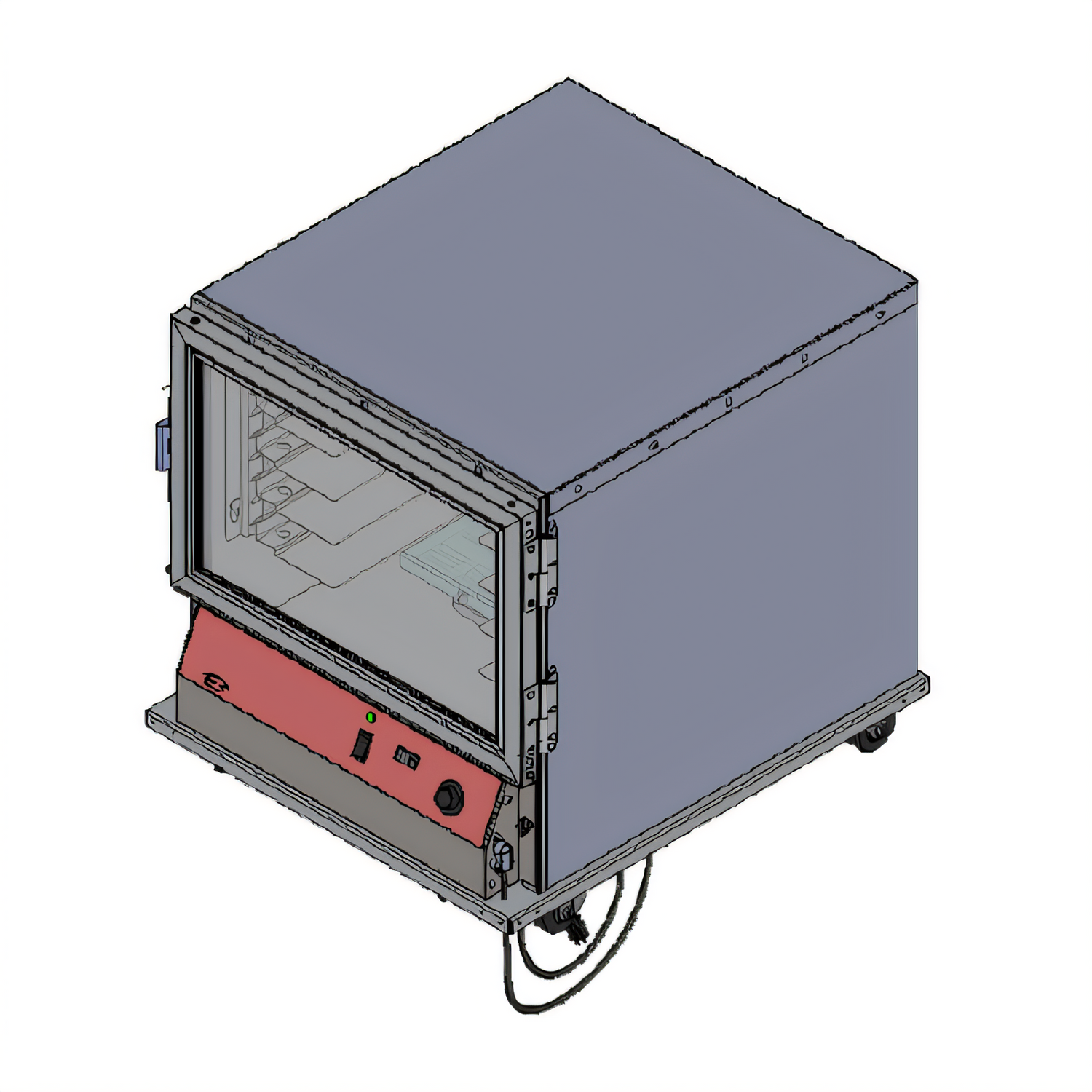

BevLes Undercounter Insulated Proofing & Holding Cabinet – 208-230 V

Model PHC32-10INS-A | Clear Lexan® Right-Hand Door

Get full-size performance in a space-saving footprint. The BevLes PHC32-10INS-A keeps dough at the ideal proofing climate and finished goods at perfect serving temperature, all while fitting comfortably beneath a 34 in. counter.

Why you’ll love it

  • 80 °F – 180 °F operating range covers delicate proofing as well as high-heat holding.
  • Independent heat & humidity with a digital thermostat, variable humidity control and bright LED display.
  • Pan-friendly design – extruded aluminum supports on 1.5 in. centers hold 5 full-size sheet pans, 10 half-size hotel pans or 5 23 × 23 in. donut screens.
  • Clear Lexan® door (right-hand hinged) lets staff monitor product without opening the cabinet.
  • Cast-in humidity system & 5 qt. water reservoir resist element burn-out and deliver consistent moisture.
  • Removable heating module and fully removable interior components simplify cleaning and service.
  • Fully insulated top, back and sides for energy efficiency and even temperature distribution.
  • Mobile & compact – 3 in. swivel plate casters (front two with brakes) glide under counters and through tight prep lines.
  • cULus & NSF listed for safe, code-compliant installation in any commercial kitchen.

Technical details

Pan capacity (5) 18 × 26 in. sheet pans | (10) 12 × 20 in. hotel pans | (5) 23 × 23 in. donut screens
Interior spacing Adjustable on 1.5 in. centers
Temperature range 80 °F – 180 °F (27 °C – 82 °C)
Humidity control Variable, with 5 qt. cast water reservoir & cover
Door type Clear Lexan® polycarbonate, right-hand hinged, full perimeter gasket
Construction .063 in. formed aluminum body, fully insulated; removable heating module
Dimensions (W × D × H) 29 × 33.5 × 31.38 in.  (737 × 850 × 797 mm)
Casters (4) 3 in. swivel plate casters, 2 with brakes
Electrical 208-230 V / 50-60 Hz / 1-ph  |  2000 W  |  9.7 / 8.7 A  |  Cord only (no plug)
Certifications cULus, NSF
Shipping weight Approx. 135 lb (61 kg)

Pans, screens and sheet trays shown in photos are sold separately.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

31.5in

Width

29.0in

Depth

33.5in

Shipping Weight

190.0lbs

Exterior Finish

all aluminum exterior

Slide Capacity

5 pair

Height

31"H

Centers

1-1/2" centers

Insulation

insulated

Heater

bottom mounted heater

Slides

adjustable slides

Pan Size

universal

Specifications

Proofing & Holding Cabinet, mobile, undercounter, insulated top, back & sides, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 80° to 180°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (5) 18" x 26" or (10) 12" x 20" pans, or (5) 23" x 23" donut screens, removable heating module, 5 qt. cast water reservoir with cover, 3" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 2000 watts, 9.7/8.7 amps, cord only, cULus, NSF
