BevLes Company  |  SKU: PHC32-10-A-1R1

BevLes Company PHC32-10-A-1R1 Proofing Cabinets

$3,689.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Freight guidelines Warranty sheet
Related Searches
Holding Cabinets Proofing Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

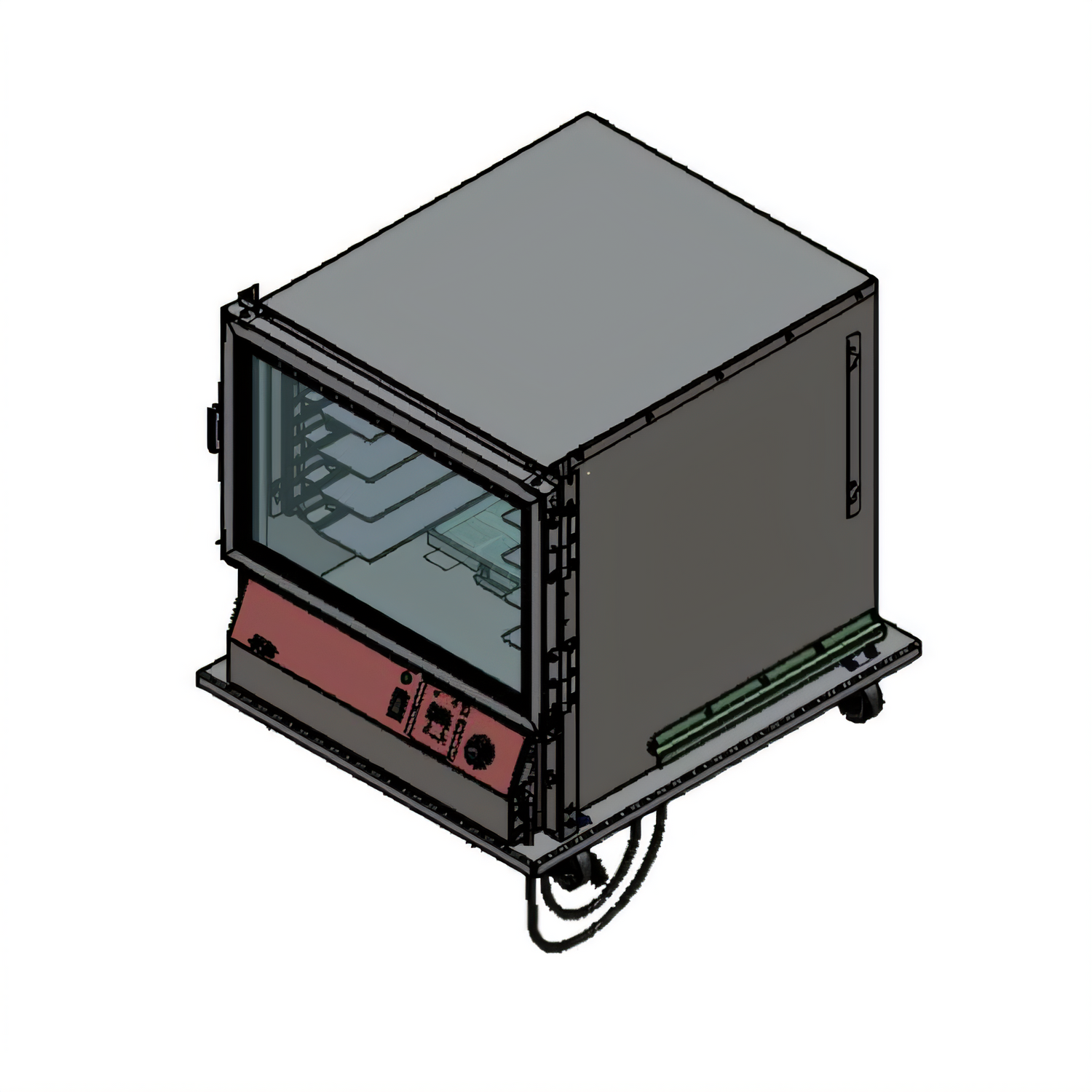

BevLes PHC32-10-A Undercounter Proofing & Holding Cabinet

Mobile • Non-Insulated • 120 V Single-Phase

Put BevLes precision proofing and hot-holding power right where you work. The PHC32-10-A slides effortlessly under a standard 32 inch counter yet delivers the exact temperature and humidity control you need to finish dough, hold fried foods, or keep plated meals service-ready without drying out.

Key Advantages
  • Digital thermostat with bright LED read-out—set and hold 80 °F to 180 °F (27–82 °C)
  • Independent humidity dial feeds a gentle, adjustable moisture blanket
  • Clear Lexan® door (right-hand hinge) lets you monitor product without opening
  • Extruded aluminum pan supports adjust on 1½ inch centers for ultimate flexibility
  • Rugged, removable heat & humidity module pops out for sink-side cleaning
  • 5 qt (4.7 L) cast water reservoir with cover—“cast-in” design prevents element burn-out
  • 3 inch swivel plate casters (front two lock) make the cabinet easy to position or roll away
  • Lightweight yet durable all-aluminum construction—only 125 lb (57 kg) net weight
  • cULus & NSF listed for electrical and food-safety compliance
Pan Capacity
  • 5 × 18" × 26" full-size sheet pans
  • 10 × 12" × 20" steam-table pans
  • 5 × 23" × 23" donut screens

Pan supports reposition quickly to handle varying pan heights.

Technical Specifications
Model PHC32-10-A
Configuration Undercounter, mobile, non-insulated
Exterior dimensions (W × D × H) 29" × 33.5" × 31.38"  (740 × 850 × 797 mm)
Temperature range 80 °F – 180 °F (27 °C – 82 °C)
Humidity control Variable, 5 qt cast reservoir with self-draining feature
Pan support spacing Adjustable on 1.5" (38 mm) centers
Electrical 120 V / 60 Hz / 1-Ph, 2000 W, 16.7 A, 8 ft cord with NEMA 5-20P plug
Door 1 clear Lexan® door, right-hand hinged, positive-latch, full gasket
Casters Four 3" swivel plate (2 locking)
Construction .063" formed aluminum body, .125" aluminum base
Approvals cULus, NSF
What’s Included
  • Removable heat/humidity module
  • Universal extruded pan supports
  • 5 qt water reservoir with cover
  • Operator’s manual
Electrical Note: This cabinet draws 16.7 A. A dedicated 20 A, 120 V circuit is strongly recommended for optimal performance and safety.

Need left-hand hinging, corner bumpers, extra pan supports or a 208-230 V configuration? Ask our team for factory-installed options.

Features & Specs

Manufacturer

BevLes Company

Certifications

NSF, cULus

Height

31.5in

Width

29.0in

Depth

33.5in

Shipping Weight

180.0lbs

Centers

1-1/2" centers

Exterior Finish

all aluminum exterior

Slide Capacity

5 pair

Slides

adjustable slides

Heater

bottom mounted heater

Height

31"H

Insulation

non-insulated

Pan Size

universal

Specifications

Proofing & Holding Cabinet, mobile, undercounter, non-insulated, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 80° to 180°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (5) 18" x 26" or (10) 12" x 20" pans, or (5) 23" x 23 donut screens, removable heating module, 5 qt. cast water reservoir with cover, 3" swivel plate casters (2 with brakes), aluminum construction, 120v/60/1-ph, 2000 watts, 16.7 amps, 8' cord & NEMA 5-20P, cULus, NSF
