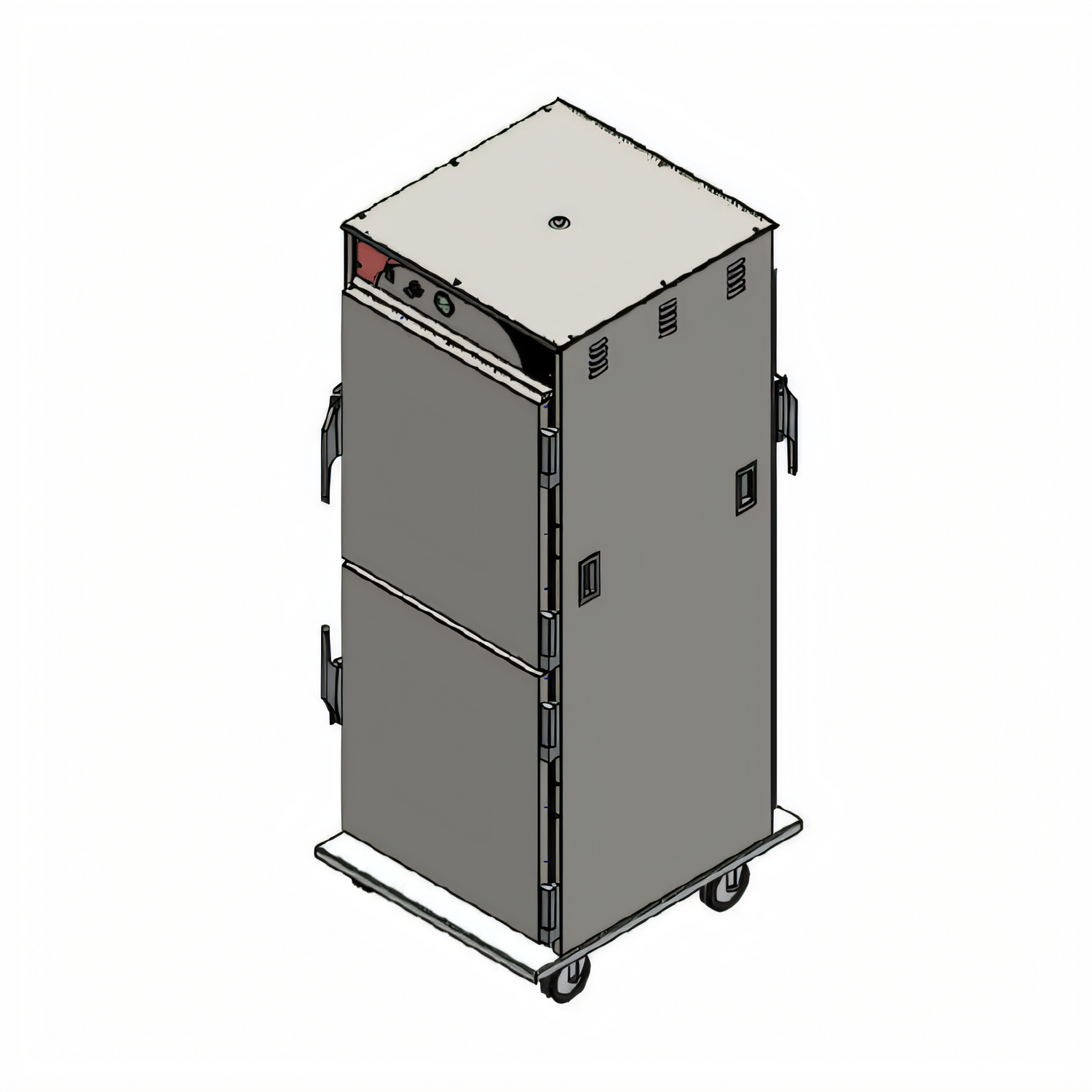

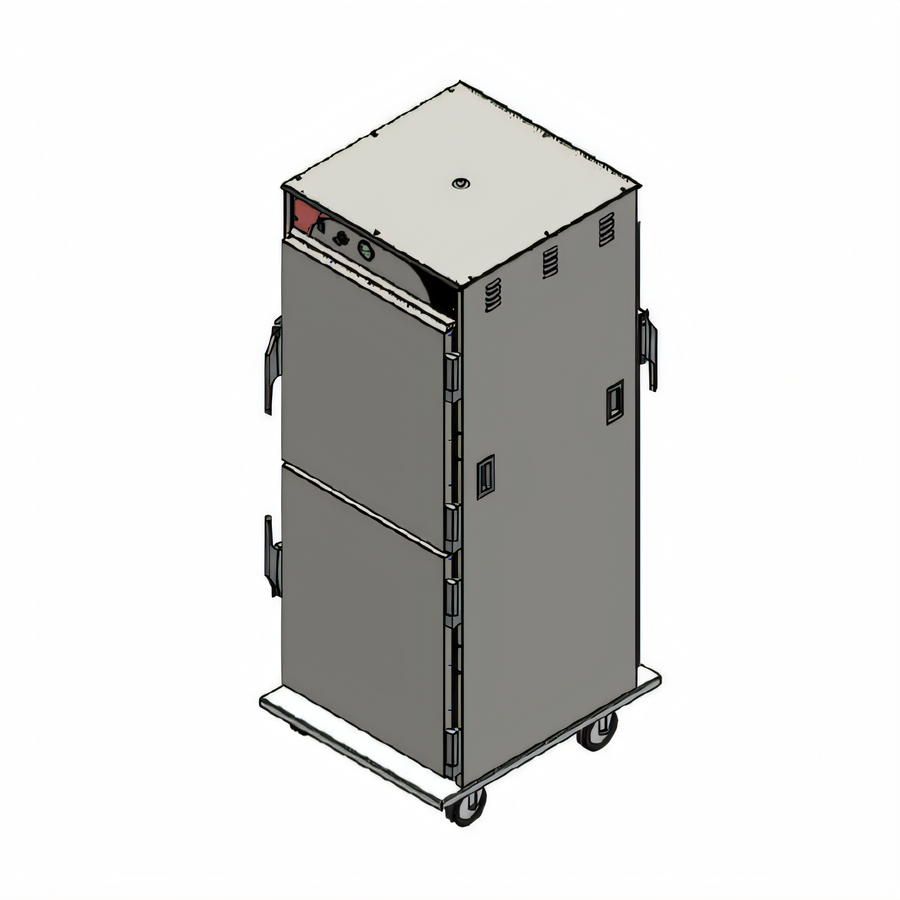

BevLes Temper Select Pass-Thru Heated Holding Cabinet – Model HTSS74W12-PT
Full-height • Universal wire pan supports • Mobile & fully insulatedKeep plated meals, hotel pans or sheet pans hot, fresh and ready for service on both sides of the line. The Temper Select HTSS74W12-PT surrounds food with gentle convection heat (60 – 215 °F) and a touch of humidity, all in a rugged stainless-steel, pass-thru design that speeds production and simplifies workflow.
Key advantages
- Pass-thru Dutch doors allow simultaneous loading from the kitchen and pulling from the service side.
- Universal welded-wire supports on 1.5" centers hold up to 12 full-size (18 × 26") or 24 half-size (12 × 20") pans.
- Solid-state thermostat & dial thermometer for precise, worry-free temperature control.
- Removable top water pan adds light humidity for hard-to-hold items.
- Field-reversible, self-closing Dutch doors with cool-touch handles and magnetic latches.
- Fully insulated 20 ga 304 stainless exterior and 22 ga 304 stainless interior maximize efficiency.
- .125" formed aluminum base and heavy-duty 5" swivel casters (front brakes) for rock-solid mobility.
- Front & rear recessed pull grips protect hands and door fronts during transport.
- cULus & NSF listed for peace of mind in any commercial kitchen.
Specifications
| Pan capacity | (12) 18 × 26" or (24) 12 × 20", adjustable on 1.5" centers |
|---|---|
| Temperature range | 60 °F – 215 °F (15 °C – 102 °C) |
| Overall dimensions (W × D × H) | 28" × 34" × 73.75" (710 × 870 × 1870 mm) |
| Internal height | 58" (1480 mm) |
| Door swing (width open) | 54.25" (1378 mm) |
| Electrical | 120 V / 60 Hz / 1 Φ, 1200 W, 15 A, NEMA 5-15P cord set (208-230 V available) |
| Heating elements | Dual top-mounted coils, 600 W each @ 120 V |
| Unit / Shipping weight | 305 lb / 355 lb (139 kg / 161 kg) |
| Clearance requirement | Zero-clearance cabinet – install flush on all sides |
| Certifications | cULus, NSF |
Popular options & accessories
- Left-hand or right-hand door hinging
- Stainless-steel push handles or corner/perimeter bumpers
- Key-lock magnetic latches for added security
- 6" legs or 6" casters with soft rubber wheels for stationary installs
- Additional universal pan supports or chrome wire racks
Dimensions and specifications are subject to change without notice. Always consult the installation manual before ordering or installing.
Overall Dimensions:
28.0"W x 34.0"D x 73.75"HProduct Weight:
355.0 lbCertifications & Compliance
