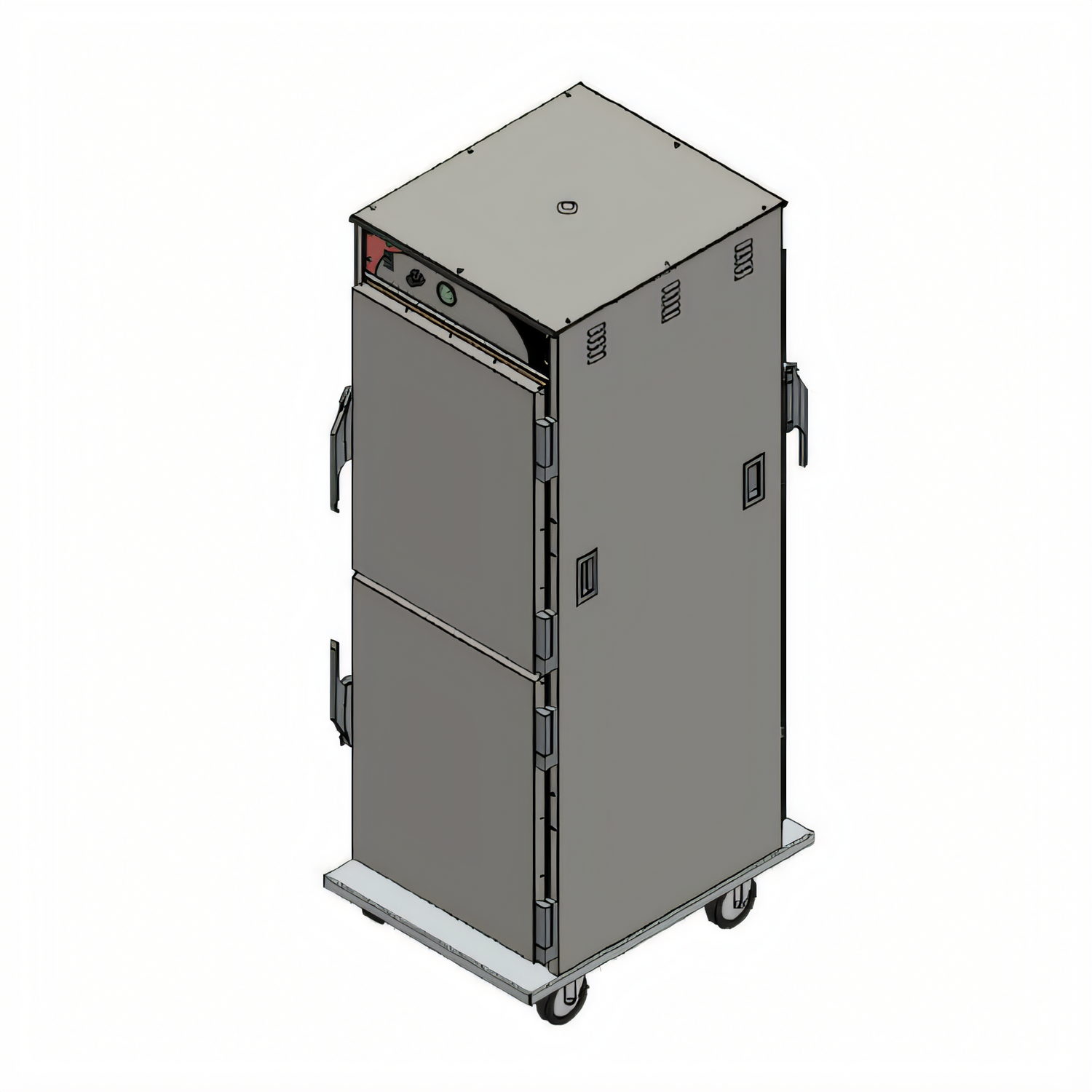

BevLes Temper Select Pass-Thru Heated Holding Cabinet
Model HTSS74P16-PT | Full Height • Narrow 25" Wide • 16-Pan CapacityKeep production moving and food tasting fresh with the Temper Select HTSS74P16-PT. This full-size, pass-thru cabinet surrounds your menu items with gentle convection heat, adds optional humidity when needed, and lets you load from the prep side and serve from the line side—all in a space-saving 25" footprint.
Key Features
- Pass-thru configuration with dual solid Dutch doors speeds loading, unloading and cleaning.
- Top-mounted convection heating system delivers uniform temperatures throughout the cabinet.
- Precise solid-state controls: adjustable from 60 °F to 215 °F (16 °C – 102 °C).
- Removable top water pan introduces humidity for hard-to-hold items.
- Formed aluminum pan supports on 1.5" centers hold
• (16) 18" × 26" sheet pans or
• (16) 12" × 20" steam table pans - Field-reversible, self-closing Dutch doors with lift-off hinges, magnetic Santoprene gaskets and cool-touch handles.
- Fully insulated 20 ga 304 stainless-steel exterior & 22 ga 304 interior keep heat in and energy costs down.
- Narrow 25" width and recessed pull grips glide effortlessly through standard doorways.
- 5" all-swivel plate casters (front two with brakes) for true plug-and-go mobility.
- cULus & NSF listed for sanitation and electrical safety.
Specifications
| Pan Capacity | (16) 18" × 26" or (16) 12" × 20" pans |
|---|---|
| Pan Spacing | 1.5" (38 mm) fixed |
| Temperature Range | 60 °F – 215 °F (16 °C – 102 °C) |
| Controls | Solid-state thermostat with analog dial thermometer |
| Exterior Dimensions | 25" W × 34" D × 73.75" H (635 × 870 × 1870 mm) |
| Internal Height | 58" (1480 mm) |
| Electrical | 120 V / 60 Hz / 1 Ph • 1200 W • 15 A • NEMA 5-15P
(208-230 V / 50-60 Hz option available) |
| Net / Shipping Weight | 275 lb / 310 lb (125 kg / 141 kg) |
| Construction | 304 stainless-steel interior & exterior, 0.125" formed aluminum base, full fiberglass insulation |
| Mobility | 5" (127 mm) swivel casters, 2 locking |
| Certifications | NSF, cULus |
Included With Your Cabinet
- Removable top water pan
- 8' power cord with NEMA 5-15P plug
- Owner’s/installation manual
Popular Options & Accessories
- Left-hand door hinging
- Stainless-steel push handles
- Key-lock magnetic latch
- Corner or perimeter vinyl bumpers
- Additional pan supports or 18" × 26" chrome wire racks
- 6" stainless legs (stationary) or 6" soft-rubber casters
Specifications and availability are subject to change without notice.
Overall Dimensions:
25.0"W x 34.0"D x 73.75"HProduct Weight:
310.0 lbCertifications & Compliance
