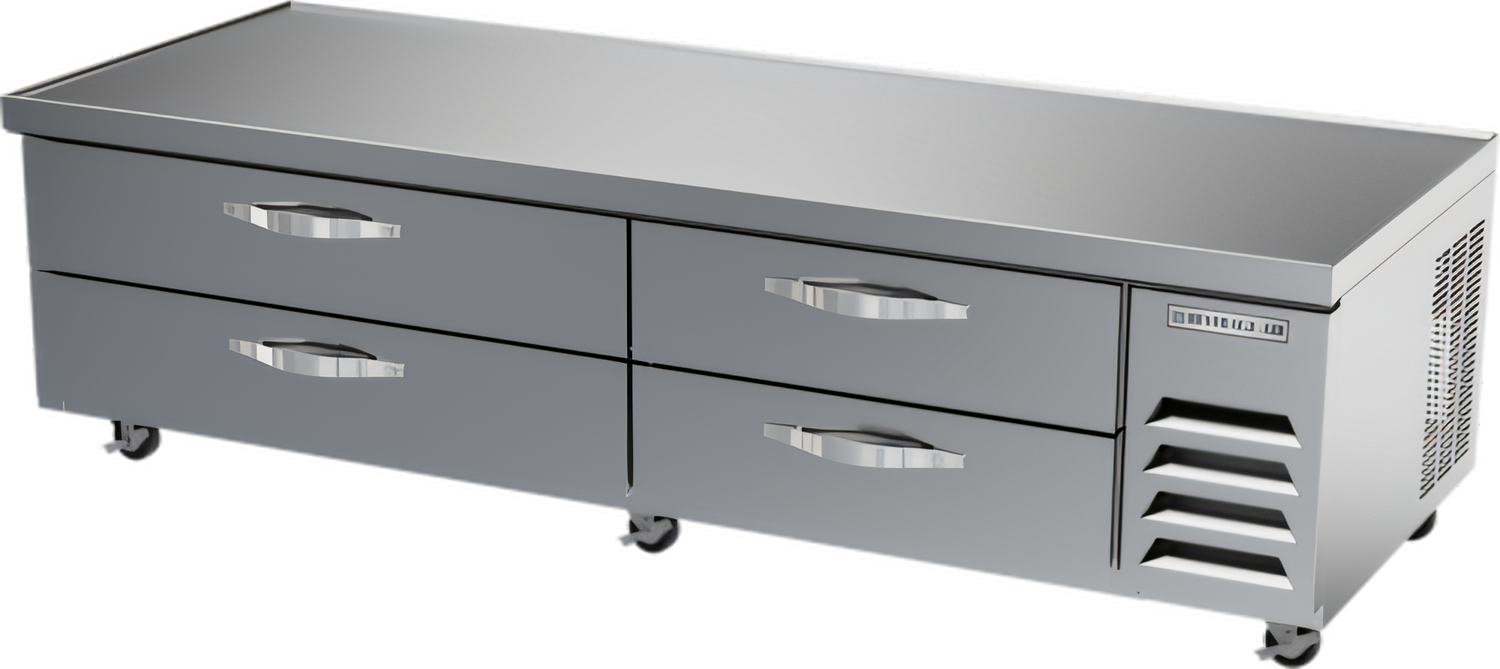

Beverage-Air 84-Inch Four-Drawer Chef Base Refrigerator with Stainless Steel Top and Side-Mounted Self-Contained R290 Refrigeration

14.84 Cu. Ft. | Floor Model | 115V

Built for busy cooklines, this 84-inch chef base combines a fire-proof stainless worktop with four refrigerated drawers and energy-efficient side-mounted R290 cooling.

  • 84-inch floor-model chef base refrigerator with four drawers and 14.84 cu. ft. of refrigerated storage.
  • Fire-proof stainless steel top with a full marine edge; no heat shield required when proper clearances are maintained.
  • Stainless steel front, sides, drawers, and grille with a corrosion-resistant aluminum interior and galvanized back/bottom.
  • Side-mounted self-contained refrigeration uses R290 hydrocarbon refrigerant and maintains temperatures from 36°F to 38°F.
  • Self-closing drawers, magnetic gaskets, and heavy-duty drawer slides are built for high-volume commercial use.
  • Top is rated for up to 1,500 lb. and the unit ships on 3-inch casters with 2 brakes standard.

Overall Dimensions:

84.0"W x 34.75"D x 24.38"H

Product Weight:

650.0 lb

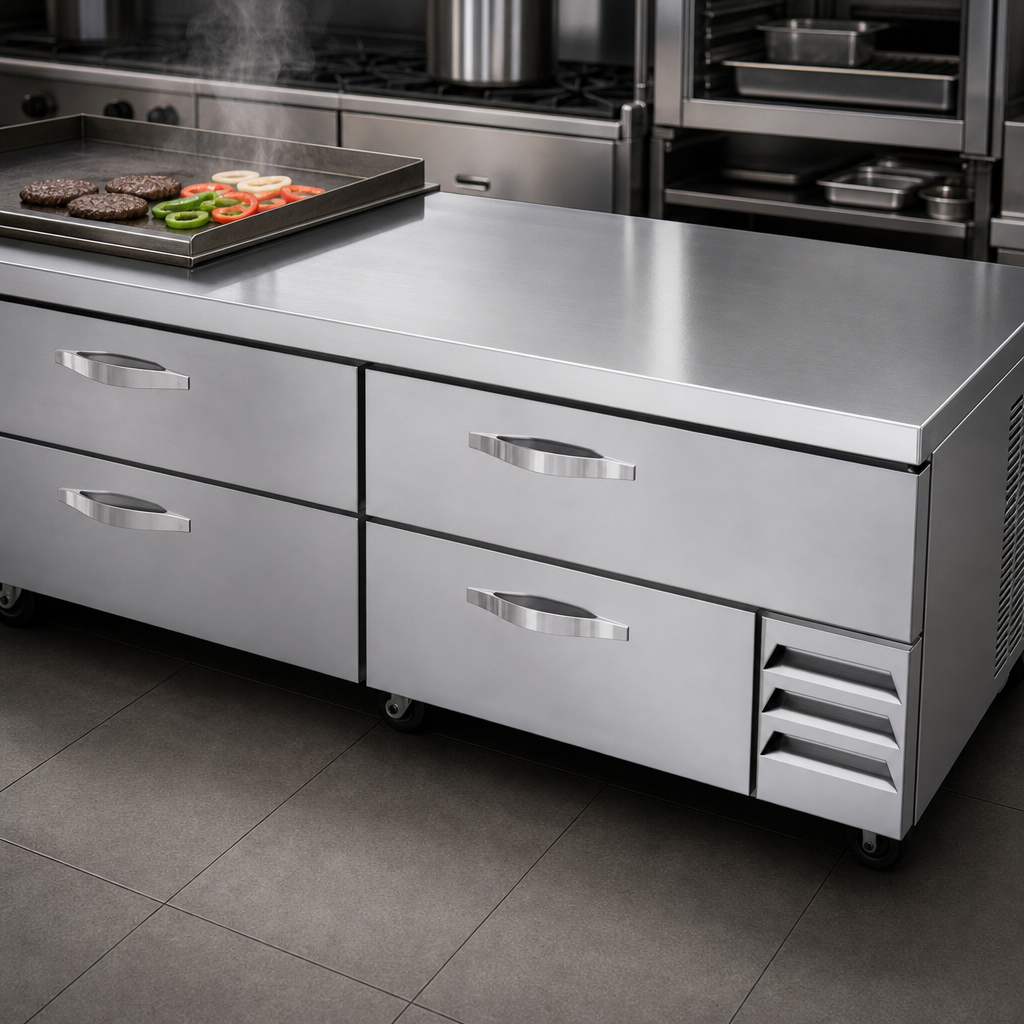

Fire-Proof Stainless Steel Top

Heavy-duty insulated 16-gauge top is designed for cookline use and does not require a heat shield when proper clearances are maintained.

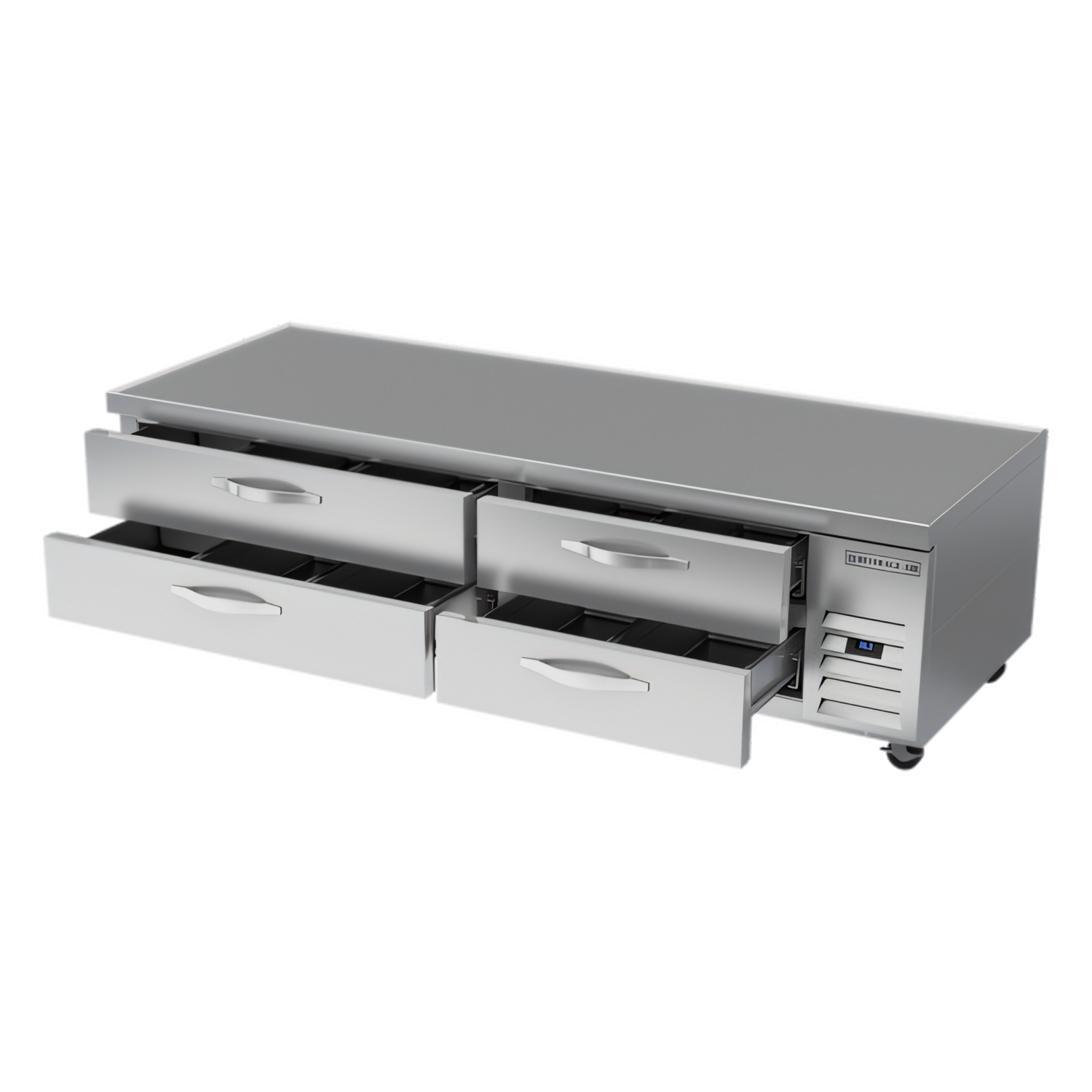

Four Refrigerated Drawers

Four self-closing drawers provide refrigerated storage and accommodate 6-inch deep full-size food service pans.

Side-Mounted Self-Contained Refrigeration

Integrated side-mounted refrigeration keeps the compressor out of the work area and simplifies installation and service access.

R290 Hydrocarbon Refrigerant

Uses environmentally friendly R290 refrigerant for energy-efficient operation.

Stainless Steel Cabinet Construction

Stainless steel front, sides, drawers, and grille with galvanized back and bottom, plus a corrosion-resistant aluminum interior liner.

Full Marine Edge Drip Guard

The top includes a full marine edge to help prevent spills from dripping over the sides.

Electronic Controls with Adaptive Defrost

Full electronic control and adaptive defrost help maintain consistent refrigeration performance.

Heavy-Duty Drawer Hardware

12-gauge stainless drawer slides with Delrin rollers are rated at 275 lb. and use one-piece magnetic drawer gaskets.

1,500 lb. Top Capacity

The work surface is rated to support heavy countertop cooking equipment.

Standard Casters

Ships on 3-inch casters with 2 casters equipped with brakes.

Type Chef Base Refrigerator
Style Four Drawer
Installation Type Floor Model
Capacity 14.84 Cubic Feet
Pan Capacity 10 Full-Size Pans
Pan Size 12 x 20 x 6 Inches
Controls Electronic
Temperature Range 36°F to 38°F
Material Stainless Steel
Interior Finish Aluminum
Refrigeration Type Self-Contained, Side Mounted
Refrigerant Type R290 Hydrocarbon
Horsepower 1/3 HP
BTU 2,292 BTU/Hr
Voltage 115 Volts
Amps 4.3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 84 Inches
Shipping Depth 35 Inches
Shipping Height 25 Inches
Shipping Weight 650 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts and labor warranty; 7-year compressor part warranty for units shipped on or after 07/01/2024.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty update PDF Download PDF Diagram PDF Download PDF Manual PDF Download PDF Caster template PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The drawers accommodate 6-inch deep full-size food service pans; pans are not included.
No heat shield is required, provided proper clearances from the owners manual are maintained.
It operates on 115V / 60Hz / 1-phase power, draws 4.3 amps, and includes an 8-foot cord with a NEMA 5-15P plug.
Yes. The compressor can be ordered on the left or right side; specify the location at time of order.
The unit is capable of maintaining product temperatures between 36°F and 38°F.
Units shipped on or after 07/01/2024 include a 7-year parts and labor warranty plus a 7-year compressor part warranty; exclusions apply.
