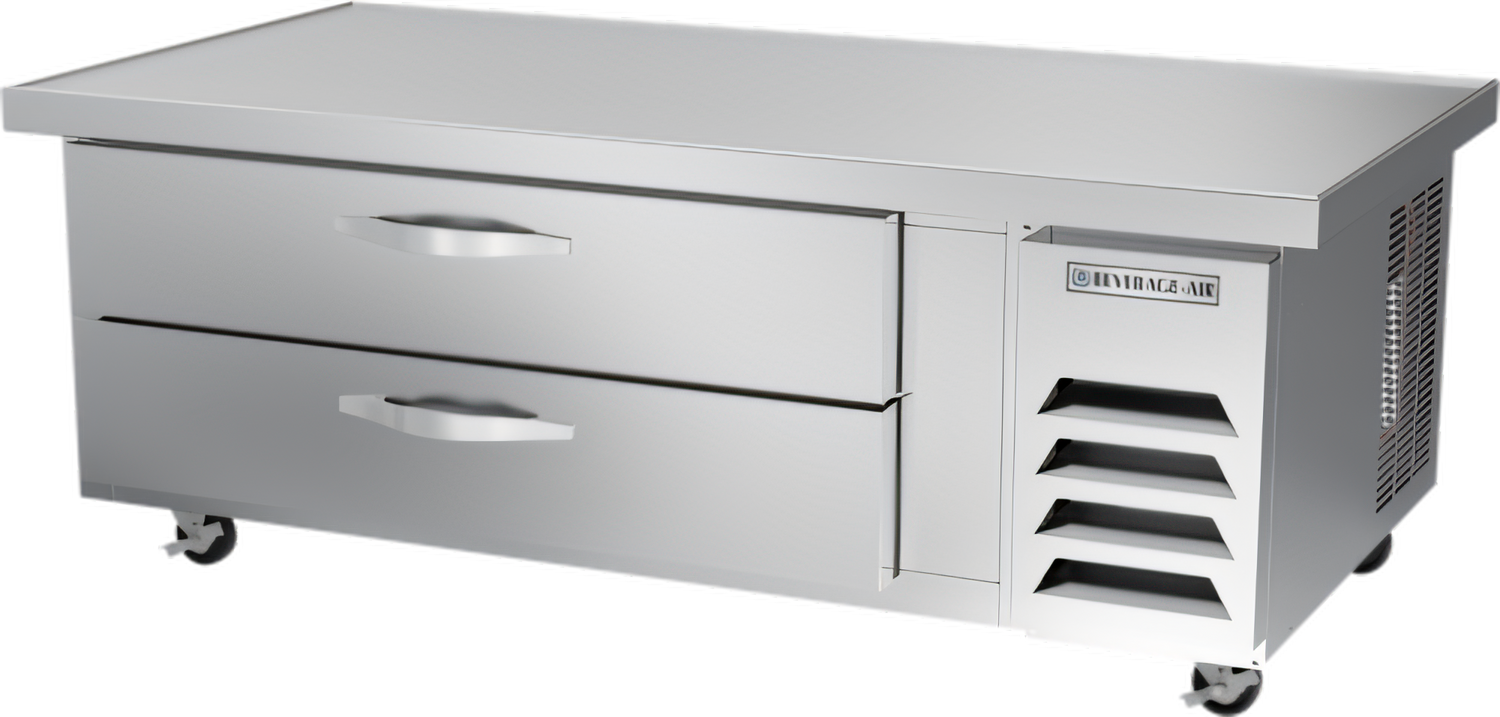

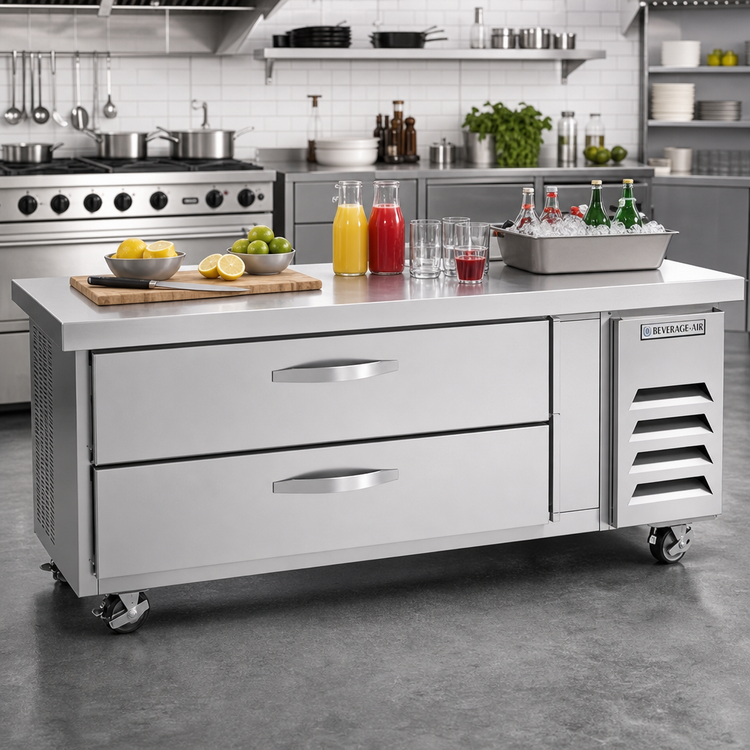

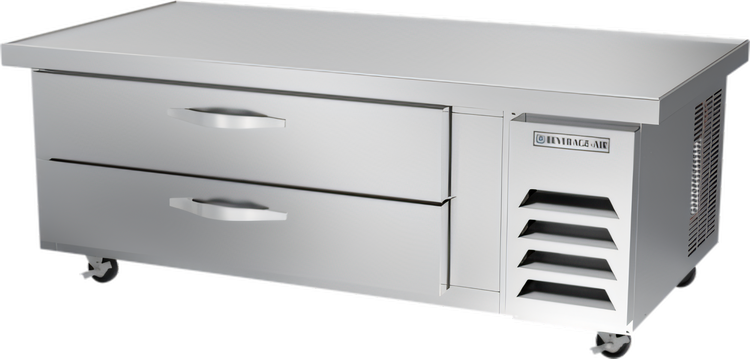

Beverage-Air WTFCS60HC-64 64-Inch Two-Drawer Extended-Top Chef Base Freezer

SKU: WTFCS60HC-64
$10,089.16
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Beverage Air Commercial Work Tables Equipment Stands Kitchen Equipment Tables New Arrivals Restaurant Equipment Undercounter & Worktop Refrigeration

Beverage-Air WTFCS60HC-64 64-Inch Two-Drawer Extended-Top Chef Base Freezer

Self-Contained R290, 115V, Digital Control

This extended-top chef base freezer combines a durable stainless steel work surface, two pan drawers, and self-contained R290 cooling in one compact 64-inch unit.

  • 64-inch fire-proof stainless steel top with full marine edge helps contain spills.
  • Two self-closing drawers hold six full-size 12" x 20" x 6" pans total.
  • Self-contained R290 refrigeration with digital electronic control for easy monitoring.
  • Stainless steel exterior with aluminum interior and a 1,000 lb. top capacity.
  • Standard 3" casters with two brakes make positioning easy.
  • Compressor can be specified for the left or right side at order.

Overall Dimensions:

64.0"W x 34.75"D x 24.38"H

Product Weight:

525.0 lb

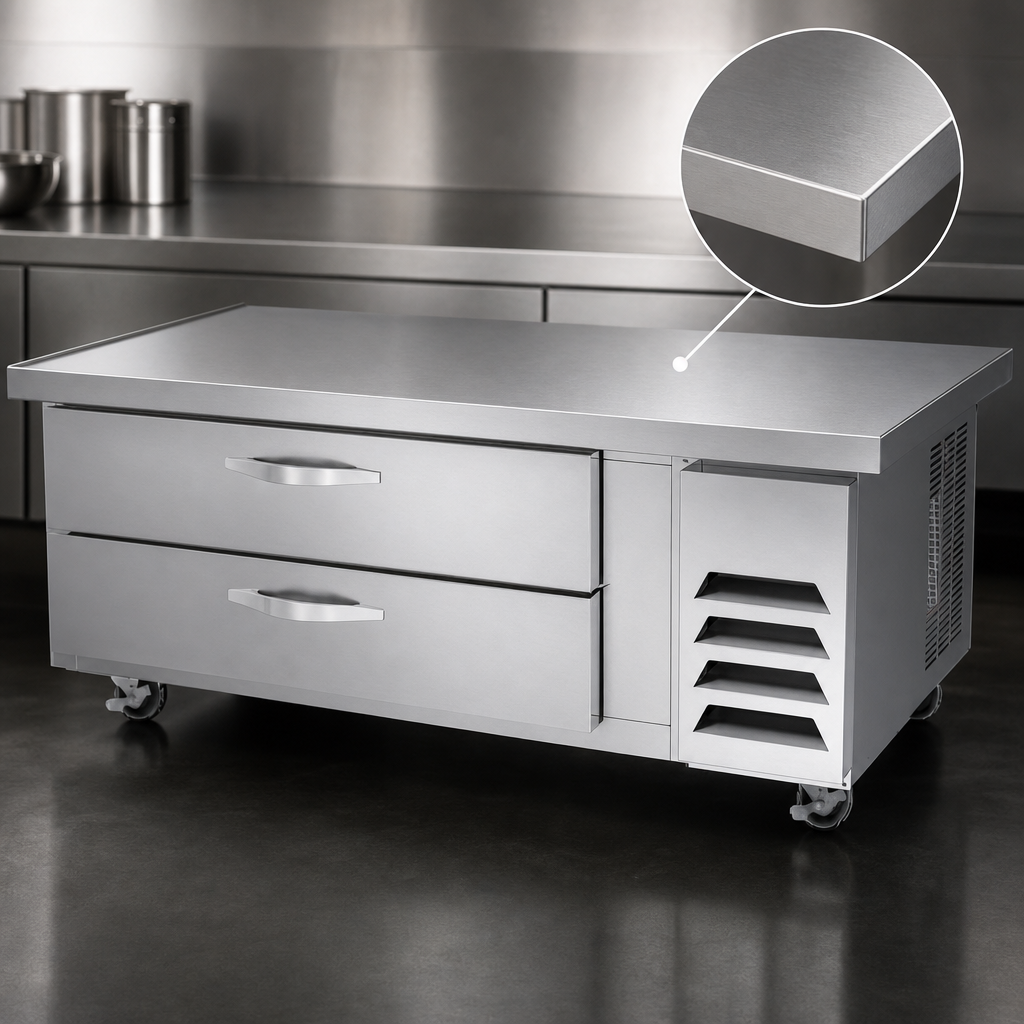

Extended Stainless Steel Top

Heavy-duty 16-gauge stainless steel top includes a full marine edge and is designed to avoid the need for a heat shield when proper clearances are maintained.

Two Self-Closing Drawers

Two drawers provide storage for pan use and each drawer accommodates three 12" x 20" x 6" full-size pans; pans are not included.

Digital Electronic Control

Full electronic control with a digital display helps simplify temperature monitoring and operation.

Self-Contained R290 Refrigeration

Energy-efficient hydrocarbon refrigeration system includes adaptive defrost and hot gas condensate evaporation.

Stainless Steel Exterior With Aluminum Interior

Stainless steel front, sides, drawers, and grille pair with a corrosion-resistant aluminum interior liner.

Heavy-Duty Top Capacity

Work surface is rated to support up to 1,000 lb. of equipment.

Flexible Compressor Placement

Compressor can be ordered for either the left or right side at time of purchase.

Type Chef Base Freezer
Style Two Drawer
Installation Type Floor Model
Capacity 9.75 Cubic Feet
Pan Capacity 6 Full-Size Pans
Pan Size 12 Inches x 20 Inches x 6 Inches
Controls Digital
Temperature Range Down To -10°F
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Material Stainless Steel
Interior Finish Aluminum
Finish Stainless Steel
Horsepower 1/2 HP
BTU 1,725 BTU/Hr
Voltage 115 Volts
Amps 5.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 64 Inches
Shipping Depth 35 Inches
Shipping Height 25 Inches
Shipping Weight 525 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts and labor warranty; 7-year compressor warranty on units shipped on or after July 1, 2024.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Caster template PDF Download PDF Manual PDF Download PDF Pan configurations PDF Download PDF Warranty update PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The two drawers hold six full-size pans total, with three 12" x 20" x 6" pans per drawer; pans are not included.
No, the fire-proof insulated stainless steel top is designed so a heat shield is not required, though proper clearances still apply.
The unit operates on 115V, 60 Hz, 1-phase power and draws 5.0 amps with an 8-foot cord and NEMA 5-15P plug.
It uses R290 hydrocarbon refrigerant in a self-contained refrigeration system.
Yes, the compressor can be specified for the left or right side when the unit is ordered.
The worktop is rated for up to 1,000 lb. of equipment.
