Beverage-Air Cross Temp 48-Inch Two-Drawer Convertible Refrigerated/Freezer Chef Base

SKU: WTCTCS48HC
$8,678.31
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Beverage Air Commercial Work Tables Equipment Stands Kitchen Equipment Tables New Arrivals Restaurant Equipment Undercounter & Worktop Refrigeration

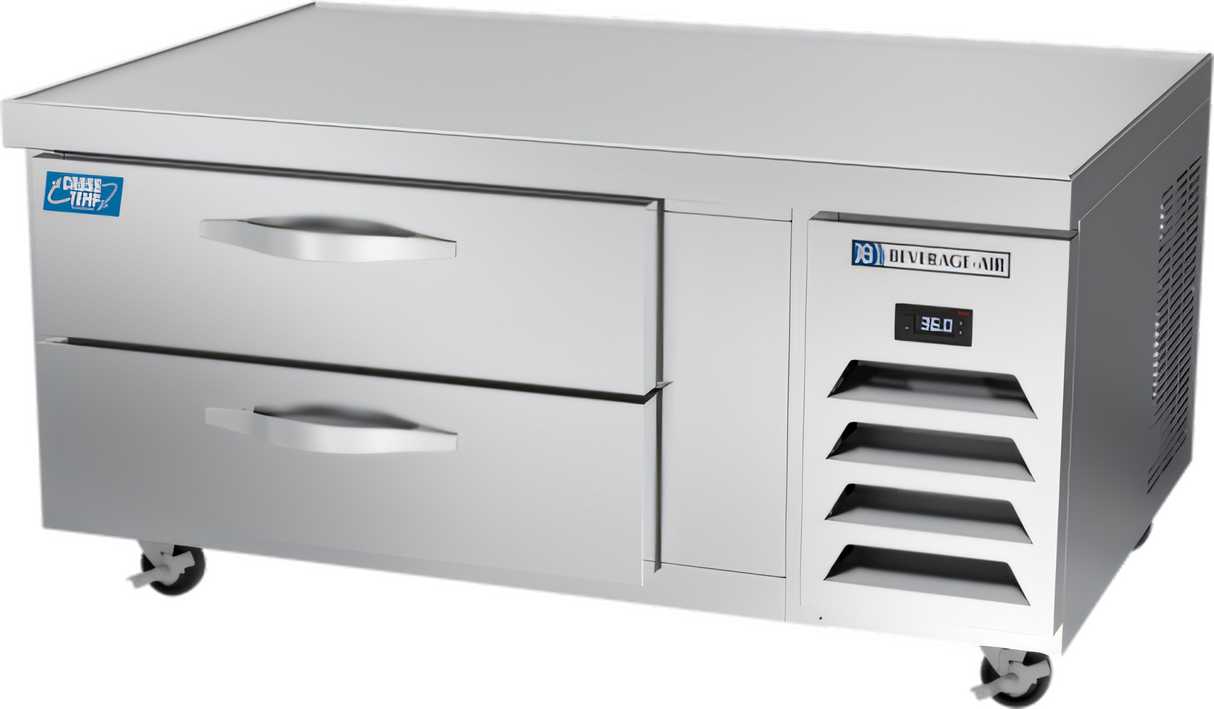

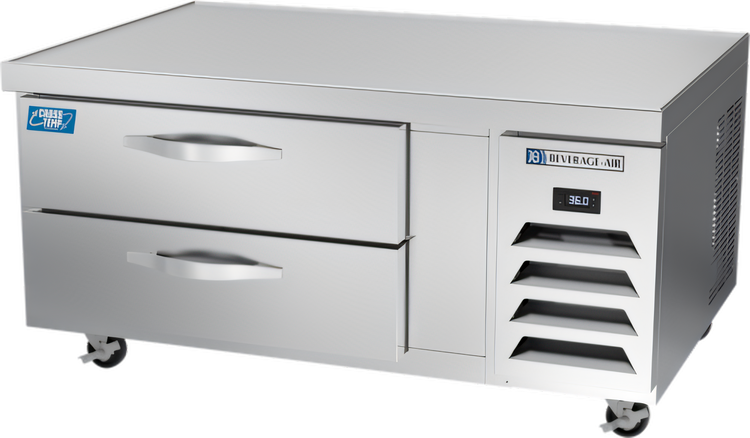

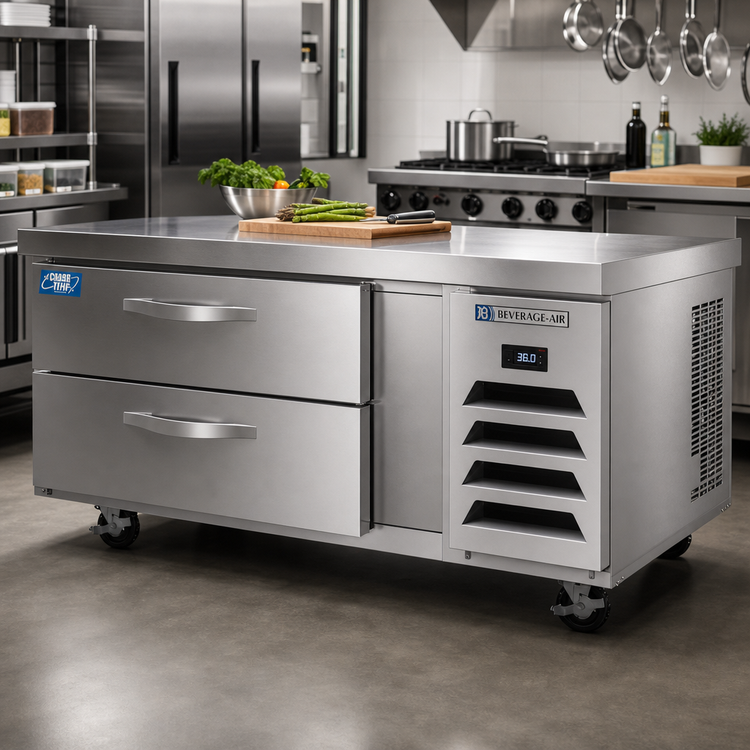

Beverage-Air Cross Temp 48-Inch Two-Drawer Convertible Refrigerated/Freezer Chef Base

Self-Contained R290, 7.21 Cu. Ft., 115V

Keep your line moving with a rugged chef base that converts from refrigerator to freezer and provides a 1,000-lb. stainless top with two refrigerated drawers.

  • Converts from refrigerator to freezer with full electronic control and a -15 to 40°F operating range.
  • Two drawers hold four 12" x 20" x 6" pans total, helping keep ingredients close to the cookline.
  • Fire-proof 16-gauge stainless steel top is built for high-heat environments and does not require a heat shield when clearances are maintained.
  • Stainless steel front, sides, drawers, and grille pair with a corrosion-resistant aluminum interior for durability and easy cleanup.
  • Self-contained R290 refrigeration with adaptive defrost supports efficient, dependable temperature management.
  • 3-inch casters with brakes are standard, and the top is rated for up to 1,000 lb. of equipment.

Overall Dimensions:

48.0"W x 34.75"D x 24.12"H

Product Weight:

375.0 lb

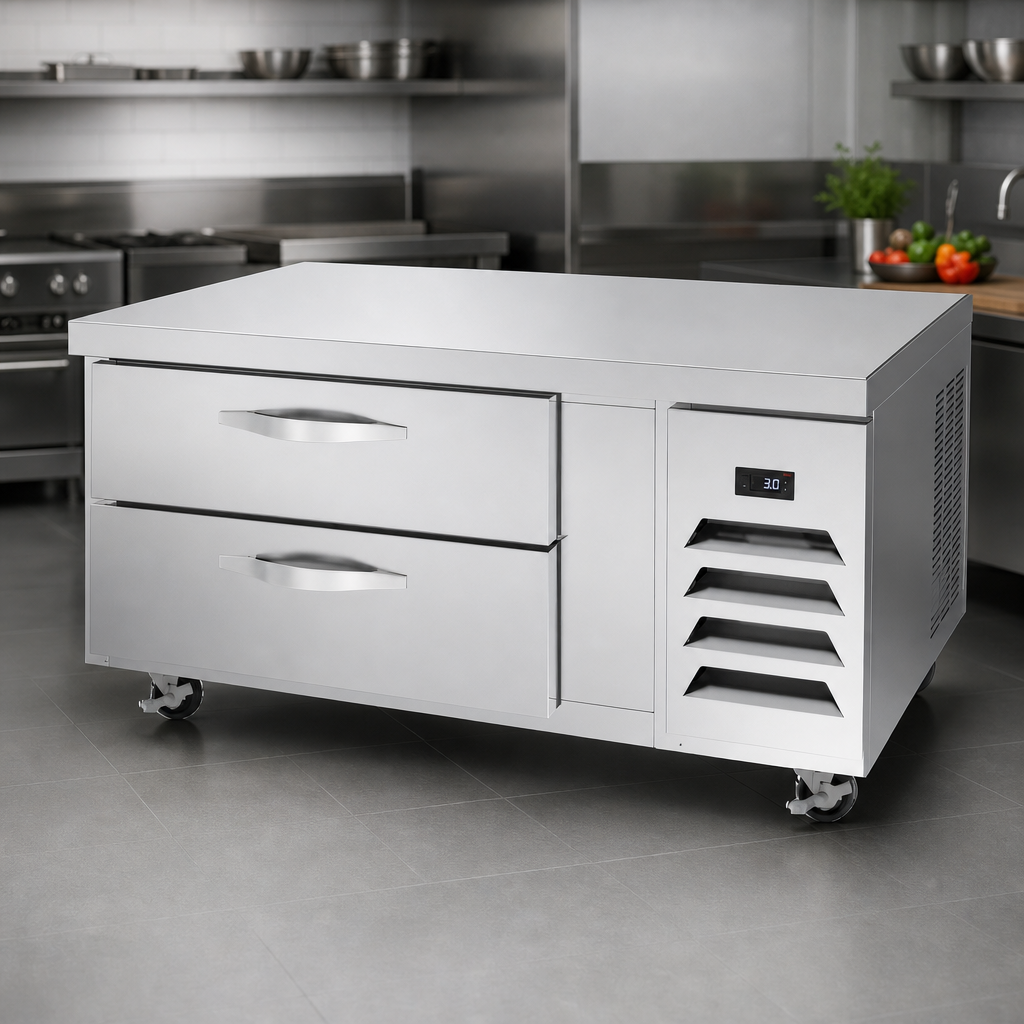

Convertible Refrigerator/Freezer

Full electronic control lets the unit operate as a refrigerator or freezer across a -15 to 40°F range.

Stainless Steel Cabinet

Stainless steel front, sides, drawers, and grille provide durability, with a corrosion-resistant aluminum interior liner.

Fire-Proof Insulated Top

The heavy-duty insulated 16-gauge top is fire-proof and does not require a heat shield when proper clearances are maintained.

Full Marine Edge

The top includes a full marine edge to help keep spills from dripping over the sides.

Two Self-Closing Drawers

Two drawers feature self-closing operation and one-piece magnetic gaskets for a secure seal.

Heavy-Duty Drawer Slides

12-gauge stainless steel drawer slides with Delrin rollers are rated at 275 lb. and backed by a lifetime warranty.

Self-Contained R290 Refrigeration

Energy-efficient R290 hydrocarbon refrigeration includes adaptive defrost and hot-gas condensate evaporation.

Heavy-Duty Work Surface

The top is rated to support up to 1,000 lb. of equipment.

Type Chef Base
Style Cross Temp
Installation Type Floor Model
Capacity 7.21 Cubic Feet
Drawer Quantity 2
Pan Capacity 4 Full-Size Pans
Pan Size 12 x 20 x 6 Inches
Controls Digital
Temperature Range -15 to 40 °F
Material Stainless Steel
Interior Finish Aluminum
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
BTU 1,970 - 4,950 BTU/Hr
Voltage 115 Volts
Amps 8.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 58 Inches
Shipping Depth 38 Inches
Shipping Height 27 Inches
Shipping Weight 375 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

7-year parts and labor; 7-year compressor part warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It is designed to convert from refrigerator to freezer operation with a temperature range of -15 to 40°F.
It has two drawers and accommodates four full-size 12" x 20" x 6" pans total. Pans are not included.
The unit is wired for 115/60/1 power and includes an 8-foot cord with a NEMA 5-15P plug.
No heat shield is required, but the unit must still be installed with the proper clearances noted in the owner’s manual.
The literature lists a 7-year parts and labor warranty, plus a 7-year compressor part warranty for units shipped after 07/01/2024.
Yes. Compressor location is available on the right side or the left side (-ALT), and it must be specified when ordering.
