Beverage Air

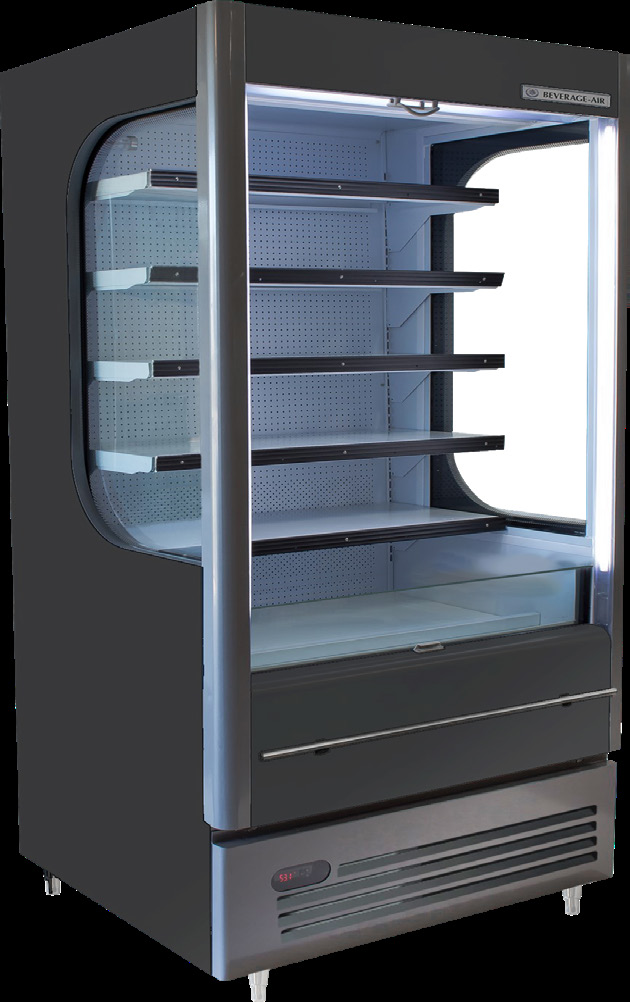

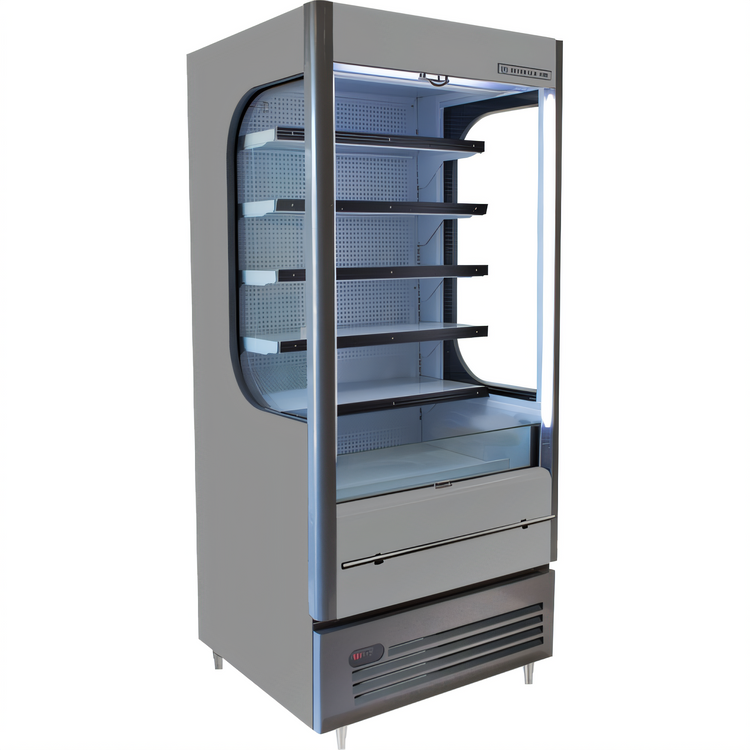

Beverage-Air Vuemax Open-Air Vertical Merchandiser, 35-1/4 Inch Gray, 5-Shelf, R290 Refrigerated Case (VMHC-12-1-G)

SKU: VMHC-12-1-G
$9,366.42
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Beverage-Air Vuemax Open-Air Vertical Merchandiser, 35-1/4 Inch Gray, 5-Shelf, R290 Refrigerated Case (VMHC-12-1-G)

Tempered glass sides, night curtain, LED lighting, and electronic temperature control.

Built for fast-moving grab-and-go sales, this open-air merchandiser keeps beverages and packaged foods cold, visible, and easy to access.

  • 35-1/4-inch-wide vertical open-air case ideal for beverages and packaged foods
  • Five included shelves with two-position placement for flexible merchandising
  • Low-E tempered glass sides, LED lighting, price tag molding, and a standard night curtain
  • Self-contained R290 refrigeration with automatic defrost and a maintenance-free condenser
  • Electronic temperature control maintains 36°F to 40°F operating temperatures
  • Gray powder-coated stainless steel exterior, painted steel interior, and 6-inch adjustable legs

Overall Dimensions:

35.13"W x 31.75"D x 83.13"H

Product Weight:

520.0 lb

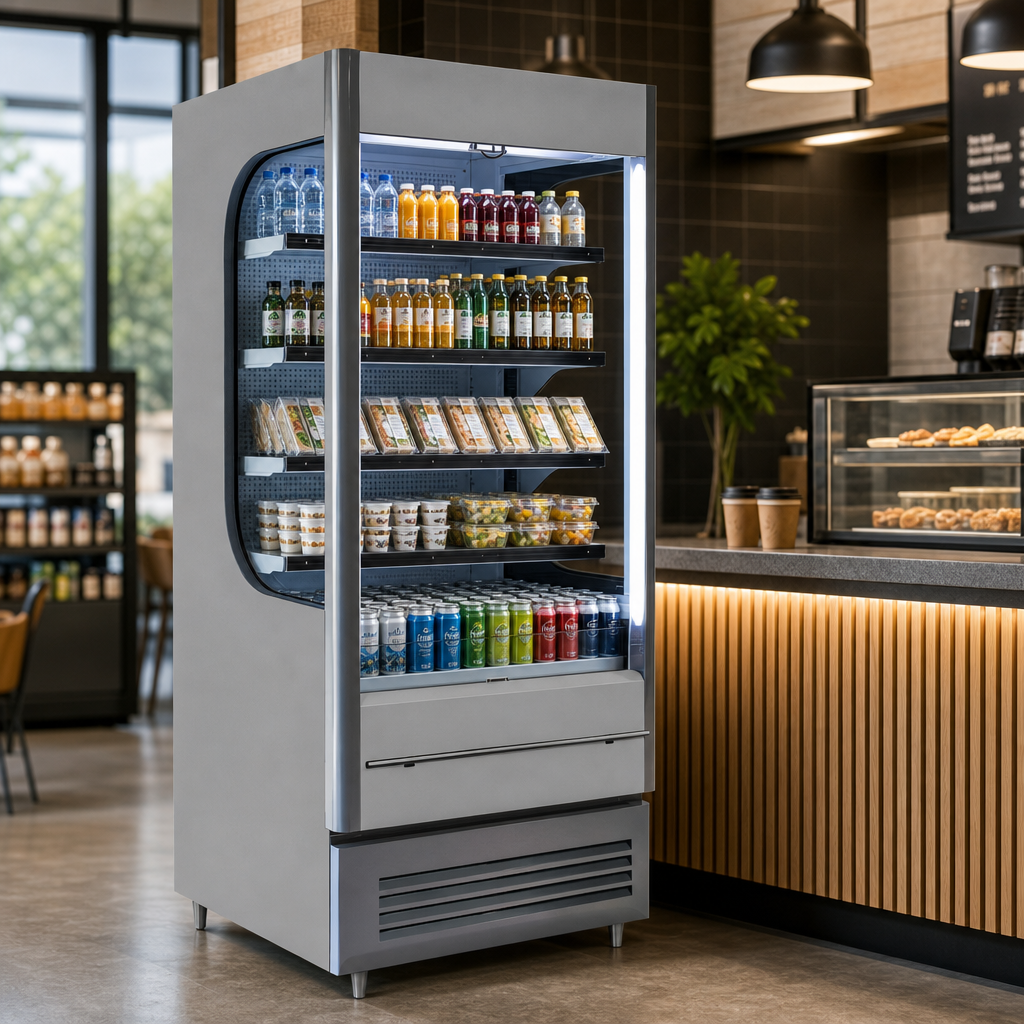

Open-Air Merchandising Design

Vertical open-air construction is designed to present bottled beverages and packaged foods with strong visibility and easy customer access.

Open-Air Merchandising Design

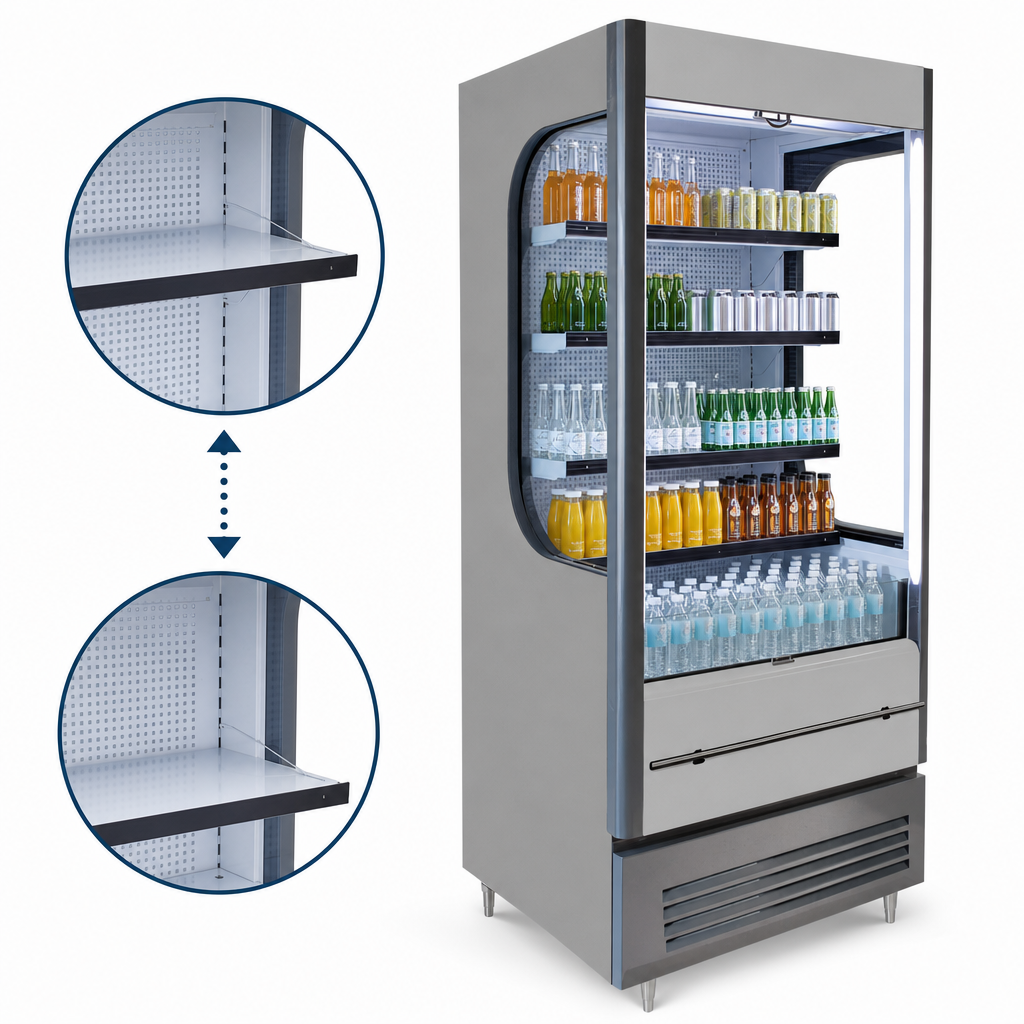

Five Shelves with Flexible Placement

Five shelves are included and can be installed in two positions to help optimize product presentation.

Five Shelves with Flexible Placement

LED Lighting and Price Tag Molding

Standard LED interior lighting brightens product displays, while price tag molding helps keep pricing organized and visible.

Night Curtain Included

The standard night curtain helps retain cabinet temperature and reduce energy use after business hours.

Tempered Thermal Glass Sides

Low-E double-pane tempered glass sides improve product visibility while supporting energy efficiency.

R290 Self-Contained Refrigeration

Uses energy-efficient R290 refrigerant, automatic defrost, and a maintenance-free slide-out condenser for easier service.

Durable Cabinet Construction

Features a gray powder-coated stainless steel exterior, painted steel interior, foamed-in-place polyurethane insulation, and 6-inch adjustable legs.

Type Open-Air Merchandiser
Style Vertical Case
Installation Type Floor Model
Capacity 15.45 Cubic Feet
Material Stainless Steel
Interior Finish Painted Steel
Color Gray
Finish Gray Powder Coated
Refrigeration Type Self-Contained Refrigeration
Refrigerant Type R290 Hydrocarbon
Controls Electronic
Temperature Range 36°F to 40°F
Voltage 120 Volts
Amps 12 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 8 Feet
BTU 4900 BTU/Hr
Shipping Width 36 Inches
Shipping Depth 32 Inches
Shipping Height 84 Inches
Shipping Weight 520 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3-year parts and labor; 5-year compressor warranty.

Frequently Asked Questions

It is designed to maintain product temperatures between 36°F and 40°F.
Five shelves are included, and they can be installed in two positions for display flexibility.
Yes, a night curtain comes standard to help save energy and maintain cabinet temperature.
It uses R290 hydrocarbon refrigerant.
The unit is wired for 120/60/1 power, draws 12 amps, and uses a NEMA 5-20P plug with an 8-foot cord.
The cut sheet lists a 3-year parts/labor warranty and a 5-year compressor warranty.
