Beverage Air

Beverage Air 48-Inch Two-Section Undercounter Freezer With 2 Drawers and 1 Solid Door

SKU: UCFD48AHC-2
$7,572.37
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

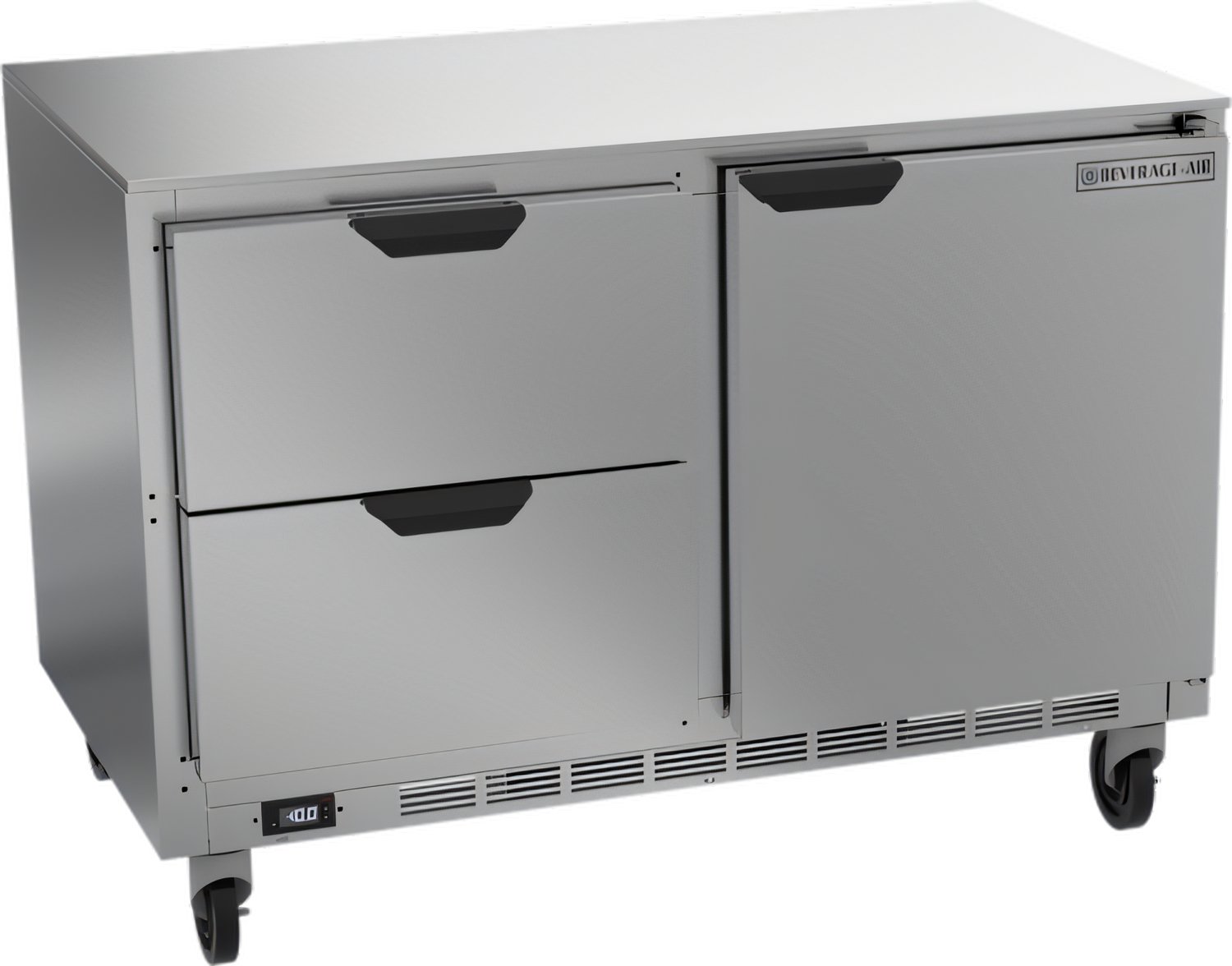

Beverage Air 48-Inch Two-Section Undercounter Freezer With 2 Drawers and 1 Solid Door

Stainless Steel Exterior, Rear-Mounted Self-Contained R290 Refrigeration, 115V

A compact mixed-access freezer that keeps frozen ingredients organized and within reach in a durable 48-inch undercounter footprint.

  • 11.6 cu. ft. net capacity in a compact 48-inch undercounter footprint
  • Mixed-access layout with 2 drawers and 1 solid door
  • Stainless steel exterior/top and aluminum interior for durability and easy cleaning
  • Rear-mounted self-contained R290 refrigeration with adaptive defrost
  • Full electronic controls and an interior thermometer help maintain consistent temperatures
  • Drawer openings accommodate 6-inch deep pans and the door is self-closing with a 120° stay-open feature
  • 115V, 60 Hz, single-phase power with a NEMA 5-15P plug; 6-inch casters with brakes are standard

Overall Dimensions:

48.0"W x 32.0"D x 34.5"H

Product Weight:

245.0 lb

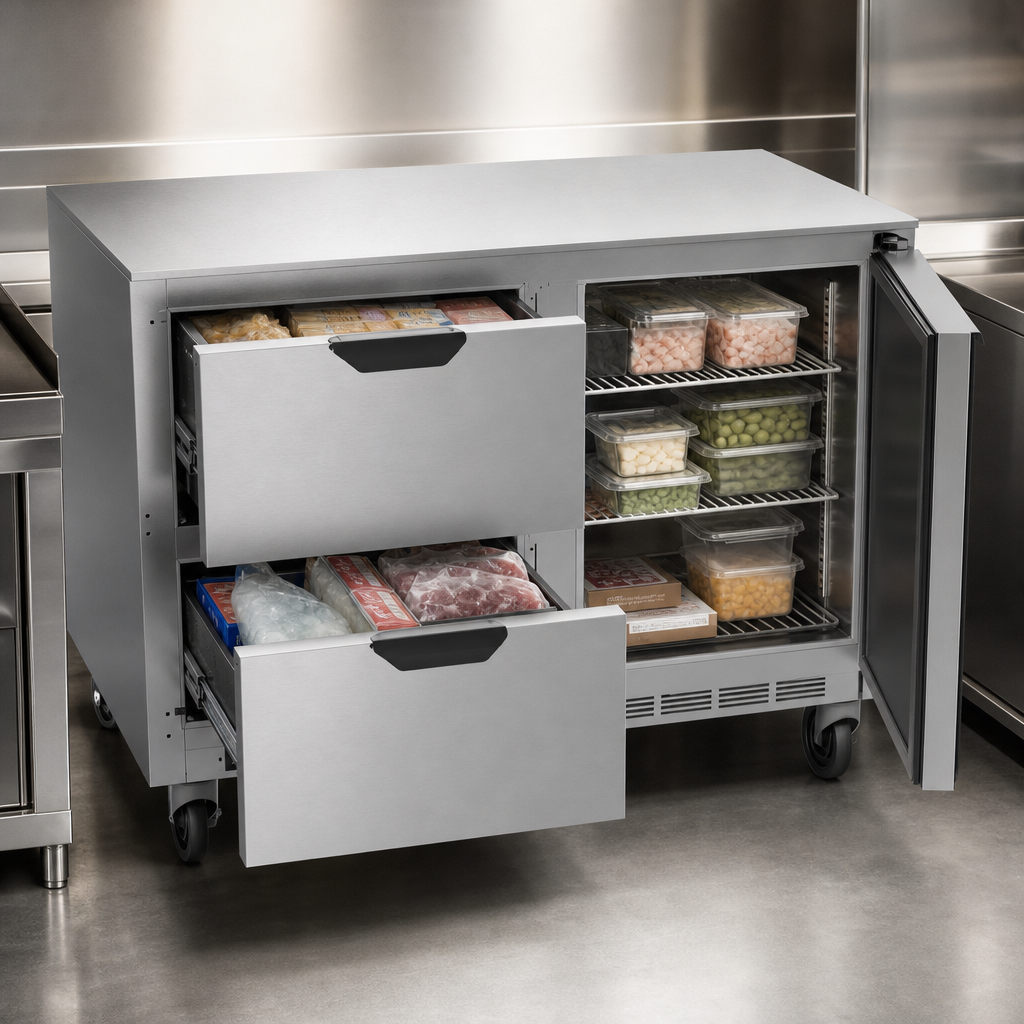

Mixed Access Storage Layout

Two drawers and one solid door provide flexible frozen storage access in one undercounter cabinet.

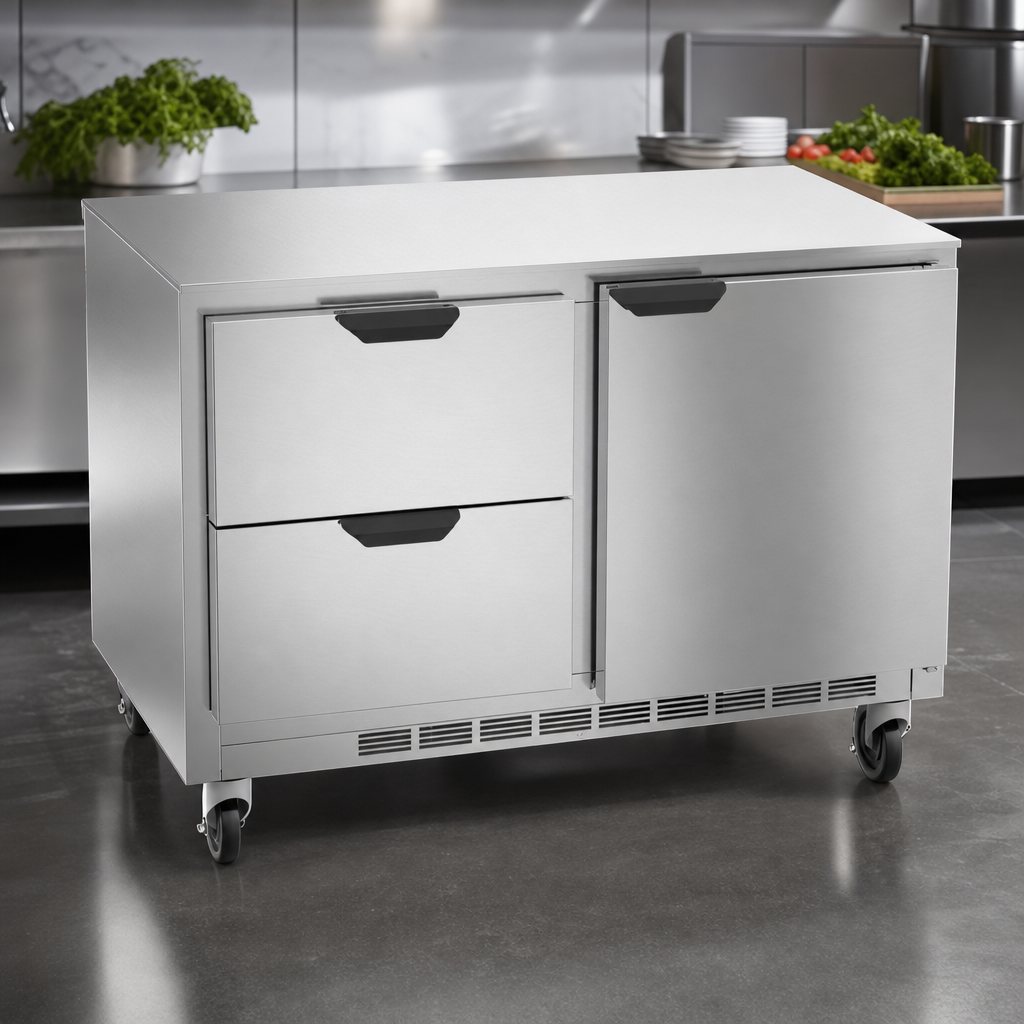

All Stainless Steel Exterior

Front, sides, top, door, drawers, and grille are stainless steel for durability and easy cleanup.

Corrosion-Resistant Aluminum Interior

The aluminum liner is built to stand up to commercial kitchen use.

Rear-Mounted Self-Contained Refrigeration

Built-in refrigeration uses R290 hydrocarbon refrigerant and includes adaptive defrost.

Electronic Control Package

Full electronic control and an interior thermometer help with temperature management.

Self-Closing Field-Reversible Door

The door has a 120° stay-open feature, magnetic gasket, anti-condensate heaters, and can be field-reversed; hinge kit not included.

Drawer Storage for 6-Inch Deep Pans

Upper and lower pull-out drawers include snap-in gaskets and locking telescoping slides, and they accommodate 6-inch deep pans.

Two Included Shelves

Two epoxy-coated steel wire shelves come standard for additional frozen storage.

Standard Mobility

The unit ships standard on 6-inch casters, with two casters equipped with brakes.

Type Undercounter Freezer
Style Drawer and Door
Installation Type Undercounter
Compartments 2
Drawers 2
Doors 1
Shelves 2
Capacity 11.6 Cubic Feet
Material Stainless Steel
Finish Stainless Steel
Interior Finish Aluminum
Refrigeration Type Self-Contained, Rear Mounted
Refrigerant Type R290 Hydrocarbon
Compressor HP 1/2 HP
Controls Electronic
BTU 1,865 BTU/Hr
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 5.0 Amps
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 50 Inches
Shipping Depth 32 Inches
Shipping Height 34 Inches
Shipping Weight 306 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts and labor warranty; 7-year compressor warranty.

Frequently Asked Questions

It has two drawers and one solid door in a two-section undercounter layout.
Net capacity is 11.6 cubic feet.
It uses rear-mounted self-contained refrigeration with R290 hydrocarbon refrigerant and adaptive defrost.
It requires 115V, 60 Hz, single-phase power, 5.0 amps, and a NEMA 5-15P plug with an 8-foot cord.
The upper and lower pull-out drawers accommodate 6-inch deep pans.
Allow 3 inches of clearance at the bottom and 2 inches at the rear.
