Beverage Air BBN78HC-F-B

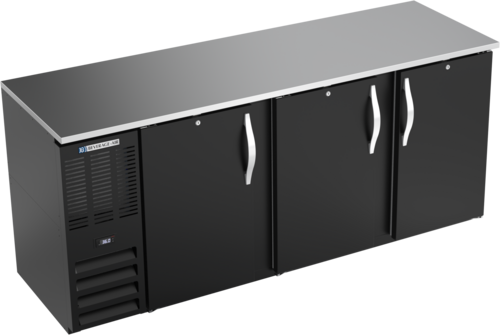

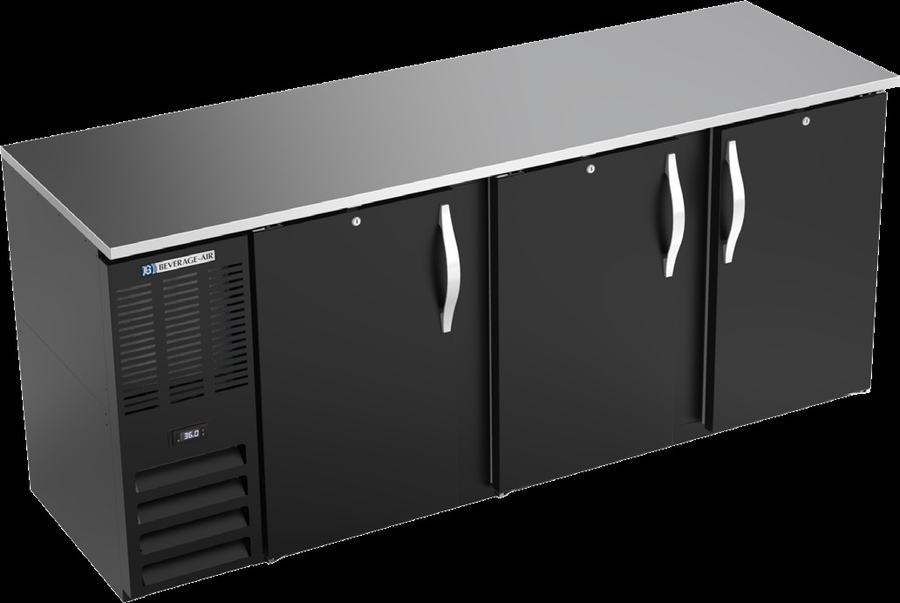

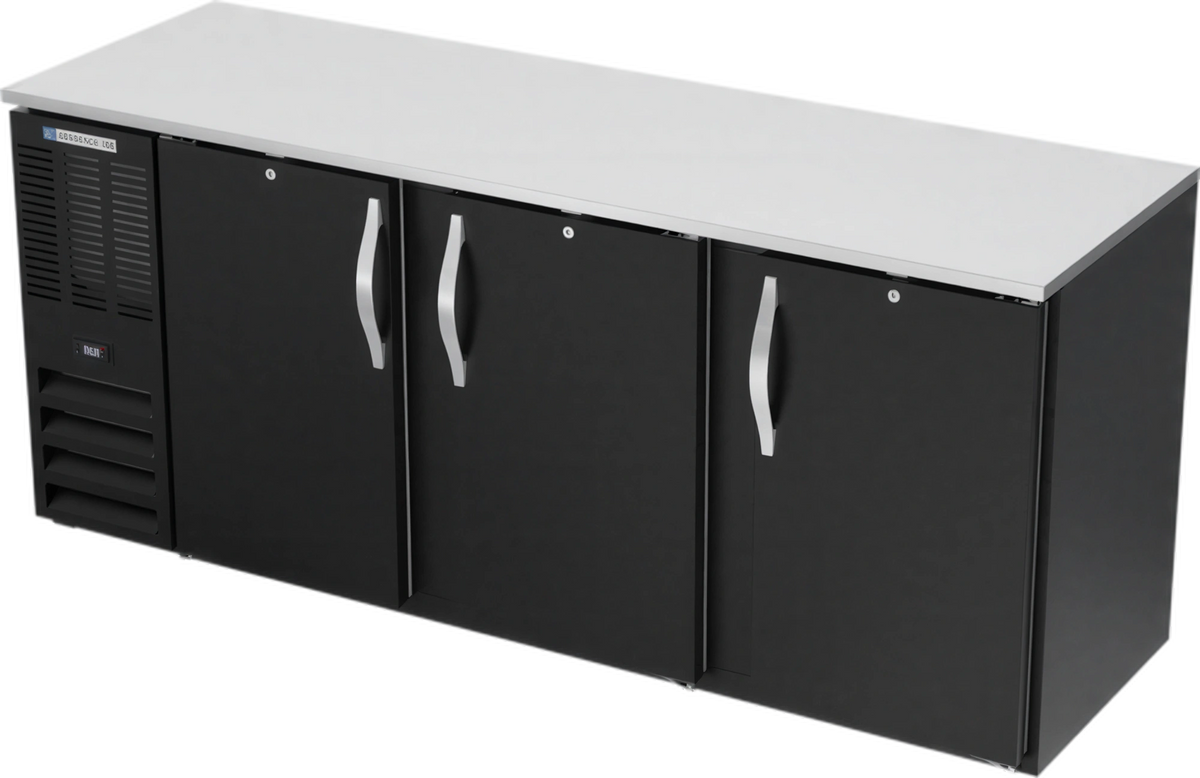

Beverage Air BBN78HC-F-B Three-Section Food-Rated Solid-Door Back Bar Refrigerator, 78-Inch, Black with Stainless Steel Top

$7,474.63
/each
Ships in 36–39 business days Free Shipping
Dimensions
78.0"W × 26.38"D × 34.0"H
Product type
Food-rated back bar refrigerator
Sections
3
Capacity
21.686 cu. ft.
Door count
3
Door type
Solid

Questions before you buy?

Talk to an equipment specialist — usually within 1 hour, 9am–6pm EST.

(888) 307-5030 Call Get custom quote

Specifications

Product type Food-rated back bar refrigerator
Sections 3
Capacity 21.686 cu. ft.
Door count 3
Door type Solid
Door operation Self-closing with 120-degree stay-open feature
Door locks Yes
Door gasket Snap-in magnetic gasket
Shelves 6 epoxy-coated steel shelves
Half-barrel keg capacity 4
Exterior finish Black painted steel
Interior construction Stainless steel with radius corners
Top construction 1-inch stainless steel
Interior lighting LED with manual on/off switch
Refrigeration location Left-mounted, self-contained
Refrigerant R290 hydrocarbon
Temperature range 36°F to 38°F
Refrigeration system Balanced, forced air
Defrost Adaptive
Control type Full electronic control
Compressor horsepower 1/3 HP
Refrigeration capacity 1,942 BTU/hr
Heat rejection 2,913 BTU/hr
Voltage 115/60/1 phase
Full load amps 3.3 A
Plug type NEMA 5-15P
Overall width 78 in
Overall depth 26.38 in
Overall height 34 in
Door-open depth 42 in at 90 degrees
Usable interior width 63 in
Interior depth 19.5 in
Interior height 30.5 in
ADA compliance Standard height

Description

The Beverage-Air BBN78HC-F-B is a three-section, food-rated back bar refrigerator with 21.686 cu. ft. of refrigerated storage, three solid doors, and a black exterior with a 1-inch stainless steel top.

Its stainless steel interior with radius corners meets NSF Standard 7 for open container and includes six epoxy-coated steel shelves. LED interior lighting has a manual on/off switch, while the left-mounted self-contained R290 refrigeration system includes full electronic control.

  • Storage capacity for four 1/2-barrel kegs
  • Self-closing doors with 120-degree stay-open feature and locks
  • Snap-in magnetic door gaskets
  • Balanced, forced-air refrigeration system with adaptive defrost

Overall Dimensions:

78.0"W x 26.38"D x 34.0"H

Product Weight:

439.04 lb

Food-rated interior

The stainless steel interior has radius corners and meets NSF Standard 7 for open container.

Three-section solid-door design

The cabinet has three solid doors with self-closing operation, a 120-degree stay-open feature, and door locks.

Shelving and keg storage

Includes six epoxy-coated steel shelves and storage for four 1/2-barrel kegs.

Black and stainless construction

The exterior is black painted steel, with a stainless steel interior and a 1-inch stainless steel top.

LED interior lighting

LED interior lighting is controlled by a manual on/off switch.

Magnetic door gaskets

Snap-in magnetic door gaskets provide positive door sealing.

Self-contained refrigeration

The refrigeration system is mounted on the left side and uses R290 hydrocarbon refrigerant.

Electronic temperature control

The unit has full electronic control and maintains product temperature between 36°F and 38°F.

Electrical connection

The unit is rated at 115/60/1 phase, 3.3 amps, and uses a NEMA 5-15P plug.

Documentation

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Frequently Asked Questions

The BBN78HC-F-B has 21.686 cu. ft. of capacity.
It has three solid doors and six epoxy-coated steel shelves.
Yes. The unit is specified for four 1/2-barrel kegs.
Yes. The stainless steel interior meets NSF Standard 7 for open container and the unit is certified for open food product.
The overall dimensions are 78 inches wide, 26.38 inches deep, and 34 inches high.
The self-contained refrigeration system is mounted on the left side.
It requires 115/60/1-phase power, draws 3.3 amps, and uses a NEMA 5-15P plug.
Yes. It has LED interior lighting with a manual on/off switch.
