Beverage Air

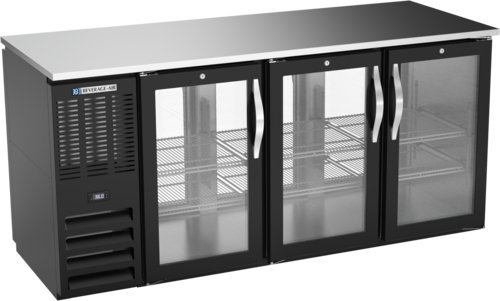

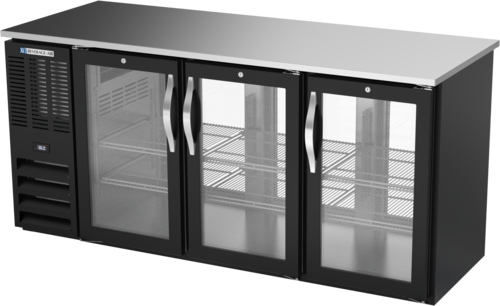

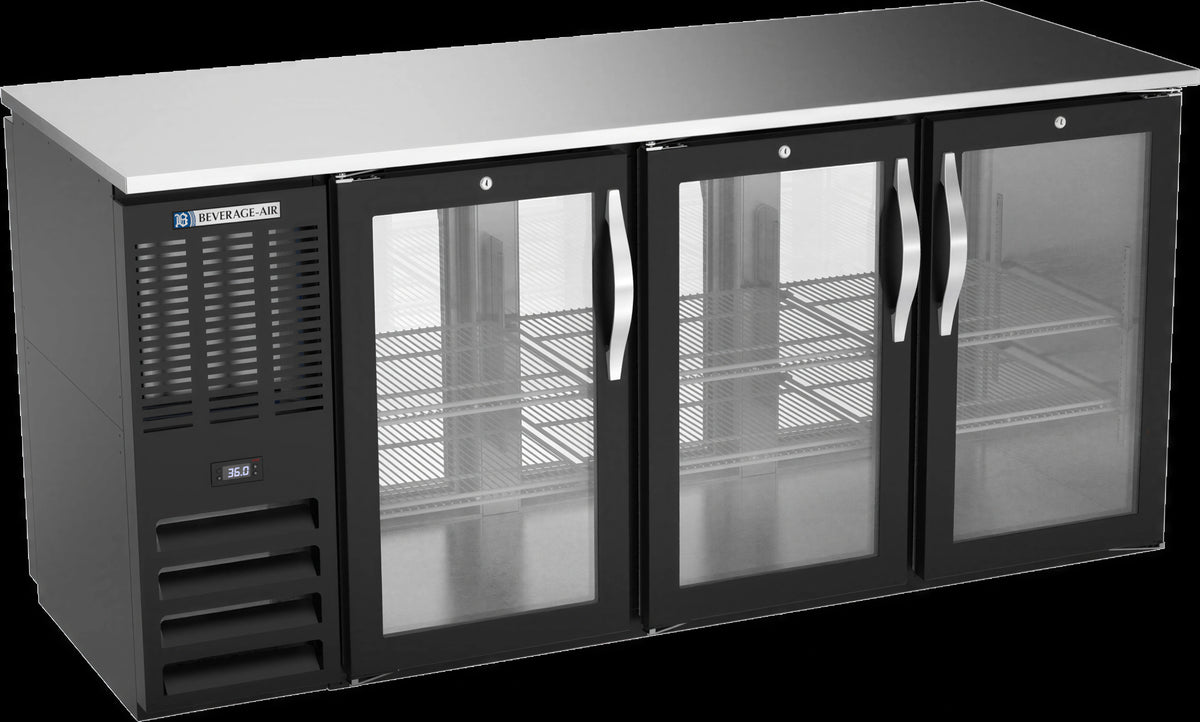

Beverage-Air 72-Inch Shallow-Depth Three-Section Open Food-Rated Pass-Thru Back Bar Refrigerator with Glass Doors

SKU: BBN72HC-FG-PT-B
$10,074.81
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Bar, Beverage & Wine Cooling Best Sellers Beverage Air Commercial Refrigeration Commercial Refrigerators New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment

Beverage-Air 72-Inch Shallow-Depth Three-Section Open Food-Rated Pass-Thru Back Bar Refrigerator with Glass Doors

Black Exterior, Stainless Steel Top, Right-Mounted Self-Contained R290 Refrigeration

Built for busy bar service, this pass-thru back bar refrigerator keeps open food product safely chilled while giving staff fast access from both sides.

  • Open food-rated design meets NSF-Standard 7 for safe storage and display of uncovered product.
  • Pass-thru, three-section layout with six locking glass doors supports service from both sides of the cabinet.
  • Holds 19.618 cu. ft. of product, with six shelves and space for three half-barrel kegs.
  • Self-contained R290 refrigeration with full electronic control helps maintain temperatures between 36°F and 38°F.
  • Black painted steel exterior, stainless steel interior, and 1-inch stainless steel top deliver durable, professional construction.
  • ADA-compliant 34-inch standard height with caster and leg options available.

Overall Dimensions:

72.0"W x 27.88"D x 34.0"H

Product Weight:

411.8 lb

Open Food-Rated Cabinet

Certified for open food product and built to meet NSF-Standard 7 requirements.

Pass-Thru Glass Door Access

Six glass swing doors provide visibility and access from both the front and back of the cabinet.

Secure Door Package

Doors include locks, magnetic gaskets, self-closing action, and a 120° stay-open feature.

LED Interior Lighting

Interior LED lighting with a manual on/off switch improves product visibility.

Flexible Storage Layout

Includes six epoxy-coated wire shelves and room for three half-barrel kegs.

Durable Cabinet Construction

Features a black painted steel exterior, stainless steel interior, and a 1-inch stainless steel top.

Efficient Refrigeration System

Right-mounted self-contained refrigeration uses R290 refrigerant, forced air circulation, and adaptive defrost to maintain 36°F to 38°F.

ADA Height

Standard 34-inch floor height supports ADA-compliant installation.

Type Back Bar Refrigerator
Style Pass-Thru
Installation Type Floor Model
Compartments 3
Door Count 6
Shelf Count 6
Keg Capacity 3 Half-Barrel Kegs
Capacity 19.618 Cubic Feet
Material Steel
Interior Finish Stainless Steel
Color Black
Finish Painted Steel
Controls Electronic
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Temperature Range 36°F to 38°F
Horsepower 1/3 HP
BTU 1,942 BTU/Hr
Voltage 115 Volts
Amps 3.3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1
Shipping Width 74 3/4 Inches
Shipping Depth 36 1/2 Inches
Shipping Height 42 3/16 Inches
Shipping Weight 412 Pounds

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts and labor warranty; 7-year compressor part warranty on eligible units shipped after 07/01/2024.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It is certified for open food product and meets NSF-Standard 7.
The cabinet offers 19.618 cubic feet of capacity, six shelves, and room for three half-barrel kegs.
It operates on 115 volts, 60 Hz, 1-phase power and draws 3.3 amps with a NEMA 5-15P plug.
It uses environmentally friendly R290 hydrocarbon refrigerant in a self-contained, right-mounted refrigeration system.
The unit maintains product temperatures between 36°F and 38°F.
The warranty sheet lists a 7-year parts and labor warranty, with a 7-year compressor part warranty for eligible units shipped after 07/01/2024.
