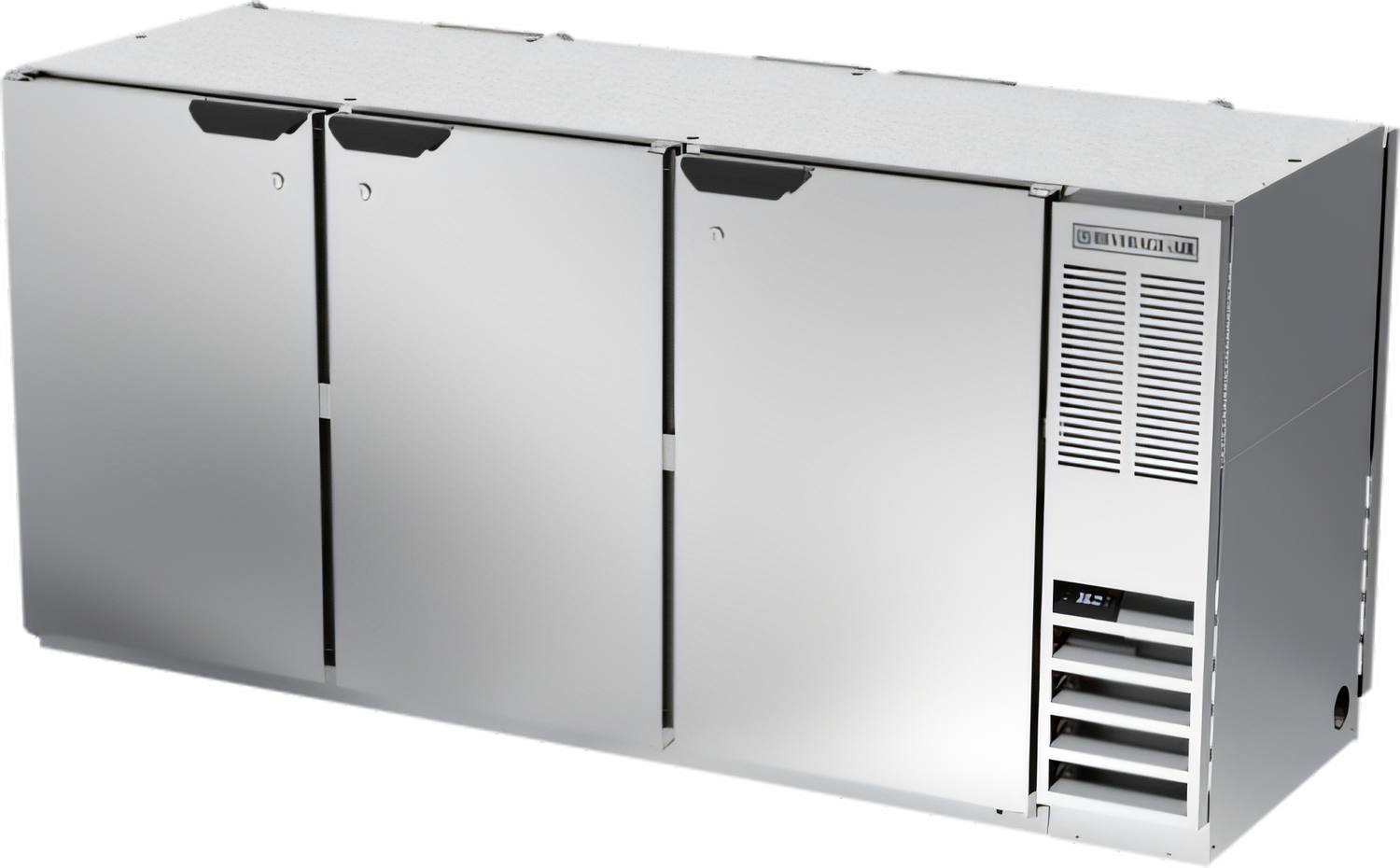

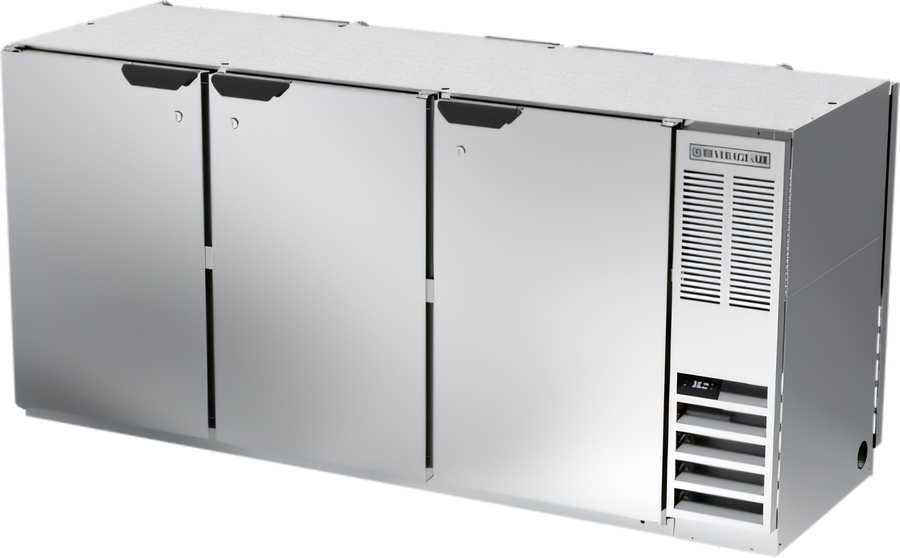

Beverage-Air 72-Inch Three-Section Pass-Thru Back Bar Refrigerator with Solid Doors

SKU: BB72HC-PT-S
$9,097.19
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Beverage Air Commercial Refrigeration Commercial Refrigerators New Arrivals Restaurant Equipment

Beverage-Air 72-Inch Three-Section Pass-Thru Back Bar Refrigerator with Solid Doors

23.6 Cu. Ft., Self-Contained R290, Stainless Steel Top and Exterior

This pass-thru back bar refrigerator delivers double-sided access, secure storage, and rapid R290 cooling in a durable stainless steel cabinet built for busy bars.

  • Pass-thru design speeds service and restocking from both sides of the unit.
  • Six solid, self-closing doors with locks help secure beverages and ingredients.
  • Three-section layout provides 23.643 cubic feet of refrigerated storage and holds up to three 1/2-barrel kegs.
  • R290 self-contained refrigeration with forced-air cooling is designed to chill product quickly.
  • Stainless steel exterior and 1-inch stainless steel top stand up to demanding bar use.
  • LED interior lighting improves visibility, and the epoxy-coated shelves resist wear and corrosion.

Overall Dimensions:

72.0"W x 34.25"D x 34.0"H

Product Weight:

409.2 lb

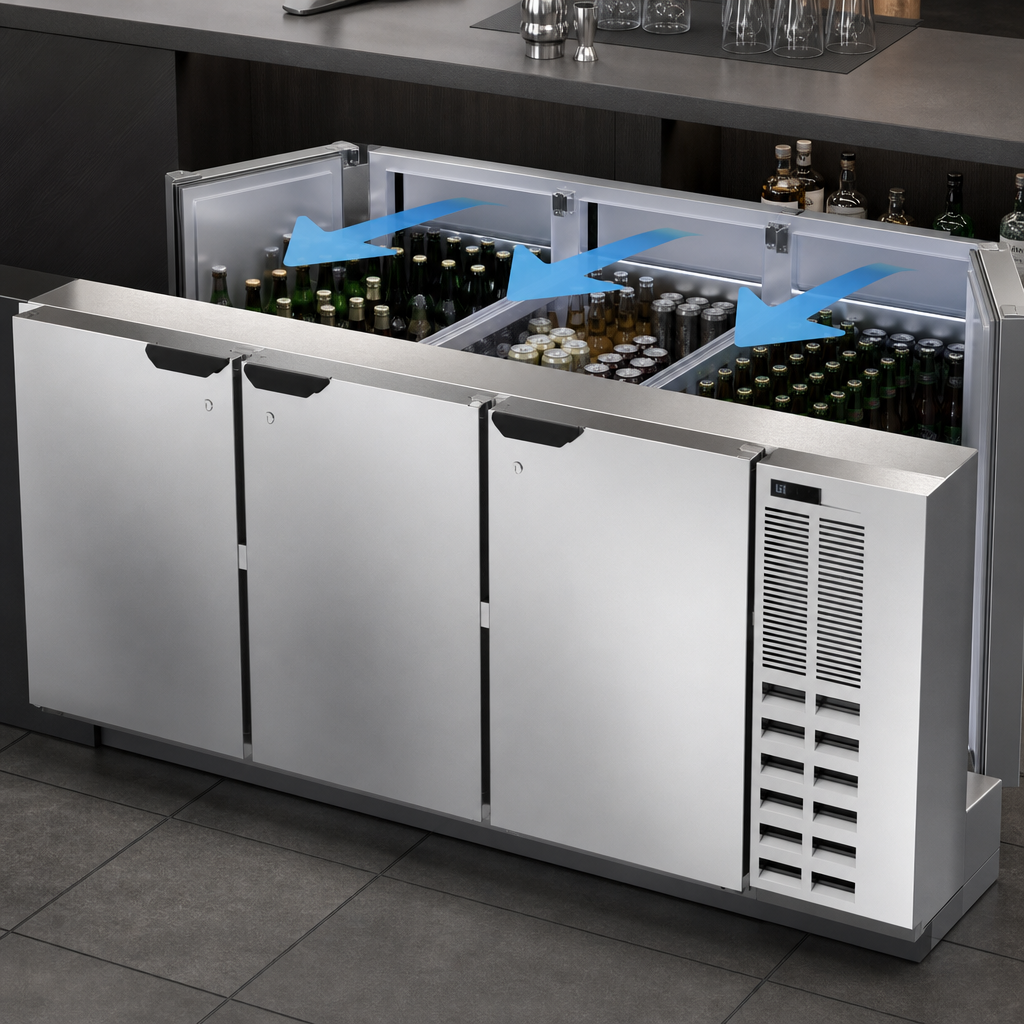

Pass-Thru Access

Doors on both sides make it easier to load product from the back and serve from the front.

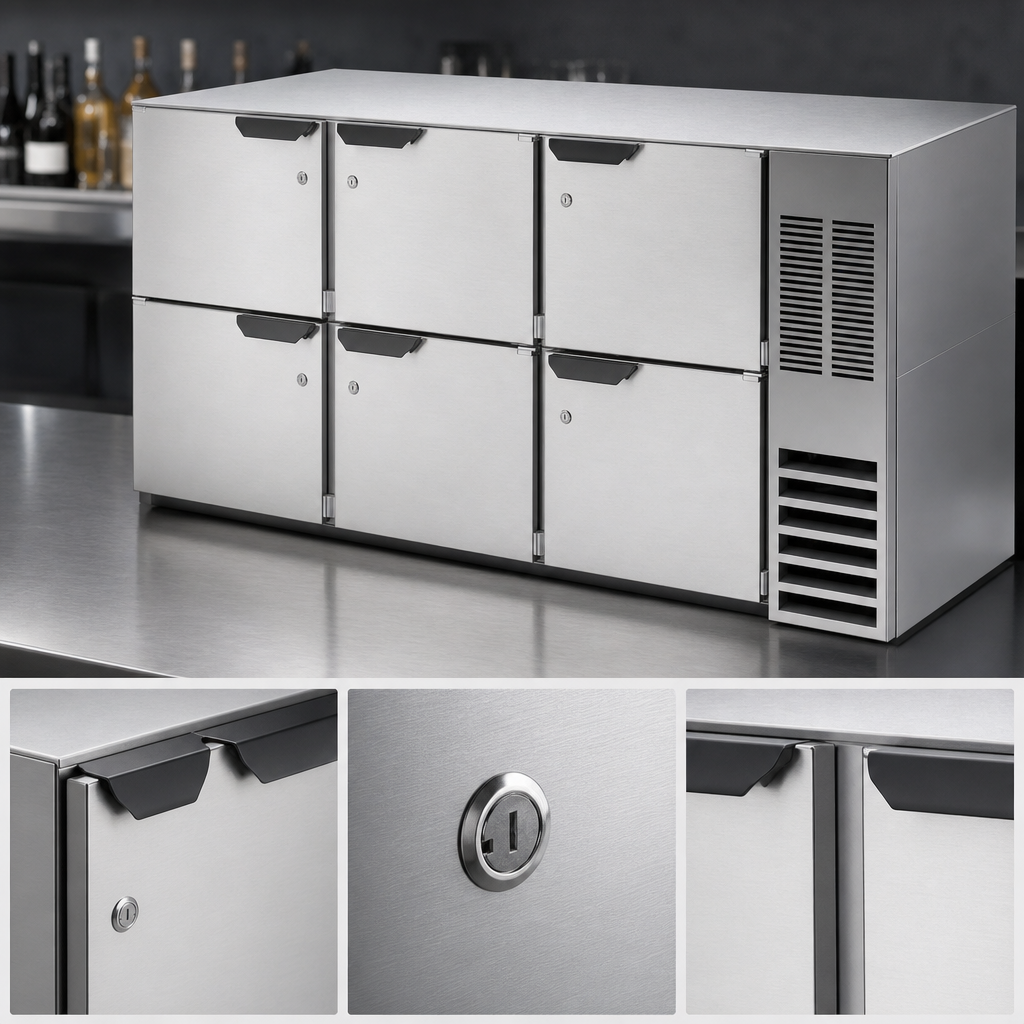

Six Solid Locking Doors

Solid doors with locks help protect inventory and keep contents secure.

Self-Closing Door Design

Doors self-close and include a 120° stay-open feature for easier loading and unloading.

LED Interior Lighting

Bright LED lighting improves product visibility inside the cabinet; the unit includes a manual on/off switch.

R290 Self-Contained Refrigeration

Eco-friendly hydrocarbon refrigeration with balanced, forced-air cooling helps maintain rapid product chilling.

Durable Stainless Steel Construction

Features a stainless steel exterior, 1-inch stainless steel top, galvanized interior, and stainless steel floor.

Six Epoxy-Coated Shelves

Corrosion-resistant wire shelves provide flexible storage for bottles, cans, and other back bar items.

Temperature Control and Defrost

Full electronic control with adaptive defrost helps maintain consistent operation between 36°F and 38°F.

Type Back Bar Refrigerator
Style Pass-Thru
Installation Type Floor Model
Compartments 3
Capacity 23.643 Cubic Feet
Controls Electronic
Material Stainless Steel
Interior Finish Galvanized Steel
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
BTU 1942 BTU/Hr
Horsepower 1/3 HP
Voltage 115 Volts
Amps 3.3 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 74 3/4 Inches
Shipping Depth 36 1/2 Inches
Shipping Height 42 3/16 Inches
Shipping Weight 409 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts, labor, and compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty update PDF Download PDF Diagram PDF Download PDF Manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It provides 23.643 cubic feet of net capacity and can hold up to three 1/2-barrel kegs.
The unit operates on 115/60/1 power, draws 3.3 amps, and uses a NEMA 5-15P plug with an 8-foot cord.
It uses R290 hydrocarbon refrigerant.
Yes. The six solid doors include locks, and they are self-closing with a 120° stay-open feature.
The refrigeration system is designed to maintain product temperatures between 36°F and 38°F.
The warranty update states a 7-year parts, labor, and compressor warranty for units shipped on or after July 1, 2024.
