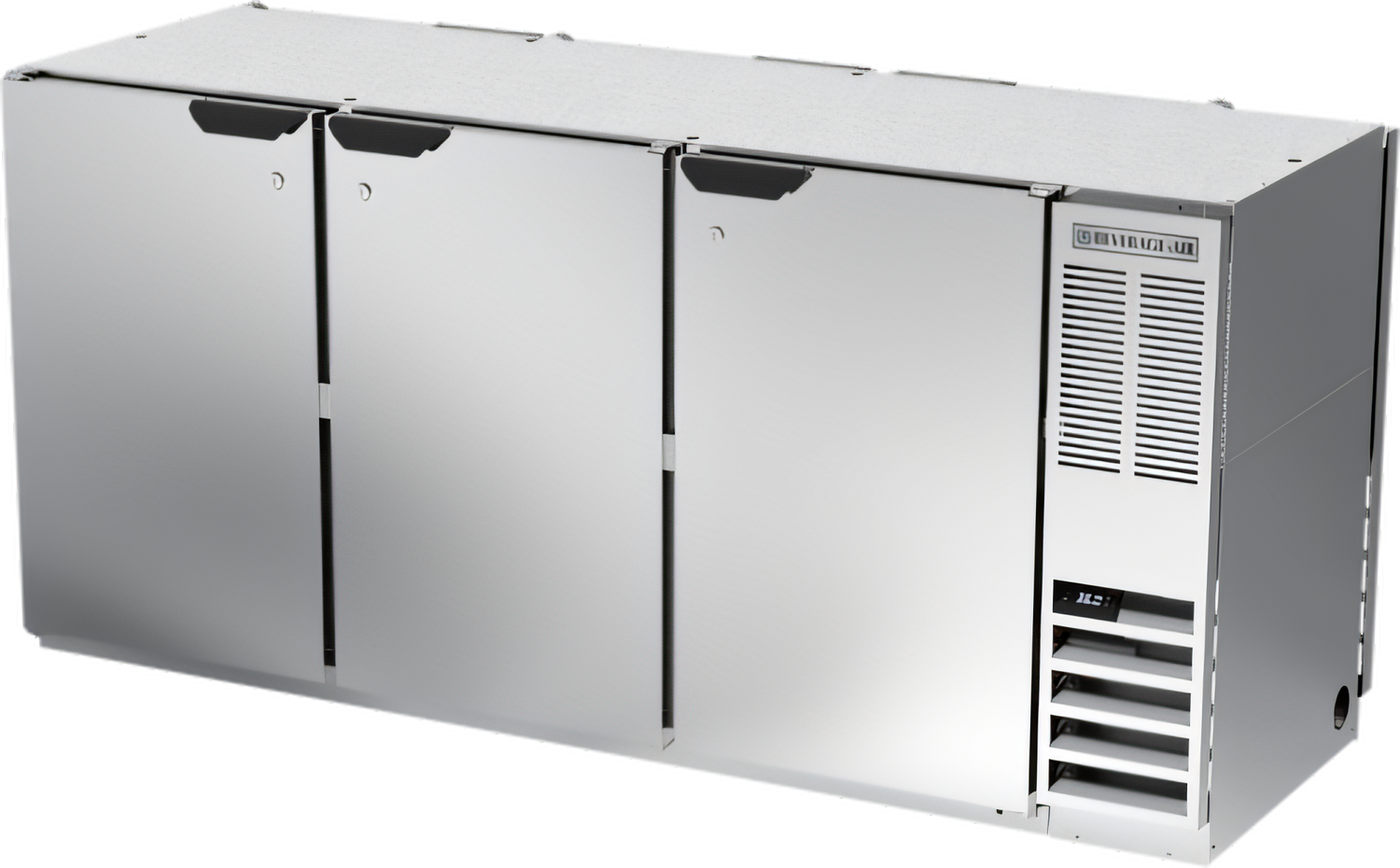

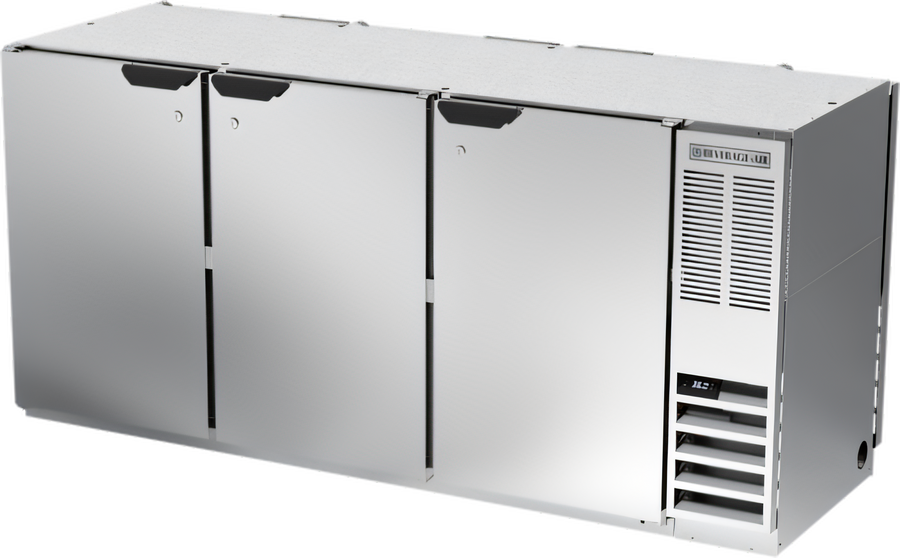

Beverage-Air BB72HC-F-PT-S Three-Section Pass-Thru Food-Rated Back Bar Refrigerator with 6 Solid Doors

72-Inch Wide, Self-Contained R290, Stainless Steel

Built for busy bars, this pass-thru back bar refrigerator combines durable stainless steel construction, open-food-rated storage, and fast-cooling R290 refrigeration in one 72-inch cabinet.

  • Three-section pass-thru design allows access from both sides for faster loading and service.
  • Food-rated cabinet is certified for open food products and meets NSF Standard 7 requirements.
  • Stainless steel exterior, interior, and 1-inch top support durability and make cleanup easier.
  • Six solid, self-closing doors include a 120° stay-open feature, locks, and magnetic gaskets.
  • Self-contained R290 refrigeration with full electronic control maintains 36°F to 38°F.
  • Includes six epoxy-coated shelves, LED interior lighting, and storage for up to three half-barrel kegs.

Overall Dimensions:

72.0"W x 34.25"D x 34.0"H

Product Weight:

409.2 lb

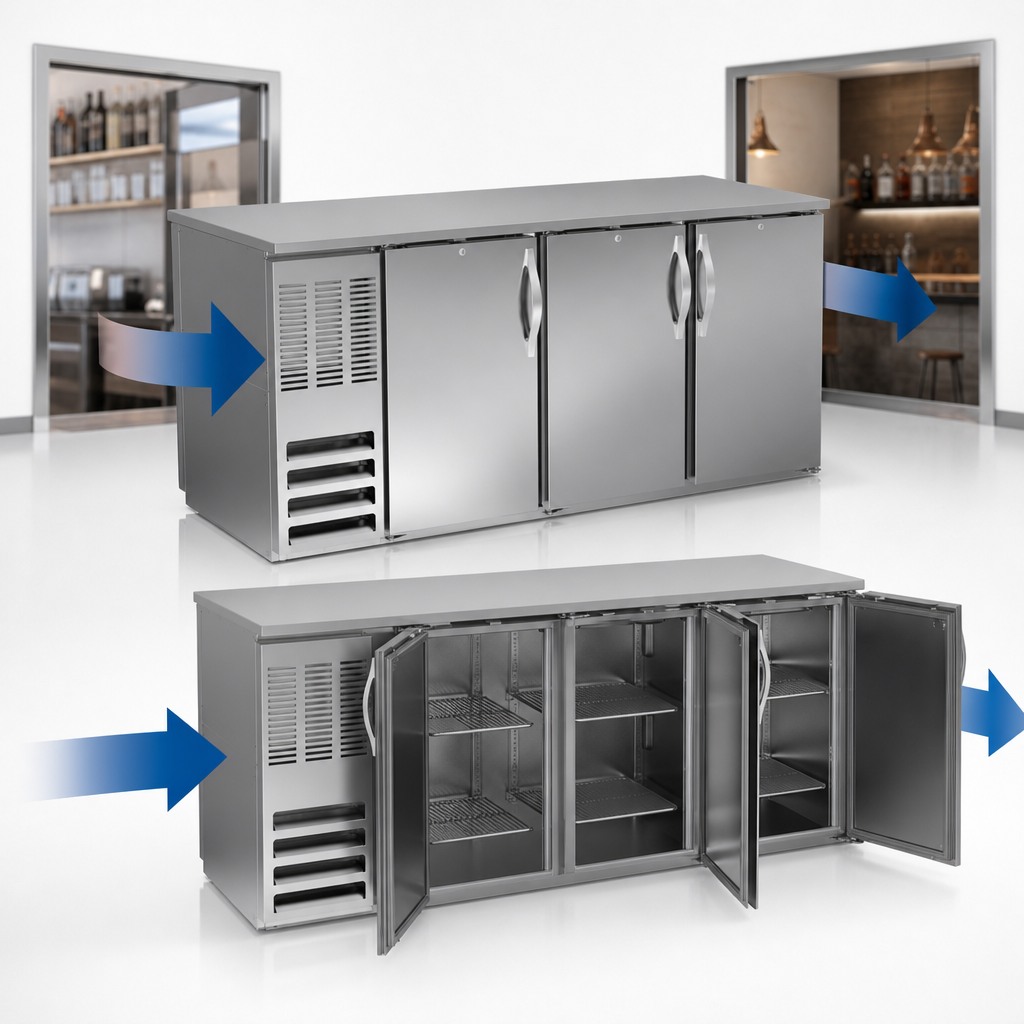

Pass-Thru Layout

Doors on both sides make it easy to load product from the back and serve from the front.

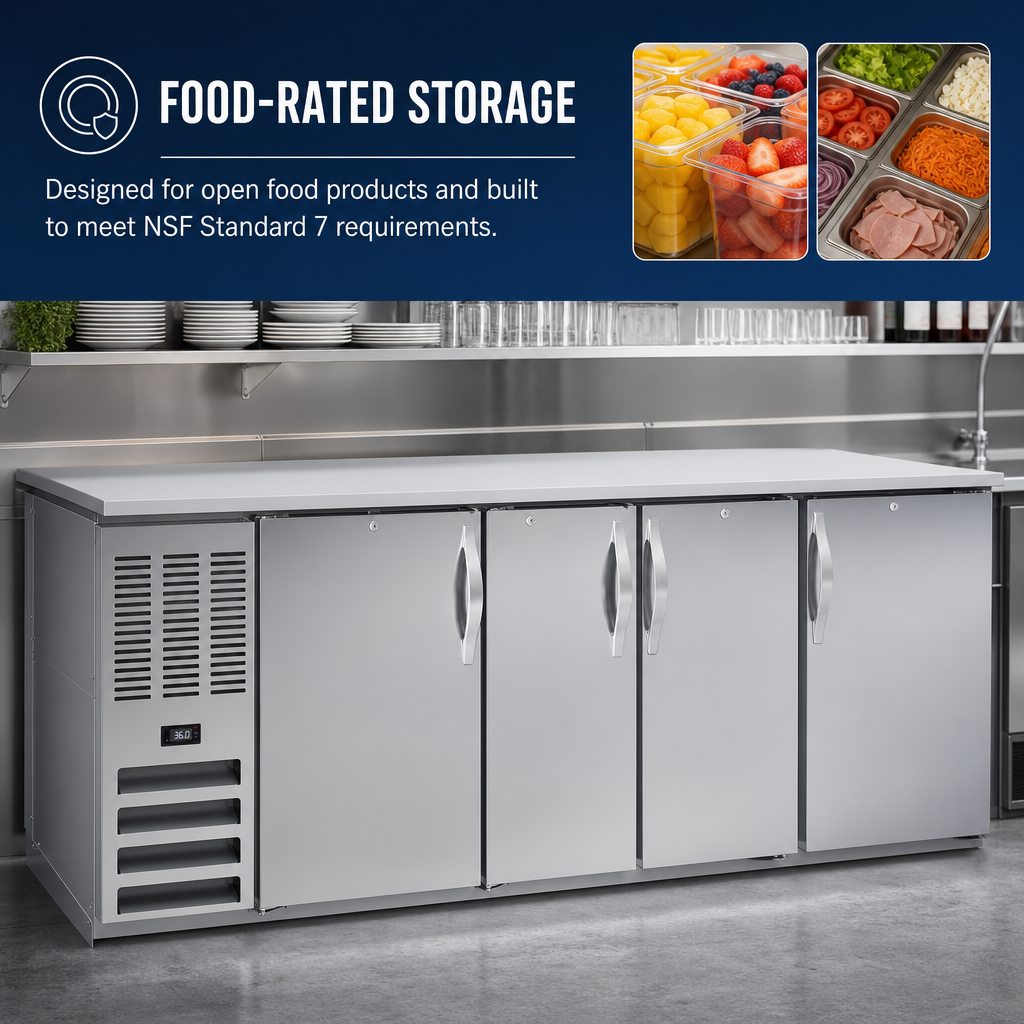

Food-Rated Storage

Designed for open food products and built to meet NSF Standard 7 requirements.

Stainless Steel Construction

Stainless steel exterior, interior, and 1-inch top support durability and simplify cleanup.

Six Solid Doors

Self-closing doors include a 120° stay-open feature, door locks, and magnetic gaskets for a tight seal.

Epoxy-Coated Shelves

Includes six epoxy-coated wire shelves for organized storage and corrosion resistance.

LED Interior Lighting

Bright LED lighting with a manual on/off switch improves visibility inside the cabinet.

Self-Contained R290 Refrigeration

Balanced forced-air refrigeration with adaptive defrost helps chill product quickly and efficiently.

Temperature Control

Full electronic control maintains the cabinet between 36°F and 38°F.

Keg Storage Capacity

Configured to hold up to three 1/2-barrel kegs.

Type Back Bar Refrigerator
Style Pass-Thru
Installation Type Floor Model
Capacity 23.643 Cubic Feet
Compartments 3
Doors 6
Shelves 6
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
BTU 1,942 BTU/Hr
Voltage 115 Volts
Amps 3.3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Controls Electronic
Temperature Range 36°F to 38°F
Shipping Width 72 Inches
Shipping Depth 35 Inches
Shipping Height 34 Inches
Shipping Weight 409.2 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts, labor, and compressor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty update PDF Download PDF Manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a three-section pass-thru back bar refrigerator designed for food-rated storage.
Yes. It is certified for open food products and meets NSF Standard 7 requirements.
It includes six solid doors and six epoxy-coated shelves.
The refrigeration system maintains a product temperature range of 36°F to 38°F.
It requires 115 Volts, 60 Hz, single-phase power, draws 3.3 amps, and uses a NEMA 5-15P plug.
The unit carries a 7-year parts, labor, and compressor warranty for units shipped on or after July 1, 2024.
