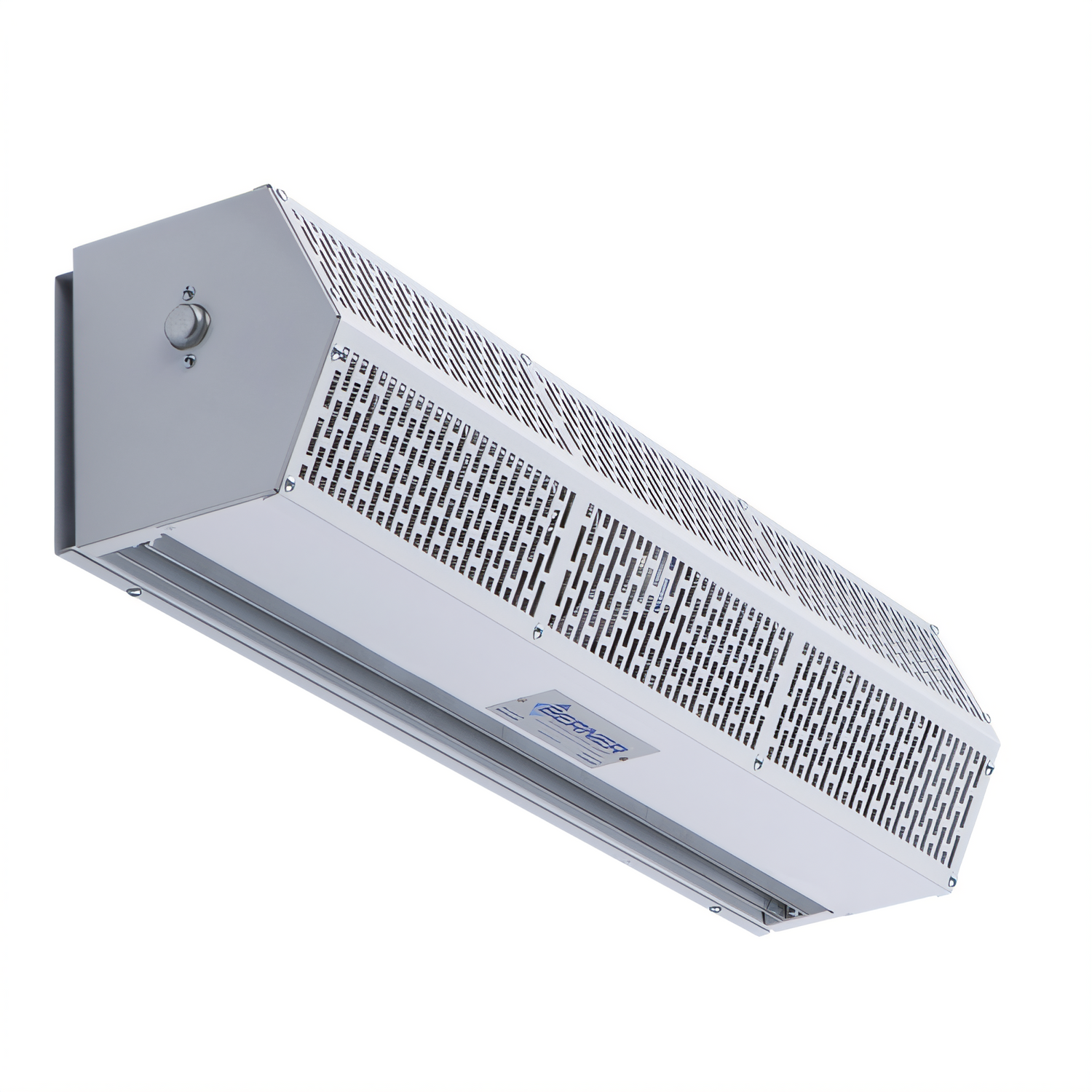

Berner Sanitation Series Low Profile Unheated Air Curtain, 42 Inch, 1/5 HP, For Doors Up To 7 Feet High

SKU: SLC07-1042A
$1,044.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Sanitation Series Low Profile Unheated Air Curtain, 42 Inch, 1/5 HP, For Doors Up To 7 Feet High

Low-profile air curtain for 40-47 inch openings with wall or top mounting options

This compact unheated air curtain helps protect open doorways from insects and outside air while fitting 42-inch openings up to 7 feet high.

  • Low-profile 42-inch air curtain designed for restaurant and sanitation applications.
  • Unheated design is ideal for ambient air control and insect reduction at open doors.
  • Rated for mounting heights up to 7 feet and openings 40-47 inches wide.
  • Uses one 1/5 HP single-speed motor for reliable air delivery.
  • Compact 8.5-inch-high by 8.5-inch-deep cabinet saves overhead space.
  • Wall plate is included, with wall and top mounting options available.
  • Control and activation options are available for different installation needs.

Overall Dimensions:

42.06"W x 8.5"D x 8.5"H

Product Weight:

49.0 lb

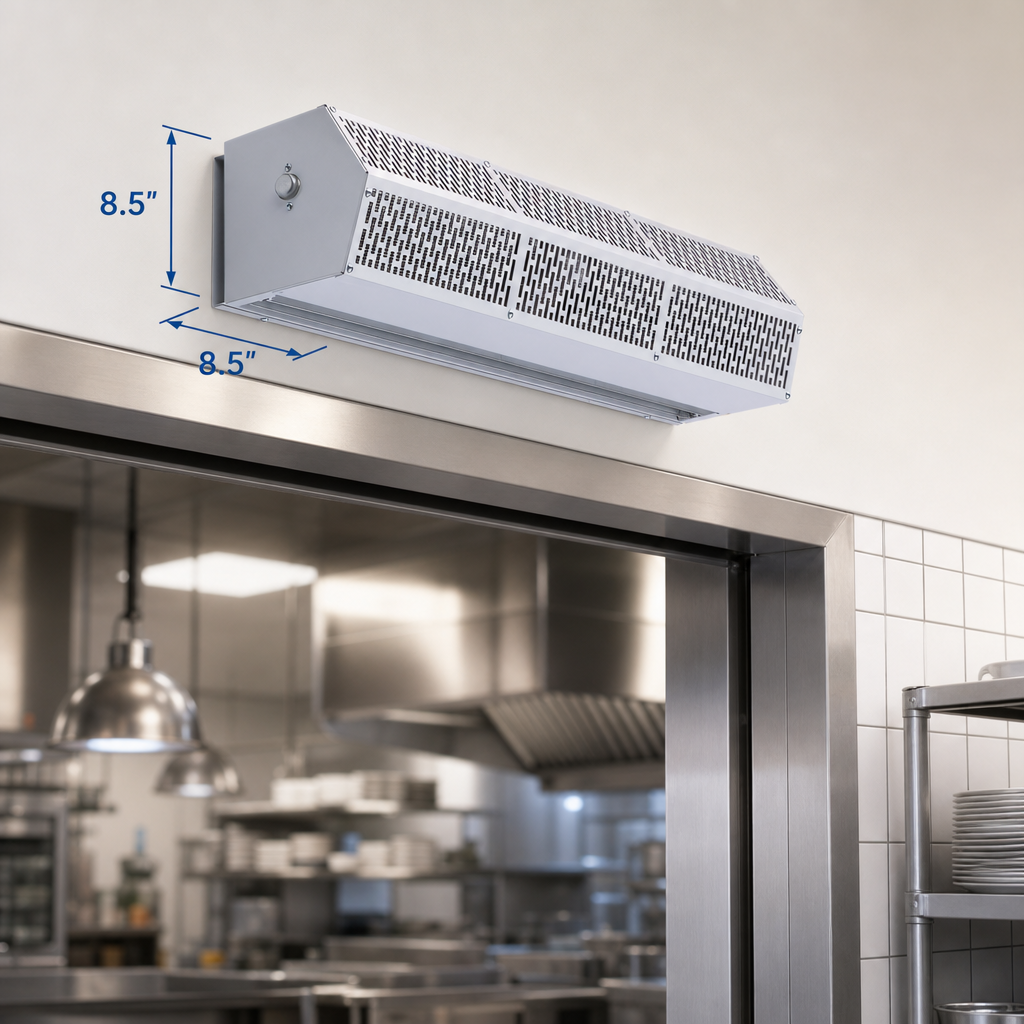

Low-Profile Cabinet

8.5 inches high and 8.5 inches deep to minimize visual impact and save overhead space.

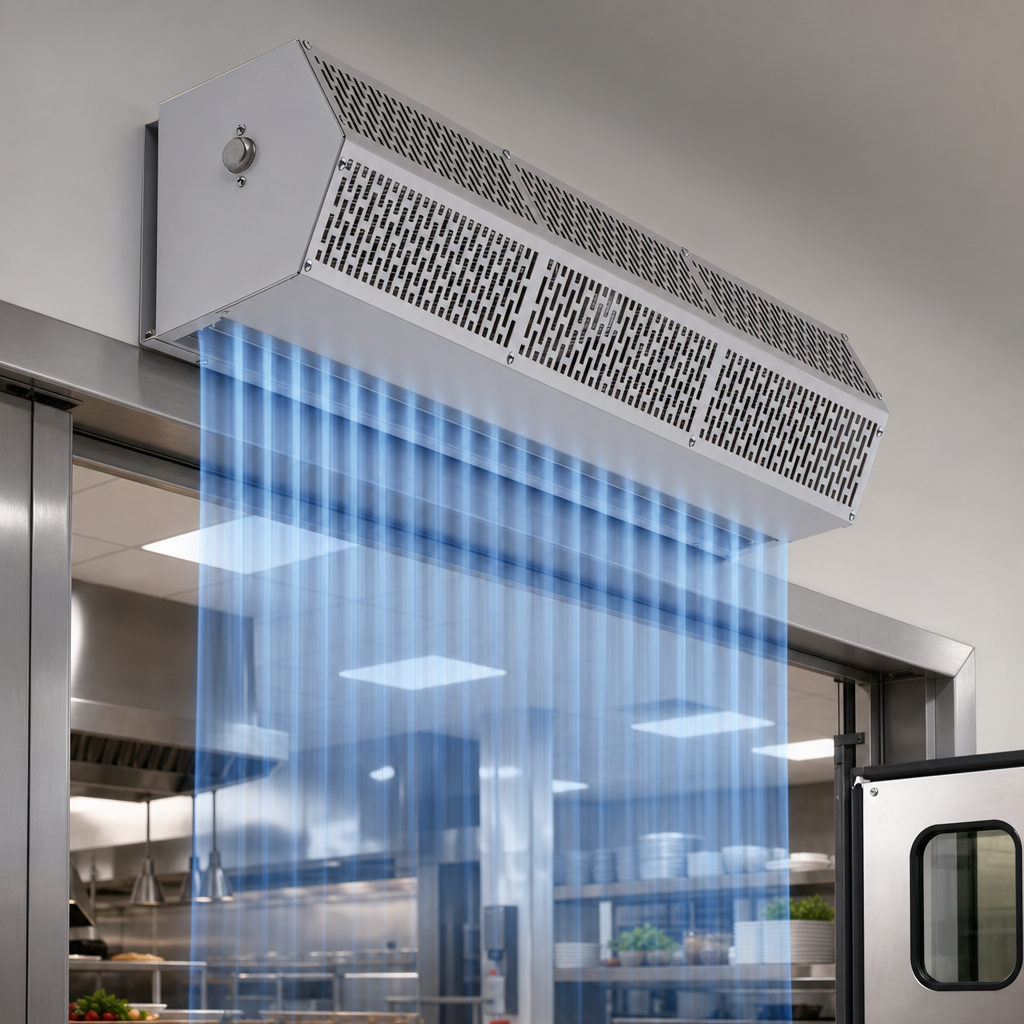

Unheated Air Curtain

Ambient-air design for doorway protection without added heat.

Single 1/5 HP Motor

Uses one single-speed motor to create the air stream across the opening.

Door Coverage

Sized for doors 40-47 inches wide and mounting heights up to 7 feet.

Flexible Mounting

Wall plate is included, and the literature notes wall and top mounting options.

Service-Friendly Design

No assembly required, and a bottom access panel simplifies access to internal components.

Control Options

Activation device options include a door switch or on/off switch, with Basic, Deluxe, and Walk-In Cooler control packages available.

Finish Options

Standard powder-coated cabinet options are available in white or black, with custom colors and stainless steel also offered.

Type Unheated Air Curtain
Style Low Profile
Installation Type Wall Mounted
Horsepower Per Motor 1/5 HP
Motors 1
Phase 1-Phase
Finish Powder Coated
Maximum Opening Height 7 Feet
Door Width Range 40 Inches to 47 Inches
Shipping Width 43 Inches
Shipping Depth 9 Inches
Shipping Height 9 Inches
Shipping Weight 49 Pounds
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5 years on unheated models

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is designed for openings 40-47 inches wide and mounting heights up to 7 feet.
No. This is an unheated air curtain.
The unit uses one 1/5 HP single-speed motor.
The documentation notes wall and top mounting, and the model can be specified for interior or exterior mounting.
Activation device options include a door switch or on/off switch, and Basic, Deluxe, and Walk-In Cooler control packages are available.
Unheated models are warranted for 5 years from the original shipment date, subject to the warranty terms and conditions.
