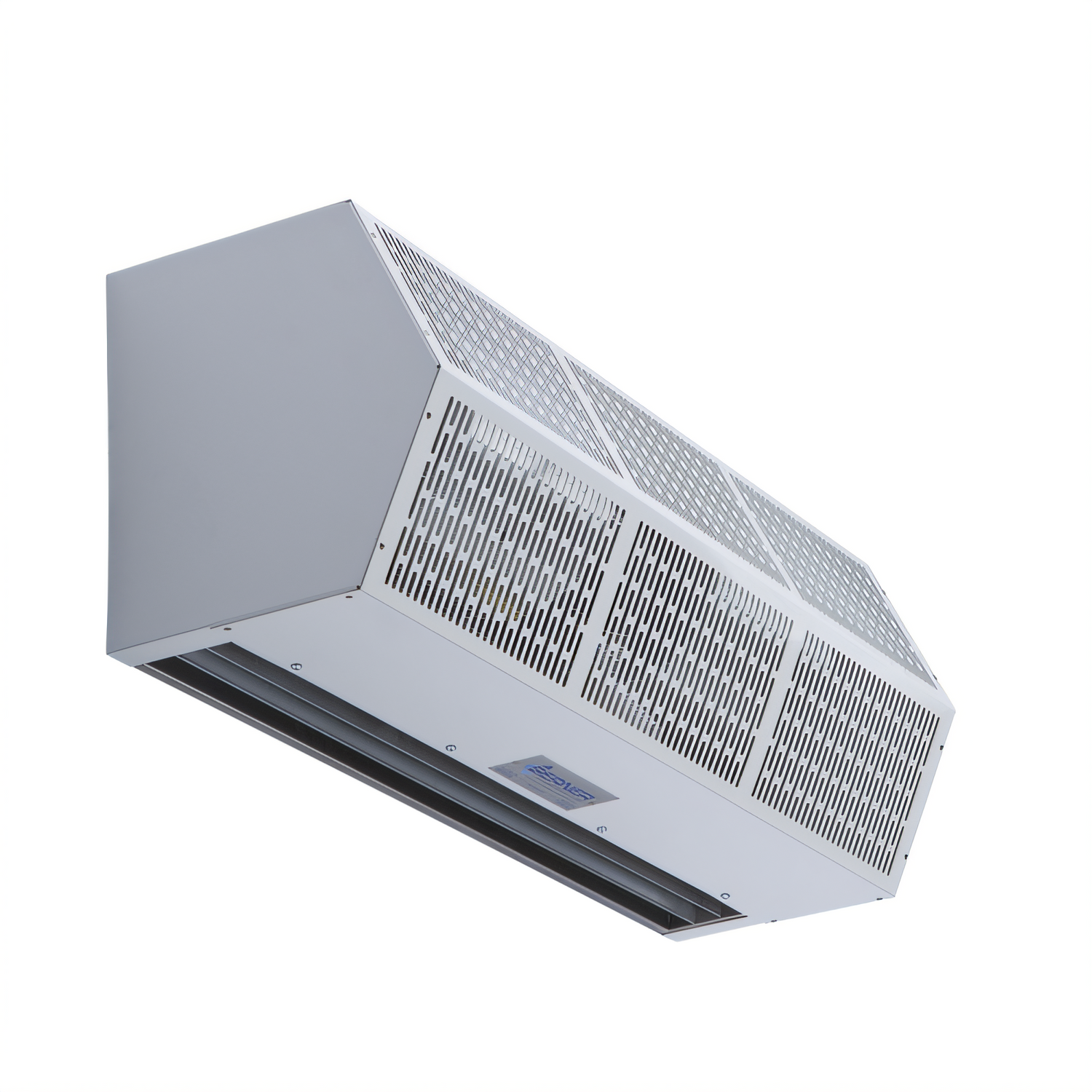

Berner Sanitation Certified 72-Inch Unheated Air Curtain for Doors Up to 7 Feet High

SKU: SHD07-2072A
$1,700.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Sanitation Certified 72-Inch Unheated Air Curtain for Doors Up to 7 Feet High

2 x 3/4 HP Motors, 120V, Wall/Top Mount, White Aluminum

Built for kitchen and employee service doors, this 72-inch unheated air curtain helps block insects while maintaining a comfortable entryway.

  • 72-inch unheated air curtain sized for doors up to 7 feet high
  • Two 3/4 hp single-speed motors deliver high-performance airflow
  • EPH listed per NSF 37 and UL EPH Classified for sanitation-focused use
  • Wall and top mounting support flexible installation, and no assembly is required
  • White aluminum exterior cover is standard, with black, stainless steel, and custom color options available
  • cULus listed for outdoor use and made in the USA

Product Weight:

108.0 lb

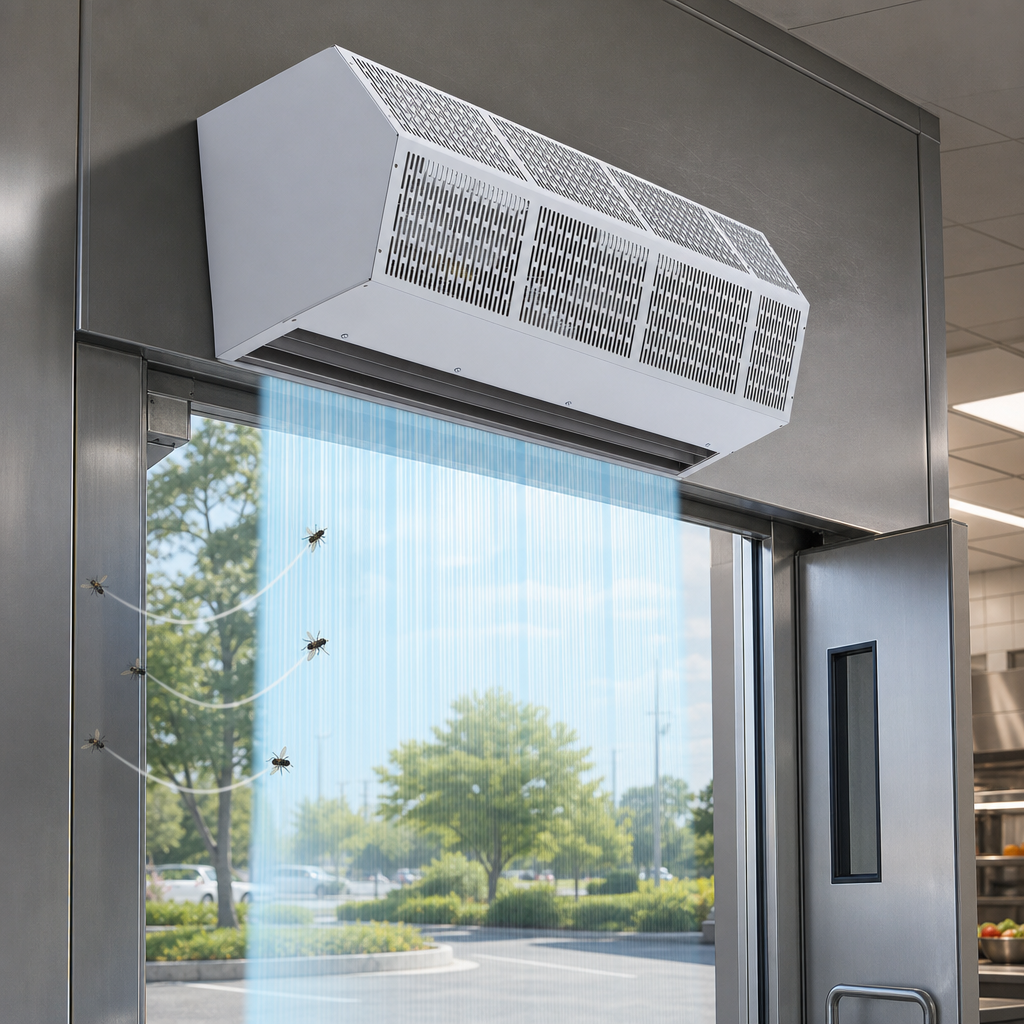

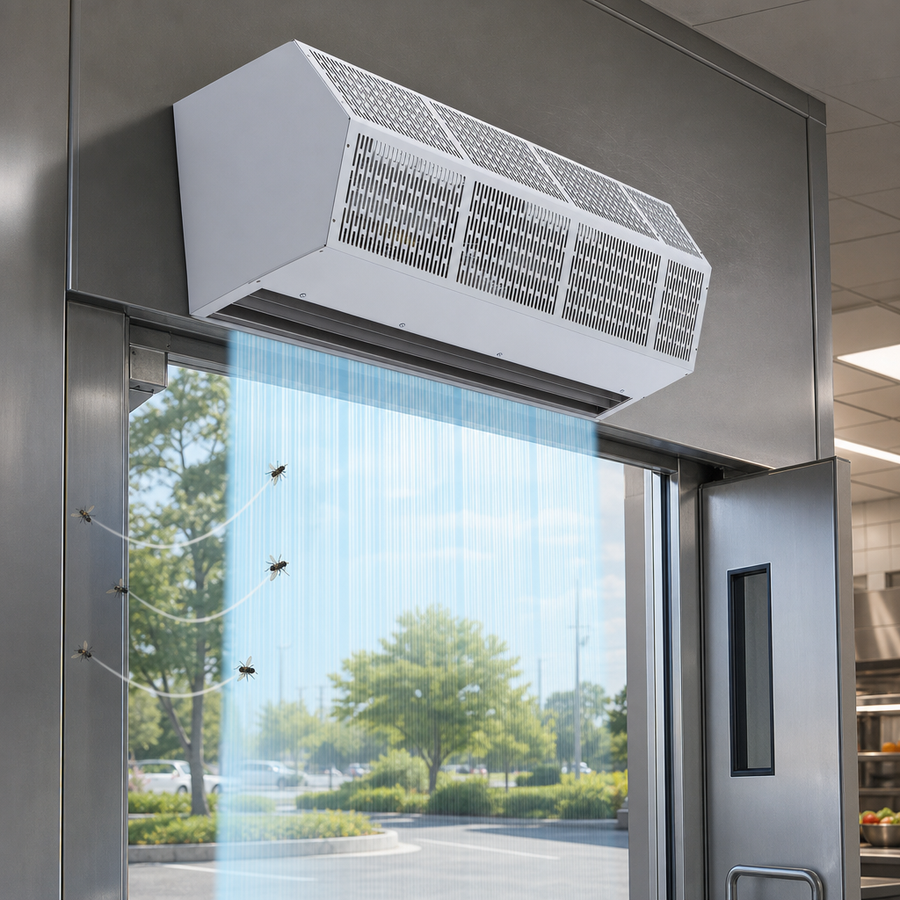

Unheated Air Barrier

Ambient operation helps control outside air and flying insects without adding heat.

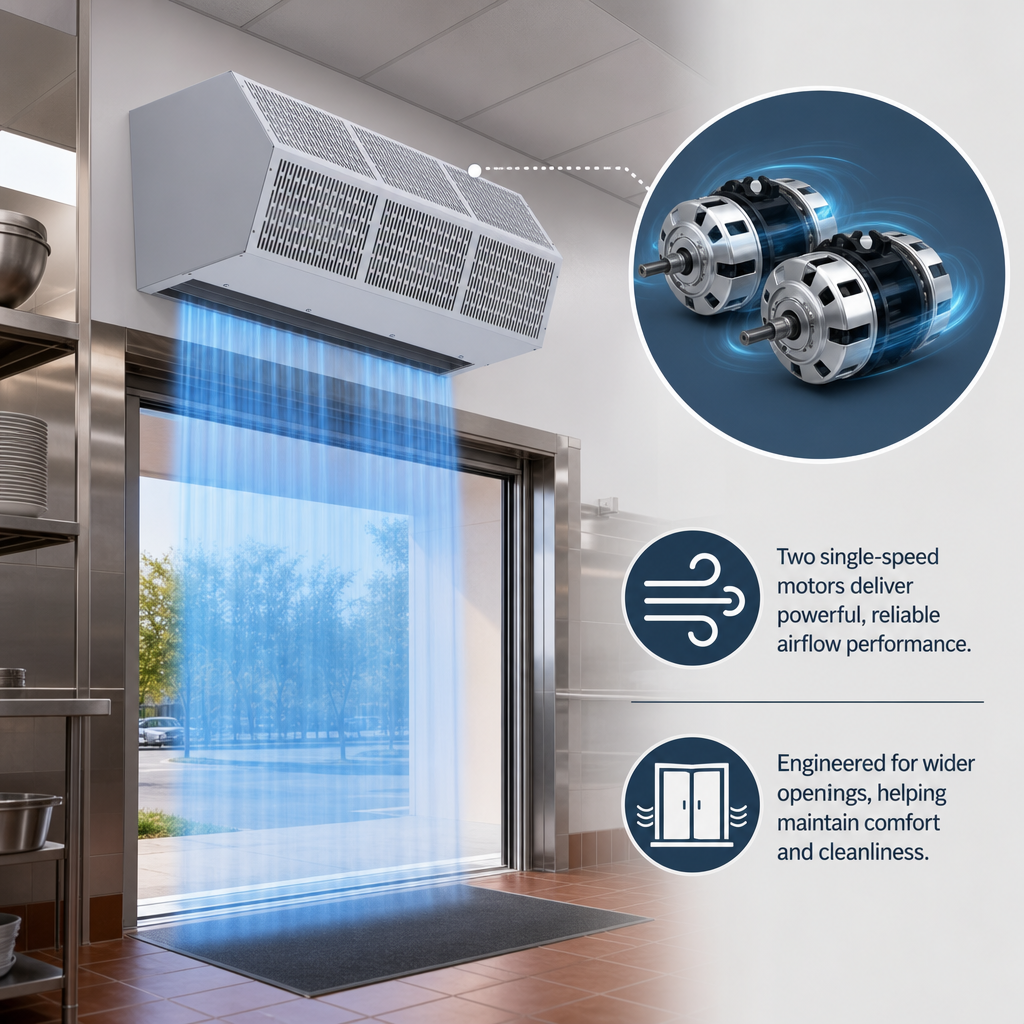

Dual 3/4 HP Motors

Two single-speed motors provide strong, consistent airflow for wider openings.

3,692 CFM Air Volume

This model is rated at 3,692 CFM at free delivery.

Up to 7-Foot Door Height

Designed for customer entry and kitchen/service doors with a maximum mounting height of 7 feet.

Wall and Top Mounting

Standard construction supports wall and top mounting for installation flexibility.

No Assembly Required

Arrives ready to install, helping reduce setup time on site.

Aluminum Exterior Cover

White aluminum is standard, with black, stainless steel, and custom color finishes available.

Sanitation-Focused Construction

EPH listed per NSF 37, UL EPH Classified, cULus listed for outdoor use, and made in the USA.

Type Unheated Air Curtain
Style Sanitation Certified High Performance
Installation Type Wall Mounted
Nozzle Width 72 Inches
Maximum Opening Height 7 Feet
Motor Count 2
Horsepower Per Motor 3/4 HP
Air Volume 3,692 CFM
Voltage 120 Volts
Amps 15 Amps
Watts 1.54 kW
Hertz 60 Hz
Phase 1-Phase
Material Aluminum
Color White
Shipping Weight 108 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download

Frequently Asked Questions

No. SHD07-2072A is an ambient, unheated air curtain.
It is designed for mounting heights up to 7 feet high.
This model uses two 3/4 hp single-speed motors.
The unit supports wall and top mounting, and an optional wall mounting plate is available.
White aluminum is standard. Black, stainless steel, and custom color finishes are also available.
Yes. It is EPH listed per NSF 37 and UL EPH Classified.
