Berner Industrial IDC14-4144A-3 144-Inch Ambient Direct Drive Air Curtain, 4 x 1 HP Motors

Unheated, Wall/Top Mount, For Openings Up to 14 Feet High

Protect large door openings with a rugged unheated air curtain that helps separate environments and keep insects out with four 1 HP direct-drive motors.

  • Ambient, unheated air curtain for environmental separation and insect control.
  • Four 1 HP direct-drive motors provide high airflow for large commercial openings.
  • Rated for mounting heights up to 14 ft for environmental separation and 12 ft for insect protection.
  • Wall and top mounting options offer flexible installation.
  • Gray powder-coated exterior with mill aluminum screen, access panels, and a high-efficiency Pro-V nozzle.
  • Made in USA and cULus listed.
  • Backed by a 5-year limited warranty on unheated models.

Overall Dimensions:

144.0"W

Product Weight:

473.0 lb

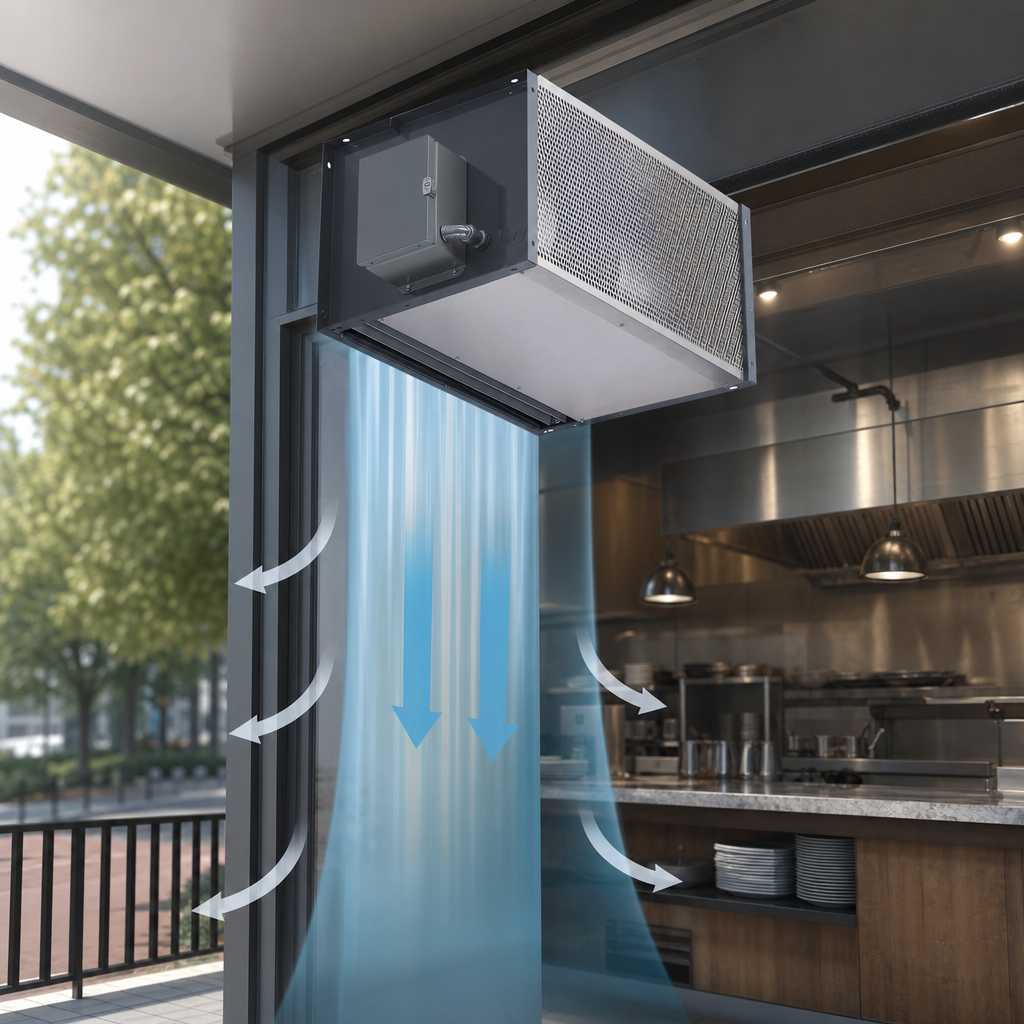

Ambient (Unheated) Operation

Uses ambient air only, making it ideal for non-heated separation of indoor and outdoor air.

Ambient (Unheated) Operation

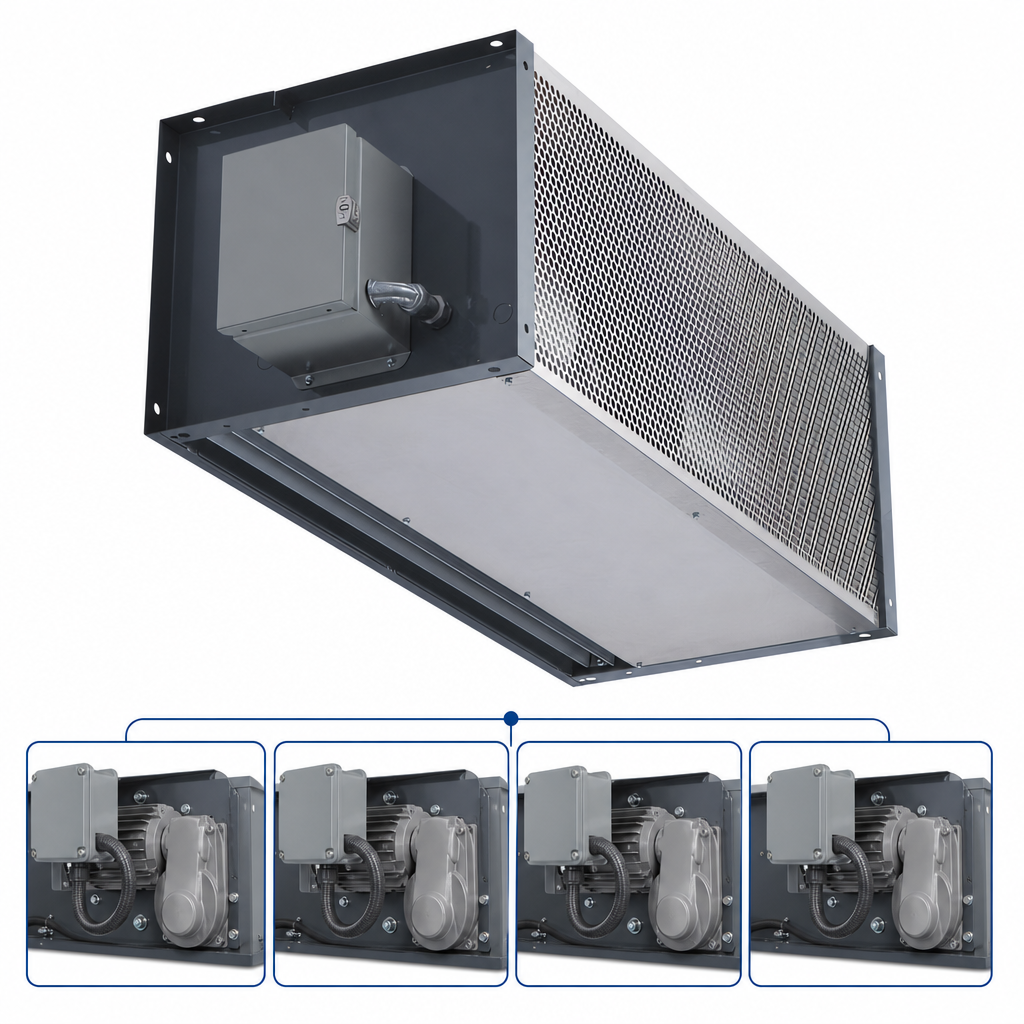

Four 1 HP Direct-Drive Motors

Direct-drive motor package is sized for wide openings and continuous commercial use.

Four 1 HP Direct-Drive Motors

Up to 14-Foot Mounting Height

Designed for environmental separation up to 14 ft high and insect control up to 12 ft high.

Wall and Top Mounting

Supports wall and top mounting for flexible installation at the opening.

High-Efficiency Pro-V Nozzle

Helps create a strong, even air stream across the doorway.

Gray Powder-Coated Exterior

Durable gray powder-coated cabinet with mill aluminum screen and access panels.

Protective Inlet Screen

Includes an inlet screen to help protect the intake area.

Made in USA / cULus Listed

Matches the supplied country-of-origin and certification data.

Type Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Motor Count 4
Horsepower Per Motor 1 HP
Maximum Opening Height 14 Feet
Insect Control Height 12 Feet
Color Gray
Finish Powder Coated
Shipping Width 144 Inches
Shipping Weight 473 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download

Frequently Asked Questions

No. This model is an ambient (unheated) air curtain.
It is designed for mounting heights up to 14 ft for environmental separation and 12 ft for insect control.
The documentation shows wall and top mounting options, and notes that vertically mounted units should be consulted with the factory.
Unheated models carry a 5-year limited warranty from the original date of shipment.
Yes. The documentation identifies the unit as Made in USA and cULus listed.
