Berner

Berner Industrial Series 132-Inch Heated Direct Drive Electric Air Curtain for 14-Foot Openings

SKU: IDC14-3132E
$8,717.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Industrial Series 132-Inch Heated Direct Drive Electric Air Curtain for 14-Foot Openings

42 kW Electric Heat, Three 1 HP Motors, Interior Mount

Built for large commercial openings, this 132-inch direct-drive air curtain delivers 42 kW of electric heat and three 1 HP motors to help maintain environmental separation and keep insects out.

  • Designed for openings up to 14 feet high for environmental separation and 12 feet high for insect protection.
  • 132-inch-wide heated air curtain with three 1 HP direct-drive motors.
  • 42 kW electric heat supports conditioned-air separation in demanding commercial entrances.
  • Includes an inlet screen and is intended for interior mounting.
  • Durable all-welded construction with a gray powder-coated exterior and mill aluminum inlet panel.
  • Made in the USA for commercial foodservice and facility applications.

Overall Dimensions:

132.0"W

Product Weight:

433.0 lb

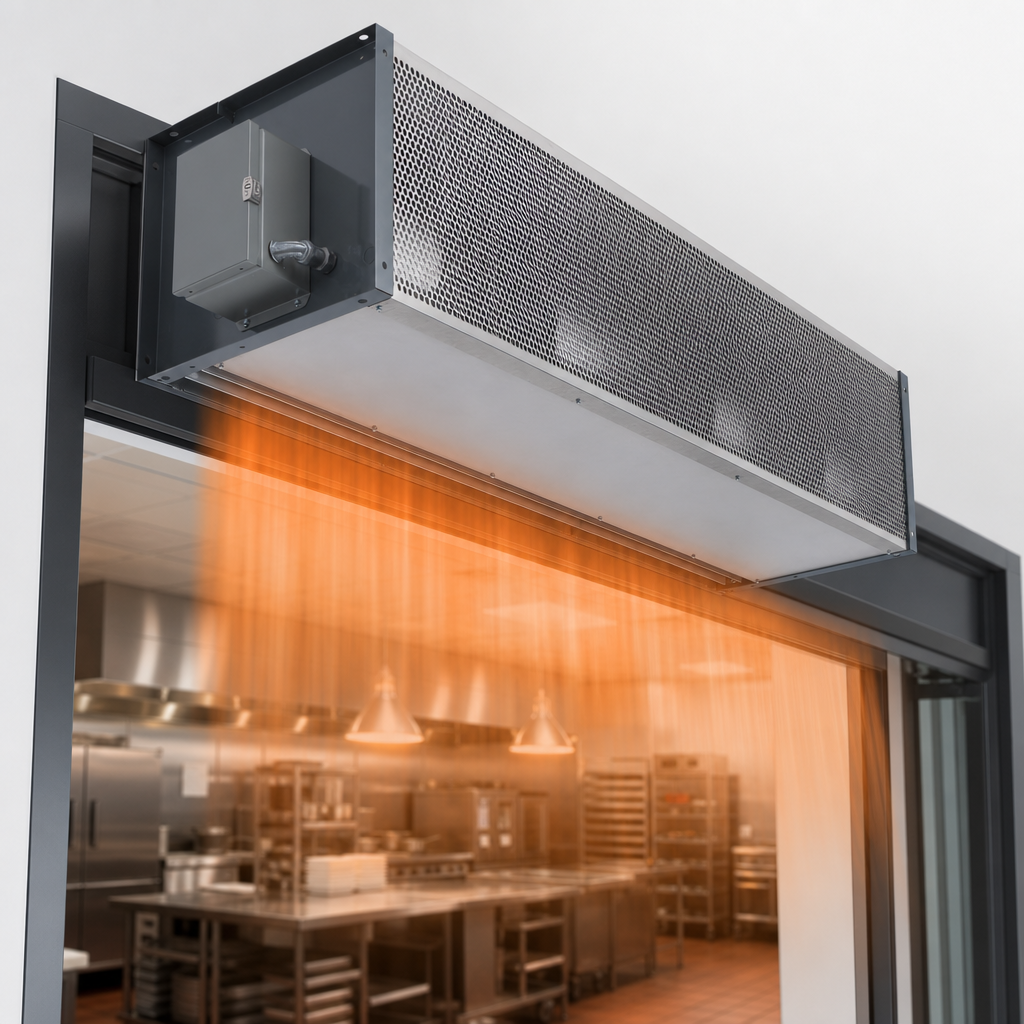

42 kW Electric Heat

Electric heating provides warm air output for environmental separation at open doorways.

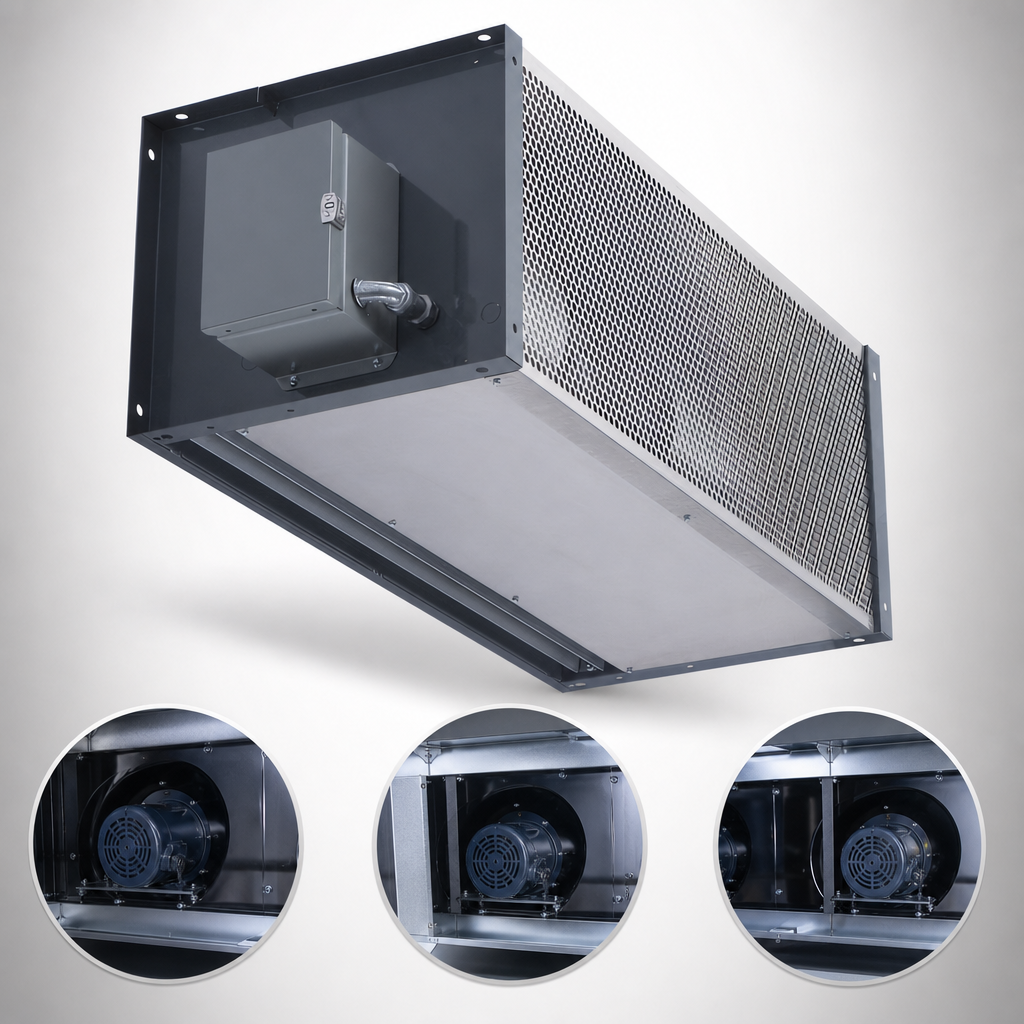

Three 1 HP Motors

Three direct-drive motors help deliver strong air movement across wide openings.

Designed for 14-Foot Openings

Rated for doors up to 14 feet high for environmental separation and up to 12 feet for insect protection.

Inlet Screen Included

Includes an inlet screen to help protect the air intake.

All-Welded Powder-Coated Construction

Built with durable welded construction, a gray powder-coated exterior, and a mill aluminum inlet panel.

Interior Mounting

Configured for interior mounting; housing must be specified when ordering.

Type Heated
Style Direct Drive
Watts 42 kW
Motors 3
Horsepower Per Motor 1 HP
Max Opening Height 14 Feet
Insect Protection Height 12 Feet
Finish Gray Powder-Coated
Country of Origin USA
Shipping Width 132 Inches
Shipping Weight 433 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year parts warranty on heated models

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is designed for environmental separation at doors up to 14 feet high and for insect protection at doors up to 12 feet high.
This model uses electric heat rated at 42 kW.
It has three motors, each rated at 1 HP.
Yes, an inlet screen is included.
Heated models are covered for 2 years from the original date of shipment. The warranty excludes labor for removal or installation of defective parts.
Yes. The documentation says to specify the housing when ordering.
