Berner Industrial Series IDC14-3132A-3 Unheated Direct Drive Air Curtain, 132 Inch, 3 x 1 HP Motors

SKU: IDC14-3132A-3
$5,161.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

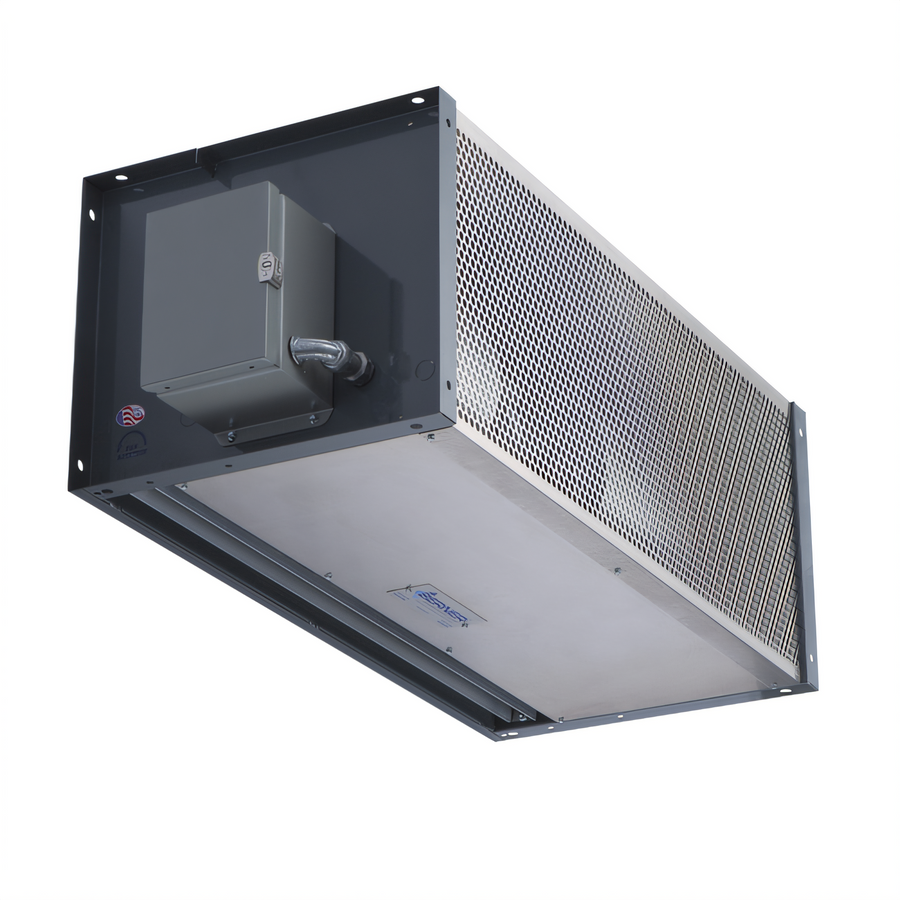

Berner Industrial Series IDC14-3132A-3 Unheated Direct Drive Air Curtain, 132 Inch, 3 x 1 HP Motors

Interior-mount ambient model for openings up to 14 ft. high; 12 ft. insect control height

Built for wide openings, this unheated air curtain uses three direct-drive 1 HP motors to help maintain environmental separation without adding heat.

  • Ambient, unheated air curtain for environmental separation and insect control.
  • Three direct-drive 1 HP motors are sized for large doorway coverage.
  • Rated for mounting heights up to 14 ft. for environmental separation and 12 ft. for insect control.
  • Standard gray powder-coated exterior includes a mill aluminum inlet screen and access panels.
  • Wall and top mounting design supports interior installation above the doorway.
  • High-efficiency Pro-V nozzle helps deliver a strong, even air stream.

Overall Dimensions:

132.0"W

Product Weight:

415.0 lb

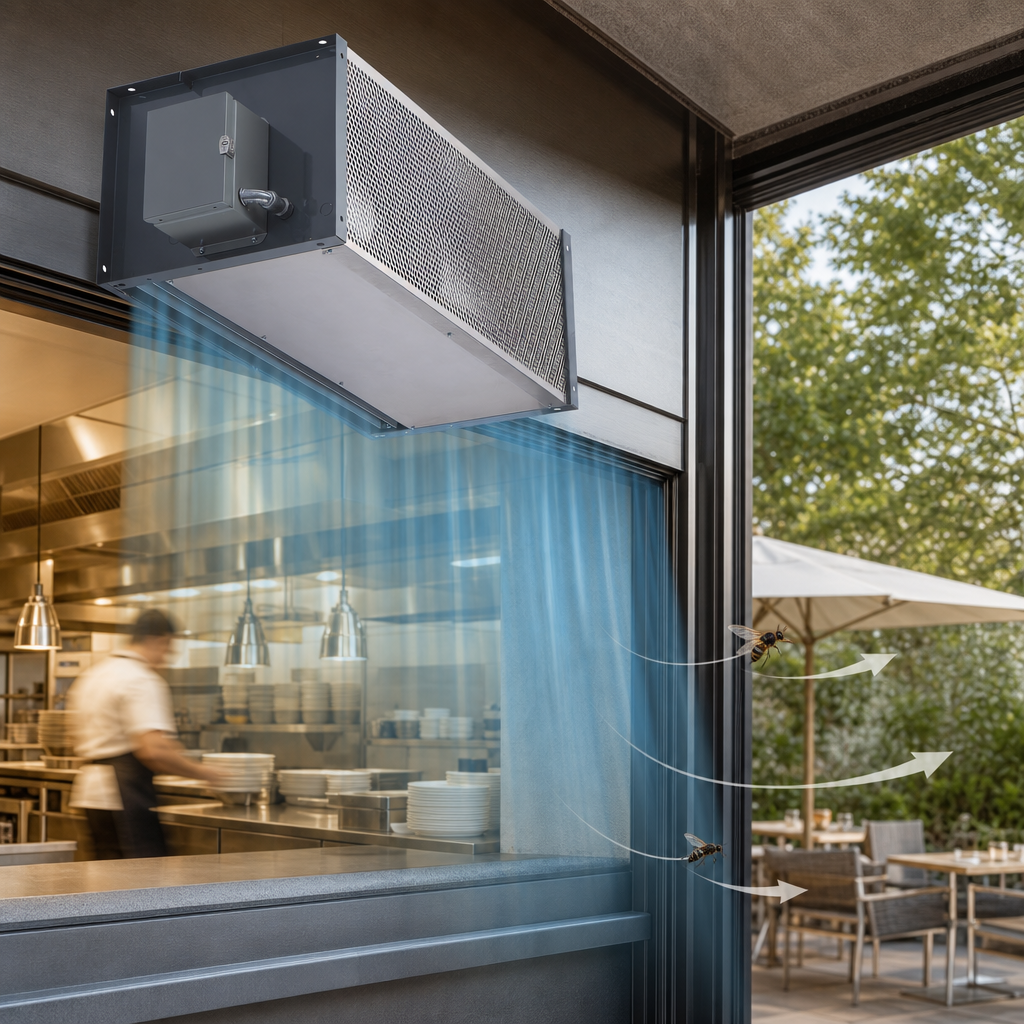

Ambient / Unheated Operation

Creates an air barrier without adding heat, making it ideal for separation and insect control at open doorways.

Ambient / Unheated Operation

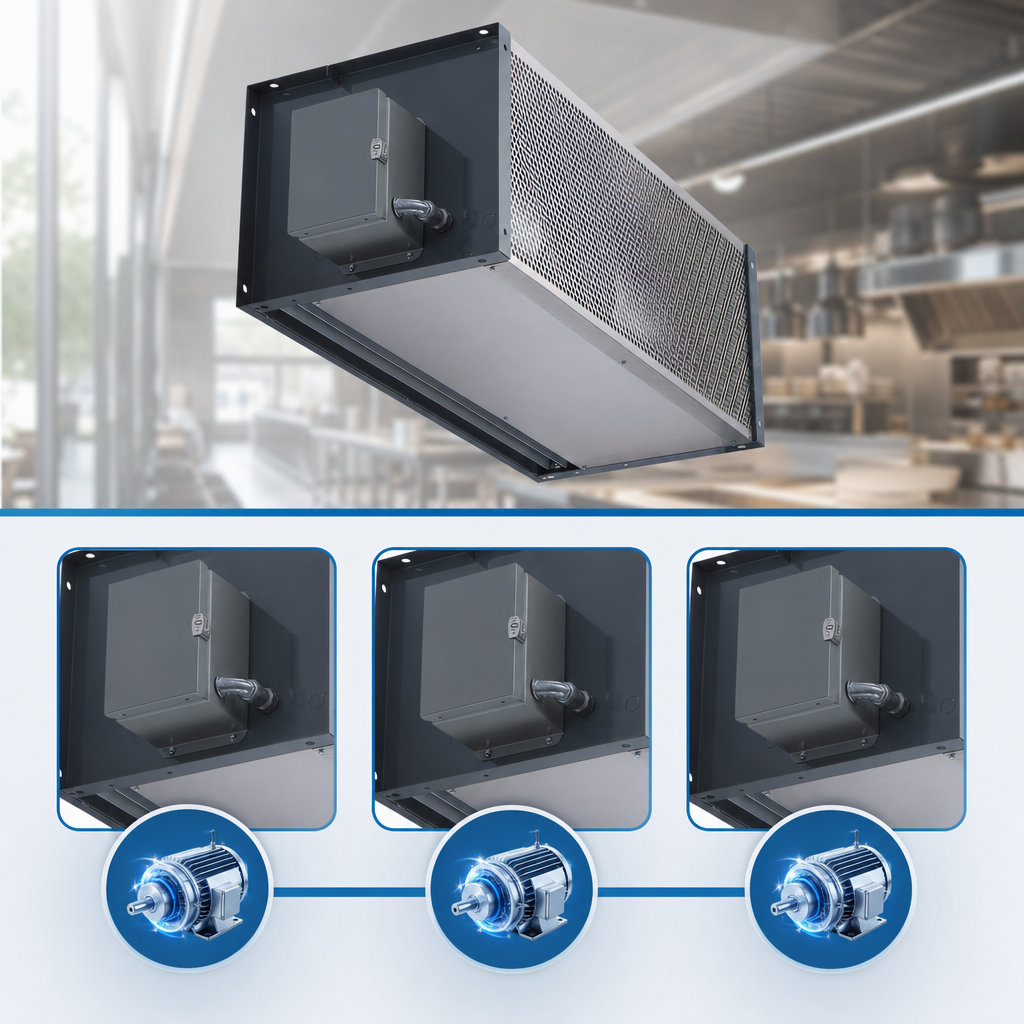

Three 1 HP Direct-Drive Motors

Provides the airflow needed for wide openings while keeping the drive system simple and durable.

Three 1 HP Direct-Drive Motors

Rated For Tall Openings

Designed for mounting heights up to 14 feet for environmental separation and 12 feet for insect control.

Standard Gray Powder-Coated Cabinet

Durable factory finish with mill aluminum screen and access panels.

Wall And Top Mounting

Supports flexible interior installation above the doorway.

High-Efficiency Pro-V Nozzle

Engineered to help produce a more effective air curtain across the opening.

Protective Inlet Screen

Includes an inlet screen to help protect the air intake; optional filters are available.

Optional Cabinet Finishes

Custom color and stainless steel cabinet options are available.

Type Unheated Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Country of Origin USA
Motors 3
Horsepower Per Motor 1 HP
Maximum Opening Height 14 Feet
Insect Control Height 12 Feet
Air Volume 7,507 CFM
Max Velocity At Nozzle 7,040 FPM
Average Outlet Velocity 2,340 FPM
Outlet Velocity Uniformity 81%
Power Rating 3.49 kW
Color Gray
Finish Powder Coated
Selling Unit Each
Units Per Case 1
Shipping Width 132 Inches
Shipping Weight 415 lb.

Certifications & Compliance

Warranty & Protection

5-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is rated for mounting heights up to 14 ft. for environmental separation and 12 ft. for insect control.
No. This is an ambient, unheated air curtain.
It uses three direct-drive motors, each rated at 1 HP.
The standard construction supports wall and top mounting for interior installation.
The standard cabinet finish is gray powder coat with a mill aluminum screen and access panels; custom color or stainless steel is optional.
Unheated models carry a 5-year limited warranty from the original shipment date, subject to proper installation and use.
