Berner Industrial Series IDC14-3096A-3 Direct Drive Ambient (Unheated) Air Curtain for 96-Inch Openings, 3 x 1 HP Motors

For 14 ft environmental separation and 12 ft insect control

This ambient air curtain helps maintain indoor conditions at large doorways with three direct-drive 1 HP motors and coverage rated to 14 feet high.

  • Ambient, unheated air curtain for environmental separation and insect control.
  • Three 1 HP direct-drive motors deliver strong airflow for wide openings.
  • Rated for doors up to 14 feet high, or 12 feet for insect protection.
  • Standard inlet screen and high-efficiency Pro-V nozzle support consistent air delivery.
  • Designed for wall or top mounting in interior installations.
  • Gray powder-coated exterior with mill aluminum screen and access panels; custom color or stainless options available.
  • Backed by a 5-year limited warranty on unheated models.

Overall Dimensions:

96.0"W

Product Weight:

311.0 lb

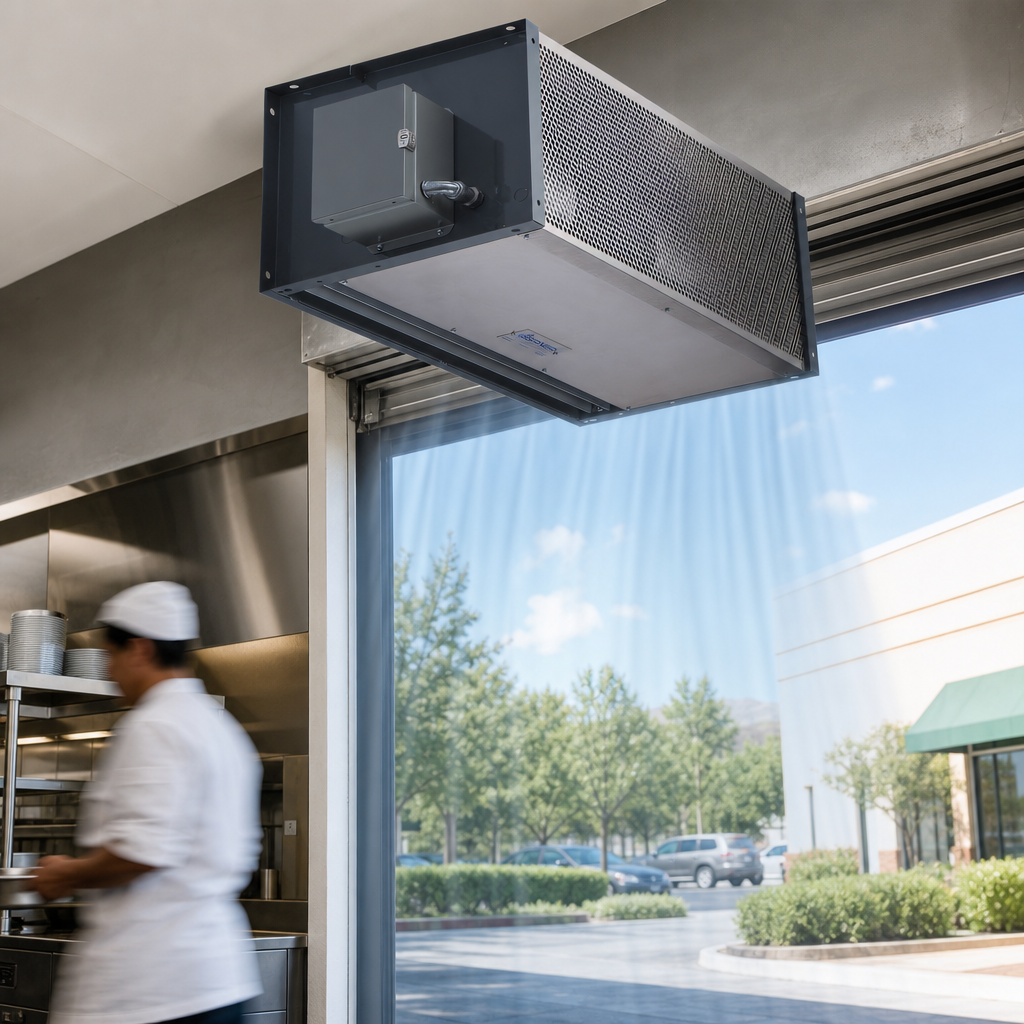

Ambient (Unheated) Operation

Moves air without heat, making it ideal for environmental separation and insect control at open doorways.

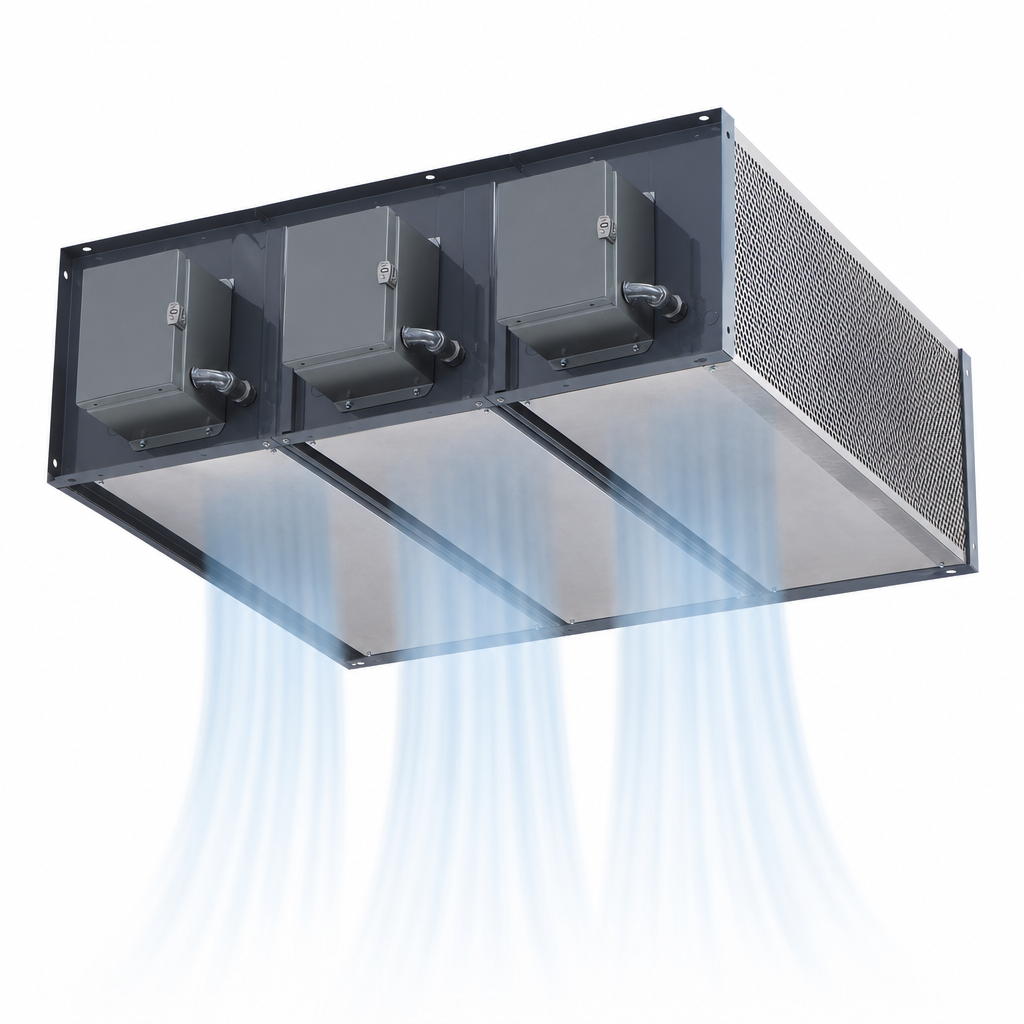

Three 1 HP Direct-Drive Motors

Uses three direct-drive motors for strong air movement across large openings.

14-Foot Environmental Separation Rating

Designed for mounting heights up to 14 feet for environmental separation.

12-Foot Insect Control Rating

Rated for mounting heights up to 12 feet when insect protection is the priority.

High-Efficiency Pro-V Nozzle

Helps deliver a focused, consistent air stream across the opening.

Standard Front Air Intake with Inlet Screen

Standard construction includes a front air intake and protective inlet screen; top intake is available by specification.

Wall and Top Mounting

Supports wall and top mounting for flexible installation above the doorway.

Durable Gray Powder-Coated Exterior

Standard exterior finish includes a gray powder coat with mill aluminum screen and access panels.

Optional Cabinet Finish Choices

Custom color or stainless steel cabinet finishes are available.

5-Year Limited Warranty

Unheated models are covered by Berner's 5-year limited warranty from the original shipment date.

Type Un-Heated
Style Direct Drive
Installation Type Wall Mounted
Maximum Opening Height 14 Feet
Insect Protection Height 12 Feet
Motors 3
Horsepower Per Motor 1 HP
Color Gray
Finish Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 96 Inches
Shipping Weight 311 lb.

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download

Frequently Asked Questions

No. This is an ambient, unheated air curtain.
It is rated for 14 feet high for environmental separation and 12 feet high for insect control.
It uses three direct-drive motors at 1 HP each.
The standard construction supports wall and top mounting, with a front air intake standard and a top intake available by specification.
Unheated models include a 5-year limited warranty from the original shipment date.
The standard finish is a gray powder-coated exterior with mill aluminum screen and access panels.
