Berner Industrial IDC14 96-Inch Electric Heated Direct-Drive Air Curtain (28 kW, 2 x 1 HP)

96" Industrial Series air curtain for doors up to 14 ft (environmental separation) — gray powder-coated, interior/wall mounting

High-capacity 96" electric air curtain with 28 kW heating and twin 1 HP direct-drive motors to maintain interior climate and keep insects out on large loading doors.

  • 96 Inches long direct-drive Industrial Series air curtain with 28 kW electric heating
  • Two 1 HP direct-drive motors for robust, continuous airflow
  • Rated for doors up to 14 ft high (environmental separation) and 12 ft for insect protection
  • Durable all-welded steel construction with gray powder-coated exterior and mill aluminum inlet panel
  • Wall or top mounting; interior mounting common — ½" pre-drilled mounting holes; mounting brackets available
  • Optional washable filters, nozzle extensions and control packages; cULus listed and Made in USA
  • Heated models carry a 2-year warranty (see warranty details)

Overall Dimensions:

96.0"W

Product Weight:

279.0 lb

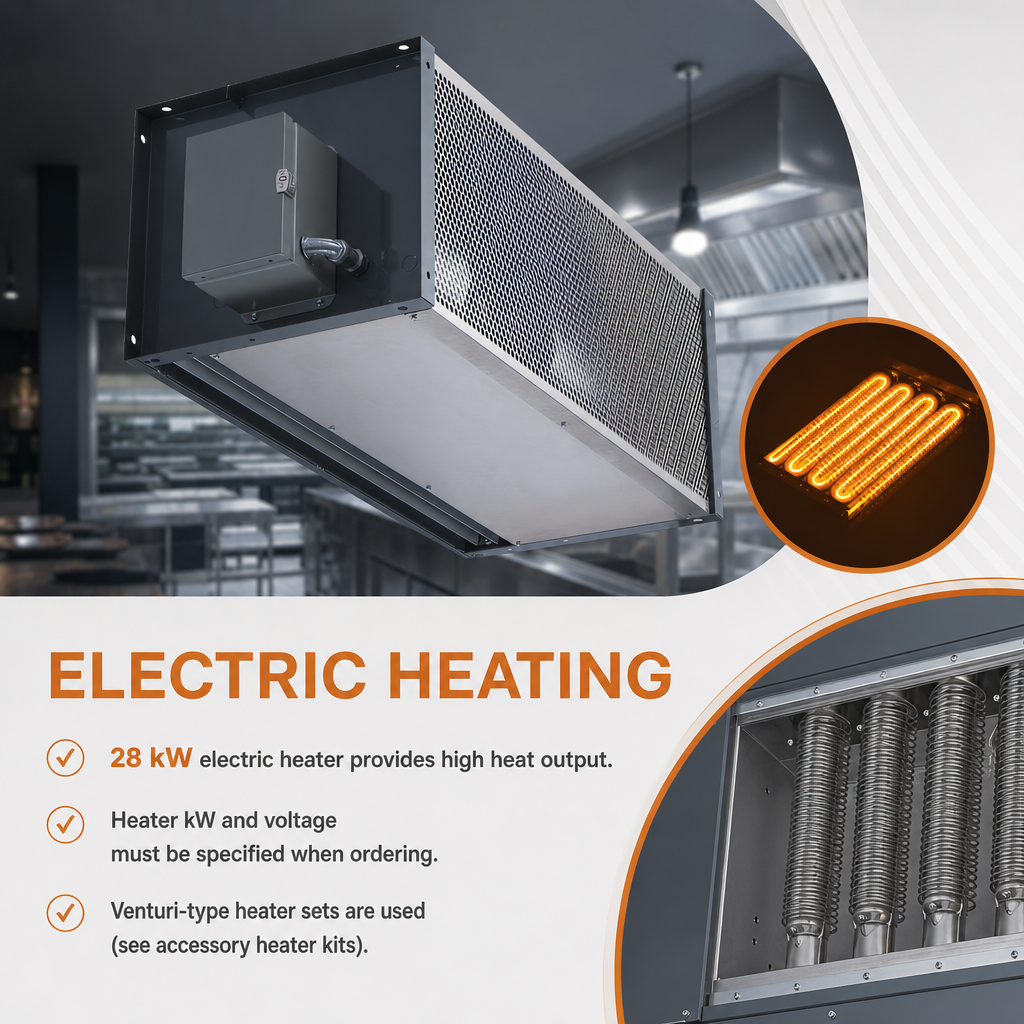

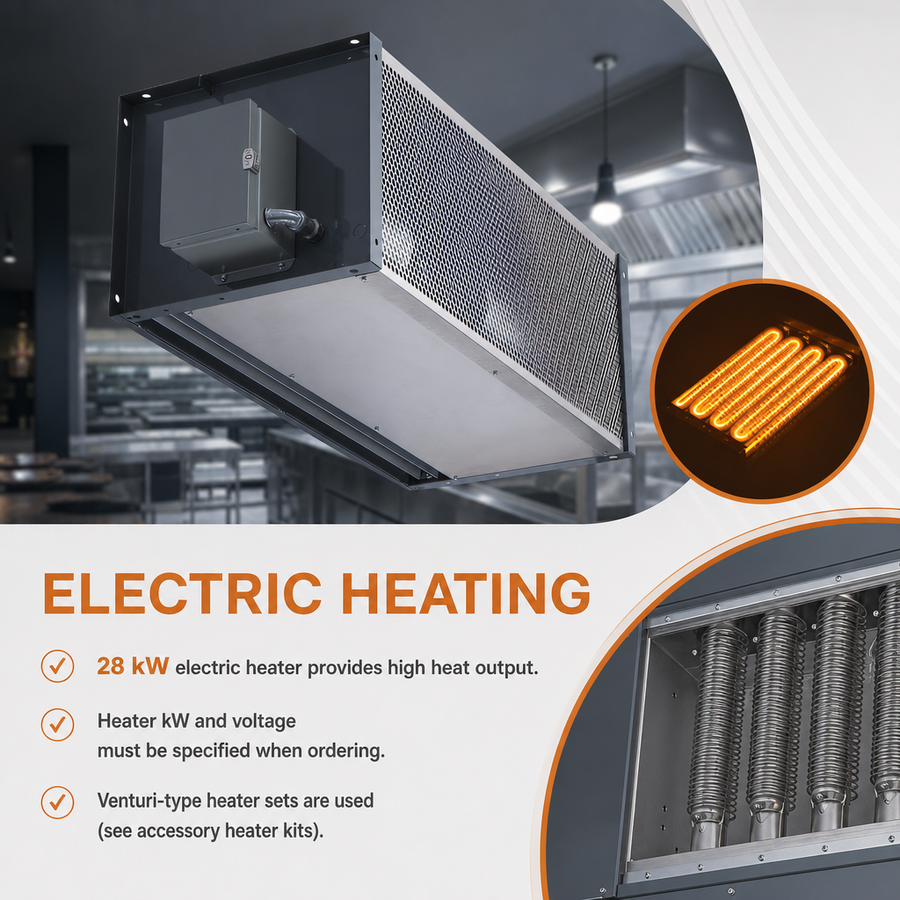

Electric Heating

28 kW electric heater provides high heat output. Heater kW and voltage must be specified when ordering; venturi-type heater sets are used (see accessory heater kits).

Electric Heating

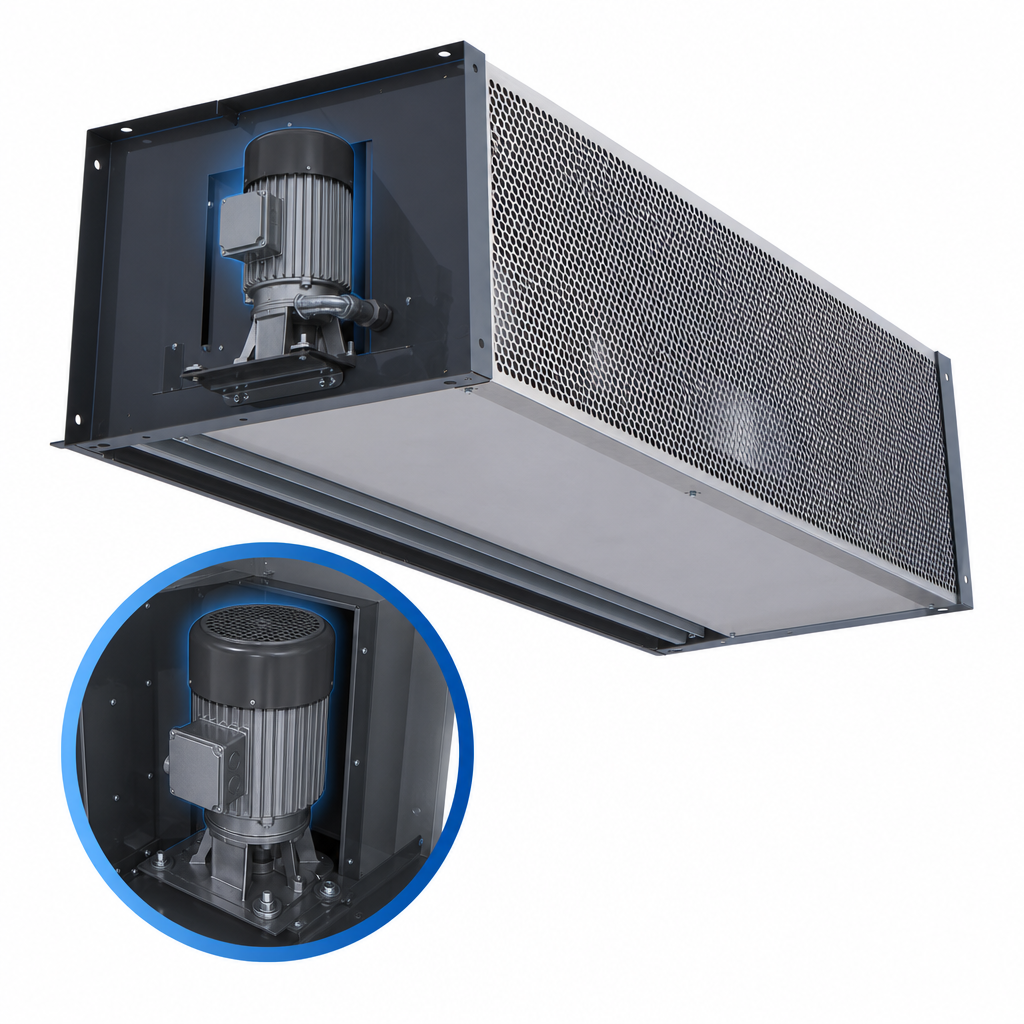

Direct-Drive Motors

Two 1 HP direct-drive motors deliver the airflow needed for large openings. Single-speed is standard; two-speed motors are available as an option.

Direct-Drive Motors

Mounting & Installation

Designed for wall or top mounting with ½" pre-drilled holes for straightforward installation. No assembly required for single lengths up to 16'.

Rugged Construction

All-welded construction with a gray powder-coated exterior and mill aluminum inlet panel for long service life in industrial environments.

Inlet Screen & Filters

Includes mill aluminum inlet screen; optional ½" polyester or aluminum washable filters available in multiple lengths (measure to determine part number).

Control Options

Built-in or remote-mounted control panels. Heated units offer Basic and Deluxe control packages; activation device (plunger, roller arm, whisker arm or heavy-duty door switch) required.

Certifications & Origin

cULus listed (see manufacturer for details) and Made in USA.

Type Heated
Style Direct Drive
Installation Type Wall Mounted
Heat Type Electric
Watts 28 kW
Motors 2
Horsepower Per Motor 1 HP
Max. Opening Height 14 Feet
Material Steel
Finish Gray Powder-Coated
Interior Finish Mill Aluminum
Controls Built-In or Remote
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 96 Inches
Shipping Weight 279 Pounds

Certifications & Compliance

Warranty & Protection

Two years (2 years) limited warranty on heated models for defects in workmanship and materials.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

The IDC14 is designed for wall or top mounting (interior mounting common). It ships with ½" pre-drilled mounting holes; optional mounting brackets are available for horizontal and vertical mounting.
This IDC14 model is rated for openings up to 14 ft for environmental separation and up to 12 ft for insect protection.
This is an electric-heated model with 28 kW heating. Heater kW and voltage must be specified when ordering. Berner uses venturi heater sets (multiple 7 kW kits shown in parts documentation); both heater elements are required for full kW operation.
Yes. Optional ½" polyester or aluminum washable filters are available in multiple lengths. Measure the required filter length to determine the correct part number (multiple filter sections may be used on one air curtain).
Heated models carry a two-year limited parts warranty from the original shipment date. See manufacturer's warranty for full terms, limitations and return procedures.
The unit is cULus listed and is Made in USA. Note: certain listings (for example AMCA certification or outdoor-use UL listing) may be limited to ambient/unheated configurations — consult Berner documentation or factory for specifics.
