Berner Industrial IDC14-2096A-3 96-Inch Ambient Unheated Direct-Drive Air Curtain

For Openings Up to 14 Feet High; 2 x 1 HP Motors

Protect large openings with a rugged ambient air curtain that delivers a strong air barrier without added heat.

  • Ambient, unheated operation for environmental separation without supplemental heat.
  • Two 1 HP direct-drive motors help maintain strong, consistent airflow.
  • Rated for doors up to 14 feet high for environmental separation and 12 feet for insect control.
  • Standard gray powder-coated cabinet with mill aluminum screen and access panels.
  • Wall and top mounting options with front intake standard; top intake, stainless steel, and custom color options available.
  • High-efficiency Pro-V nozzle helps shape a focused air stream across the opening.
  • 5-year limited warranty on unheated models; made in USA.

Overall Dimensions:

96.0"W

Product Weight:

267.0 lb

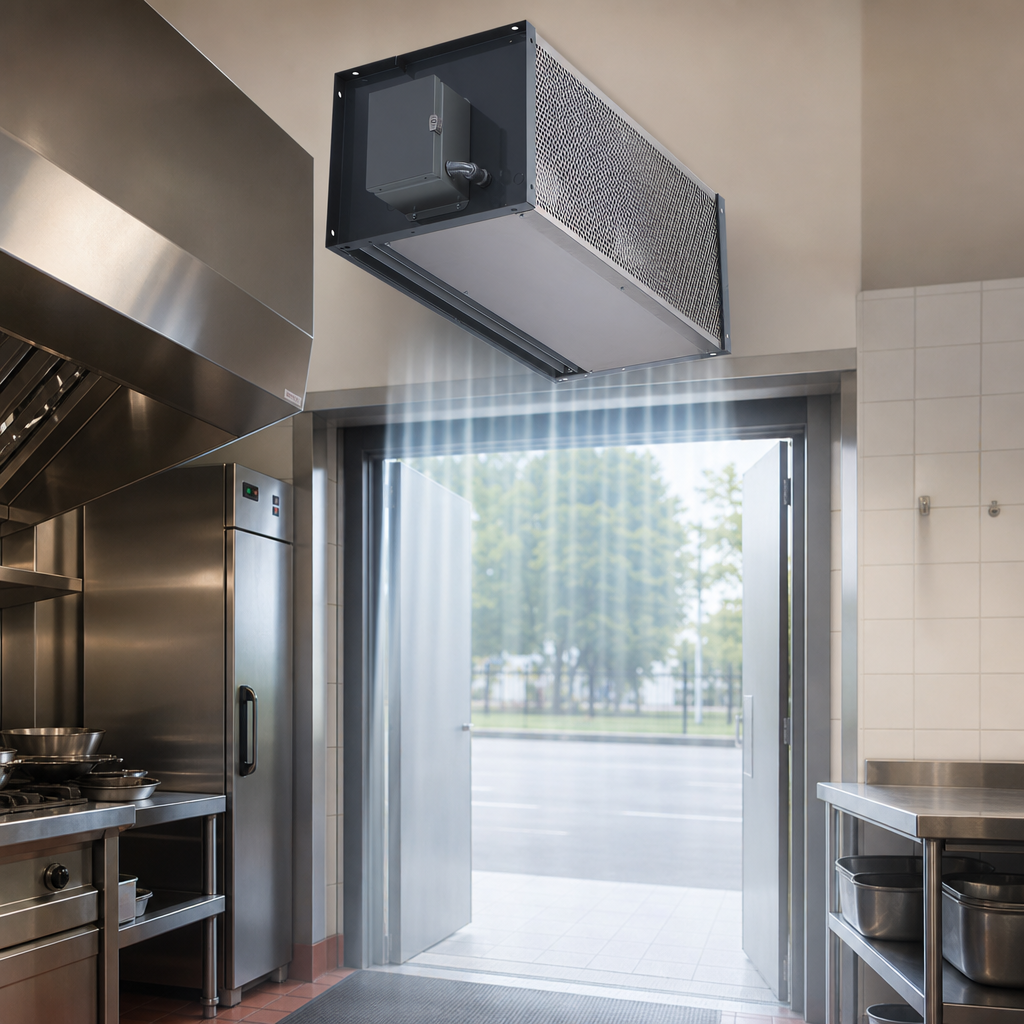

Ambient, Unheated Operation

Provides an air barrier without adding heat, making it ideal for separation and insect control.

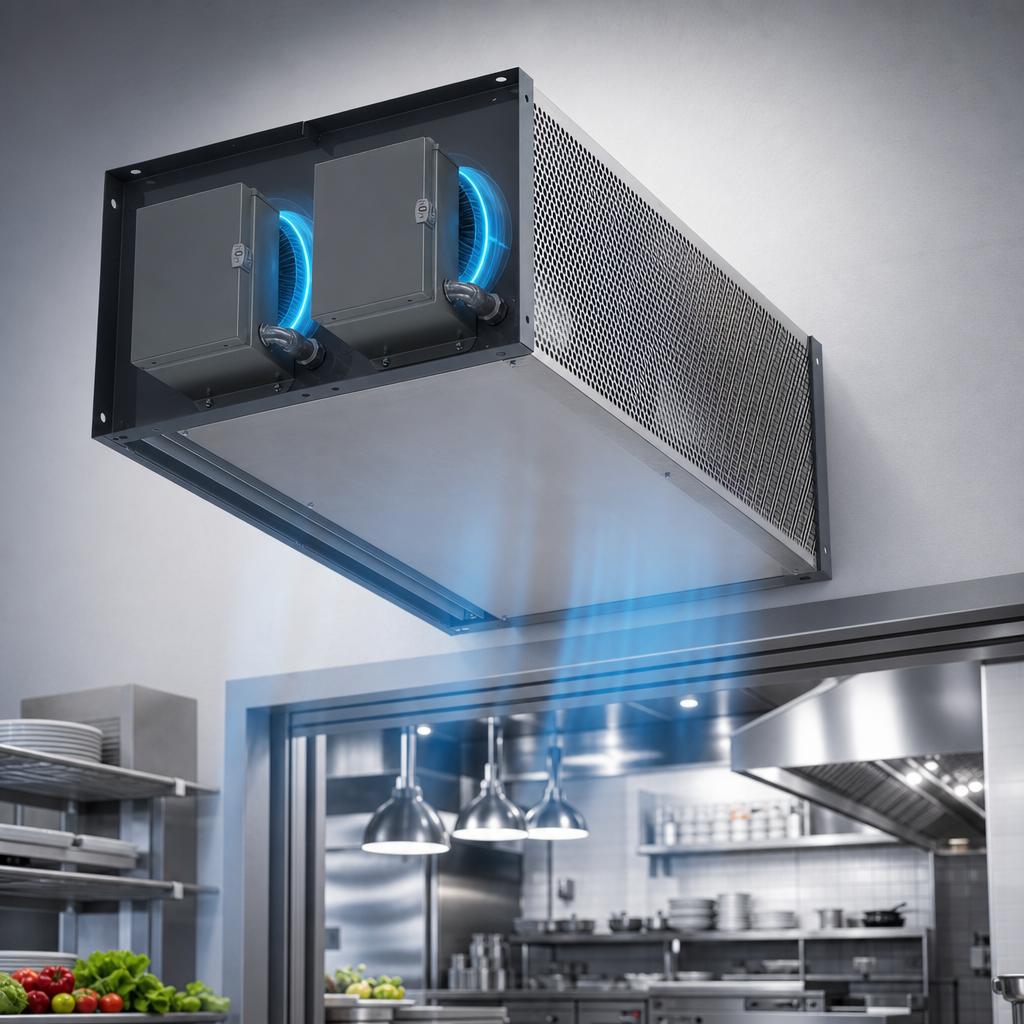

Dual 1 HP Direct-Drive Motors

Two direct-drive motors deliver strong airflow with a simple, low-maintenance design.

Rated For Tall Openings

Designed for doors up to 14 feet high for environmental separation and 12 feet for insect protection.

High-Efficiency Pro-V Nozzle

Helps create a focused, consistent air stream across the opening.

Protective Inlet Screen

Standard mill aluminum inlet screen helps protect the intake; optional filters are available.

Durable Standard Finish

Gray powder-coated exterior with mill aluminum screen and access panels; stainless steel and custom color options are available.

Flexible Mounting And Intake Options

Supports wall and top mounting with a standard front intake and optional top intake.

Five-Year Limited Warranty

Unheated models include a 5-year limited warranty from the original shipment date.

Type Air Curtain
Style Ambient
Motor Count 2
Horsepower Per Motor 1 HP
Maximum Opening Height 14 Feet
Insect Protection Height 12 Feet
Color Gray
Finish Powder Coated
Shipping Width 96 Inches
Shipping Weight 267 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download

Frequently Asked Questions

No. This is an ambient, unheated air curtain.
It is rated for doors up to 14 feet high for environmental separation and 12 feet high for insect control.
This model uses two 1 HP direct-drive motors.
It comes standard with a gray powder-coated exterior, mill aluminum screen, and access panels.
Yes. Stainless steel or custom color cabinet finishes are available, and top intake can be specified as an option.
Unheated models include a 5-year limited warranty from the original shipment date when properly installed and operated.
