Berner

Berner Industrial IDC14 Series Ambient (Unheated) Direct-Drive Air Curtain, 2 x 1 HP, for 14-Foot Openings

SKU: IDC14-2096A-1
$3,085.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Berner Industrial IDC14 Series Ambient (Unheated) Direct-Drive Air Curtain, 2 x 1 HP, for 14-Foot Openings

Wall-Mounted, Protective Inlet Screen, Made in USA

Create a powerful air barrier over large doorways to help separate environments and reduce insect intrusion without adding heat.

  • Ambient, unheated design for environmental separation without introducing heat.
  • Rated for openings up to 14 feet high, or 12 feet for insect protection.
  • Two 1 HP direct-drive motors provide dependable airflow for wide entrances.
  • Standard protective inlet screen and gray powder-coated exterior.
  • Wall and top mounting design for flexible overhead installation.
  • Backed by a 5-year limited warranty on unheated models.

Overall Dimensions:

96.0"W

Product Weight:

267.0 lb

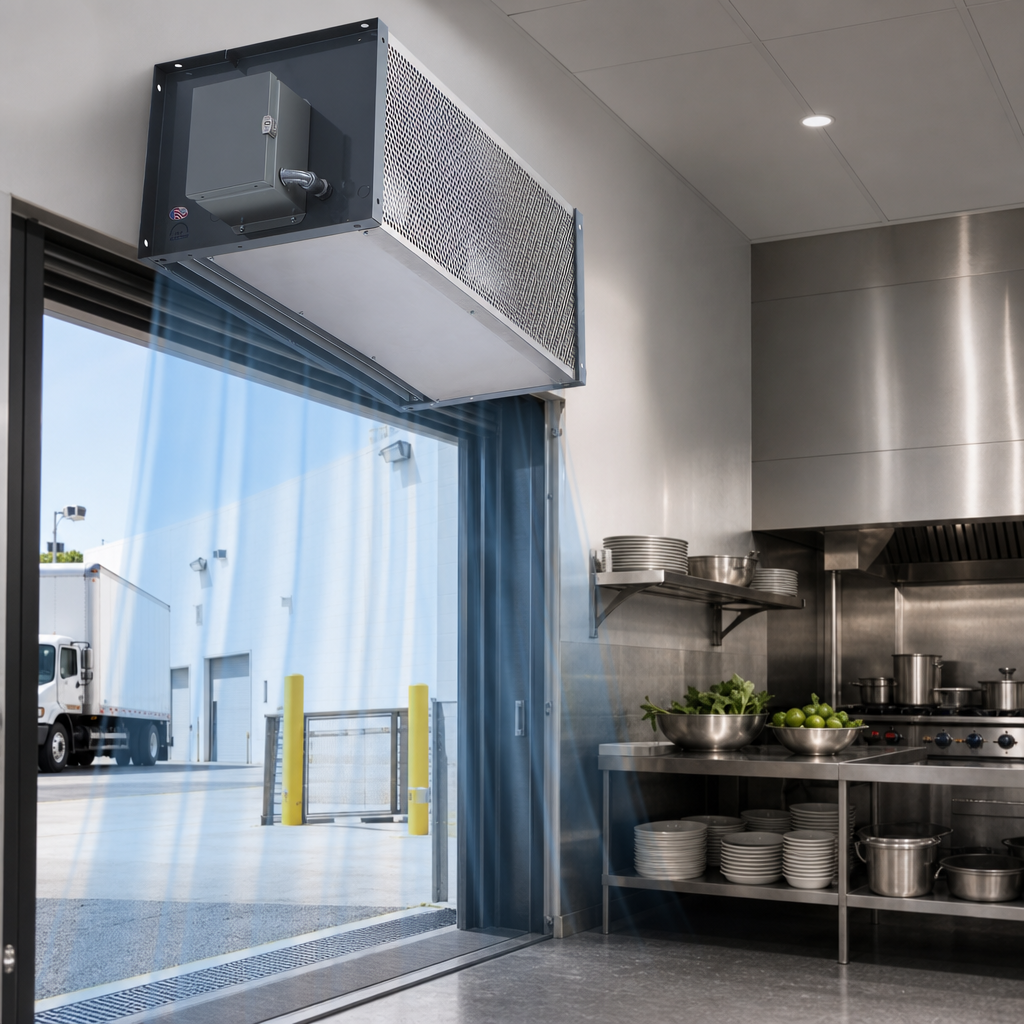

Ambient Unheated Design

Creates an air barrier for environmental separation without added heat.

Ambient Unheated Design

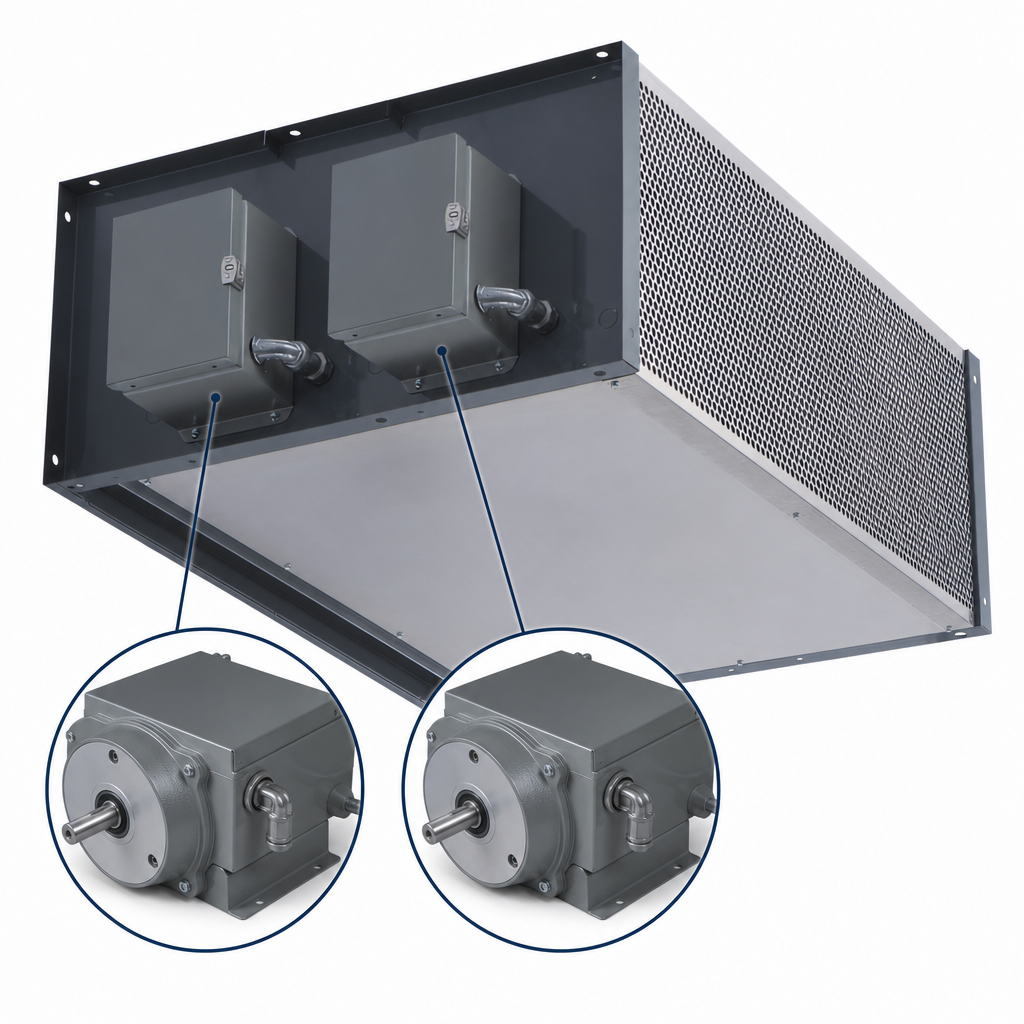

Dual 1 HP Direct-Drive Motors

Two direct-drive motors deliver airflow with a simple, durable drive setup.

Dual 1 HP Direct-Drive Motors

Door Coverage Rating

Designed for doors up to 14 feet high for environmental separation and 12 feet high for insect control.

Protective Inlet Screen

Standard inlet screen helps protect internal components while allowing airflow into the unit.

Wall and Top Mounting

Configured for wall and top mounting above the doorway.

High-Efficiency Pro-V Nozzle

Nozzle design helps produce a controlled, even air stream across the opening.

Finish Options

Standard gray powder-coated exterior with optional stainless steel or custom color cabinet finishes.

Warranty and Origin

Built in the USA and covered by a 5-year limited warranty on unheated models.

Type Ambient Air Curtain
Style Direct Drive
Installation Type Wall Mounted
Motor Count 2
Horsepower Per Motor 1 HP
Maximum Opening Height 14 Feet
Insect Protection Height 12 Feet
Finish Gray Powder Coated
Country of Origin USA
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It is rated for mounting heights up to 14 feet for environmental separation and 12 feet for insect control.
No. This is an ambient, unheated air curtain.
The standard construction supports wall and top mounting. Consult the factory for vertically mounted units.
The standard finish is gray powder coated, with optional stainless steel or custom color cabinet finishes available.
Unheated models carry a 5-year limited warranty from the original date of shipment.
Available voltage options include 120/1/60, 208/1/60, 240/1/60, 220/1/50, 208/3/60, 240/3/60, 480/3/60, 600/3/60, and 380/3/50.
